EDS-G512E-8PoE Series

Hardware Installation Guide

Moxa EtherDevice™ Switch

Second Edition, July 2015

www.ipc2u.ru

www.moxa.pro

- 2 -

Package Checklist

The EDS-G512E-8PoE is shipped with the following items. If any of these

items are missing or damaged, please contact your customer service

representative for assistance.

•1 EDS-G512E-8PoE-4GSFP or EDS-G512E-8PoE-4GSFP-T Ethernet

switch

•Hardware installation guide

•Documentation and software CD

•Moxa product warranty statement

•USB cable

•Protective caps for unused ports

Features

•Up to 8 10/100/1000BaseT(X) ports and 4 100/1000BaseSFP ports

•Up to 8 IEEE 802.3af and IEEE 802.3at PoE+ standard ports

36-watt output per PoE+ port in high-power mode

Intelligent PoE power management functions

•Operate with 240 watts full PoE+ loading at -40 to 75°C

•Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250

switches), RSTP/STP, and MSTP for network redundancy

•TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance

network security

•Easy network management by web browser, CLI, USB serial console,

ABC-02-USB, MXview, MXconfig, and Windows utility

www.ipc2u.ru

www.moxa.pro

- 3 -

Panel Views of EDS-G512E-8PoE Series

Front Panel

Top Panel

Rear Panel

Front Panel

1000BaseT(X) LED indicator

10/100BaseT(X) LED indicator

10/100/1000BaseT(X) ports

Port 1 to 8

System status LED:

•STATE LED indicator

•PWR1 LED indicator

•PWR2 LED indicator

•FAULT LED indicator

•MSTR/HEAD LED indicator

•CPLR/TAIL LED indicator

USB storage port

SFP port LED indicator

Port 9 to 12

100/1000BaseSFP slots

Model Name

SmartPoE LED indicator of PoE+

ports

Top Panel

Reset button

USB console port

DIP switches for Turbo Ring,

Ring Master, and Ring Coupler

Grounding screw

4-pin terminal block for digital

input and power input 2

4-pin terminal block for relay

output and power input 1

Rear Panel

Screw holes for wall mounting

kit

DIN-rail mounting kit

www.ipc2u.ru

www.moxa.pro

- 4 -

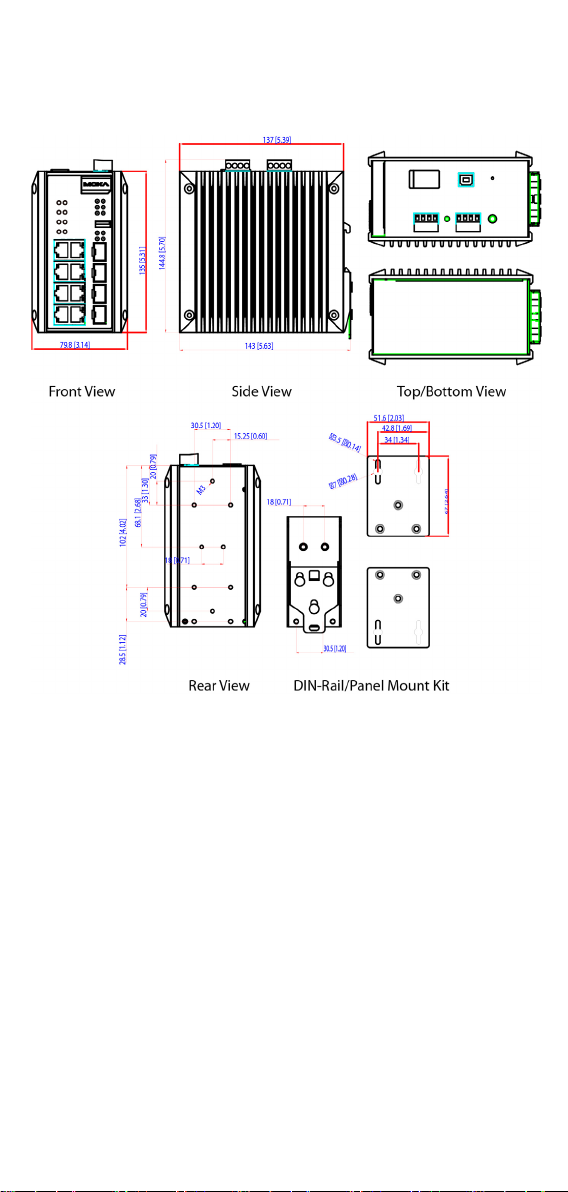

Mounting Dimensions

Unit = mm (inch)

www.ipc2u.ru

www.moxa.pro

- 5 -

DIN-Rail Mounting

The metal DIN-rail kit is fixed to the back panel of the EDS-G512E-8PoE

series when you take it out of the box. Mount the EDS-G512E-8PoE series

on corrosion-free mounting rails that meet the EN 60715 standard.

Installation

STEP 1—Insert the upper lip

of the DIN r

ail into the DIN-r

ail

mounting kit.

STEP 2

—Press the

EDS

-G512E-8PoE series

towards the

DIN rail until it

snaps into place.

Removal

STEP 1

—Pull down the latch

on the mounting kit

with a

screwdriver.

STEP 2

& 3—Slightly pull

the

EDS

-G512E-8PoE series

forward and lift up to remove

it from the DIN r

ail.

Wall Mounting (Optional)

For some applications, you will find it convenient to mount Moxa EDS-

G500E series on the wall, as shown in the following illustrations:

STEP 1—Remove the

aluminum DIN r

ail

attachment plate from the

rear panel

of the

EDS

-G512E-8PoE series,

and

then attach the wall

mount plates

with M3

screws

, as shown in the

figure at the right.

www.ipc2u.ru

www.moxa.pro

- 6 -

STEP 2—Mounting the EDS-G512E-8PoE series on

the wall requires 4 screws. Use the

EDS

-G512E-8PoE series, with wall mount plates

attached, as a guide to mark the correct locations

of the 4 screws. The heads of the screws should be

less than 6.0 mm in diameter, and the shafts

should be less than 3.5

mm in diameter, as shown

in the figure on at right.

NOTE

Before tightening the screws into the wall, make sure the screw

head and shank size are suitable by inserting the screw through

one of the keyhole-shaped apertures of the Wall Mounting Plates.

Do not screw the screws in all the way—leave about 2 mm to allow room

for sliding the wall mount panel between the wall and the screws.

STEP 3—Once the screws are

fixed

the wall, insert the four

screw heads through the wide

parts of the keyhole

-shaped

apertures, and then slide

the

EDS

-G512E-8PoE downwards,

as indicated

in the figure at

the

right. Tighten the four screws for

stability.

Wiring Requirements

WARNING

Do not disconnect modules or wires unless power has been

switched off or the area is known to be non

-hazardous. The

devices may only be connected to the supply voltage shown on

the type plate. The devices are designed for operation with a

afety Extra-Low V

oltage. Thus, they may only be connected to

the supply voltage connections and to the signal contact

with the

afety Extra-Low Voltages (SELV) in compliance with IEC950/

EN60950/ VDE0805.

ATTENTION

This unit is a built

-in type. When the unit is installed in another

piece of equipment, the equipment enclosing the unit

must

comply with fire enclosure regulation IEC 60950/EN60950 (or

similar regulation).

www.ipc2u.ru

www.moxa.pro

- 7 -

ATTENTION

Safety First!

Be sure to disconnect the power cord before installing and/or

wiring your Moxa EtherDevice Switch.

Calculate the maximum possible current in each power wire and

common wire. Observe all electrical codes dictating the

maximum current allowable for each wire size.

If the current goes above the maximum ratings, the wiring could

overheat, causing serious damage to your equipment.

Please read and follow these guidelines:

•Use separate paths to route wiring for power and devices. If power

wiring and device wiring paths must cross, make sure the wires are

perpendicular at the intersection point.

NOTE: Do not run signal or communications wiring and power wiring

through the same wire conduit. To avoid interference, wires with

different signal characteristics should be routed separately

•You can use the type of signal transmitted through a wire to

determine which wires should be kept separate. The rule of thumb is

that wiring that shares similar electrical characteristics can be

bundled together

•You should separate input wiring from output wiring

•We advise that you label the wiring to all devices in the system.

Grounding the Moxa EDS-G512E-8PoE Series

Grounding and wire routing help limit the effects of noise due to

electromagnetic interference (EMI). Run the ground connection from the

ground screw to the grounding surface prior to connecting devices.

ATTENTION

This product is intended to be mounted to a well

-grounded

mounting surface such as a metal panel.

Wiring the Relay Contact

The EDS-G512E-8PoE series has one set of relay output. This relay

contact uses two contacts of the terminal block on the EDS-G512E-8PoE’s

top panel. Refer to the next section for detailed instructions on how to

connect the wires to the terminal block connector, and how to attach the

terminal block connector to the terminal block receptor. In this section,

we illustrate the meaning of the two contacts used to connect the relay

contact.

FAULT:

The two contacts of the 6

-pin terminal

block connector are used to detect

user

-configured events. The two wires

attached to the

fault contacts form an

open circuit when a user

-configured

event is triggered. If a user

-configured

event does not occur, the

fault circuit

remains closed.

www.ipc2u.ru

www.moxa.pro

- 8 -

Wiring the Redundant Power Inputs

The EDS-G512E-8PoE series has two sets of power inputs—power input 1

and power input 2. The top and front views of one of the terminal block

connectors are shown here.

STEP 1: Insert the negative/positive DC

wires into the V

-/V+ terminals,

respectively.

STEP 2:

To keep the DC wires from

pulling loose, use a small flat

-blade

screwdriver to tighten the wire

-clamp

screws on the front of the terminal block

connector.

STEP 3:

Insert the plastic terminal block

connector prongs into the terminal block

receptor, which is located on

the

EDS-G512E-8PoE’s top panel.

Wiring the Digital Inputs

The EDS-G512E-8PoE series has one set of digital input (DI). The DI

consists of two contacts of the 4-pin terminal block connector on the

EDS-G512E-8PoE's top panel, which are used for the two DC inputs. The

top and front views of one of the terminal block connectors are shown

here.

STEP 1: Insert the negative

(ground)/positive DI wires into the

┴

/I terminals, respectively.

STEP 2:

To keep the DI wires from

pulling loose, use a small flat

-blade

screwdriver to tighten the wire

-clamp

screws on the front of the terminal block

connector.

STEP 3:

Insert the plastic terminal block

connector prongs into the terminal block

receptor, which i

s located on the

EDS-G512E-8PoE’s top panel.

Communication Connections

Each EDS-G512E-8PoE series switch has 4 types of communication ports:

•1 USB console port (type B connector)

•1 USB storage port (type A connector)

•8 10/100/1000BaseT(X) Ethernet ports

•4 100/1000Base SFP slots

USB Console Connection

The EDS-G512E-8PoE series has one USB console port (type B connector),

located on the top panel. Use the USB cable (provided in the product

package) to connect the EDS-G512E-8PoE's console port to your PC's

USB port and install the USB driver (available in the software CD) on the

PC. You may then use a console terminal program, such as Moxa PComm

Terminal Emulator, to access the EDS-G512E-8PoE’s console

configuration utility.

www.ipc2u.ru

www.moxa.pro

- 9 -

USB Console Port (Type B Connector) Pinouts

Description

D– (Data -)

VCC (+5V)

D+ (Data+)

GND (Ground)

USB Storage Connection

The EDS-G512E-8PoE series has one USB storage port (type A connector)

on the front panel. Use Moxa ABC-02-USB-T automatic backup

configurator to connect the EDS-G512E-8PoE's USB storage port for

configuration backup, firmware upgrade or system log file backup.

ABC-02-USB Installation

Plug the ABC-02-USB into the

USB

storage port of

the Moxa

EDS

-G512E-8PoE series.

Securing the ABC

-02-USB on

the wall with an M4 screw is

suggested.

USB Storage Port (Type A Connector) Pinouts

Description

VCC (+5V)

D– (Data -)

D+ (Data+)

GND (Ground)

1000BaseT Ethernet Port Connection

1000BaseT data is transmitted on differential TRD+/- signal pairs over

copper wires.

MDI/MDI-X Port Pinouts

Signal

TRD(0)+

TRD(0)-

TRD(1)+

TRD(2)+

TRD(2)-

TRD(1)-

TRD(3)+

TRD(3)-

www.ipc2u.ru

www.moxa.pro

- 10 -

100/1000BaseSFP (mini-GBIC) Fiber Port

The Gigabit Ethernet ports on the EDS-G512E-8PoE series are

100/1000BaseSFP Fiber ports, which require using the 100M or 1G

mini-GBIC fiber transceivers to work properly. Moxa provides completed

transceiver models for different distance requirement.

The concept behind the LC port and cable is quite straightforward.

Suppose that you are connecting devices I and II; contrary to electrical

signals, optical signals do not require a circuit in order to transmit data.

Consequently, one of the optical lines is used to transmit data from device

I to device II, and the other optical line is used transmit data from device

II to device I, for full-duplex transmission.

Remember to connect the Tx (transmit) port of device I to the Rx (receive)

port of device II, and the Rx (receive) port of device I to the Tx (transmit)

port of device II. If you make your own cable, we suggest labeling the two

sides of the same line with the same letter (A-to-A and B-to-B, as shown

below, or A1-to-A2 and B1-to-B2).

LC-Port Pinouts

LC-Port to LC-Port Cable Wiring

ATTENTION

This is a Class 1 Laser/LED product. To avoid causing serious

damage to your eyes, do not stare directly into the Laser Beam.

Reset Button

There are two functions available on the Reset Button. One is to reset the

Ethernet switch to factory default settings by pressing and holding the

Reset button for 5 seconds. Use a pointed object, such as a straightened

paper clip or toothpick, to depress the Reset button. This will cause the

STATE LED to blink once a second. After depressing the button for 5

continuous seconds, the STATE LED will start to blink rapidly. This

indicates that factory default settings have been loaded and you can

release the reset button.

When the ABC-02-USB is connected to the EDS-G512E-8PoE Ethernet

switch, the reset button allows quick configuration and backs up log files

to the ABC-02-USB. Press the Reset button on top of the

EDS-G512E-8PoE, the Ethernet switch will start backing up current

system configuration files and event logs to the ABC-02-USB.

NOTE

Do NOT power off the Ethernet switch when loading default

settings.

www.ipc2u.ru

www.moxa.pro

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Cambiar de Moxa Technologies

Moxa Technologies

Moxa Technologies PT-7710 Series Manual de usuario

Moxa Technologies

Moxa Technologies TRC-190 Manual de usuario

Moxa Technologies

Moxa Technologies PT-7528-24TX-HV Manual de usuario

Moxa Technologies

Moxa Technologies EtherDevice EDS-4008 Series Manual de usuario

Moxa Technologies

Moxa Technologies TN-5308-LV Manual de usuario

Moxa Technologies

Moxa Technologies EtherDevice EDS-516A-T Manual

Moxa Technologies

Moxa Technologies ToughNet TN-5510-2GLSX-ODC Manual

Moxa Technologies

Moxa Technologies EDS-316 Series Manual de usuario

Moxa Technologies

Moxa Technologies PT-7728 Series Manual

Moxa Technologies

Moxa Technologies EDS-600 Series Manual de usuario

Moxa Technologies

Moxa Technologies ToughNet TN-5508 Series Manual

Moxa Technologies

Moxa Technologies EDS-G2005-EL Series Manual de usuario

Moxa Technologies

Moxa Technologies TN-5508A Series Manual

Moxa Technologies

Moxa Technologies UPORT 1200 series Manual de usuario

Moxa Technologies

Moxa Technologies PT-7728 Series Manual de usuario

Moxa Technologies

Moxa Technologies EDS-505A Series Manual

Moxa Technologies

Moxa Technologies NPort S8000 Series Manual de usuario

Moxa Technologies

Moxa Technologies TN-5510A Series Manual de usuario

Moxa Technologies

Moxa Technologies PT-G7509 Manual de usuario

Moxa Technologies

Moxa Technologies EtherDevice EDS-G500E Series Manual de usuario

Moxa Technologies

Moxa Technologies EtherDevice EDS-510A Series Manual de usuario

Moxa Technologies

Moxa Technologies EtherDevice EDS-G205A-4PoE Manual de usuario

Moxa Technologies

Moxa Technologies TN-5500A Series Manual de usuario

Moxa Technologies

Moxa Technologies EtherDevice EDS-P206A-4PoE Series Manual

Manuales populares de Cambiar de otras marcas

URC

URC Total Control MFS-8 Manual de usuario

Azbil

Azbil HPQ-D11 Manual de usuario

Sony

Sony DFS-900M Manual de usuario

SICK

SICK i17S Manual de usuario

F&F

F&F SZR-277 Manual de usuario

Shure

Shure UAMS/BK Manual de usuario

Dräger

Dräger X-zone Switch Off Manual de usuario

Asco

Asco Joucomatic 349 Series Manual de usuario

BT Mini Hub Manual de usuario

D-Link

D-Link DES-1226G Manual de usuario

Johnson Controls

Johnson Controls FS80-C Manual de usuario

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manual de usuario

MicroNet

MicroNet SP1200A Manual de usuario

Ruijie

Ruijie RG-PF2920 Series Manual de instalación y funcionamiento

Altinex

Altinex DA1914SX Manual de usuario

MiLAN

MiLAN MIL-SM2401M Manual de usuario

RJM

RJM MASTERMIND PBC/6X Manual de usuario

Atlas

Atlas MMK-KVM8 Manual de usuario
