MGate MB3280

Quick Installation Guide

Second Edition, June 2008

1. Overview

The MGate MB3280 is a 2-port Modbus gateway that converts between

Modbus TCP and Modbus ASCII/RTU protocols. It can be used to allow

Ethernet masters to control serial slaves, or to allow serial masters to

control Ethernet slaves. Up to 16 TCP masters and 62 serial slaves can be

connected simultaneously.

2. Package Checklist

Before installing the MGate MB3280, verify that the package contains

the following items:

y1 MGate MB3280 Modbus gateway

yDocument & Software CD

yMGate MB3280 Quick Installation Guide

yProduct Warranty Statement

Optional Accessory

yDK-35A: DIN-rail mounting kit (35 mm)

Notify your sales representative if any of the above items is missing or

damaged.

3. Hardware Introduction

As shown in the following figures, the MGate MB3280 has two serial

ports with DB9 (male) connectors for transmitting serial data.

Top Panel View

DIN-rail kit

screw hole

Wallmount

screw hole

Male DB9 serial port

Front Panel View

RJ45 10/100M Ethernet port

Reset button

Power input

Rear Panel View

Stick-on pad

Reset Button

The reset button is used to load factory defaults. Using a pointed object

such as a straightened paper clip, hold the reset button down for five

seconds. Release the reset button when the Ready LED stops blinking.

LED Indicators

Name Color Function

On: Power is on and unit is booting up

Red Blinking: IP conflict, DHCP/ BOOTP server

did not respond properly, or relay

output error occurred.

On: Power is on and unit is functioning

normally

Green Blinking: Unit is responding to Location

function.

Ready

Off Power is off or power error condition exists

Orange 10 Mbps Ethernet connection

Green 100 Mbps Ethernet connection

Ethernet

Off Ethernet cable is disconnected or has a short

Orange Serial port is receiving data.

Green Serial port is transmitting data.

P1/P2

Off No data is being transmitted or received through

the serial port.

4. Hardware Installation Procedure

STEP 1: After unpacking the unit, connect the power adaptor or

terminal block power input.

STEP 2: Use a standard straight-through Ethernet cable to connect the

unit to a network hub or switch. Use a cross-over Ethernet

cable if you are connecting the gateway directly to a PC.

STEP 3: Connect your device(s) to the serial port.

STEP 4: Place or mount the unit as desired. The unit may be placed on a

horizontal surface such as a desktop, mounted on a DIN-rail, or

mounted on the wall.

P/N: 1802032800010

— 4 — — 5 — — 6 —

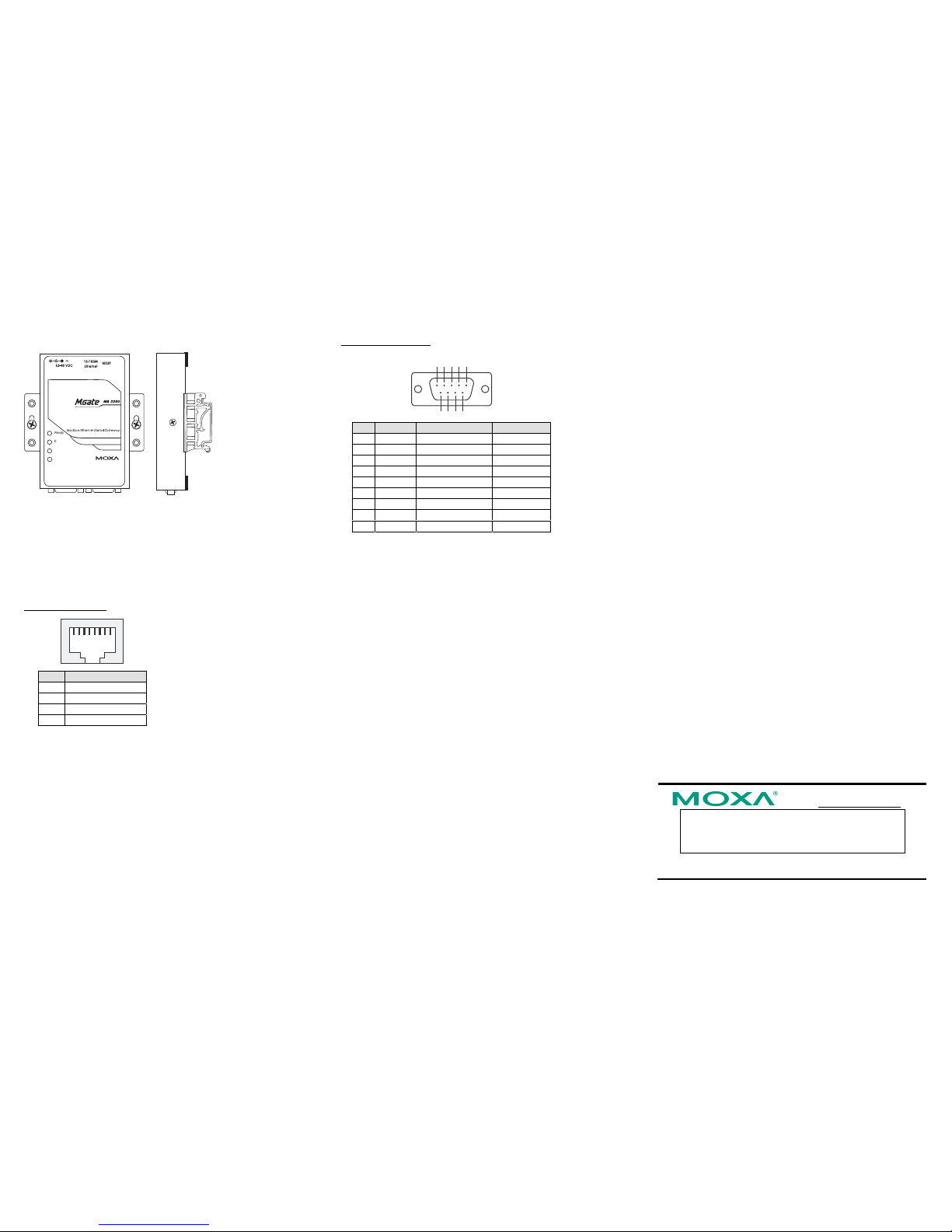

Wall Mounting DIN-rail Mounting

Port 1 Port 2

V- V+

MB 3280

Ready

Ethernet

P 1

P 2

RS-232/422/485 RS-232/422/485

5. Software Installation

To install MGate Manager, insert the MGate Document & Software

CD into your PC’s CD-ROM drive. Once the MGate Installation CD

window opens, click Installation and follow the on-screen instructions.

For additional information about MGate Manager, click Documents and

select the MGate MB3000 User’s Manual.

6. Pin Assignments

Ethernet Port (RJ45)

Pin Signals

1 Tx+

2 Tx-

3 Rx+

6 Rx-

Serial Port (Male DB9)

987

Pin RS-232 RS-422/485 (4W) RS-485 (2W)

1 DCD TxD-(A) ---

2 RxD TxD+(B) ---

3 TxD RxD+(B) Data+(B)

4 DTR RxD-(A) Data-(A)

5 GND GND GND

6 DSR --- ---

7 RTS --- ---

8 CTS --- ---

9 --- --- ---

7. Environmental Specifications

Power Requirements

Power Input 12 to 48 VDC

Power Consumption 250 mA@12 VDC, 90 mA@48 VDC

Operating Temperature 0 to 55°C (32 to 131°F)

Operating Humidity 5 to 95% RH

Dimensions (W x D x H) 100 × 116 ×22 mm ←with ears

88 ×116 × 22 mm ←without ears

Click here for online support:

www.moxa.com/support

The Americas: +1-714-528-6777 (toll-free: 1-888-669-2872)

Europe: +49-89-3 70 03 99-0

Asia-Pacific: +886-2-8919-1230

China: +86-21-5258-9955 (toll-free: 800-820-5036)

Reproduction without permission is prohibited.
