Mounting Dream MD2622-24K Manual de usuario

MD2622-24K INSTALLATION INSTRUCTION

(C1)

42"~75" Max:600x400mm/24x16"

Min:200x100mm/8x4"

Für die Installationsanweisungen auf Deutsch, siehe Seite 10~11.

Pour l'instruction en Français, veuillez vous reporter à la page 12~13.

Para las instrucciones de la instalación en Español, favor vea la página 14~15.

Per le Istruzioni in Italiano, vedi pagina 16~17.

1 2

x1x3

Before getting started, let’s make sure this mount is perfect for you!

1 Is your TV VESA

equal to/greater than

200x100mm/8x4"

and equal to/less than

600x400mm/24x16"?

2 Does your TV

(including accessories)

weigh less than

100 LBS (45.5 KG)?

4 Installation Tools

(Not Included)

Yes --- Perfect!

No --- This mount is NOT compatible.

MAX:600mm/24"

MAX:

400mm/16"

Yes --- Perfect!

No --- This mount is NOT compatible.

Band Tape

2M2M

5 Safety Caution

Please read this instruction carefully before installation.

● This product is designed for use in wood stud and solid concrete wall.

- DO NOT install into drywall alone.

● The wall must be capable of supporting five times the weight of the TV and mount

combined.

● Do not apply this product to any purpose not indicated by Mounting Dream.

● Incorrect installation may result in product damage or body injury. Mounting Dream shall

bear no responsibility for any damage or injury resulted from incorrect installation,

incorrect assembly or misuse.

Pencil Screwdriver Electrodrill Socket Wrench

1/2"(13mm)

3 What is your wall

made of?

Stud Finder Awl 7/32"(5.5mm)

Wood Drill Bit

3/8"(10mm)

Masonry Drill Bit Hammer

CAUTION:

Drywall with

wood studs?

Solid concrete

wall?

Extension Arm

x2x2

Extension Arm

Wall mounting and TV bracket assembly hardware

Lag Bolt M8x60mm

Mounting

Template

Wall Plate Unit

Part List

Extension Bar

M6x16mm Bolt

Supporting Bar

M5x12mm Bolt

Allen Key

M6x12mm Bolt

M6x10mm Bolt

Parts and Hardware

WARNING:This product contains small items that could be a choking hazard if

swallowed. Before starting assembly, verify all parts are included and undamaged.

NOTE: Not all hardware included will be used.

M4x12mm

M6x12mm

M8x25mm

M4x30mm

M6x35mm

M8x45mm

M6x17mm M8x22mm

M4 M6

10mm 2.5mm

Washers

Spacers

TV Screws

x4 x4

x4 x8

TV bracket

1-1 Select TV Screws

TV back

Bracket Washer

Bracket

Long Screw

Spacer

No, go to PAGE 3 for detailed combination.

Yes, go to PAGE 3 for detailed combination.

TV back

1-2 Need Spacer?

Short Screw

Washer

1-3 Attach the TV Brackets

No!

NOTE: Choose proper washer or spacer that

fits your particular TV mounting holes.

Screw and washer

Spacer(s)screw and washer

Tips: If you need to combine M6(e) or M8(c/f) screw

with 2.5mm spacer(j), you have to remove the inner circle.

24"(609.6mm)

/16"(406mm)

Min. Wood Stud Size:

nominal 2"(51mm)

actual 1 1/2"(38mm)

Min. Wood Stud Size:

nominal 4"(102mm)

actual 3 1/2"(89mm)

Wood Stud Installations

Assemble Wall plate

<16mm

(5/8")

16"(406.4mm)

24"(609.6mm)

Centre

line

Again, find another wood stud

Centre line

For wood stud installation, follow STEP 2A

For concrete installation, follow STEP 2B on PAGE 9

Wall Plate Unit

CAUTION: To avoid potential personal injury or property damage:

All 4 lag bolts MUST BE firmly tightened to prevent unwanted movement of the wall plate

assembly. Ensure the wall plate assembly is securely fastened to the wall before continuing on to

the next step.

To prevent the TV falling down, the Bolt Head Must Keep UP at this step!!

2.5"(65mm)

7/32"

(5.5mm)

Level

3-1 Extension Bars Assembly

Bolt Head UP!

Wall Plate

Unit

3-3 Hang and Secure TV to Wall Plate

1 2

100 LBS (45.5 KG)

Before hanging TV, please conduct "wall plate installation integrity test" first.

3-2 Wall Plate Installation Integrity Test

4-1 TV leveling adjustment (±4°):

Loosen 4 leveling bolts on the rear of TV plate by maximum 2

turns, adjust to level, and retighten to secure.

4-2 Tilting angle adjustment (+5°/-15°)：

Pull TV to your desired angle then fasten 2 tilting bolts

with Allen key

Tilting bolts Tilting bolts

-15°

+5°

Loosen

Tighten

±4°

+45°/-45°

+5°

-15°

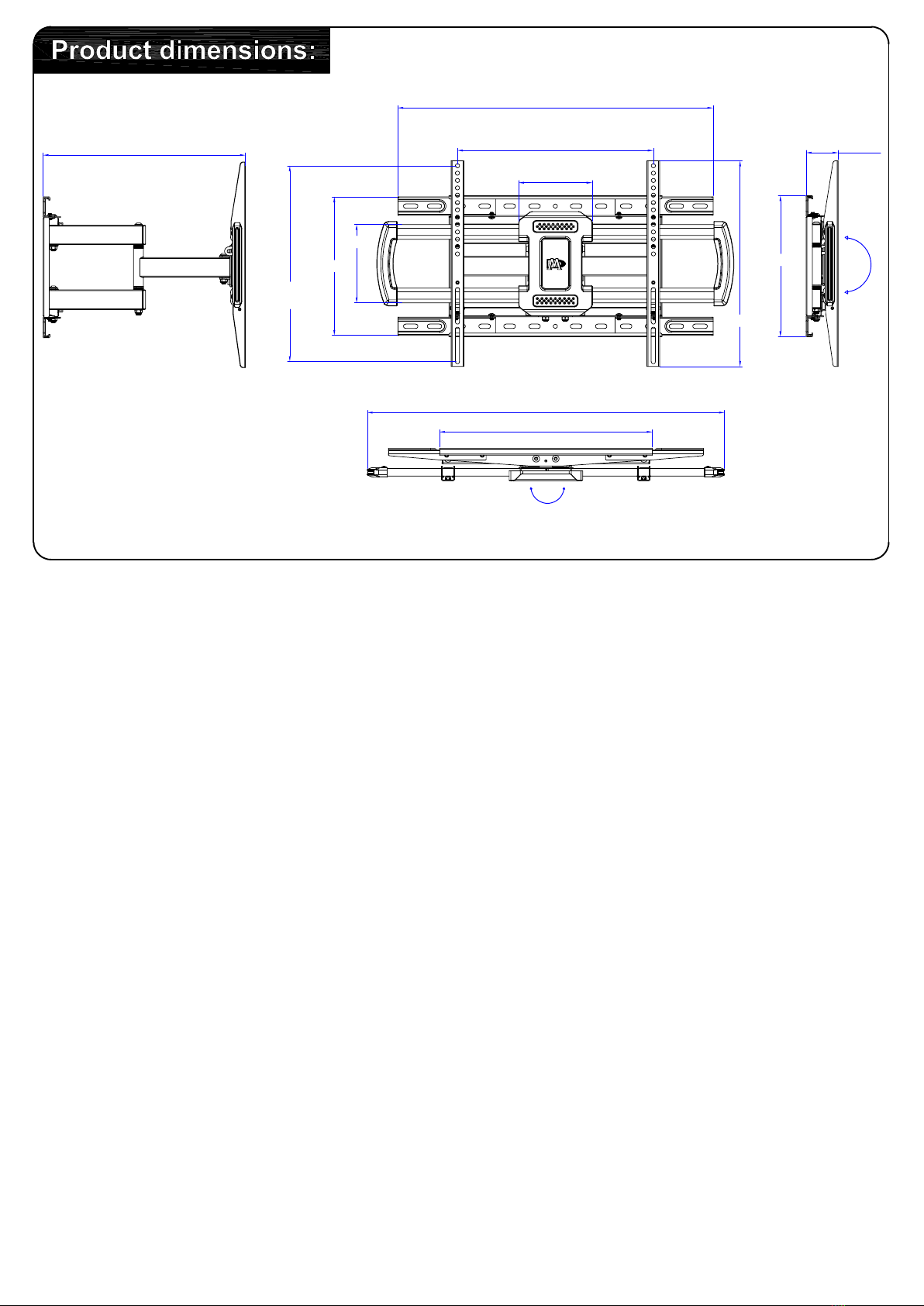

MAX:400mm

MIN:100mm

283mm

160mm

150mm

MAX:600mm

MIN:200mm

644mm

420mm

288mm

65mm

730mm

435mm

65mm-413mm

Solid Concrete Wall Installation

2.5"

(65mm)

3/8"

(10mm)

Concrete Wall

Anchor

DANGER

Min.

8"(203mm)

CAUTION: To avoid potential personal injury or property damage:

All 4 lag bolts MUST BE firmly tightened to prevent unwanted movement of the wall plate

assembly. Ensure the wall plate assembly is securely fastened to the wall before continuing on to

the next step.

To prevent the TV falling down, the Bolt Head Must Keep UP at this step!!

Level

Bolt Head UP!

Wall Plate

Unit

Concrete Wall Anchor

4pcs

If you do need concrete anchor,

please contact us Via Amazon to

get it.

Go to Step 3 on PAGE 5
