INSTALLATION INSTRUCTION
MODEL:MD2463-L
Please read this instruction carefully before installation.
Fits for most 17-39 inches Plasma, LCD and LED TVs.
Weight capacity: 15 kg (33 lbs).
Thank you for purchase! We strive to provide products and services of exceptional quality.
We sincerely invite you to write an unbiased review. For parts missed or installation problems,
please contact us at telephone (626) 604-9048 (USA) Mon - Fri 10am - 6pm (Pacific time) or email
VESA:
50X50 mm/2X2"
75X75 mm/3X3"
100X100 mm/4X4"
VESA:
200X100 mm/8X4"
VESA:
200X200 mm/8X8"
VESA:
150X150 mm/6X6"
US WARNING!
Safety Warning: Thank you for choosing Mounting Dream TV mount. For
safe application of model MD2463-L, and preventing yourself or others
from danger or property loss, please read through this manual before use.
If you do not understand these instructions or have any doubt over safety
of installation, please contact qualified contractor or Mounting Dream
customer service. Please check carefully before assembly to ensure no
parts missed or damaged. Our customer service representative will assist
you timely in installation to solve the issue of parts shortage or damage.
Replacement parts purchased through authorized distributor will be
delivered to your door. Please do not use defective parts. Incorrect
installation may result in product damage or body injury. Do not apply this
product to any purpose not indicated by Mounting Dream. We shall bear
no responsibility for any damage or injury resulted from incorrect
installation, incorrect assembly or misuse.
Advertencia de seguridad: Gracias por su opción del producto de soportes
para televisión de la marca Kongzhongshijie, para garantizar el uso en
seguro del modelo MD2463-L, evitar al usuario y otras personas sufriendo
riesgo de peligrosidad y daños a la propiedad, antes de usar , por favor,
lea bien este manual. Si usted no entiende estas instrucciones o existe
dudas sobre la seguridad de la instalación, por favor llame a un contratista
calificado o Centro de servicio al cliente, Antes de asemblar, verifique
cuidadosamente para asegurarse de que no encuentre la falta de piezas o
piezas defectuosos , nuestros representantes deservicio al cliente le
ayudará con rapidez para los problemas de instalación ,para resolver los
problemas de la falta y daño de las piezas. En el caso de que los
productos se vendan a través de distribuidores autorizados, las piezas de
repuestos serán entregados directamente a su domicilio , no utilice piezas
defectuosas , la instalación inadecuada puede causar daños o lesiones
graves. No utilizar este producto para cualquier otro propósito que fuera
de sus instrucciones, la compañía no es la responsable de los daños o las
pérdidas de la mala instalación , la asamblea incorrecta o uso incorrecto.
ADVERTENCIA!
ES
Before getting started, let's make sure this mount is
perfect for you!
1 Is your TV VESA 50x50mm/2x2in, 75x75mm/3x3in,
100x100mm/4x4in, 150x150mm/6x6in, 200x100mm/8x4in,
200x200mm/8x8in?
2 Does your TV (including accessories) weigh more than
33 lbs (15kg)?
33 lbs
(15kg)
NO --- Perfect!
Yes --- This mount is NOT compatible.
3 What is your wall made of?
CAUTION:
DO NOT install
into drywall alone Perfect!
Drywall with
wood studs? Solid concrete wall?
Perfect!
Yes --- Perfect!
No --- This mount is NOT compatible.
If this mount is NOT compatible, please contact
customerservice@mountingdream.com to find a compatible mount.
MAX:200mm/8"
MAX:
200mm/8"
Installation tools:
Pencil Screwdriver
Band tape
2m
Hammer Electrodrill
①
5/32"
Wood Drill Bit
Stud finder
For parts shortage or damage, please contact us directly by
customerservice@mountingdream.com.
New delivery will be timely arranged to replace missed or defective parts.
Attention:
-Wall plate unit 1pcs
Velcro cable tie
3pcs
Bubble level
1pcs
Socket wrench
1/2"(13mm)
-Extension arm 4pcs
Gifts：
Part list：
Wall mounting and TV bracket assembly hardware:
--Lag bolt
3pcs
--M6X8 Bolt
8pcs
--M4X6 bolt 2pcs
(pre-assembled)
3/8"
Masonry Drill Bit
TV mounting hardware：
a--M4X12 bolt
4 pcs
b--M5X12 bolt
4 pcs
c--M6X12 bolt
4 pcs
d--M8X25 bolt
4 pcs
e--M4X30 bolt
4 pcs
--Allen key
1pc
Step 1 Remove the bolts with a screwdriver to separate wall plate
unit into two pieces. (figure 1)
Wall plate unit
TV plate
Wall plate
figure 1
Installation instruction：
②
f--M5X30 bolt
4 pcs
g--M6X35 bolt
4 pcs
h--Open-end wrench
1pcs
i--M5/M6
spacer 4pcs
j--M8 spacer
4pcs
k--M5/M4
washer 4pcs
l--M6 washer
4pcs
m--10mm
spacer 4pcs
n--2.5mm
spacer 8pcs
Contact us at telephone (626) 604-9048 (USA)
Mon - Fri 10am - 6pm (Pacific time) or email us by
customerservice@mountingdream.com to have
these additional pieces shipped directly to you.
Concrete Wall Anchor
4pcs
Concrete wall anchor (NOT INCLUDED)
drywall with
wood stud
Step 2 Wall plate installation:
Option 1 Wall plate installation in wood stud
To avoid potential body injury or property damage:
1. Wall mount must be installed into wood stud's center, not drywall alone.
2. Drywall covering the wood stud must not exceed 16 mm (5/8 in.).
3. Minimum wood stud size: common 2 x 4 in(51 x 102 mm). Nominal 1 1/2 x 3 1/2 in(38 x 89mm)
4. The wall must be capable of supporting five times the weight of TV plus mount.
5. Make sure the arrow on the wall plate unit is upward as the picture shows.
6. All lag bolts MUST BE firmly tightened to prevent unwanted movement of the wall plate.
Ensure the wall plate is securely fastened to the wall before continuing on to the next step.
Failure to follow this instruction will possibly lead to TV falling off from wall, and would possibly
cause body injuries or property loss.
⑤
④③
CAUTION
<16 mm(5/8 in.)
Locate the stud
with stud finder. Make
marks at the edges
of stud.
Mark centerlines
of stud.
②①
Make sure the arrow on the wall plate unit is upward
Then place wall plate along the centerline and
use pencil to mark 2 hole locations on the wall.
UP
Use 5/32" diameter drill bit to drill 2 pilot
holes at marked positions to a depth of 2.36".
5/32"
Put 2 lag bolts into the drilled holes,
and tighten each bolt by using a socket
wrench to mount the wall plate securely.
Before totally tightening the lag bolt
please attach the bubble level on the wall
plate to check whether it is level.
The wall plate fits for single wood stud installation.
③
To avoid potential personal injury or property damage:
1.Make sure the arrow on the wall plate unit is upward as the picture shows.
2. Solid concrete wall's thickness should be more than 100mm/4", and the wall must be
capable of supporting five times the weight of the TV plus the mount.
3. All anchors/lag bolts MUST BE firmly tightened to prevent unwanted movement of the wall plate.
Ensure the wall plate is securely fastened to the wall before continuing on to the next step.
Concrete wall
Option 2 Wall plate installation on concrete wall
①
②
③
CAUTION
Make sure the arrow on the wall plate unit is upward
Use wall plate as a template and pencil to mark 3
hole locations on your desired height of the wall.
UP
Use 3/8" diameter drill bit to drill 3 holes
at marked positions to a depth of 2.36".
3/8"
Put 3 Concrete Wall Anchors (not included in the package)
into drilled holes, and tap each anchor flush with the wall
by using a hammer. Then put 3 lag bolts into the
anchors, and tighten each bolt by using a socket wrench to
mount the wall plate securely. Before totally tightening the
lag bolt please attach the bubble level on the wall plate to
check whether it is level.
④
1
Select TV hardware (diameter / length / combination)
Bolt diameter: hand thread bolts into threaded inserts on the back of
TV to determine correct bolt diameter (M4, M5, M6, M8).
Too Short
Bolt length: verify adequate thread engagement with bolts or
bolts/spacers combination. We recommend thread engagement
by at least 5 turns.
- Too short will not hold the TV.
- Too long will damage the TV.
Too Long Correct
2
Add distance to wall Irregular back Inset holes Cables
Bolt and spacer combination: spacers sometimes are needed to
combine with bolts for several situations.
+
(For detail bolts and spacers combination, please refer to Page 8)
3
TV back TV back
TV back
TV back
Carefully lay your TV on a non-abrasive surface, or lay it with a padding underneath
it so as not to damage the screen.
Step 3
⑤
Step 4 Attach TV plate to the back of the TV:
Installation option 1:
If the VESA dimension is 50mm x 50mm (2in x 2in), 75mm x 75mm
(3in x 3in) or 100mm x100mm (4in x 4in), take the following image as
reference.
For the TV with flat back, mount the wall plate with bolt/washer
combination.
100 mm
75 mm
50 mm
100 mm 75 mm 50 mm
figure 2
Bolts with spacers/washers
combination options (only for reference)
⑥

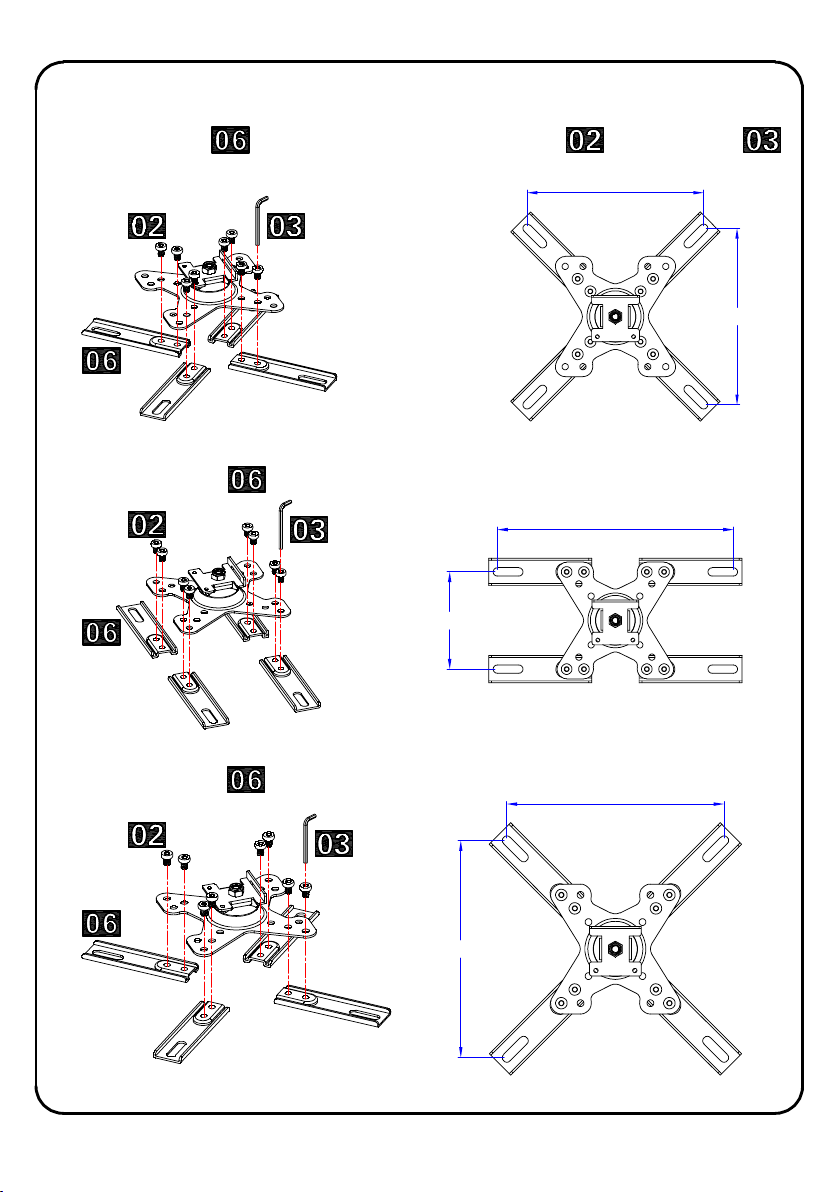

If the VESA dimension is 200mm x 200mm(8in x 8in), attach the
extension arms as shown below.
Configuration 3
Configuration 2
Configuration 1
If the VESA dimension is 200mm x 100mm(8in x 4in), attach the
extension arms as shown below.
If the VESA dimension is 150mm x 150 mm(6in x 6in), attach the
extension arms to the TV plate by fastening Bolt with Allen key
(see Configuration 1) as shown below.
Installation option 2:
⑦
150mm
150mm
200mm
100mm
200mm
200mm
