MD2413-MX INSTALLATION INSTRUCTION

26"~55" Max:400x400mm/16x16"

Min:100x100mm/4x4"

Für die Installationsanweisungen auf deutsch, Siehe Seite 12~13.

Pour l'instruction en français, veuillez vous reporter à la page 14~15.

Para las instrucciones de la instalación en español, favor vea la página 16~17.

Per le Istruzioni in italiano, vedi pagina 18~19.

x3 x1

(A0)

If you have any questions, please contact us via customerservice@mountingdream.com

or call us at telephone (626) 604-9048 (USA) Mon - Fri 10am - 6pm (Pacific time).

1 2

Before getting started, let’s make sure this mount is perfect for you!

1 Is your TV VESA

equal to/greater than

100x100mm/4x4"

and equal to/less than

400x400mm/16x16"?

2 Does your TV

(including accessories)

weigh less than

60 LBS (27 kg)?

4 Installation Tools

(Not Included)

Yes --- Perfect!

No --- This mount is NOT compatible.

MAX:400mm/16"

MAX:

400mm/16"

Yes --- Perfect!

No --- This mount is NOT compatible.

CAUTION:

Drywall with

wood studs?

Band Tape

2M2M

5 Safety Caution

Please read this instruction carefully before installation.

If you do not understand these instructions or have doubts about the safety of the

installation, assembly or use of this product, contact Customer Service via

customerservice@mountingdream.com or call us at telephone (626) 604-9048 (USA) Mon

- Fri 10am - 6pm (Pacific time).

● This product is designed for use in wood stud and solid concrete wall.

- DO NOT install into drywall alone.

● The wall must be capable of supporting five times the weight of the TV and mount

combined.

● Incorrect installation may result in product damage or body injury. Mounting Dream shall

bear no responsibility for any damage or injury resulted from incorrect installation,

incorrect assembly or misuse.

● Do not apply this product to any purpose not indicated by Mounting Dream.

Solid concrete

wall?

Pencil Screwdriver Electrodrill Socket Wrench

1/2"(13mm)

Stud Finder Awl 7/32"(5.5mm)

Wood Drill Bit

3/8"(10mm)

Masonry Drill Bit Hammer

3 What is your wall

made of?

Parts and Hardware

WARNING:This product contains small items that could be a choking hazard if

swallowed. Before starting assembly, verify all parts are included and undamaged. For parts

shortage or damage, please contact us via customerservice@mountingdream.com.

NOTE: Not all hardware included will be used.

Wall Plate Unit

M6x8mm

Allen Key

1-1 Disassemble Wall Plate Unit into Two Pieces

Right Extended Arm

x2x2

Left Extended Arm

Extended Arm Screws

Wall plate

TV plate

M4x12mm

M6x12mm

M8x25mm

M4x30mm

M6x35mm

M8x50mm

M6x17mm M8x22mm

M4 M6

10mm 2.5mm

Washers

Spacers

TV Screws

x4 x4

x4 x8

① 100mm x 100mm

② 100mm x 200mm

③ 150mm x 150mm

④ 200mm x 100mm

⑤ 200mm x 200mm

⑥ 200mm x 300mm

⑦ 300mm x 200mm

⑧ 300mm x 300mm

⑨ 400mm x 200mm

⑩ 400mm x 300mm

400mm x 400mm

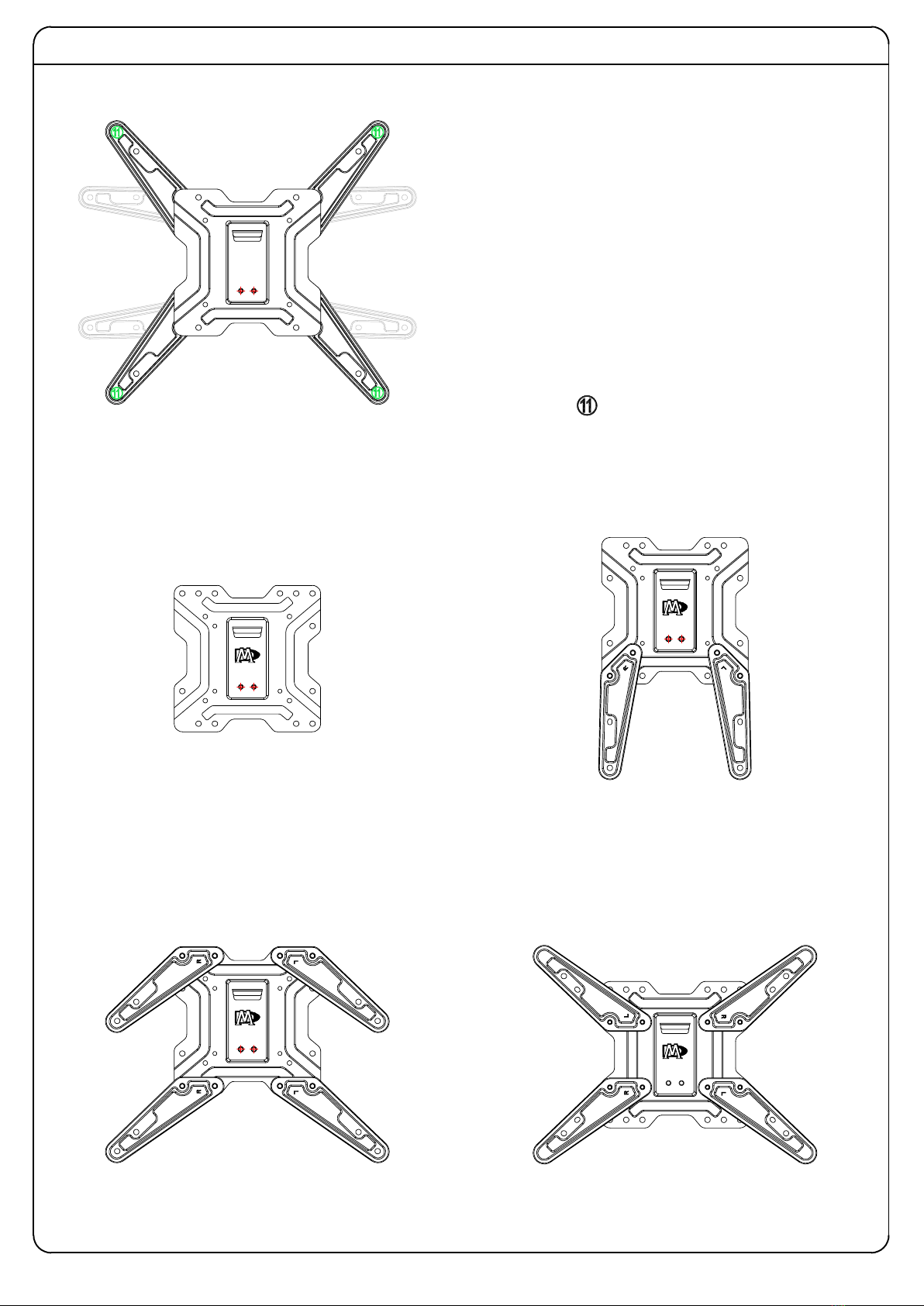

1-2 Choose Configuration

① ①

② ②

③

③ ③

③

④ ④

④④

⑤

⑤ ⑤

⑤

⑥⑥

⑦

⑦⑦

⑦

⑥⑥

⑧ ⑧

⑨ ⑨

⑨⑨

⑩⑩

⑩ ⑩

1-3 Select TV Screws

TV back

Bracket Washer

Bracket

Long Screw

Spacer

No, go to PAGE 5 for detailed combination.

Yes, go to PAGE 5 for detailed combination.

TV back

1-4 Need Spacer?

Short Screw

Washer

Extended Arms Assembly Example (For reference)

Tips: If you need to combine M8(c/f) screw with 2.5mm spacer(j), you have to remove

the inner circle.

Screw and washer

Spacer(s), screw and washer

1-5 Attach TV Plate to TV Back

No!

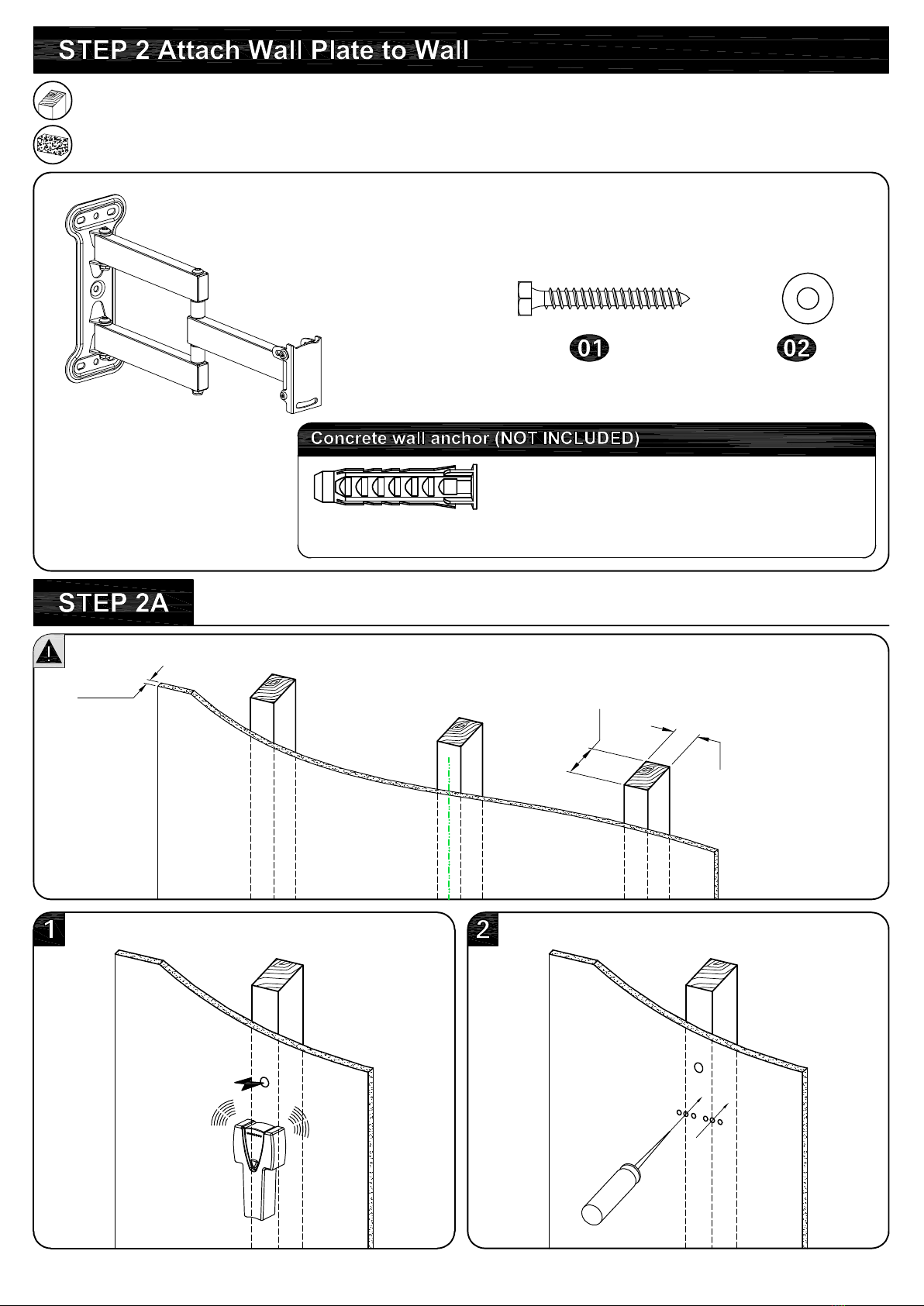

For wood stud installation, follow STEP 2A

For concrete installation, follow STEP 2B on PAGE 8

Parts and Hardware

Lag Bolt M8x60mm M8 Washer

x4 x4

<16mm

(5/8")

Min. Wood Stud Size:

nominal 2"(51mm)

actual 1 1/2"(38mm)

Min. Wood Stud Size:

nominal 4"(102mm)

actual 3 1/2"(89mm)

Wood Stud Installation

Mon - Fri 10am - 6pm (Pacific time) or email us by

customerservice@mountingdream.com to have

these additional pieces shipped directly to you.

Concrete Wall Anchor

4pcs

Wall plate

7/32"

(5.5mm)

Go to Step 3 on PAGE 9.

Centre line

2.5"(64mm)

Bolt Head UP!

Wall plate

CAUTION: To avoid potential personal injury or property damage:

All 3 lag bolts MUST BE firmly tightened to prevent unwanted movement of the wall plate

assembly. Ensure the wall plate assembly is securely fastened to the wall before continuing on to

the next step.

To prevent the TV falling down, the Bolt Head Must Keep UP at this step!!

No!

Level

Solid Conrete Wall Installation

2.5"

(64mm)

3/8"

(10mm)

Concrete Wall

Anchor

Wall plate

DANGER

Min.

8"(203mm)

CAUTION: To avoid potential personal injury or property damage:

All 4 lag bolts MUST BE firmly tightened to prevent unwanted movement of the wall plate

assembly. Ensure the wall plate assembly is securely fastened to the wall before continuing on to

the next step.

To prevent the TV falling down, the Bolt Head Must Keep UP at this step!!

No!

Bolt Head UP!

Level

60 LBS (27 kg)

Before hanging TV, please conduct "wall plate installation integrity test" first.

1 2
