Regulatory Information

Federal Communications Commission Radio and Television Interface

Statement for a Class 'B' Device.

This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in the residential

installation. This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation.

If the equipment does cause harmful interference to radio or television reception,

which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one of the following measures:

•Increase the separation between the equipment and the affected receiver

•Connect the equipment on a circuit different from the one the receiver is on

You may find the following booklet, prepared by the Federal Communication

Commission, helpful:

How to Identify and Resolve Radio-TV Interference Problems

Stock No. 004-000-0342-4,

U.S. Government Printing Office

Washington, DC 20402

Changes or modification not expressly approved by the party responsible

for compliance could void the user's authority to operate the equipment.

This product was FCC compliant under test conditions that included the use

of the supplied cable between system components. To be in compliance

with FCC regulation, the user must use this cable and install it properly.

Different types of cord sets may be used for connections

to the main supply circuit. Use only a main line cord that

complies with all applicable product safety requirements

of the country of use.

Declaration of Conformity

According to 47CFR, Parts 2 and 15 for Class B Personal Computers and

Peripherals; and/or CPU Boards and Power Supplies used with Class B

Personal Computers, Motorola BCS, 6450 Sequence Drive, San Diego,

CA 92121, 1-800-225-9446, declares under sole responsibility that the product

identifies with 47CFR Part 2 and 15 of the FCC Rules as a Class B digital device.

Each product marketed is identical to the representative unit tested and found to

be compliant with the standards. Records maintained continue to reflect the

equipment being produced can be expected to be within the variation accepted,

due to quantity production and testing on a statistical basis as required by 47CFR

2.909. Operation is subject to the following condition: This device must accept

any interference received, including interference that may cause undesired

operation. The above named party is responsible for ensuring that the equipment

complies with the standards of 47CFR, Paragraph 15.101 to 15.109. The Class B

digital apparatus meets all requirements of the Canadian Interference-Causing

Equipment Regulations.

Model Standards

SB4100 FCC Part 15, ICES-003, UL/C-UL (UL1950 3rd Edition)

SB4100i EN55022, EN55024, EN60950, CISPR 22, CISPR 24, IEC950 : 1991 + A1 : 1992 + A2 : 1993 + A3 : 1995 + A4 :

1996, FCC Part 15, UL/C-UL (UL1950 3rd Edition)

SB4100E EN55022, EN55024, EN60950, CISPR 22, CISPR 24, IEC950 : 1991 + A1 : 1992 + A2 : 1993 + A3 : 1995 + A4 : 1996

The SB4100 meets one or more of the standards listed:

Declare under our sole responsibility that the

To which the declaration relates is in conformity with the following standards:

Following the provisions of the Directive(s) of the Council of the European Union:

Motorola, Inc.

Broadband Communications Sector

6450 Sequence Drive

San Diego, CA, U.S.A.

SURFboard Cable Modem Model SB4100i, SB4100E

EN55022 EN55024 EN60950

CISPR 22 CISPR 24 IEC950 : 1991 + A1 : 1992 + A2 : 1993 + A3 : 1995 + A4 : 1996

EMC Directive 89/336/EEC Low Voltage Directive 73/23/EEC

This product was qualified under test conditions that included the use of the supplied cable between system components.

To be in compliance with regulation, the user must use this cable and install it properly.

Use only an ac line cord that complies with the country's product safety requirements.

Use only a shielded Ethernet cable (STP) that complies with FCC regulations.

Declaration of Conformity

Canadian Compliance

This Class B digital apparatus meets all requirements of the Canadian

Interference-Causing Equipment Regulations. Cet appareil numérique de la

classe B respects toutes les exigences du Règlement sur le matériel brouilleur

du Canada.

Warning

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN

OR MOISTURE.

Caution

TO PREVENT ELECTRICAL SHOCK, DO NOT USE THIS PLUG WITH AN EXTENSION

CORD, RECEPTACLE, OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY

INSERTED TO PREVENT BLADE EXPOSURE.

Caution

THESE SERVICING INSTRUCTIONS ARE FOR USE BY QUALIFIED PERSONNEL ONLY.

TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO NOT PERFORM ANY SERVICING

OTHER THAN THAT CONTAINED IN THE INSTALLATION AND TROUBLESHOOTING

INSTRUCTIONS UNLESS YOU ARE QUALIFIED TO DO SO. REFER ALL SERVICING

TO QUALIFIED SERVICE PERSONNEL.

Repairs

If repair is necessary, contact your cable modem service provider.

No part of this publication may be reproduced in any form or by any means

or used to make any derivative work (such as translation, transformation

or adaptation) without written permission from Motorola, Inc.

Motorola, Inc. reserves the right to revise this publication and to make changes in

content from time to time without obligation on the part of Motorola, Inc. to provide

notification of such revision or change. Motorola, Inc. provides this guide without

warranty of any kind, either implied or expressed, including, but not limited, to the

implied warranties of merchantability and fitness for a particular purpose. Motorola,

Inc. may make improvements or changes in the product(s) described in this manual

at any time.

and MOTOROLA are registered trademarks of Motorola, Inc.

Macintosh is a registered trademark of Apple Corporation.

Microsoft and Windows are registered trademarks of Microsoft Corporation.

Netscape is a registered trademark of Netscape Communications Corporation.

SURFboard and the SURFboard logo are registered trademarks of Motorola, Inc.

UNIX is a registered trademark of the Open Group.

Windows screens reproduced by permission of Microsoft Corporation.

iii

Just open your browser and

surf

Congratulations, you now have a new

state-of-the-art SURFboard®SB4100, SB4100i,

or SB4100E, cable modem. These high-speed

modems enable you to connect your home

or business computer to a DOCSIS-compliant or

EuroDOCSIS-compliant (SB4100E) data network.

The SB4100 transmits and receives data at much

higher speeds than traditional telephone or ISDN

modems.

It provides high-speed access to the Internet

and other online services.

A new Universal Serial Bus (USB) port is

available for a single-user direct connection to

USB-equipped computers. The standard Ethernet

connection provides network service to single or

multiple users.

For all models, just open your browser and surf.

In this manual when we refer to SB4100 we are

referring to SB4100, SB4100i, and SB4100E.

Introduction Before You Begin Installation Operation Basic Configuration Troubleshooting

Easier! *

Always on, always connected

Faster! **

Up to 100 times faster than

a phone modem

Better! ***

A great choice for internet access

SSUURRFFbbooaarrdd

Cable Modem

*Unlike analog phone modems and ISDN

you’re always on, always connected.

** Actual speed will vary. Many network and

other factors affect download speeds.

*** SURFboard is made by the company with

over 50 years of cable TV expertise.

Front Panel

The five front-panel lights provide information about power, communications, and errors.

The standby button suspends internet service.

Item Description

1Power When the light is flashing, startup diagnostics are being performed.

A solid light indicates the SB4100 is powered on.

2Receive When the light is flashing, the SB4100 is scanning for a receive channel connection.

A solid light indicates the channel connection is acquired.

3Send When the light is flashing, the SB4100 is scanning for the send channel connection.

A solid light indicates the channel connection is acquired.

4Online When the light is flashing, the SB4100 is scanning for the network configuration

server connection. A solid light indicates the network connection is acquired.

5Activity When the light is flashing, the SB4100 is transmitting or receiving data.

When the light is off, the SB4100 is not transferring data.

6Standby Press and the LED lights turn off indicating the Ethernet and USB ports are disabled

(not receiving or transmitting data). The cable connection to the service provider

remains active. Internet service is interrupted until the Standby button

is pressed again. The Standby button offers added Internet security.

If an error occurs, the lights provide a quick way of detecting the problem.

See Troubleshooting for more information.

Introduction Before You Begin Installation Operation Basic Configuration Troubleshooting

SSUURRFFbbooaarrddR

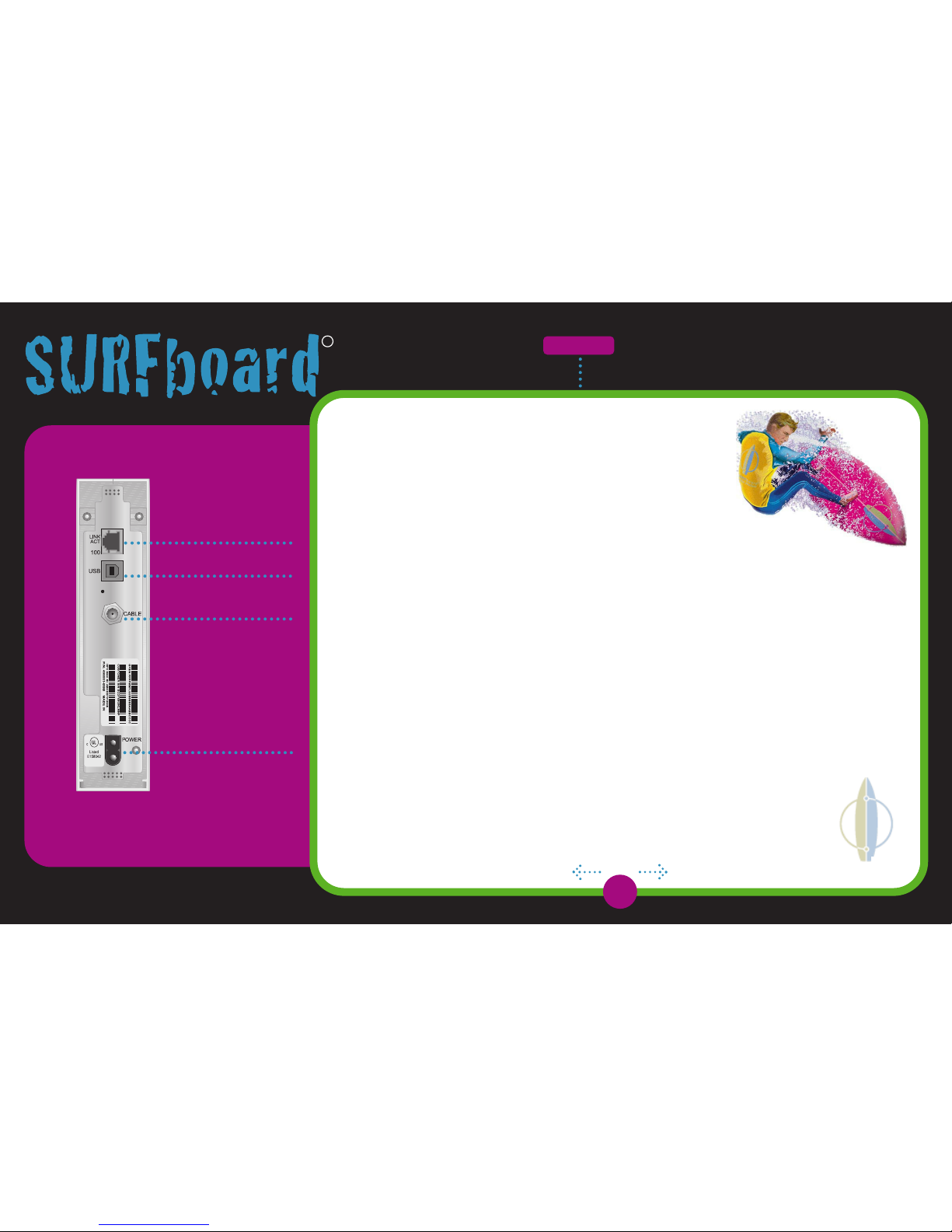

Rear Panel

The rear panel provides cabling connectors, status lights, and power plug.

Item Description

1LINK/ACT When the light is on, the Ethernet connection is available. A blinking light indicates

data is being transferred.

2This port is the Ethernet connector that transfers data to and from your computer.

3100 The light is on when a 100Base-T link is established and off when a 10Base-T link

is established.

4USB This port provides a direct connection to USB equipped computers.

5This is the recessed reset button.

6CABLE This port transfers data to and from the service provider.

7POWER This connector provides power to the SB4100.

Introduction Before You Begin Installation Operation Basic Configuration Troubleshooting

SSUURRFFbbooaarrddR

Equipment Check

Introduction Before You Begin Installation Operation Basic Configuration Troubleshooting

Power cord

USB cable

SB4100

User Guide

CD-ROM

10/100Base-T shielded

Ethernet cable

Before you begin the installation, check that you have:

Item Description

Power cord Required to connect the SB4100 to the electrical outlet.

One 10/100Base-T shielded

Ethernet cable Required for connecting to the Ethernet port.

One USB cable Required for connecting to the USB port.

SB4100 User Guide CD-ROM Contains User Guide and USB drivers necessary

for connecting to USB port.

You need to purchase a 75-ohm coaxial cable with F-type connectors for connecting your

SB4100 to the nearest cable outlet. If you have a TV attached to the cable outlet, you may need

a 5-900 MHz splitter to use both the TV and the SB4100.

These items are readily available at consumer electronic stores and departments.

SSUURRFFbbooaarrddR

System Requirements

To use the SB4100 with your computer system,

you need the following:

Service Provider

You must sign up with your data service

provider who provides access to the Internet

and other online services.

Computer

Your computer must be equipped with a USB

or Ethernet port and the Transport Control

Protocol/Internet Protocol (TCP/IP) to access

the SB4100. The SB4100 is compatible with

Microsoft®, Macintosh®, and UNIX®

operating systems.

Computers using Windows®95, UNIX, or

Macintosh systems must use the Ethernet

connection.

HTML Browser

Any standard HTML (web) browser

works with the SB4100.

Ethernet Card or

USB Special Software

Any standard 10/100Base-T Ethernet card

operates with the SB4100. This is not needed if

connecting to the USB port. The Ethernet card

must be installed before the SB4100. If it is not,

follow the installation instructions included

with your Ethernet card.

The USB connection is supported by

Windows 98, Windows 2000, and Windows Me,

and requires special software to operate. All USB

drivers are on the CD-ROM supplied with your

SB4100.

Your computer must be configured for TCP/IP

and have an IP address for the SB4100 to

operate. Your service provider furnishes

the IP address.

The Ethernet card must be

installed before the SB4100.

If it isn't, follow the installation

instructions that came with

your Ethernet card.

Introduction Before You Begin Installation Operation Basic Configuration Troubleshooting

SSUURRFFbbooaarrddR

Precautions

You must call your service provider to activate

your service. You need to provide the media

access control (MAC) address. This address

is found on the bar code label marked

HFC MAC ID on the rear panel.

The address format is 00:20:40:xx:xx:xx.

Introduction Before You Begin Installation Operation Basic Configuration Troubleshooting

•Do not block the ventilation holes on the sides

of the modem to prevent it from overheating.

•Do not open the SB4100 cable modem. Refer

all service to your local service provider.

•Wipe the modem with a clean, dry cloth.

Never use cleaning fluid or similar chemicals.

Do not spray cleaners directly on the unit

or use forced air to remove dust.

TV cable

to cable outlet

Power cord to

electrical outlet

Ethernet to computer

USB to computer

SSUURRFFbbooaarrddR

Otros manuales para SURFboard SB4100

Tabla de contenidos

Otros manuales de Módem de Motorola

Motorola

Motorola SB5101 - SURFboard - 30 Mbps Cable Modem Manual de usuario

Motorola

Motorola VML750 Manual de usuario

Motorola

Motorola MD1600 Manual de usuario

Motorola

Motorola MB7621 Manual de usuario

Motorola

Motorola SURFboard SBV5120 Manual de usuario

Motorola

Motorola CABLE MODEM SB6100J - GUIDE Manual de usuario

Motorola

Motorola SURFboard SB5100 Manual de usuario

Motorola

Motorola SURFboard SB4000 Manual de usuario

Motorola

Motorola iM1000 Manual de usuario

Motorola

Motorola D15 Manual de instrucciones

Motorola

Motorola SURFboard SB3100 Manual de usuario

Motorola

Motorola iM1000 Manual de usuario

Motorola

Motorola SURFboard SBV5322 Manual de usuario

Motorola

Motorola SB6120 - SURFboard - 160 Mbps Cable Modem Manual de usuario

Motorola

Motorola SURFboard SB4100 Manual de usuario

Motorola

Motorola SURFboard SBV5222 Guía de inicio rápido

Motorola

Motorola SURFboard SBV5222 Manual de usuario

Motorola

Motorola CPEi 300 Series Manual de usuario

Motorola

Motorola MG7550 Manual de usuario

Motorola

Motorola SBG1000 Manual de usuario

Motorola

Motorola SURFboard SB6121 Guía de solución de problemas

Motorola

Motorola WMC6300 Manual de usuario

Motorola

Motorola SURFboard SB6182 Manual de usuario

Motorola

Motorola SURFboard SB6121 Manual de usuario

Manuales populares de Módem de otras marcas

Davicom

Davicom DM562AP Manual de usuario

EpiValley

EpiValley TATA indicom SXC-1080 Manual de usuario

Zte

Zte WiMAX Manual de usuario

Intelimax

Intelimax MA-2060 Manual de usuario

SMC Networks

SMC Networks D3CM1604V Manual de uso y cuidado

Telstra

Telstra Wi-Fi 4G Advanced Pro X Manual de usuario

Thrane&Thrane

Thrane&Thrane imarsat EXPLORER 300 Manual de usuario

Samsung

Samsung AceLink SAM-335A Manual de usuario

Enfora

Enfora Enabler-G Guía de configuración rápida

iRZ

iRZ ATM2-232 Manual de usuario

Zhone

Zhone 6310 Manual de usuario

Paradyne

Paradyne Hotwire 7976 Manual de usuario

US Robotics

US Robotics 3453C Manual de usuario

MaxTech

MaxTech Plug & Play Internal Voice/FAX/Data/SVD... Manual de usuario

Zte

Zte MF823 Manual de usuario

Four-Faith

Four-Faith F1403 Manual de usuario

Sierra Wireless

Sierra Wireless AIRLINK MP595W Manual de usuario

Gemtek

Gemtek WiMAX WIXFBR-103 Manual de usuario
