Moen MONTICELLO 86950 Guía de configuración

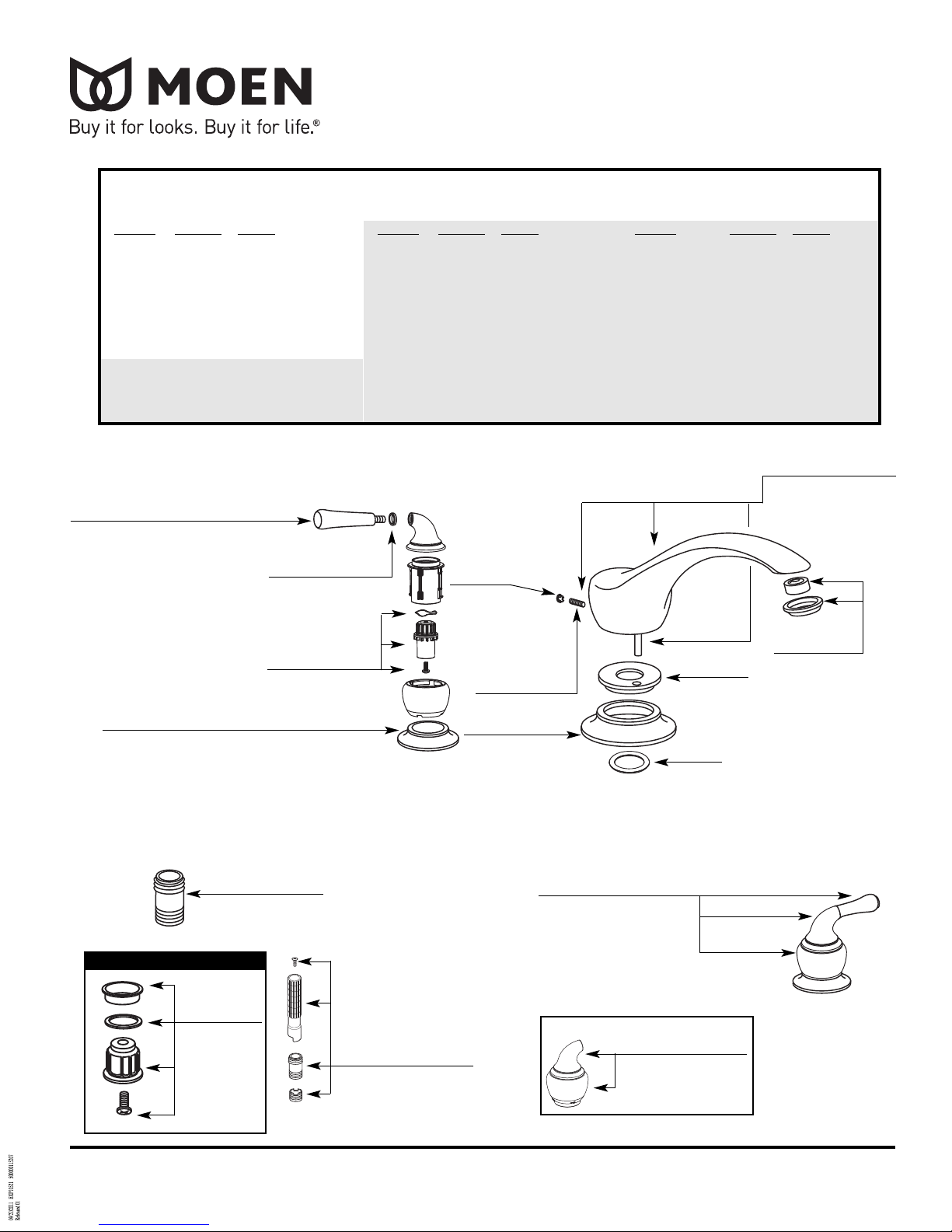

Illustrated Parts

TO ORDER PARTS CALL: 1-800-BUY-MOEN

www.moen.com

■ Order by Part Number

Rev. 9/11

Escutcheon

2198 Chrome

2198P Polished Brass

2198PM Platinum

2198ST Satine

2198SL Stainless (used for brushed nickel)

Spout Escutcheon

2187 Chrome

2187P Pol. Brass

2187PM Platinum

2187ST Satine

2187BN Brushed Nickel

Set Screw

99892

Plug Button

1512 Chrome

1512P Pol. Brass

1512PM Platinum

1512ST Satine

1512BN Brushed

Nickel Adapter Kit

90276

Washer Kit

97274

Lever Handle (2)

97372 Chrome

97373 Polished Brass

97372PM Platinum

97376 Porc./Chrome

97372ST Satine

97372BN Brushed Nickel

115018 Porcelain

Handle Adapter Kit

100563

Spout Assembly Kit

2197 Chrome

2197P Pol. Brass

2197PM Platinum

2197ST Satine

2197BN Brushed

Nickel

Stream

Straightener Kit

2186 Chrome

2186P Pol. Brass

2186PM Platinum

2186ST Satine

2186BN Brushed

Nickel

■ Trim can be used with either the 4992, 4993,

4996, 4997, 4999, 64997, or 64999 valve

Models Prior to 3/1/02

Handle

Adapter Kit

97556

O-Ring Kit

117 (12 pack)

96778 (Single pack)

MONTICELLO®

Deck Mount Two-Handle Roman Tub Filler Trim

MODEL HANDLE FINISH

T951 Lever Chrome

T951CP Lever Chrome/Pol Br.

T951CPC Lever Chrome/Porcelain

T951P Lever Polished Brass

T951BN Lever Brushed Nickel

86950 Lever Chrome

86950CP Lever Chrome/Pol. Brass

86952 Lever Chrome,

Chrome/Pol. Brass

DISCONTINUED SKUS

T950 Lever Chrome

T950P Lever Polished Brass

T950PM Lever Platinum

MODEL HANDLE FINISH

DISCONTINUED SKUS

T950ST Lever Satine™

T951PM Lever Platinum

T951PMC Lever Platinum/Chrome

T951ST Lever Satine

T951STP Lever Satine/Pol. Brass

T951W Lever Glacier

86950P Lever Polished Brass

86950PM Lever Platinum

86950ST Lever Satine

86951PM Lever Platinum/Chrome

86951ST Lever Satine/Pol. Brass

MODEL HANDLE FINISH

DISCONTINUED SKUS

RT950/AT950 Lever Chrome

RT950P/AT950P Lever Polished Brass

RT950PM/AT950PM

Lever Platinum

RT950ST/AT950ST

Lever Satine™

RT950BP/AT950BP

Lever Black Opal™

RT950CG/AT950CG

Lever Classic Gold

Escutcheon Adjuster

(for valves sold after 8/08)

142981

Handle Extension &

Escutcheon Adjuster

(for valves sold before 8/08)

106378

Hub with 1-Piece Lever & Elbow Assy.

(also order ext. kit 106378 for valves sold before 8/08)

159107 Chrome

159107P Polished Brass

159107PM Platinum

159107BN Brushed Nickel

Hub & Elbow Assembly

(includes ext. kit 106378)

100558 Chrome

100558P Pol. Brass

100558PM Platinum

100558ST Satine
