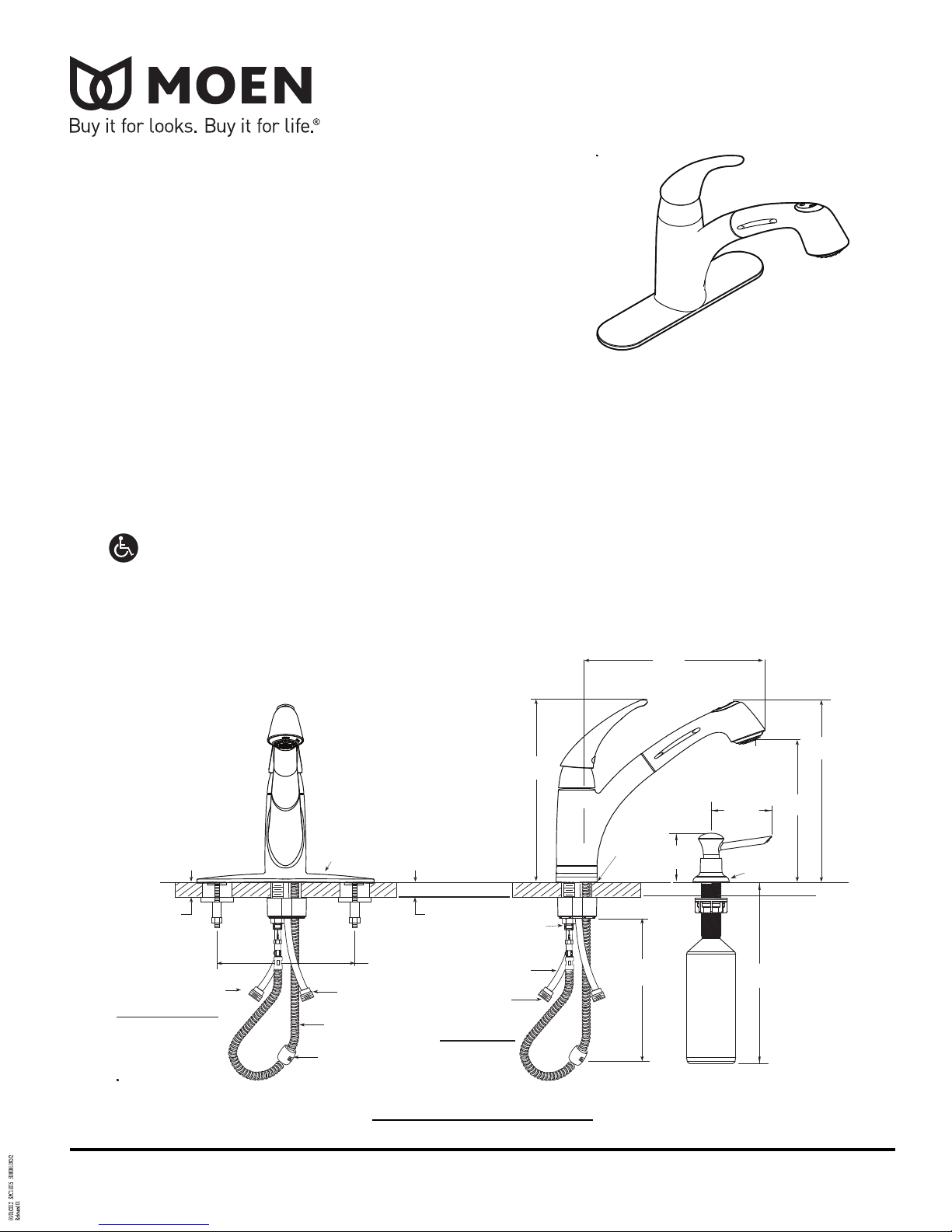

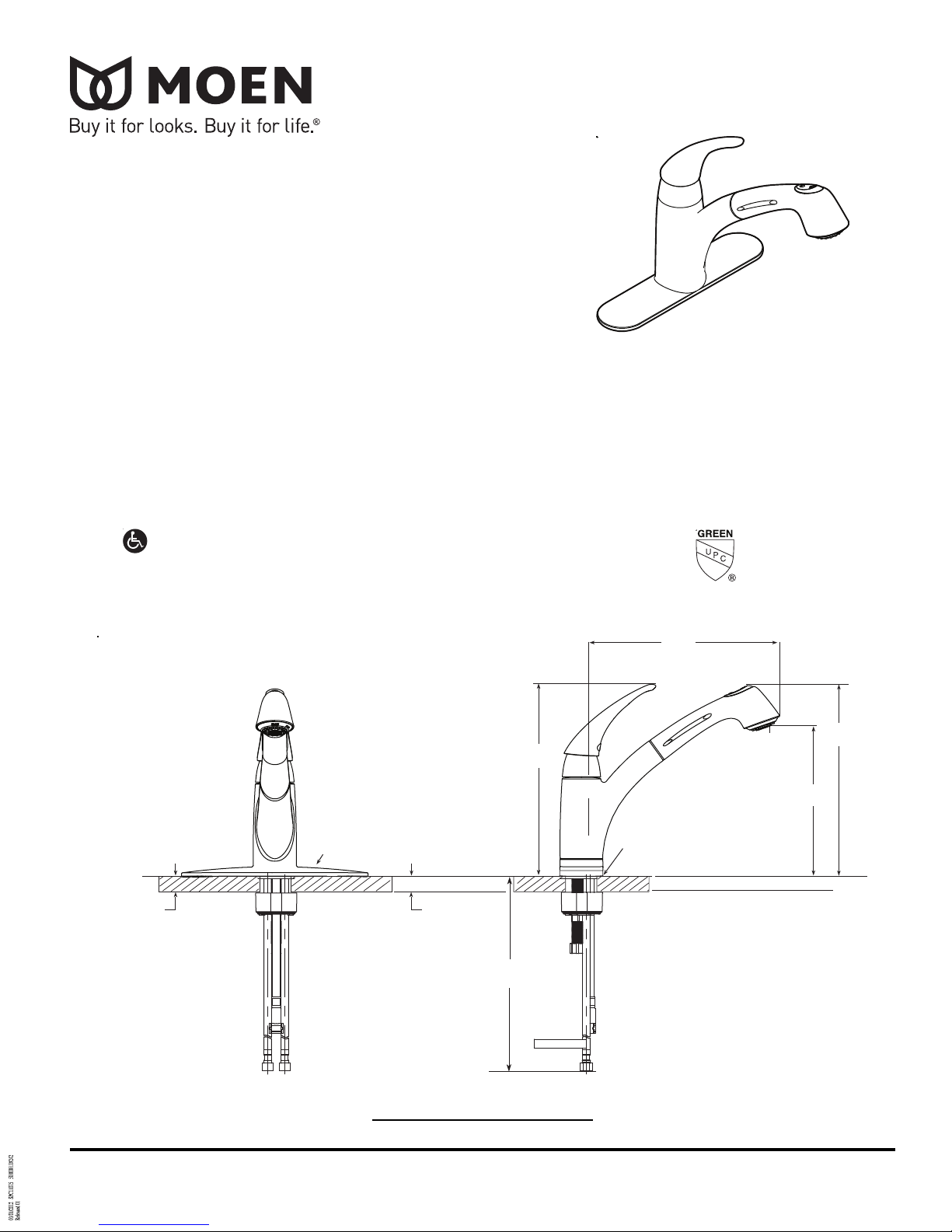

CRITICAL DIMENSIONS

(D N T SCALE)

Specifications

FOR MORE INFORMATION CALL: 1-800-BUY-MOEN

www.moen.com

DESCRIPTION

• Metal construction with various finishes identified by suffix

• Hydrolock® quick connect installation

• Flush button with raised stream and spray in di ca tors

• Pullout spray with 59" fiber hose

• Flexible supplies with 3/8” compression fittings

OPERATION

• Lever style handle

• Temperature controlled by 100˚ arc of handle travel

• Spout receptor rotation is 120˚

• perates with less than 5 lbs. of force

• perates in stream or spray mode in the pullout or retracted position

FLOW

• Flow is limited to 1.5 gpm (5.7 L/min) at 60 psi

CARTRIDGE

• 1255™ Duralast™ cartridge

STANDARDS

• Third party certified to IAPM Green, ASME A112.18.1/CSA B-125.1 and all

applicable requirements referenced therein including NSF 61/9

• Meets CalGreen and Georgia SB370 requirements

• Contains no more than 0.25% weighted average lead content

• Complies with California Proposition 65 and with the Federal Safe

Drinking Water Act

• ADA for lever handle

• The backflow protection system in this device consists of two

independently operating check valves, a primary and a secondary which

prevent backflow

WARRANTY

• Lifetime limited warranty against leaks, drips and finish defects

to the original consumer purchaser

• 5 year warranty if used in commercial installations

2-1/2"(64mm)2-1/8"(54mm)

1-1/4"(32mm)Dia.

Minimum

MountingHole

(203mm)

10-1/2"

(265mm)

DeckEscutcheon

10-7/16"x2-7/16"wide

(265mmx62mm)

10-1/2"

(266mm)

10-3/4"

(273mm)

2-3/8"(60mm)

EscutcheonDia.

Max.DeckThickness

SingleMountEsc.

Max.DeckThickness

DeckEsc.

28-1/2"

(724mm)

2-1/2"(64mm)2-1/8"(54mm)

1-1/4"(32mm) Dia.

Minimum

Mounting Hole

(203mm)

10-1/2"

(265mm)

Deck Escutcheon

10-7/16" x 2-7/16" wide

(265mm x 62mm)

10-1/2"

(266mm)

10-3/4"

(273mm)

2-3/8" (60mm)

Escutcheon Dia.

Max. Deck Thickness

Single Mount Esc.

Max. Deck Thickness

Deck Esc.

28-1/2"

(724mm)

Rev. 9/11

NOTE: DESIGNED T INSTALL

THRU 1 R 3 H LES 1-1/2” (38mm) MIN. DIA.

Extensa®

Single Control Kitc en Faucet

w/Pullout Spray

Models: 7560 series

There is more than 1 version of this model.

Page down to identify the version you have.

CRITICAL DIMENSIONS

(D N T SCALE)

Specifications

FOR MORE INFORMATION CALL: 1-800-BUY-MOEN

www.moen.com

FAUCET DESCRIPTION

• Metal construction with various finishes identified by suffix

• Hydrolock® quick connect installation

• Flush button with raised stream and spray in di ca tors

• Pullout spray with 59" fiber hose

• 1/2” IPS connections will accept standard ball nose connection for 3/8”tubing

• Chrome liquid dispenser included with 87560CSD

OPERATION

• Lever style handle

• Temperature controlled by 180˚ arc of handle travel

• Spout receptor rotation is 120˚

• perates with less than 5 lbs. of force

• perates in stream or spray mode in the pullout or retracted position

FLOW

• Flow is limited to 2.2 gpm (8.3 L/min) at 60 psi

CARTRIDGE

• 1225 cartridge design

• Engineered polymers, non-ferrous and stainless steel materials

STANDARDS

• Designed and manufactured to comply with the requirements of:

CSA B-125.1, ASME A112.18.1, IAPM PS 49-92, NSF 61 Section 9,

California Proposition 65, ICC A117.1

• The backflow protection system in the device consists of two independently

operating check valves, a primary and a secondary which prevent backflow

• ADA for lever handle

WARRANTY

• Lifetime limited warranty against leaks, drips and finish defects

to the original consumer purchaser

• 5 year warranty if used in commercial installations

For8"(203mm)

Mounting

2-1/2"(64mm)

Max.DeckThickness

SingleMountEsc.

2-1/8"(54mm)

Max.DeckThickness

DeckEsc.

1-1/4"(32mm)Dia.

Minimum

MountingHole

3/8"(10mm)

SupplyTubes

1/2"IPS

Connection

16"

(406mm)

(203mm)

10-1/2"

(265mm)

Cold

Hot

Flexible

MetalHose

CounterWeight

DeckEscutcheon

10-7/16"x2-7/16"wide

(265mmx62mm)

3Hole,4"o.c.Installation

SingleHoleInstallation

1/4"(6mm)

ThreadedDia.

18NPSM

10-1/2"

(266mm)

10-3/4"

(273mm)

2-3/8"(60mm)

EscutcheonDia.

9-7/8"

(250mm)

2-5/8"

(66mm)

3-5/16"

(83mm)

(50mm)

For 8"(203mm)

Mounting

2-1/2"(64mm)

Max. Deck Thickness

Single Mount Esc.

2-1/8"(54mm)

Max. Deck Thickness

Deck Esc.

1-1/4"(32mm) Dia.

Minimum

Mounting Hole

3/8" (10mm)

Supply Tubes

1/2" IPS

Connection

16"

(406mm)

(203mm)

10-1/2"

(265mm)

Cold

Hot

Flexible

Metal Hose

Counter Weight

Deck Escutcheon

10-7/16" x 2-7/16" wide

(265mm x 62mm)

3 Hole, 4" o.c. Installation

Single Hole Installation

1/4" (6mm)

Threaded Dia.

18 NPSM

10-1/2"

(266mm)

10-3/4"

(273mm)

2-3/8" (60mm)

Escutcheon Dia.

9-7/8"

(250mm)

2-5/8"

(66mm)

3-5/16"

(83mm)

(50mm)

Rev. 9/10

Extensa®

Single Control Kitc en Faucet

w/Pullout Spray

Models: 7560 series

87560 series

DISCONTINUED MODELS: 7560, 7560CS,

7560CBL, 87560C, 87560S, 87560SLBL, 87560CS,

87560CBL, 87560

NOTE: DESIGNED T INSTALL

THRU 1 R 3 H LES 1-1/4” (32mm) DIA.
