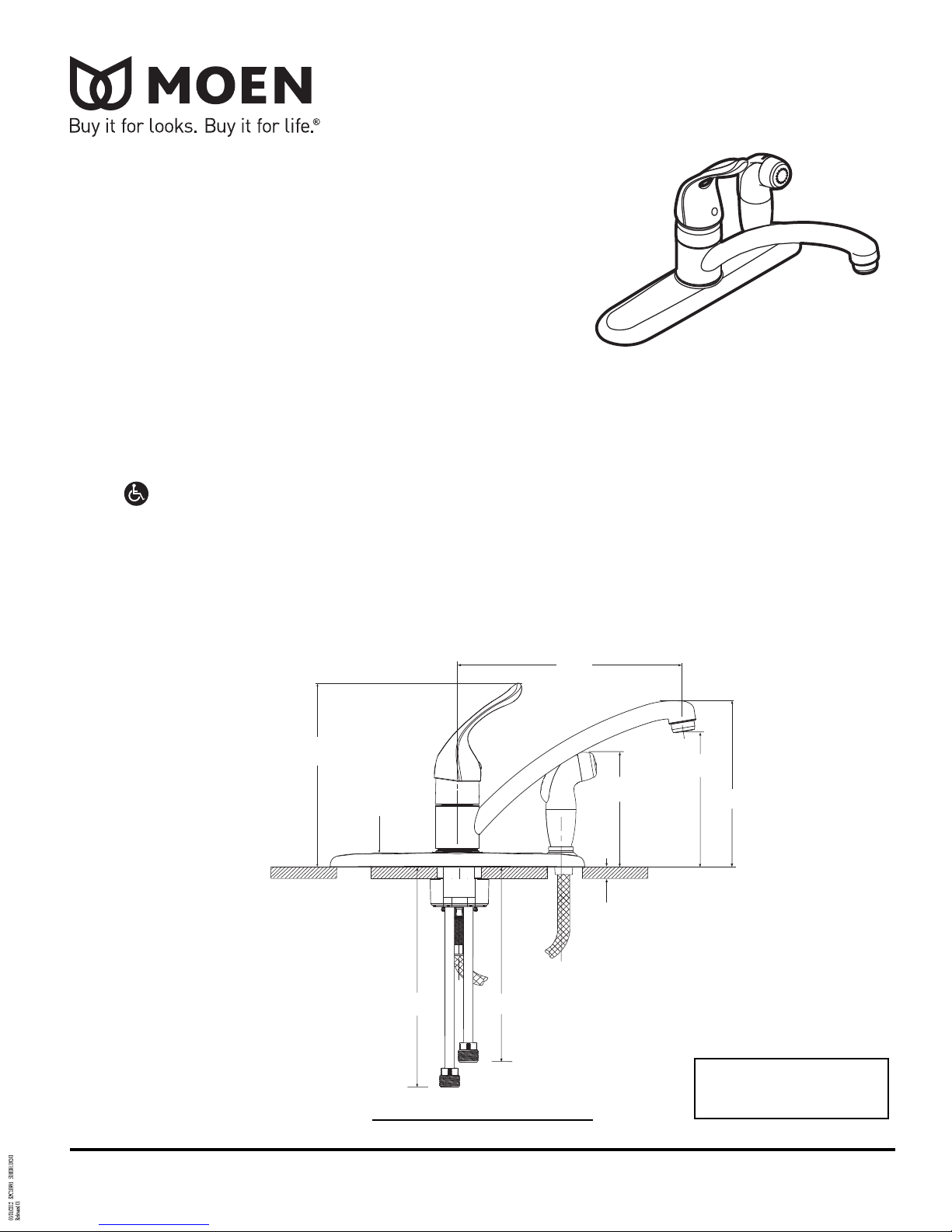

Moen CHATEAU 7454 Manual de usuario

1-1/8" (29mm)

MAX. DECK

THICKNESS

(mounting bracket

open side up)

5-7/16" (138mm)

NOMINAL

ESCUTCHEON

10-1/4” x 2-1/4"

(261mm x 58 mm)

8-1/4”

(209mm)

IN OPEN POSITION

9-1/8"

(232mm)

6-11/16"

(170mm)

4-7/8"

(126mm)

32"

(813mm)

The use of aerator part 116711

reduces flow to a maximum of

1.5 gpm (5.7L/min.)

CRITICAL DIMENSIONS

(DO NOT SCALE)

Specifications

FOR MORE INFORMATION CALL: 1-800-BUY-MOEN

www.moen.com

CHATEAU®

Single-Handle Kitchen Faucet

w/Protégé Side Spray in Deck Plate

Model: 7454

Bulk Model: 67454

NOTE: DESIGNED TO INSTALL THROUGH

3 HOLES 1-1/4" (32mm) MIN. DIA. AND 4" (102mm)

ON CENTER.

Rev. 12/11

DESCRIPTION

• Metal construction with various finishes identified by suffix

• Flexible supplies with 3/8" compression fittings

• Includes rotégé side spray

OPERATION

• Loop style handle

• Temperature controlled by 100˚ arc of handle travel

• Will operate with less than 5lbs. of force

FLOW

• Spout flow is limited to 2.0 gpm (7.6 L/min) at 60 psi

CARTRIDGE

• 1255™ Duralast™ cartridge

STANDARDS

• Designed and manufactured to comply to ASME A112.18.1/

CSA B125.1, and all applicable re quire ments referenced

therein including NSF61/9

• Contains no more than 0.25% weighted average lead content

• Complies with California roposition 65 and with the Federal Safe

Drinking Water Act

• ADA for lever handle

WARRANTY

• Lifetime limited warranty against leaks, drips and finish defects to the

original consumer purchaser

• 5 year warranty if used in commercial installations

There is more than 1 version of this model.

Page down to identify the version you have.

The use of aerator part 116711

reduces flow to a maximum of

1.5 gpm (5.7L/min.)

CRITICAL DIMENSIONS

(DO NOT SCALE)

Specifications

FOR MORE INFORMATION CALL: 1-800-BUY-MOEN

www.moen.com

CHATEAU®

Single-Handle Kitchen Faucet

w/Protégé Side Spray in Deck Plate

Model: 7454

Bulk Model: 67454

( ulk packed 12 per carton)

1-1/8" (29mm)

MAX. DECK

THICKNESS

(mounting bracket

open side up)

5-3/16" (132mm)

NOMINAL

ESCUTCHEON

10-1/4” x 2-1/4"

8-5/8”

(220mm)

IN OPEN POSITION

9-1/8"

(232mm)

6-3/8"

(163mm)

4-7/8"

(126mm)

9-1/2"

(241mm)

8-1/4"

(210mm)

NOTE: DESIGNED TO INSTALL THROUGH

3 HOLES 1-1/4" (32mm) MIN. DIA. AND 4" (102mm)

ON CENTER.

Rev. 12/11

DESCRIPTION

• Metal construction with either chrome plated, decorative glacier,

Ivory or sand finish

• 1/2" I S connections will accept standard ball hose connection for

3/8" tubing

• Includes rotégé side spray

OPERATION

• Loop style handle

• Temperature controlled by 180˚ arc of handle travel

• Will operate with less than 5lbs. of force

FLOW

• Aerator is limited to 2.0 gpm (7.6 L/min) at 60 psi

CARTRIDGE

• 1225 cartridge design (not 1200)

• Nonmetallic/nonferrous and stainless steel material

STANDARDS

• Third party certified to CSA B-125.1, ASME A112.18.1,

ICC A117.1 and all applicable re quire ments referenced therein

including NSF 61/9

• Complies with California roposition 65 and with the Federal Safe

Drinking Water Act

• ADA for lever handle

WARRANTY

• Lifetime limited warranty against leaks, drips and finish defects to the

original consumer purchaser

• 5 year warranty if used in commercial installations
