MODEL

DISCONTINUED SKUS

A4570 T4570W RT4570BP

A4570CG T4570STP RT4570CG

A4570P RT4570 84254

A4570BP RT4570P 84240W

A4570PM RT4570PM 84240PM

A4570ST RT4570ST 84250

84244 84250PM 84250ST

84252ST

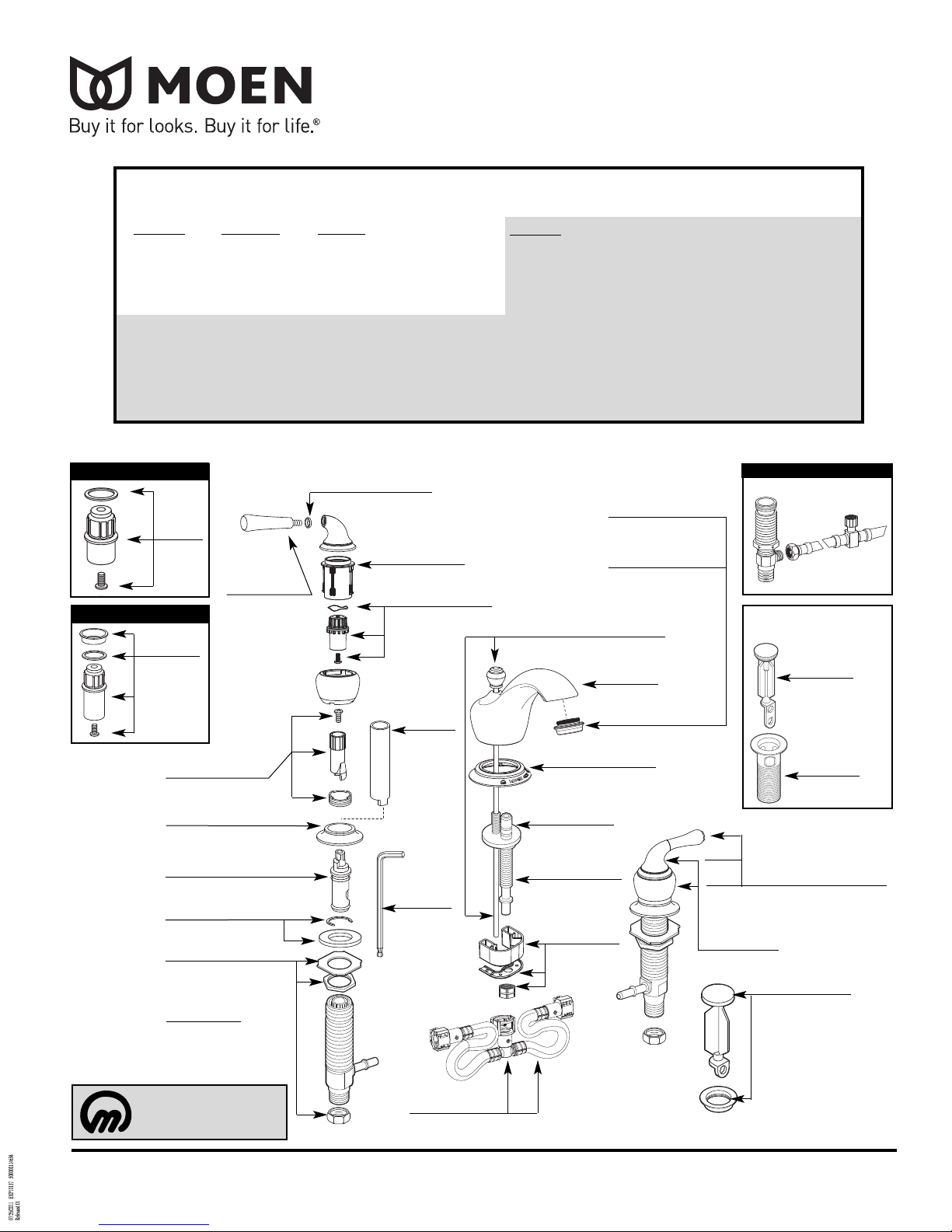

Illustrated Parts

TO ORDER PARTS CALL: 1-800-BUY-MOEN

www.moen.com

Lift Rod, Strap and Knob Kit

103464 Chrome

Aerator Kit (1.5 gpm)

101013 Chrome

Aerator Kit (2.2 gpm)

100112 Chrome

Washer Kit

97274

Stem Extension Kit

97479 Hot & Cold Side

Replacement Cartridge

1224

Spout Escutcheon

103463 Chrome

Escutcheon

2198 Chrome

Hardware Package

12715

Valve body kit

100742 - Hot

100743 - Cold

Handle Adapter Kit

100562

Large Chassis

100567

Hydrolock™and

supply hose kit

114299

Rev. 5/11

Spout Kit

103468 Chrome

Cartridge

Removal

Tool

14272

Mounting Hardware

103759 Hardware Kit

93959

Installation

Tool

103462

Spout Shank &

O Rings

100702

O-Rings (2)

103466

M•pact™System

Order by Part Number *See Chart on Next Page for

Other Available Finishes

MODEL HANDLE FINISH

T4570 Lever Chrome

T4570BN Lever Brushed Nickel

T4570P Lever Polished Brass

T4570CP Lever Chrome/Polished Brass

84240 Lever Chrome

DISCONTINUED SKUS

84246 Lever Chrome/Polished Brass

T4570PM Lever Platinum

T4570CPC Lever Chrome/Porcelain

T4570PMC Lever Platinum/Chrome

T4570ST Lever Satine

MONTICELLO®

Two-Handle Widespread Lavatory Faucet

Hub & Elbow

Assembly

100556

Models from 5/00 to 3/02

Handle

Adapter Kit

103456

Hose Kit = 103469

Waste for Chrome Retail

Models Only

Plug & Cap

12314 Chrome

Drain Seat

11984

■

Pop-Up Plug & Seat

10709 Chrome

99596 Polished Brass

10709BN Brushed Nickel

10709PM Platinum

10709ST Satine

Handle

Adapter Kit

97371

Models Prior to 3/00

Lever Handle

Insert Kit (2)

97372 Chrome

Models Prior to 11/03

1-Piece Lever & Elbow

Handle Assembly

Note: This handle does NOT

have temperature indicators

159107

Available Finishes

Illustrated Parts

TO ORDER PARTS CALL: 1-800-BUY-MOEN

www.moen.com

97372 Chrome

97372W Glacier

97373 Polished Brass

97372PM Platinum

97376 Porc./Chrome

97377 Porc./Pol. Brass

97372BP Black Opal

Lever Handle Insert

Kit (2) Aerator (2.2 GPM)

Spout Kit

Spout Escutcheon Kit

Lift Rod & Kit

Escutcheon 2198 Chrome

2198P Polished Brass

2198W Glacier

2198PM Platinum

97372ST Satine

97372BN Brushed Nickel

115018 Porcelain

103464 Chrome

103464P Polished Brass

103464W Glacier

103464PM Platinum

103464BP Black Opal

103464CG Classic Gold

103464ST Satine

103464BN Brushed Nickel

100112 Chrome

100112P Polished Brass

100113ST Satine

Aerator (1.5 GPM) 101013 Chrome

101013P Polished Brass

101013PM Platinum

101013BN Brushed Nickel

103463 Chrome

103463P Polished Brass

103463W Glacier

103463PM Platinum

103463BP Black Opal

103463CG Classic Gold

103463ST Satine

103463BN Brushed Nickel

103468 Chrome

103468P Polished Brass

103468W Glacier

103468PM Platinum

103468BP Black Opal

103468CG Classic Gold

103468ST Satine

103468BN Brushed Nickel

Part Finishes Chart

Hub & Elbow

Assembly

Rev. 5/11

Drain Seat 103458 Chrome

103458P Polished Brass

103458W Glacier

103458PM Platinum

103458BP Black Opal

103458CG Classic Gold

103458ST Satine

103458BN Brushed Nickel

Drain Pop-Up Plug 103459 Chrome

103459P Polished Brass

103459W Glacier

103459PM Platinum

103459BP Black Opal

103459CG Classic Gold

103459ST Satine

103459BN Brushed Nickel

2198BP Black Opal

2198CG Classic Gold

2198ST Satine

2198SL Stainless - (used

for brushed nickel)

100556 Chrome

100556P Polished Brass

100556W Glacier

100556PM Platinum

100556BP Black Opal

100556CG Classic Gold

100556ST Satine

100556BN Brushed Nickel

Hub & Single Piece

Lever/Elbow

Assembly

159107 Chrome

159107P Polished Brass

159107BN Brushed Nickel
