Mocka Peyton Manual de usuario

Hardware Supplied

Peyton Bed - Queen

Assembly Instructions

Thank you for your purchase.

Please follow the instructions below for correct assembly.

mocka.co.nz | mocka.com.au |

the supporting leg.

35mm

bolt x1

25mm

bolt x4

left

plate x2

right

plate x2

double

cap x14

25mm

bolt x8

spring

washer x8

washer

small allen large allen

key x1

20mm

bolt x20

A C D E

F H L R

T2 T3

Phillips & Flathead screwdrivers required.

For quicker assembly, we recommend the

use of a power drill on a low-speed setting.

Peyton Bed - Queen

Assembly Instructions

mocka.co.nz | mocka.com.au |

Peyton Bed - Queen

Assembly Instructions

mocka.co.nz | mocka.com.au |

1a: Attach 1x left plate (L) to panel [3] and 1x right plate (R) to panel

[4] and secure with 4x 20mm bolts (F). Tighten with Allen Key (T2).

1b: Attach panel [3] and panel [4] to panel [1] as shown and

secure with 4x spring washers (C), 4x washers (D) and 4x

25mm bolts (B).Tighten with Allen Key (T3).

L D

D C

2a: Attach 1x left plate (L) to panel [3] and 1x right plate (R) to panel

[4] and secure with 4x 20mm bolts (F). Tighten with Allen Key (T2).

2b: Attach panel [3] and panel [4] to panel [2] as shown and

secure with 4x spring washers (C), 4x washers (D) and 4x

25mm bolts (B).Tighten with Allen Key (T3).

Peyton Bed - Queen

Assembly Instructions

mocka.co.nz | mocka.com.au |

Join the 2x side panels [3] and Join the 2x side panels [4] together

with 2x connector [9] and secure with 8x 20mm bolts (F). Tighten with

Allen Key (T2).

4a: Insert panel [6] and sit on top of the connector [9] and secure

with 2x 25mm bolts (E). Tighten with Allen Key (T2).

4b: Attach 2x panel [5] to panels [1] and [2] and secure with 4x 20mm

bolts (F) as shown. Tighten with Allen Key (T2).

4c: Attach panels [5] and [6] in the middle with 1x support leg [7] and

secure with 1x 35mm bolt (H). Tighten with Allen Key (T2).

4d: Attach 2x support legs (7) to panels [5] and [5] as shown and

secure with 2x 25mm bolts (E). Tighten with Allen Key (T2).

HT2

Peyton Bed - Queen

Assembly Instructions

mocka.co.nz | mocka.com.au |

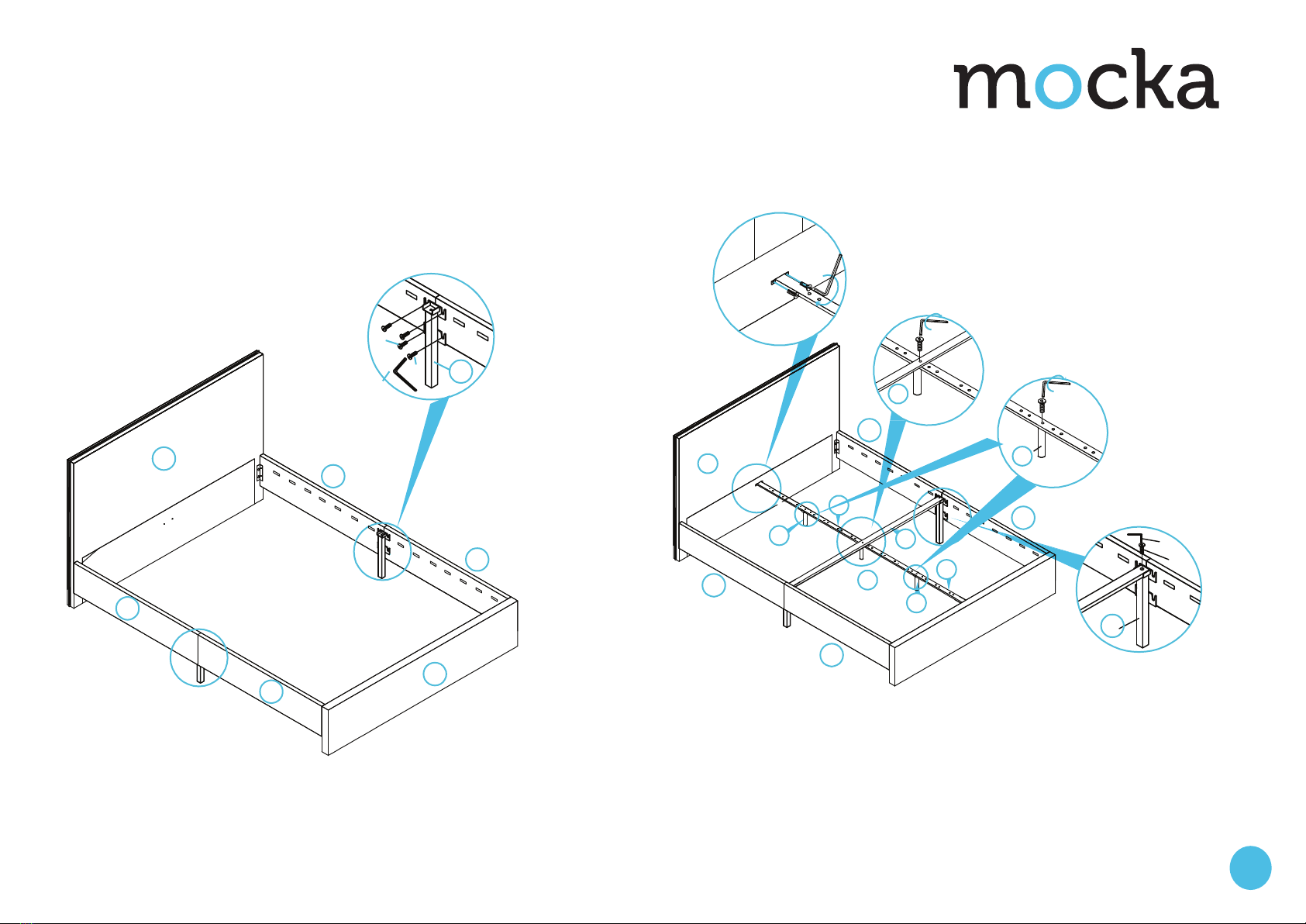

Join the bed planks together in the middle ofthe frame using 14x

double caps (A). Insert the end ofthe planks into the bed frame as

shown and attach the double caps (A)into panel [8]. Make sure the

double caps (A)click securely into place.

Lift the bed into the desired location, do not drag, You're done, enjoy!
