Mocka Eclipse Manual de usuario

Eclipse Two Door Cabinet

Assembly Instructions

Wall Strap

washer

wall

anchor

safety

strap x1

screw

wall

screw

mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558

A B C D EFG

J K L M N

Hardware Supplied

dowel

x12

screw

bolt

screw

x24

locking

nut x8

wedge

bolt

screw

Allen

Key

screw

hinge

buffer

plate

handle

screw

shelf

plug

WARNING: Any furniture that is not anchored to a wall has the potential to tip over in certain

circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.

Accordingly, we recommend that all furniture is anchored to a wall. We supply a free safety wall anchor

with all furniture sold and we recommend these are used to prevent your product tipping. The fixing device

provided should fit most wall types, but please note that different wall materials may require different fixing

devices from those supplied.

For quicker assembly, we recommend the

use of a power drill on a low-speed setting.

Phillips & Flathead screwdrivers

Thank you for your purchase. Please follow the instructions for correct assembly.

While we took great effort to ensure these assembly instructions were correct at

the time of printing, sometimes updates are required post production. For the

most up to date versions please refer to the product page on our website.

mocka.com.au/mocka.co.nz

Eclipse Two Door Cabinet

Assembly Instructions

mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558

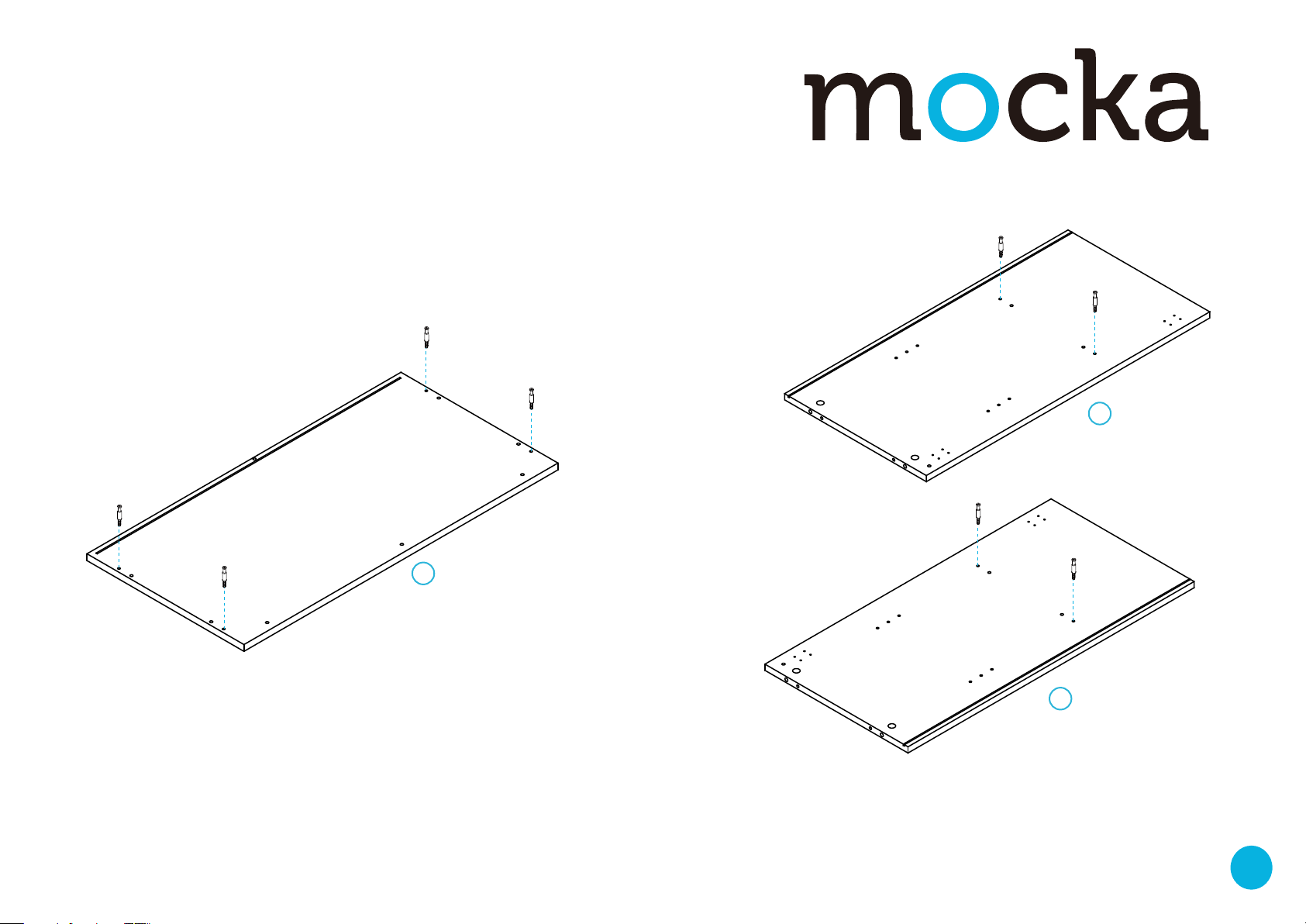

Insert 4x bolts (C) into panel [1] and tighten with a screwdriver. Insert 4x bolts (C) into panels [3] and [4]. Tighten with a screwdriver.

Eclipse Two Door Cabinet

Assembly Instructions

mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558

3 4

Attach panels [3] and [4] to panel [6] with 4x dowels (A) and secure with

4x locking nuts (D). Tighten with a screwdriver.

Attach panels [5] together with connect sticks [13]. Slide panels [5]

down along the grooves between the panels [3] and [4].

Eclipse Two Door Cabinet

Assembly Instructions

mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558

Attach panel [1] to panels [3] and [4] with 4x dowels (A) and secure

with 4x locking nuts (D). Tighten with a screwdriver.

Carefully turn the unit over. Slide panel [5] down along the grooves between

panels [3] and [4] as shown.

Eclipse Two Door Cabinet

Assembly Instructions

mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558

Attach panel [2] to panels [3] and [4] with 4x dowels (A) and secure

with 4x screws (B). Tighten with a screwdriver.

Attach panel [7] to panels [8] and [9] secure with 8x bolts (L). Tighten

with an Allen Key (I).

Eclipse Two Door Cabinet

mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558

910 Door x2

Assembly Instructions

Attach panels [8] to panel [2] and secure with 6x screws (E).Tighten

with a screwdriver.Attach panel [10] to panel [1] secure with 2x screws

(H) and 3x screws (E). Tighten with a screwdriver.

Attach 2x hinges (G) to panel [11] using 4x screws (F), and attach

1x handle (M) to panel [11] and secure with 2x screw (N).

Tighten with a screwdriver.

Tighten the

screws 90%..

Eclipse Two Door Cabinet

Assembly Instructions

mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558

12 Door x211

Attach hinges on panels [11] to panels [3] and [4] and secure

with 16x screws (F). Tighten with a screwdriver. Attach 2x buffer

plates (P) to panel [6] as shown. Ensure the doors open and

close easily.

NOTE: If the doors are

uneven or there is a gap

in the middle, loosen or

tighten the screw on the

door hinge until they are

sitting flush.

Insert 4x shelf plugs (O) into the unit at the desired height for the shelves

and rest the shelf panel [12] onto them. Ensure the shelves are balanced

and stable.

Eclipse Two Door Cabinet

Assembly Instructions

mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558

1413

Attach 8x wedges (J) into the corners of the back of the unit and secure

with 8x screws (K). Tighten with a screwdriver. Attach 1x safety strap (V)

to the top of the back side of the unit as shown using 1x washer (Z)

and 1x screw (W). Tighten with a screwdriver.

Once assembled lift furniture into place, do not drag. Use a drill to

create a small hole lining up with the top of the safety strap (V).

Fasten to the wall using 1x washer (Z), 1x wall anchor (X) and

1x wall screw (Y). Ensure unit is balanced and steady before

use.

wall

anchor

screw

strap

washer

Attach panels [5] together with connect sticks [13]. Slide panels [5]

down along the grooves between the panels [3] and [4].

Eclipse Two Door Cabinet

Assembly Instructions

mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558

1615

You’re done, enjoy!

Eclipse Two Door Cabinet

Assembly Instructions

mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558

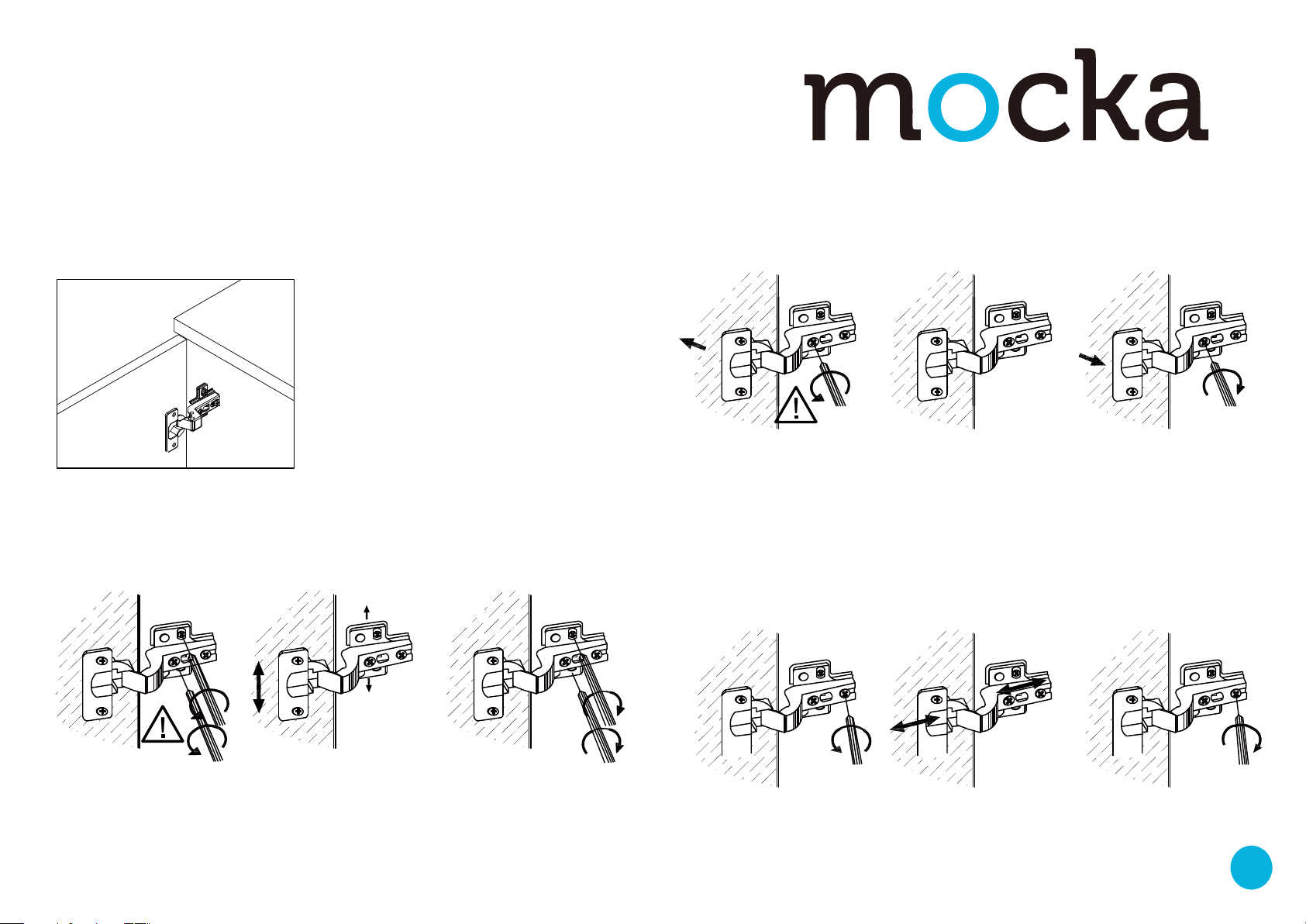

HOW TO ADJUST THE HINGES TO

ALIGN THE DOORS IF NEEDED.

Open the door.

1. 2. 3.

STEP 1

Adjuse the door panelsupward or downward

STEP 2

Adjuse the flush between door panel and side panel

STEP 3

Adjuse the Gap beteen door

panel and side panel

STEP 4

Loosen this screw a bit. MOVE DOOR BACK OR

FORTH Re-tighten this screw.

Panel

Door

Unscrew 2 screws in round

holes loosen 2 screws in oval

holes a bit.

Tighten 2 screws in oval

holes. Screw in 2 screws in

round holes

MOVE DOOR UPWARD

OR DOWNWARD

MOVE DOOR OUTWARD

by turning this screw

counter-clockwise

KEEP DOOR IN RIGHT

POSITION MOVE DOOR OUTWARD

by turning this screw clockwise
