ML Accessories EA1 Series Manual de instrucciones

INSTALLATION & MAINTENANCE MANUAL

EA1xx / EA2xx

These instructions should be read carefully and retained after installation by the

end user for future reference and maintenance.

These instructions should be used to aid installation of the following products:

EA1xx / EA2xx

GENERAL INSTRUCTIONS

SAFETY

• This product must be installed in accordance with the latest edition of the IEE Wiring

Regulations (BS7671) and current Building Regulations. If in any doubt, consult a

qualiﬁed electrician

• Please isolate mains prior to installation or maintenance

• Check the total load on the circuit (including when this luminaire is ﬁtted) does not

exceed the rating of the circuit cable, fuse or circuit breaker

• Please note the IP (Ingress Protection) rating of this product when deciding the location

for installation

• This product is Class II double insulated

• This product is IP54 rated

INSTALLATION & MAINTENANCE MANUAL

These instructions should be read carefully and retained after installation by the end user for future reference and

maintenance.

These instructions should be used to aid installation of the following products:

EA1xx / EA2xx

SAFETY

•This product must be installed in accordance with the latest edition of the IEE Wiring Regulations

(BS7671) and current Building Regulations. If in any doubt, consult a qualified electrician

•Please isolate mains prior to installation or maintenance

•Check the total load on the circuit (including when this luminaire is fitted) does not exceed the rating of the

circuit cable, fuse or circuit breaker

•Please note the IP (Ingress Protection) rating of this product when deciding the location for installation

•This product is Class II double insulated

•This product is IP54 rated

INSTALLATION

Note - Round cable should be used for the mains supply. The use of flat cable will cause water ingress to the fitting.

•Provide power to the required point of installation (refer to BS7671 for correct cabling methods). Suitable

IP rated junction boxes should be used where required

•Separate the baseplate from the luminaire by removing the nuts on the front

•Using the baseplate as a template, mark the location for, and drill the fixing holes ensuring not to infringe

with any gas/water pipes or electrical cables (see Fig. 1)

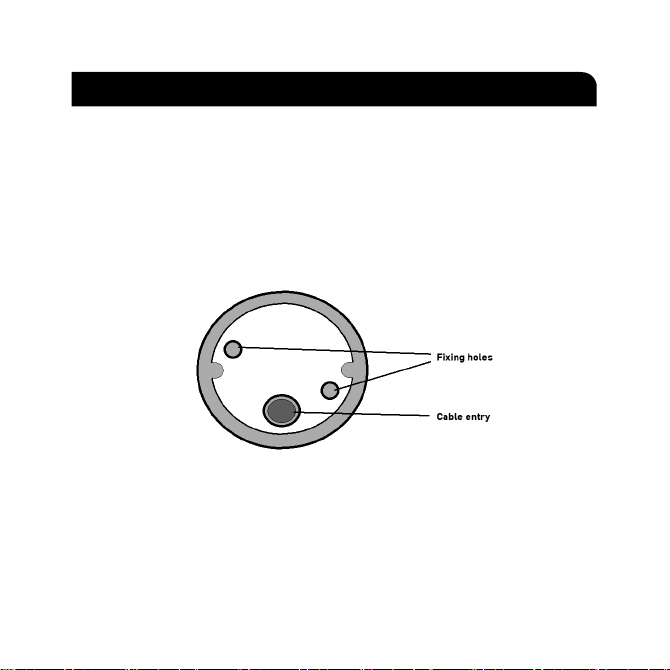

Fig. 1

•Feed the mains cable through the rubber grommet to retain IP rating, and secure the baseplate to the

surface using the plugs, screws and rubber washers provided

•Connect the luminaire to the mains supply ensuring the correct polarity is observed: Live (brown),

Neutral (blue)

•Ensuring the gasket on the baseplate is in place, align the luminaire with the baseplate and secure with

the two nuts

•Unscrew the bezel, insert a suitable LED lamp (5W max.) and carefully replace the bezel ensuring that the

seal is in place and not damaged. Note that the top and bottom bezels of the EA2xx are not

interchangeable

•Switch on and check for correct operation

GENERAL

Clean the external surfaces with a damp cloth using a mild solution of detergent and warm water only, do not use

aggressive cleaning products or solvents which may damage the product.

Do not use any source of high-pressure washers to maintain or clean this luminaire.

This product is dimmable dependent on lamp type.

INSTALLATION

Note - Round cable should be used for the mains supply. The use of ﬂat cable will cause

water ingress to the ﬁtting.

• Provide power to the required point of installation (refer to BS7671 for correct cabling

methods). Suitable IP rated junction boxes should be used where required

• Separate the baseplate from the luminaire by removing the nuts on the front

• Using the baseplate as a template, mark the location for, and drill the ﬁxing holes ensuring

not to infringe with any gas/water pipes or electrical cables (see Fig. 1)

Fig. 1

• Feed the mains cable through the rubber grommet to retain IP rating, and secure the

baseplate to the surface using the plugs, screws and rubber washers provided

• Connect the luminaire to the mains supply ensuring the correct polarity is observed: Live

(brown), Neutral (blue)

• Ensuring the gasket on the baseplate is in place, align the luminaire with the baseplate

and secure with the two nuts

• Unscrew the bezel, insert a suitable LED lamp (5W max.) and carefully replace the bezel

ensuring that the seal is in place and not damaged. Note that the top and bottom bezels

of the EA2xx are not interchangeable

• Switch on and check for correct operation

WARRANTY

This product has a warranty of 3 years from date of purchase. Failure to install this product

in accordance with the current edition of the IEE Wiring Regulations (BS7671), improper

use, or removal of the batch code will invalidate the warranty. If this product should fail

within its warranty period, it should be returned to the place of purchase for a free of

charge replacement. ML Accessories does not accept responsibility for any installation

costs associated with the replacement product. Your statutory rights are not affected. ML

Accessories reserve the right to alter product speciﬁcation without prior notice.

GENERAL

Clean the external surfaces with a damp cloth using a mild solution of detergent and warm

water only, do not use aggressive cleaning products or solvents which may damage the

product.

Do not use any source of high-pressure washers to maintain or clean this luminaire.

This product is dimmable dependent on lamp type.

This product should be recycled in the correct manner when it reaches the end of its life.

Check local authorities for where facilities exist.

DCMAR22_V1

Supplied By:

(UK) Manufacturer

ML Accessories Ltd, Unit E Chiltern Park, Boscombe Road,

Dunstable LU5 4LT, www.mlaccessories.co.uk

(EU) Authorised Representative

nnuks Holding GmbH, Niederkasseler Lohweg 18, 40547

Düsseldorf, Germany, www.nnuks.com

Email: [email protected]om
