Minuteman M17120-00 Manual de usuario

Front Runner

Floor Machines

Model:

M17120-00, 01, 02, 03

M17240-01, 02, 03

M20120-01, 02, 03

M20240-01, 02, 03

Revised 11/00

OPERATION SERVICE PARTS CARE

FOR COMMERCIAL USE ONLY

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic precautions should always be followed, including the

following:

READ ALL INSTRUCTIONS BEFORE USING

WARNING - To reduce the risk of fire, electric shock, or injury:

•Do not leave appliance when plugged in. Unplug from outlet when not in use and before servicing.

WARNING

To reduce the risk of electrical shock - Do not expose to rain. Store indoors.

•Never allow children or untrained adults to operate this equipment.

•Keep the area of operation clear of all persons, particularly small children, and pets. Keep

bystanders at least 25 feet away from the area of operation.

•Use only as described in this manual. Use only manufacturer’s recommended attachments.

•Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped,

damaged, left outdoors, or dropped into water, return it to a service center.

•Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp

edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.

•Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.

•Do not handle plug or appliance with wet hands.

•Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint,

hair, and anything that may reduce air flow.

•Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.

•Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.

•Do not use without dust bag and/or filters in place.

•Turn off all controls before unplugging.

•Use extra care when cleaning on stairs.

•Do not use to pick up flammable or combustible liquids such as gasoline or use in areas where

they may be present.

•Connect to a properly grounded outlet only. See grounding instructions.

SAVE THESE INSTRUCTIONS

INSPECTION

Carefully unpack and inspect your machine for shipping damage. Each unit is tested and thoroughly

inspected before shipment, and any damage is the responsibility of the delivery carrier who should

be notified immediately.

WARNING

Read Instruction Manual before operating this piece of equipment.

•To reduce the risk of fire use only commercially available floor cleaners and waxes intended for

machine application.

•Risk of explosion - floor sanding can result in an explosive mixture of fine dust and air. Use floor

sanding machine in a well-ventilated area free from any flame or match.

•Electrical motors and components can cause an explosion when operated near volatile materials

and vapors. Do not use this machine near flammable materials such a solvents, thinners, fuels,

grain dust, etc.

ELECTRICAL - 115 Volt

Model M17120-00, 01 02 M20120-01, 02, 03

This machine is designed to operate on a standard 15 amp. 120 volt, 60 hz, AC circuit. Voltages

below 105 volt AC or above 125 volts AC could cause serious damage to the motor.

ELECTRICAL - 240 Volt

Model M17240-01, 02, 03 M20240-01, 02, 03

This machine is designed to operate on a standard 16 amp. type L fused 230 volt, 50 hz, AC circuit.

Voltages below 200 volt AC or above 250 volts AC could cause serious damage to the motor.

GROUNDING INSTRUCTIONS

•This floor finishing machine should be grounded while in use to protect the operator from electric

shock. The machine is equipped with a three-conductor cord and a three-prong grounding type

attachment plug to fit the proper grounding type receptacle. The green (or green and yellow)

conductor in the cord is the grounding wire. Never connect this wire to other than the grounding

blade.

•Floor Finishing Machines Rated Less Than 150 Volts - If the machine is provided with an attachment

plug as shown in Sketch A it is intended for use on a 120-volt (nominal) circuit.

•If a properly grounded receptacle as shown in Sketch A is not available, an adapter as shown in

Sketch C is available and should be installed as shown in Sketch B if the outlet box that houses the

receptacle is grounded. Be sure to fasten the grounding tab with the faceplate screw.

•Floor Finishing Machines Rated More Than 150 Volts - If the machine is provided with an attachment

plug as shown in Sketch D, it is intended for use on a nominal 240 volt circuit. No adapter is

available for this plug.

POUR USAGE COMMERCIAL SEULEMENT

MODE D’EMPLOI SECURITAIRE

Lorsque l’on utilise un appareil électrique, des précautions de base doivent toujours être suivies

telles que:

BIEN LIRE LE MODES D’EMPLOI AVANT USAGE

AVERTISSEMENT - Pour réduire les risques de feu, choc électrique ou blessure:

Ne pas quitter l’appareil lorsque la prise de courant est branchée. Débrancher de la sortie électrique

lorsque la machine n’est pas en usage ou pour en faire le service.

AVERTISSEMENT - Pour réduire le risque de choc électrique - Ne pas exposer à la

pluie - Entreposer à l’intérieur.

•Ne pas permettre l’usage comme jouet. Etre très prudent lorsque l’appareil est utilisé en

présence d ‘enfants.

•Utiliser tel que prescrit dans le livre d’opération et seulement avec les attachements

recommendés par le manufacturier.

•Ne pas s’en servir avec corde ou prise de courant endommangée. Si l’appareil ne fonctionne

pas ou a été échappé, endommagé, entreposé à l’extérieur ou depose dans l’eau, l’appareil

devrait être envoyé à un département de service pour inspection.

•Ne pas tirer ou porter par le câble ou se servir du câble comme poignée. Ne pas fermer de

portes sur le câble ou tirer le câble près d’objets pointus. Ne pas conduire l’appareil en écrasant

le câble et soyez certain de protéger le cable entre toutes surfaces de chauffage.

•Ne pas débrancher en se servant du câble. Pour débrancher tirer sur la prise et non sur le

câble.

•Ne pas manipuler la prise ou l’appareil avec les mains mouillées.

•Ne placer aucun objet dans la sortie et ne pas s’en servir si la sortie est obstruée. Eliminer

toute poussière, maillon, cheveux ou quoique ce soit qui pourrait réduire le mouvement d’air.

•N’exposer aucun cheveux, vêtement, doigts ou autres aux ouvertures de l’appareil.

•Ne rien ramasser de ce qui brûle ou de fumée tels que cigarettes, allumettes ou cendres en

feu.

•Ne pas employer sans filtre de poussière ou autre en position.

•Fermer tous les contrôles après utilisation.

•Soyez très prudent lors du nettoyage d’escaliers.

•Ne pas ramasser de liquide inflammable ou combustible tel que gazoline et ne pas utiliser

dans les endroits ou ces derniers pourraient être présent.

•Brancher dans une prise avec une prise de terre seulement. Voir références pour prise de

terre.

CONSERVEZ CES RECOMMANDATIONS

DE MODE D’EMPLOI

USER MAINTENANCE INSTRUCTIONS

A qualified electrician should perform all service and repair. No user serviceable components are

employed in this equipment. No lubrication of the motor is required.

CORD STORAGE

While not in use, storage can be accomplished by winding cord around handle assy. Cord should be

completely unwound during operation.

•Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped,

damaged, left outdoors, or dropped into water, return to service center.

•Do not pull or carry by cord, use cord as handle, close a door on cord, or pull cord around sharp

edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.

•Do not unplug by pulling cord. To unplug, grasp the plug, not the cord.

•Do not handle plug or appliance with wet hands.

•Always unplug the machine when removing brush. This equipment should be stored indoors and

not exposed to rain.

PREVENTATIVE MAINTENANCE - 2-Speed Models Only

This machine employs a motor carbon brush wear indicator light located on the rear of the motor

cover. This will illuminate when the carbon brushes are worn to the point of needing replacement,

service should be done by a qualified electrician.

OPERATION

The brush is attached in the following manner: Tip machine backward with handle on floor. Brush is

then inserted over the lugs on the bottom of the gear unit and twisted to the left. This secures the

clutch plate of the brush over the lugs on the gear unit in the correct driving position.

LOWER HANDLE ASSEMBLY TO WAIST HIGH POSITION AND LOCK.

Due to the rotation of a single disc machine, it will naturally have a tendency to move to the right or

left, depending on the operator’s slight pressure either up or down on the handle. If the handle is

lifted slightly up, the machine will travel to the right; a downward pressure, and

it will travel to the left. It is this maneuverability that enables an operator to cover large areas in a short

time with the least amount of effort. The machine can be made to operate without travel by balancing

... KEEPING THE BRUSH PRESSURE ON THE FLOOR EQUAL. With a few minutes of practice in

a large area, you will have perfect fingertip control of the machine. This equipment is equipped with

trigger safety interloc. Refer to diagram pictured.

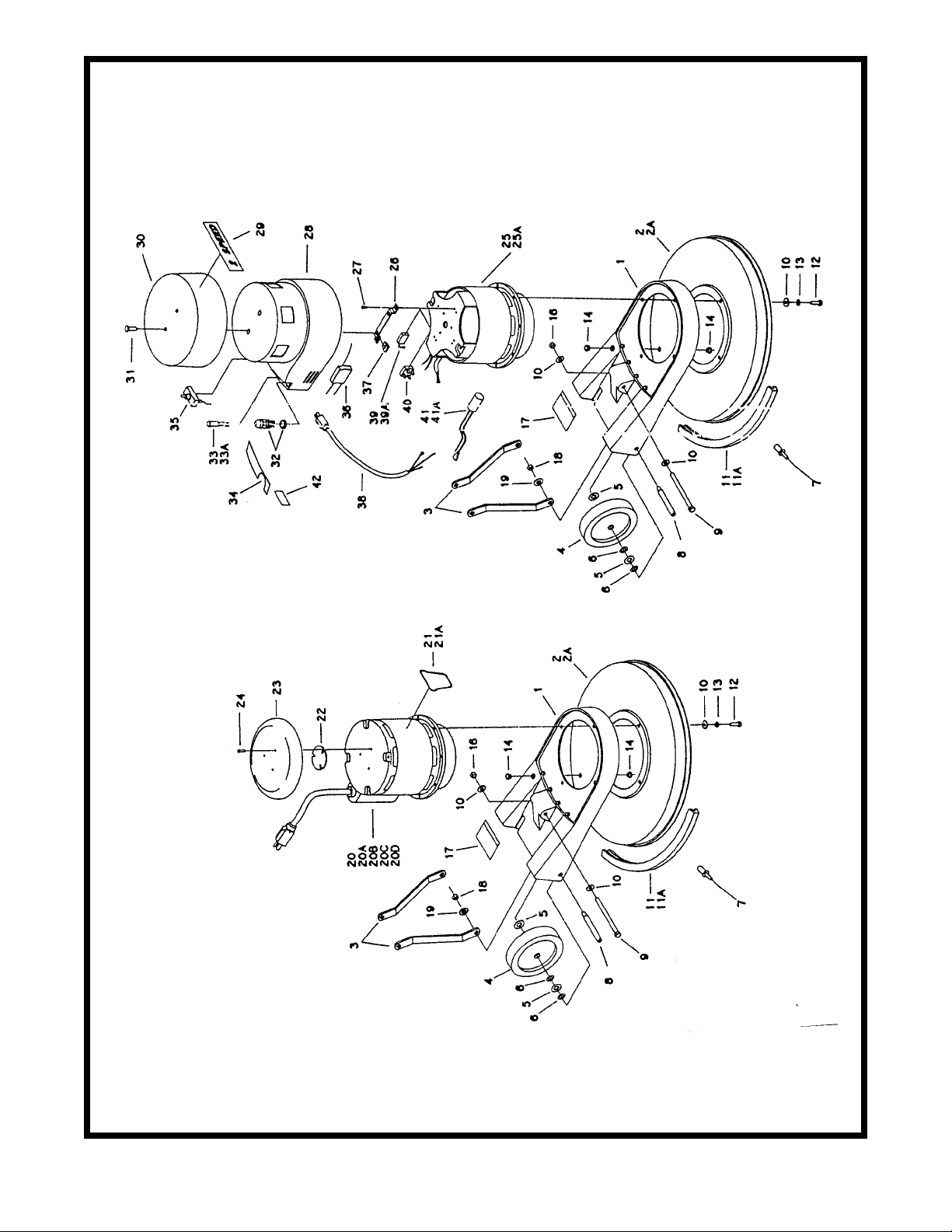

Parts List

Item Part No. Qty. Description

1 190000PTD 1 Base Casting

2 190001PTD 1 Housing 17

2A 190002PTD 1 Housing 20

3 807248 2 Handle Brace

4 190030 2 Wheel

5 711510 4 WSR-Flat .50 x 1.00

6 711524 4 WSR-Wave .52 x .87

7 190021 3 Rivet

8 190011 2 Axle

9 760261 1 Bolt, Yoke

10 711515 6 WSR-Flat .44 x .87

11 190017 1 Bumper 17

11A 190018 1 Bumper 20

12 711237 4 Bolt-HH 5/16-18 x 2.00

13 711545 4 WSR-Helical 5/16

14 830949 2 Snap Bushing

16 711375 1 Nut-Nyloc 3/8-16

17 715062 1 Decal, Warning

18 711439 2 Nut-Flanged Wizz 3/8-16

19 711592 2 WSR-Nylon .50 x 1.00

20 180035 1 Motor 3/4 HP w/Gear 115V

20A 200002 1 Motor 1 HP w/Gear 115V

20B 200025 1 Motor 1.5 HP w/Gear 115V

20C 200220 1 Motor 1 HP w/Gear 240V

20D 750571 1 Motor 1.5 HP w/Gear 240V

21 715168 1 Decal, Minuteman 17

21A 715169 1 Decal, Minuteman 20

22 805635 1 Cork Gasket

23 160048PTD 1 Motor Cover

24 710153 3 SCR-MC 10-32 x .37

25 740271 1 Motor/Gear Assembly 115V

25A 740273 1 Motor/Gear Assembly 240V

26 760123 1 Motor Cover Mounting Bracket

27 711124 2 SCR-ST-B 10 x .38

28 190020 1 Motor Cover

29 715075 1 Decal 2-Speed

30 829194 1 Motor Top Cover

31 710196 1 SCR-MC 5/16-18 x .63

32 830696 1 Stain Relief

33 832859-1 1 Indicator Light 115V

33A 832860-1 1 Indicator Light 240V

34 715170 1 Decal, High/Low

35 740188 1 Switch 20 amp. 1.5 HP

36 829489 1 Foam Dampener

37 832829 1 Tinnerman Nut

38 762146 1 Cord, Pigtail

39 762160 4 Carbon Brush 115V

39A 740281 4 Carbon Brush 240V

40 740202 1 Bridge Rectifier

41 740259 1 Traic Control 115V

41A 740280 1 Traic Control 240V

42 715067 1 Decal, Brush Wear Indicator

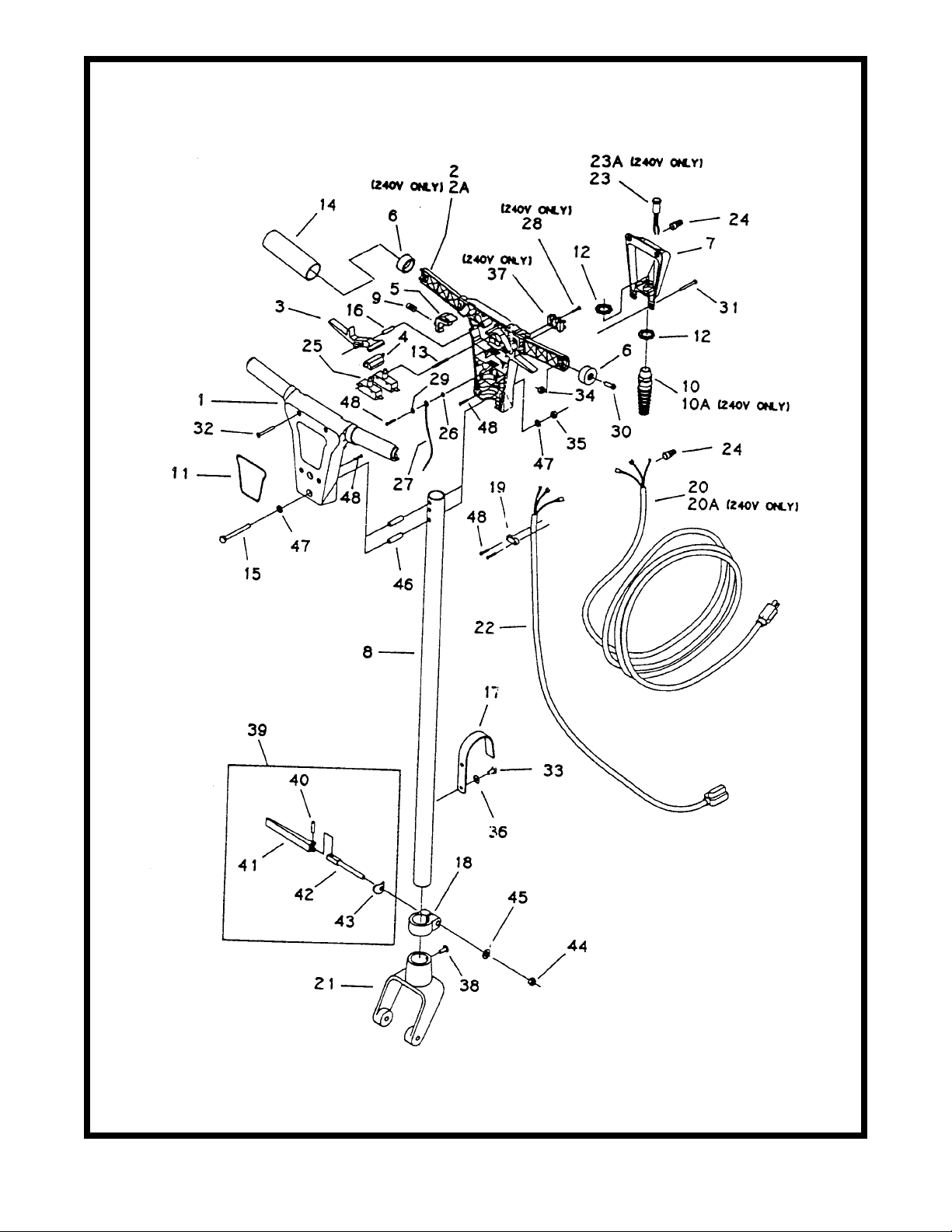

PARTS LIST

Item Part No. Qty. Description

1 190003 1 Switch Box Front

2 190004 1 Switch Box Rear

2A 190004MCH 1 Switch Box Rear, 240V

3 190007 2 Switch Trigger

4 190008 1 Switch Cap

5 190009 2 Safety Button

6 190006 2 End Cap

7 190005 1 Electrical Box Rear

8 190012 1 Tube Handle

9 190015 2 Trigger Spring

10 150003 1 Strain Relief, 115V

10A 150004 1 Strain Relief, 240V

11 715175 1 Decal, Minuteman Runner

12 711400 2 Nut-Pipe Lock 1/2

13 711619 2 Roll Pin 1/8 x 1.50

14 190016 2 Foam Grip

15 710186 2 SCR-MC 1/4-20 x 2.25 TH

16 711658 2 Roll Pin 1/4 x 1.0

17 170040PLT 1 Cord Hook

18 16224 1 Handle Clamp

19 190010 1 Strain Relief

20 150002 1 Orange Cord Set, 115V

20A 740600 1 Cord Set, 240V

21 803379 1 Yoke

22 190013 1 COrd, Handle

23 832859 1 Indicator Light, 115V

23A 832860 1 Indicator Light, 240V

24 740005 3 Wire Cap 14-18

25 740029 2 Switch 1.5 HP

26 711553 1 WSR-Lock #8

27 740363 1 Wire Assy Green w/Yellow

28 712088 2 SCR-Hi/Lo 8-18 x .75

29 711502 1 WSR-Flat 8

30 710380 2 SCR-MC 1/4-20 x .75

31 711160 4 SCR-Hi/Lo 10 x .63

32 711162 4 SCR-Hi/Lo 10 x 1.50

33 711202 2 Bolt-HH 1/4-20 x .50

34 711316 2 Nut-Hex 1/4-20

35 711373 2 Nut-Nyloc 1/4-20

36 711544 2 WSR-Helical 1/4

37 740036 1 Terminal Block, 240V

38 710579 2 SCR-MC 1/4-20 x .62

39 807674 1 Kick Lever Kit

40 806561 1 Dowel Kit

41 806558 1 Kick Lever

42 807190 1 Bolt Cam

43 806555 1 Washer Cam

44 711374 1 Nut-Nyloc 5/16-18

45 711506 1 WSR-Flat 5/16

46 190029 2 Sleeve

47 711504 4 WSR-Flat 1/4

48 711128 5 SCR-Hi/Low #8-18 x .625

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Máquina de piso de Minuteman

Minuteman

Minuteman Lumina 20 Traction Drive Manual de lista de piezas

Minuteman

Minuteman X17 ECO CFS Manual de usuario

Minuteman

Minuteman mc20001qp Guía

Minuteman

Minuteman SCV2832E Manual de usuario

Minuteman

Minuteman X Ride 28 Manual de usuario

Minuteman

Minuteman E 17e Manual de usuario

Minuteman

Minuteman HM47B Manual de usuario

Minuteman

Minuteman TRS17-220 Manual de lista de piezas

Minuteman

Minuteman C-BOX 100 Manual de usuario

Minuteman

Minuteman E Ride 21 Instrucciones de funcionamiento

Minuteman

Minuteman M2400 Guía

Minuteman

Minuteman E28 Manual de usuario

Minuteman

Minuteman E Ride 26 Manual de usuario

Minuteman

Minuteman MR2000-115 Guía de inicio rápido

Minuteman

Minuteman PowerBoss MC380000 Guía

Minuteman

Minuteman R100C Manual de usuario

Minuteman

Minuteman Ambassador 20 Manual de lista de piezas

Minuteman

Minuteman E Ride 26 SPORT Manual de usuario

Minuteman

Minuteman MC17000-00CE Guía

Minuteman

Minuteman M27000-00 Guía

Minuteman

Minuteman 747 Manual de lista de piezas

Minuteman

Minuteman M220028K13H Manual de lista de piezas

Minuteman

Minuteman Lumina 28 Traction Drive Manual de lista de piezas

Minuteman

Minuteman FR20115-DC Manual de usuario

Manuales populares de Máquina de piso de otras marcas

Nilfisk-Advance

Nilfisk-Advance Advance SC370 17B Manual de usuario

Numatic

Numatic ET 4045 Manual de usuario

HAWK ENTERPRISES

HAWK ENTERPRISES HP1513-180BRUTE Manual de usuario

Mytee

Mytee 8070 Mytee-Lite Manual de usuario

Kärcher

Kärcher B 140 R Manual de usuario

Triple S

Triple S Ace 26T1 Manual de usuario

Nilfisk-Advance

Nilfisk-Advance SW 750 Manual de usuario

Tornado

Tornado Marathon 2000 98190 Manual

Windsor

Windsor ADMIRAL Admiral 8 Manual de usuario

Numatic

Numatic TTB 1117/100 Manual de usuario

Tennant

Tennant 8210D Manual de usuario

Nobles

Nobles Frontier Manual del producto

lavina

lavina 21-X Manual de usuario

KENT

KENT Edge 28B Manual de usuario

Tennant

Tennant 215 Manual del producto

Windsor

Windsor BDP 51/2000C Manual de usuario

CleanFreak

CleanFreak DURA-18HD Manual de usuario

Nilfisk-Advance

Nilfisk-Advance Warrior 34RST Guía del administrador
