MINOURA 971-3 Manual de usuario

Bicycle Display Stand 971-3 instructions manual

(ver.2.4 2019/4)

Thank you for choosing Minoura 971-3.

Read this instructions carefully to understand well how this stand is constructed before starting assembling.

- 1 -

800mm

520mm

270mm

920mm

850mm

Completed image and dimensions of 971-3

(in the settings the bikes facing rightward)

IMPORTANT NOTES

• For standard 2-wheel bike only. No recumbent, tandem and any other type of bikes.

• For 24-inch wheel or larger only. Any bike with smaller wheel such as BMX or juvenile bike, and a special bike

with too low bottom bracket height or carbon monocoque frame may not t to this stand.

• In the case of electric bike, the weight is limited under 30 kgs each.

• The bike is supported at just 3 points; front tire, rear tire and the bottom bracket. Adjust the BB Support height

precisely in each case to expect maximum stability.

• The bike direction is xed as per the Stair Frame direction. Wrong direction cannot mount the bike properly.

• Do not step on this stand. The stand body is not so durable to support your weight.

• Setup this stand on horizontal and level oor, especially when installing the optional Caster Kit.

• When moving this stand, get off all bikes from the stand before action.

• Check regularly if each bolt and nut are rmly tightened.

Contact MINOURA JAPAN

134-1 Shimomiya, Godo, Anpachi, Gifu 503-2312 Japan

Fax: +81-584-27-7505

Mail: [email protected]

Web: www.minoura.jp

Made in Japan

To avpoid stain to the oor or carpet, put the supplied

round transparent lm on each back of Foot Adjuster.

- 2 -

How To Assemble 971-3

Required Tools: 1 x Phillips Screwdriver (#2), 2 x 13mm Socsket Wrench

First of all, check all small parts are correctly prepared.

Parts List

2 x Base Frame 4 x Round Head Screw M5x40

3 x Stair Frame 3 x Hex Head Bolt M8x30

2 x Pillar-S (223mm) 6 x Hex Head Bolt M8x35

2 x Pillar-M (473mm) 8 x Hex Head Bolt M8x45

2 x Joint Frame 2 x Hex Head Bolt M8x60

3 x B.B. Support 15 x Metal Collar (short)

6 x Tire Cradle 6 x Metal Collar (long)

4 x Foot Adjuster 4 x M5 Spring Washer

21 x M8 Spring Washer

21 x M8 Flat Washer

8 x M8 Nut

Assemble 2 sets of the Side Frame.

Connect the Pillar S (223mm) and the Pillar-M (473mm)

with the Joint Frame. Tighten the screw to fix.

Pillar-M

(473mm)

Joint Frame

Pillar-S

(223mm)

M5x40 Screw

M5 Spring Washer

Make sure the direction of Pillar-M.

Joint Frame must be parallel when

standing both pillars.

Assemble the Base Frame with each Side Frame.

Install the Foot Adjusters on both ends of the Base Frame.

Base Frame

Foot Adjuster

Collar (long)

M8 Flat Washer

M8 Spring Washer

Hex Bolt M8x45

Connect both Side Frames with three (3) Stair Frames.

On the 1st level Stair Frame, you use longer M8x60 bolt.

Hex Bolt M8x60

M8 Spring Washer

M8 Flat Washer

Collar (short)

Stair Frame

Collar (long)

M8 Flat Washer

M8 Spring Washer

M8 Nut

Make sure there are two (2) holes on each Stair

Frame for mounting the Bottom Bracket Support.

To set the bike heading right, place the Stair

Frame to have the holes in left side.

Install the Stair Frames on the 2nd and 3rd levels.

Set all frames in the same direction if you wish to set the

bikes in same direction.

Hex Bolt M8x45

M8 Spring Washer

M8 Flat Washer

Collar (short) Stair Frame

｝

Long

Short

Bike Direction

- 3 -

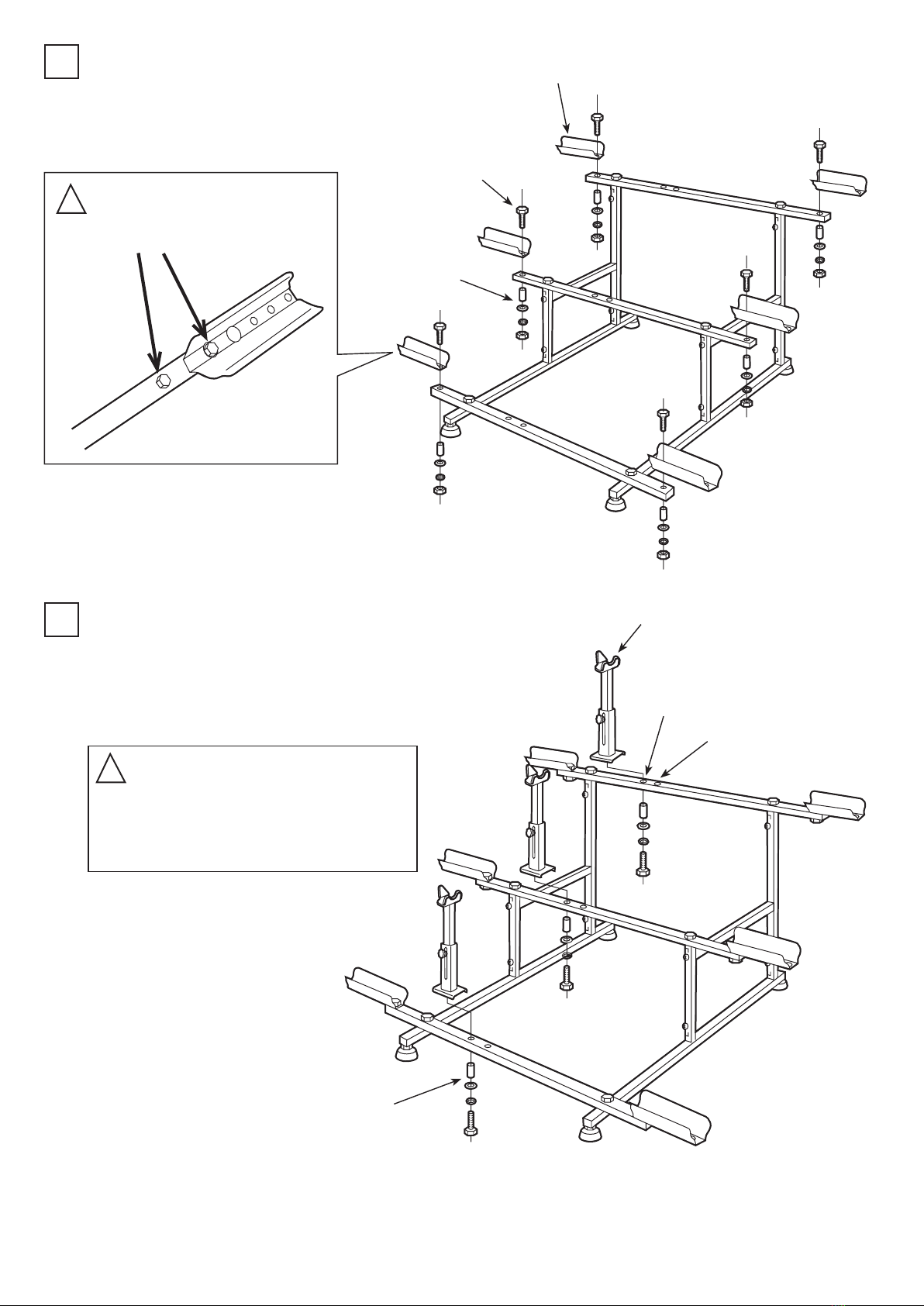

Install a pair of Tire Cradles on each Stair Frame.

Each Tire Cradle is position adjustable in 5 points in order to fit

various sizes of bike wheelbase.

To expect maximum stability of bikes, choose the best position

each by each.

Tire Cradle

Hex Bolt M8x35

Collar (short)

M8 Flat Washer

M8 Spring Washer

M8 Nut

When mounting short wheelbase

bike, turn Tire Cradle that the

bolt head comes through the

larger hole.

Install the Bottom Bracket Support to the Stair Frame.

Be sure there are two (2) holes on the Stair Frame.

The center hole is for short wheelbase bike. The further hole is for standard bike.

Put the triangle bracket between the chain-stays and support the down-tube with

the U-shaped bracket.

If you mount the bike in wrong direction

against you set on the Stair Frame, the

wheels will have to come off from the Tire

Cradles.

Make sure the bike direction follows the

stand direction.

B.B. Support

For standard wheelbase bike

For short wheelbase bike

Collar (short)

M8 Flat Washer

M8 Spring Washer

Hex Bolt M8x30

- 4 -

How To Mount Bike on 971-3

Place the bike on the floor in the same direction you set on the Stair Frame.

Place both front and rear tire on the Tire Cradles.

While supporting the bike with hand, loosen the knob bolt on the B.B. Support, and extend the upper support until it

touches the bottom bracket.

After confirming the bike is stably supported that the U-shaped part holds the down-tube and the triange guide is put

between the chain-stays, tighten the knob bolt to hold the position.

5In the end, shake the bike side to side to confirm the bike is stably supported, then leave from the stand.

Optional Items

By replacing the Foot Adjuster to a caster wheel, you can

move 971-3 to anywhere while mounting bikes on it.

Caster Kit contains a reinforcement bar and beam rods to

keep the frame solid and stable.

The reinforcement bar will be installed under Pillar-M

(473mm).

Caster Wheel

Model Variation

By combining 971-3 and 971-3H,

you can use them as a one unit

for totally 6 bikes.

If you cannot hold the bike on 971-3 stable due to the

special frame shape such as carbon monocoque or a

battery for electric shifting device sits near the bottom

bracket, you need to add this wheel holder between the tire

cradle and the frame instead of using the B.B. Support.

This cradle holds the whole rear wheel.

Caster Kit Rear Wheel Support

971-4 971-3H
