MinimumRC Spitfire Manual de usuario

Spitfire

Assembly Instructions

Important Instructions

1.The model is supplied with UFO and 502 glue. UFO is for bonding foam parts, and 502 for bonding

wood, carbon fiber and metal parts. 502 glue will cause serious corrosion to foam parts.

2.Please wait for the glue to dry and solidify in each installation step before the next installation.

3.Please avoid using flame to heat the heat shrinkable tube on the model. Electric iron shall be used

for heating.

4.Please use razor blade to remove the parts from the plate. Do not tear the parts by force.

1. Fuselage wooden frame parts.

2. Assemble the fuselage wooden frame.

3. Continue assembling the wooden frame and install the motor.

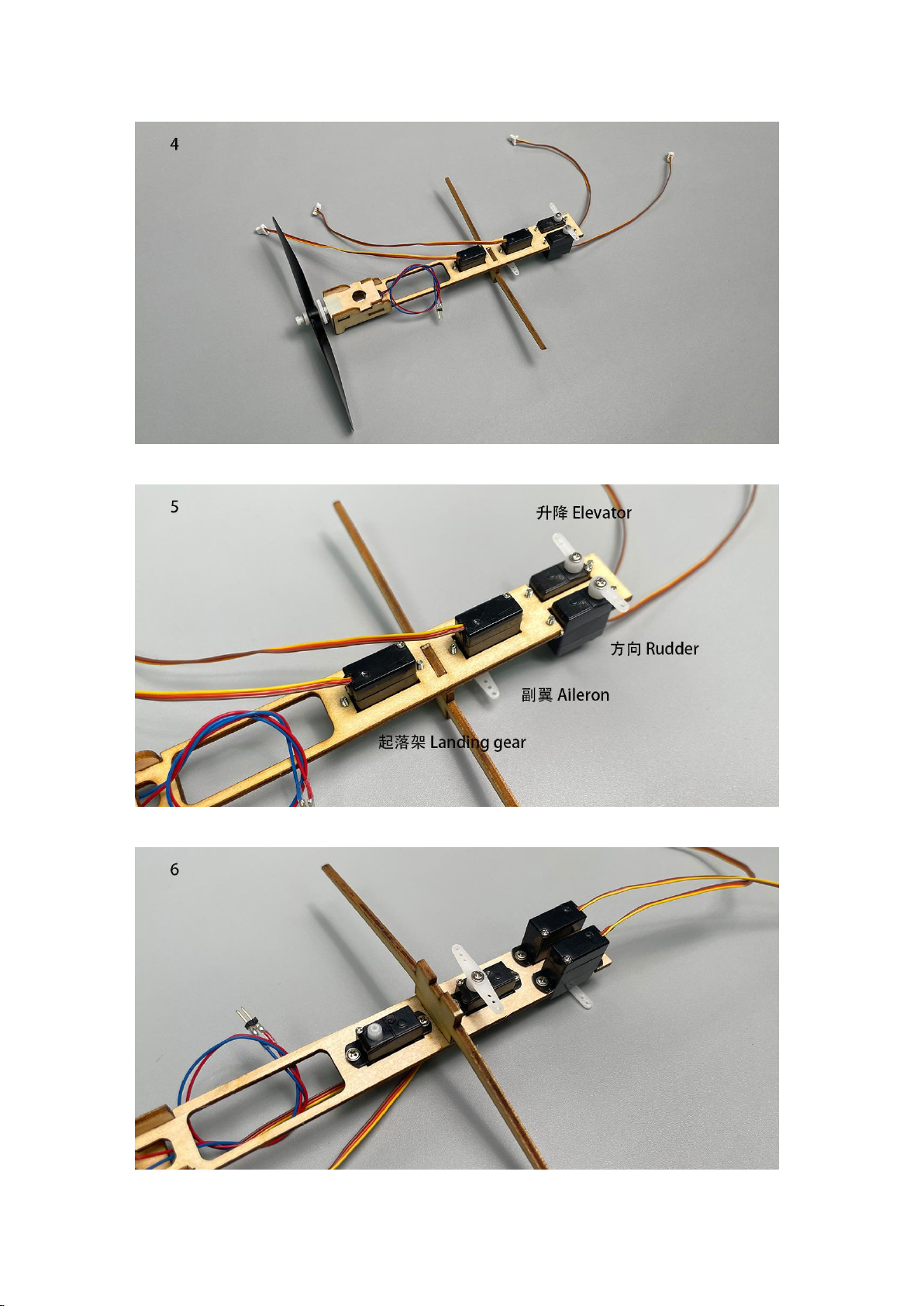

4. Install the servo as shown. (Top view of the parts)

5.

6. Install the servo as shown. (Bottom view of the parts)

7. Magnets and its supporting structures.

8. Install the magnet.

9. Install the assembled magnet-supporting structure onto the wooden frame at the

corresponding location.

10. The landing gear servo uses a cross-shaped arm.

11. Remove the two opposite arms of the cross-shaped arm (as shown in the diagram).

12. Install the arm onto the landing gear servo.

13. Connect the receiver to the servos, secure the receiver with Velcro, power it on, and

bind it to the transmitter to ensure that the servo arms return to their neutral positions.

Test if the servos are functioning correctly and install the servos and arms as shown in the

diagram. Note: This step is crucial; make sure the servos are powered, the arms are

centered, and follow the diagram precisely. Adjustments cannot be made after the model

is assembled.

14. Fuselage components.

15. Use a sharp tool (screwdriver) to score through the marked lines on the

fuselage.

16. Use adhesive to combine one side of the fuselage with the inner structure.

17. PS foam parts.

18. Press the fuselage inwards along the scored line and use adhesive to install bulkheads

and foam boards at the bottom of the tail section.

19. Use glue to secure the cockpit foam board.

20. Use glue to secure the nose filler plate.

21. Use glue to secure the front fuselage top plate.

22. Use glue to secure the fuselage bottom plate, do not apply glue to the red-lined

section.

23. Combine the fuselage.

24. Remove the propeller and apply the fuselage stickers.

25. Install magnets at the circular hole position of the battery compartment cover.

26. Seal the mounting holes with sticker.
