Mini Gadgets SC-600RF Manual de usuario

SC-600RF

Wireless CamCatch

Opera on Manual

2.Battery Install

1) Releave the Batt. Compartment cover on the back and put into the Batt.

pack. (please notice the side of the )

+/-

3.Battery Charge

1) Use the attached power adaptor to charge/power the unit.

( Dont use any other power supply or source from any computer)

4.Charge Indication

1)The red LED goes on under charging while off completing the charge，

5.Low Power Alert

1) A low-Batt. icon will keep flash on the main screen，

1.Name and Parts

6.Antenna Installation

1) Screw on the antenna according to the number indication

Screw on the Labeled 1 Ant. into the Socket 1

Screw on the Labeled 2 Ant. into the Socket 2

Screw on the Labeled 3 Ant. into the Socket 3

7.Power Switch

1) Push and hold the power button for 3 seconds to open/close the power.

Once power on the unit will start to scan automatically.

Note: Be sure installing all antennas before power on

8.Frequency Scan

1) The picture will be shown on the monitor for a certain dwell time

which＇ve been setup with in previous, once any signal been detetected

pull up or down the setup key to hold the frequency, otherwise will

continue to browse in next.

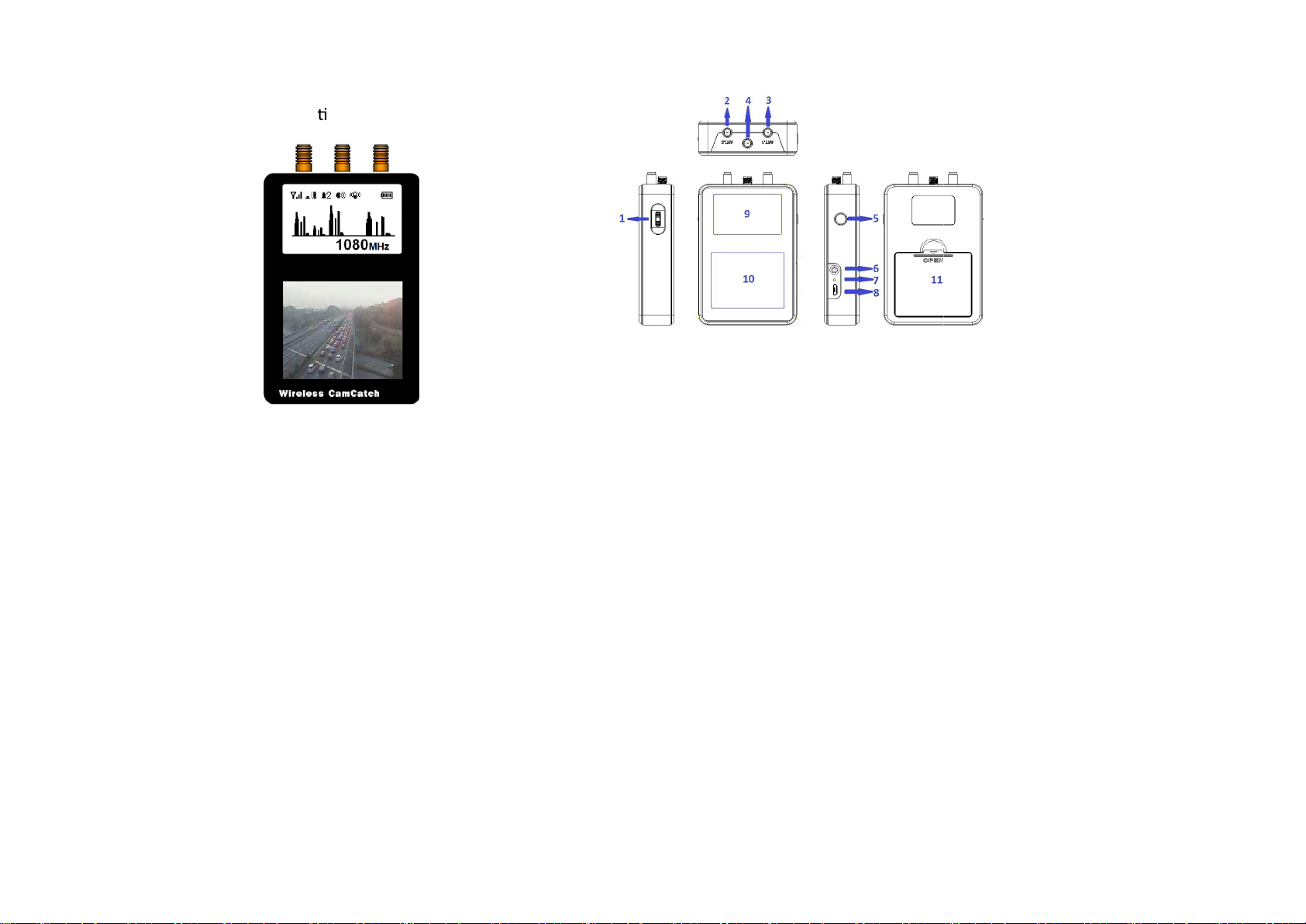

1.Set-up Key

2.Low Band Antenna Mount

(900 MHz ~ 2324MHz)

3.High Band Antenna Mount

(2325MHz ~3000MHz /5000MHz ~6000MHz)

4. 20MHz~ 6GHz Antenna Mount

5.Power Button

6.AV Input Output Port/

7.Charge LED

8.Power Input

9.LCD Setup Screen

10.LCD

11.Battery Tray

Video Monitor

9. Manual Scan

1) Stop auto-scanning mode by pushing the setup key once

2) Pull thesetup key up & down to browse the channelmanually

10. Holding the scanned picture

1) Enforceto preview the video by push & holdingsetup key

11. 20MHz ~ 6GHz RF Detection Range

1) Support to detect all AV wireless RF signal from this range with

vibrate or beeper alert optional

12. 2 options for the bandwidth indication

1)Push thepower button once to switchthe ways of bandwidth indication

while not under setup mode page

13. Video Input

1)Make sure to set the option to the video input mode in the setup menu

14. Setup

1)Entering ：Push & hold the setup key for 3 seconds after power on

2) Column Switch

：By pushing the setup key

3)Setup Change：Scroll up/down the setup key to browse the options, confirm

it by pushing the setup key once

4) Escape：Push & holding setup key for 3 seconds to jump out setup page

15.Main LCD Indication

A B C D E F G

A-Scanning Mode

Loop Once Specific 20MHz~6GHz Video Input

B-Detection Range

High Medium High Medium Medium Low Low Extra Low

C-Alarm

2 Sec. 4 Sec. 8 Sec.

D-Beeper on/off

ON OFF

E-Vibration on/off

ON OFF

F-8 Pre-set CH memory(Push and hold the setup key to switch on/off)

G-Power Level and Charge Indication

Adaptor Charging

H-Spectrum Range Indication

Auto/Manual Scan mode

Pre-set CH Scan mode

I- Frequency Indication

J-Alert indication for video signal and NTSC/PAL while under video input mode

K-Signal Strength and alert for wireless video signal

Signal Detecting Strong signal (to judge the signal is a video

signal or not)

16. 2.5 Phone Jack PIN definition

Power Level
