Quick Reference Guide
V
V
V
Note: The V-Series Quick Reference Guide is not
intended as a replacement to the Operating Instructions.
Prior to operating equipment, the user must be familiar
with the Operating Instructions Manual contents. This
document is a guideline only to be used as an aid to
comprehensive Inservice Training.
P/N: 0002-08-50038-00 Rev A 3
V12 and V21 Quick Functions Options............................6
Navigation Area Overview .......................................7
Navigation Area Tabs............................................. 8
Patient Info.......................................................9
Enter Demographics ............................................9
Adjust Patient Size ..............................................9
Discharge A Patient ............................................10
Standby .........................................................10
Enter Standby .................................................10
Resume Monitoring............................................10
Privacy Mode....................................................11
Print.............................................................11
Real-Time Waveforms ..........................................11
Adjust Print Location...........................................12
Adjust Waveforms Printing .....................................12
ECG .............................................................13
Adjust ECG Lead ...............................................13
Enable Pacemaker Detection ...................................13
Adjust Arrhythmia and Beat Classification Leads ................14
Adjust QRS Threshold ..........................................14
Initiate Relearn ................................................15
Initiate QT Monitoring .........................................15
Enable QTC Limit ..............................................15
Initiate ST Analysis .............................................16
12 Lead ECG.....................................................16
Enable 12 Lead ECG............................................16
View 12 Lead ECG..............................................16
Print 12 Lead ECG..............................................16
Table of Contents
P/N: 0002-08-50038-00 Rev A 4
NIBP.............................................................17
Initiate A Non-Invasive Blood Pressure Measurement (NIBP).....17
Set A Non-Invasive Blood Pressure Measurement Interval .......18
Invasive Blood Pressures ........................................19
Adjust Invasive Blood Pressure Label ...........................19
Zero Invasive Blood Pressure ...................................19
Overlapping Invasive Blood Pressure Waveforms................20
Temperature ....................................................20
Adjust Temperature Label ......................................20
Adjust Temperature Units ......................................21
Alarms ..........................................................21
Adjust Alarm Limits ............................................21
Adjust Alarm Responses .......................................22
Adjust Arrhythmia Alarms......................................23
Adjust Arrhythmia Alarm Responses............................24
Disable Non-Lethal Arrhythmias................................24
Reset Alarms (Version 2.5 or greater) ......................................25
Pause All Alarms (Version 2.5 or greater) ..................................25
Silence Alarms (Version 2.4 or earlier) .....................................26
Silence All Alarms (Version 2.4 or earlier)..................................26
Transfer .........................................................26
Hemodynamic Monitoring ......................................27
Initiate A Cardiac Output Measurement ........................27
Initiate Pulmonary Artery Wedge Pressure (PAWP) ..............28
Initiate Hemodynamic Calculations.............................29
Table of Contents (cont'd)
P/N: 0002-08-50038-00 Rev A 5
Screen Display ..................................................29
Display Selection ..............................................29
Adjust Display Selection .......................................29
History ..........................................................30
List Trends .....................................................30
Alarm Events ..................................................31
Full Disclosure .................................................31
Volumes.........................................................32
Beat Tone......................................................32
Date and Time...................................................33
Parameter Colors ................................................33
Default (Preset) Settings ........................................33
Lock/Unlocking Touchscreen Display ............................34
Table of Contents (cont'd)
P/N: 0002-08-50038-00 Rev A 6
Quick Functions Options
V
V
V
Alarm LimitsAlarm Limits Alarm
Responses Alarm Watch
Arrhythmia C.O. Run Demographics
Drug
Calculator Events ECG Menu
Full Disclosure Graphic Trends Hemodynamics
Lead/Size List Trends NIBP Stat
PA Insertion Parameters PAWP
Print
12 Lead Privacy Mode Quick Trends
Relearn
Arrhythmia Relearn ST Remote View
Standby Start NIBP ST Review
Transfer/
Discharge
View
All ECG
Zero
All NIBP
Quick Functions Keys (Configurable)
Up to 6 keys may be used in Quick Functions tab
P/N: 0002-08-50038-00 Rev A 7

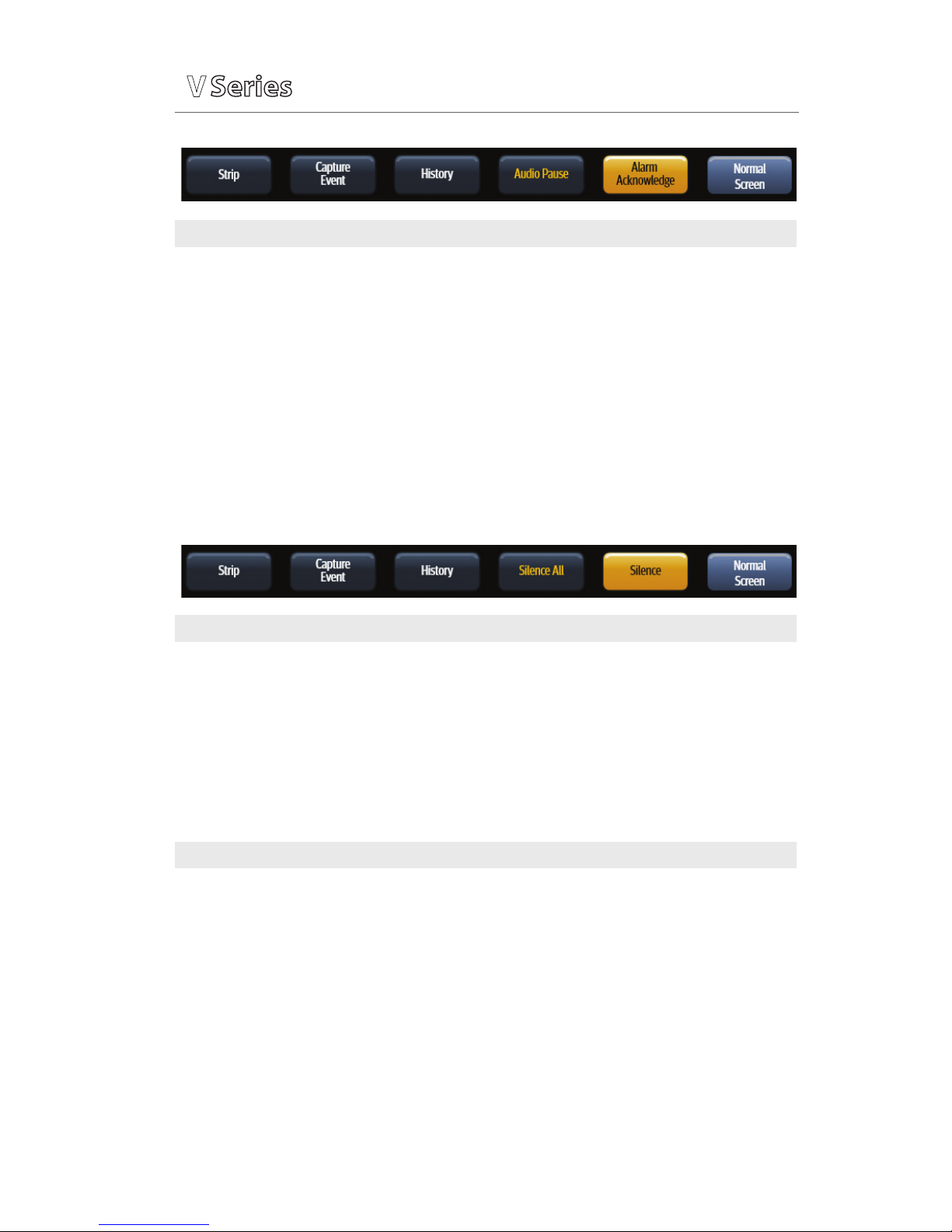

Buttons (2.5 Software)
Strip Initiates a single strip or a continuous strip print request
Capture Event Saves an event to the event database
History Accesses the Trends, Events, and Full Disclosure dialogs
Audio Pause/O Silences all current and future alarms for the congured time
period. If the congured period is set to Permanent, the
button reads Audio O.
Alarm Acknowledge/Reset Silences the current alarms for the congured time period. If
the congured period is set to Permanent, the button reads
Alarm Reset.
Normal Screen Closes all dialogs and returns to the Main Screen
Navigation Area Overview
V
V
V
Buttons (2.4 Software)
Strip Initiates a single strip or a continuous strip print request
Capture Event Saves an event to the event database
History Accesses the Trends, Events, and Full Disclosure dialogs
Silence All Silences all current and future alarms for the congured time
period
Silence Silences the current alarms for the congured time period
Normal Screen Closes all dialogs and returns to the Main Screen
Quick Functions Tab (Configurable)
Start/Stop NIBP Starts/Stops a NIBP measurement in progress – If there is no
measurement in progress, the button reads Start NIBP
If there is a measurement progress, the button reads Stop NIBP
NIBP Stat Starts an immediate NIBP measurement
Zero All IBP Sets the current pressure for all invasive pressure channels to zero
View All ECG Displays all the ECG waveforms available based on the lead set
currently in use
Lead/Size Accesses the Lead/Size dialog used to change the ECG waveform
height or wave gain
Standby Places the monitor in the standby mode
P/N: 0002-08-50038-00 Rev A 8
Print Tab
Continuous/Abort Begins/ends strips from printing to the thermal printer
Print 12 Lead Prints a 12 Lead Report to the default printer
Print Setup Accesses the Print Setup dialog where the clinician can congure
which waveforms to print and where to print them
Print Queue Accesses the Print Queue dialog
Setup Tab
Patient Info Accesses the Patient Info dialog
Audio Levels Accesses the Audio Levels dialog
Display Accesses the Display Setup dialog
Parameters Accesses the Parameter dialog
System Accesses the System Setup dialog
Tools Tab
Calculators Accesses the Calculators dialog
Alarm Watch Accesses the Alarm Watch dialog
Remote View Accesses the Remote View dialog
System Information Accesses the System Information dialog
VAccess Accesses the VAccess dialog*
Procedures Tab
Note: These buttons are only available when using the Adult or Pediatric patient size
C.O. Run Accesses the Cardiac Output Runs dialog
PAWP Accesses the PAWP dialog
PA Insertion Accesses the PA Insertion dialog.
Hemo Calculations Accesses the Hemodynamic Calculations dialog
12 Lead Accesses the 12 Lead dialog*
Alarms Tab
Limits Accesses the Alarm Limits dialog
Responses Accesses the Responses dialog
Arrhythmia Accesses the Arrhythmia Alarm dialog
Alarm Setup Accesses the Alarm Setup dialog
Navigation Area Tabs
V
V
V
*Only if enabled
Quick Reference Guide
V
V
V
P/N: 0002-08-50038-00 Rev A 9
PATIENT INFO
Enter Demographics
The Patient Info menu allows the clinician to enter and modify patient
demographics.
To enter demographics on V12 or V21 bedside monitor:
a. Select Demographics* (Quick Function tab)
or select Patient Info (Setup tab) to enter Demographics tab
b. Select applicable button to open field and enter patient information
using on screen keyboard
c. Select Accept to accept information on patient name and ID
d. Select Enter to accept information on height, weight, DOB, and age
e. Select Accept to save settings and return to the main screen
Panorama® Central Station Interface: Entering demographic information on
the Panorama Central Station or WorkStation automatically enters it on the
V12 or V21 bedside monitor. Entering demographic information on the V12 or
V21 bedside monitor automatically enters it on the Panorama Central Station,
ViewStation, and WorkStation. Entering Demographics is not required for
patient information to be displayed or stored.
Adjust Patient Size
The Patient Info menu allows the clinician to adjust patient size. To adjust
patient size on the V12 or V21 bedside monitor:
a. Select Demographics* (Quick Function tab)
or select Patient Info (Setup tab) to enter Demographics tab
b. Select Patient Size
c. Select Adult, Pediatric, or Neonate
d. Select Accept to save settings and return to the main screen
Note: Adjusting patient size restores the default (preconfigured) settings
but does not clear patient information or data. Patient size is retained upon
discharge.
Panorama® Central Station: Patient size cannot be changed from the
Panorama Central Station.
*Configurable
P/N: 0002-08-50038-00 Rev A 10
Quick Reference Guide
V
V
V
Discharge A Patient
The Discharge function clears all patient information and restores default
(preconfigured) settings.
To Discharge a patient from the V12 or V21 bedside monitor:
a. Select Discharge* (Quick Function tab)
or select Patient Info (Setup tab) and select Transfer/Discharge tab
b. Select Discharge
c. Select Yes to confirm
Note: After the patient is discharged, default (preconfigured) settings are
restored and Discharged is displayed on the V12 or V21 bedside monitor.
Panorama® Central Station Interface: Discharging a patient on the V12 or
V21 bedside monitor automatically discharges the patient on the Panorama
Central Station, WorkStation, and ViewStation. Discharging the patient on
the Panorama Central Station discharges the patient on the WorkStation,
ViewStation, and V12 or V21 bedside monitor (optional).
STANDBY
Enter Standby
The Standby function allows the clinician to suspend monitoring on a patient.
While in standby, the patient is not monitored; however, all data and settings
are preserved.
To place a patient into Standby on the V12 or V21 bedside monitor:
a. Select Standby* (Quick Function tab)
Or
a. Select Patient Info (Setup tab) and select Standby
Resume Monitoring
Touch anywhere on the screen to remove a patient from Standby and resume
monitoring on the V12 or V21 bedside monitor
*Configurable
Otros manuales para V Series
1
Este manual sirve para los siguientes modelos
2
Tabla de contenidos
Otros manuales de Equipo médico de Mindray
Mindray
Mindray DC-T6 Manual de usuario
Mindray
Mindray BeneVision TD60 Manual de usuario
Mindray
Mindray BeneHeart C Series Manual de usuario
Mindray
Mindray M5 Manual de usuario
Mindray
Mindray Zonare ZS3 Manual de usuario
Mindray
Mindray M7T Manual de usuario
Mindray
Mindray A Series Instrucciones de instalación
Mindray
Mindray TE7 Manual de usuario
Mindray
Mindray BeneFusion mNP Manual de usuario
Mindray
Mindray TE7T Manual de usuario
Mindray
Mindray DC-32 Manual de usuario
Mindray
Mindray WATO EX-65 Manual de usuario
Mindray
Mindray Hepatus 7 Manual de usuario
Mindray
Mindray V60 Manual de usuario
Mindray
Mindray DPM 6 Manual de usuario
Mindray
Mindray dpm 3 Manual de usuario
Mindray
Mindray Resona I9 Manual de usuario
Mindray
Mindray BeneHeart D3 Manual de usuario
Mindray
Mindray Panorama TELEPACK-608 SpO2 Manual de usuario
Mindray
Mindray PM-60 Manual de usuario
