Miller MobileArc Manual de usuario

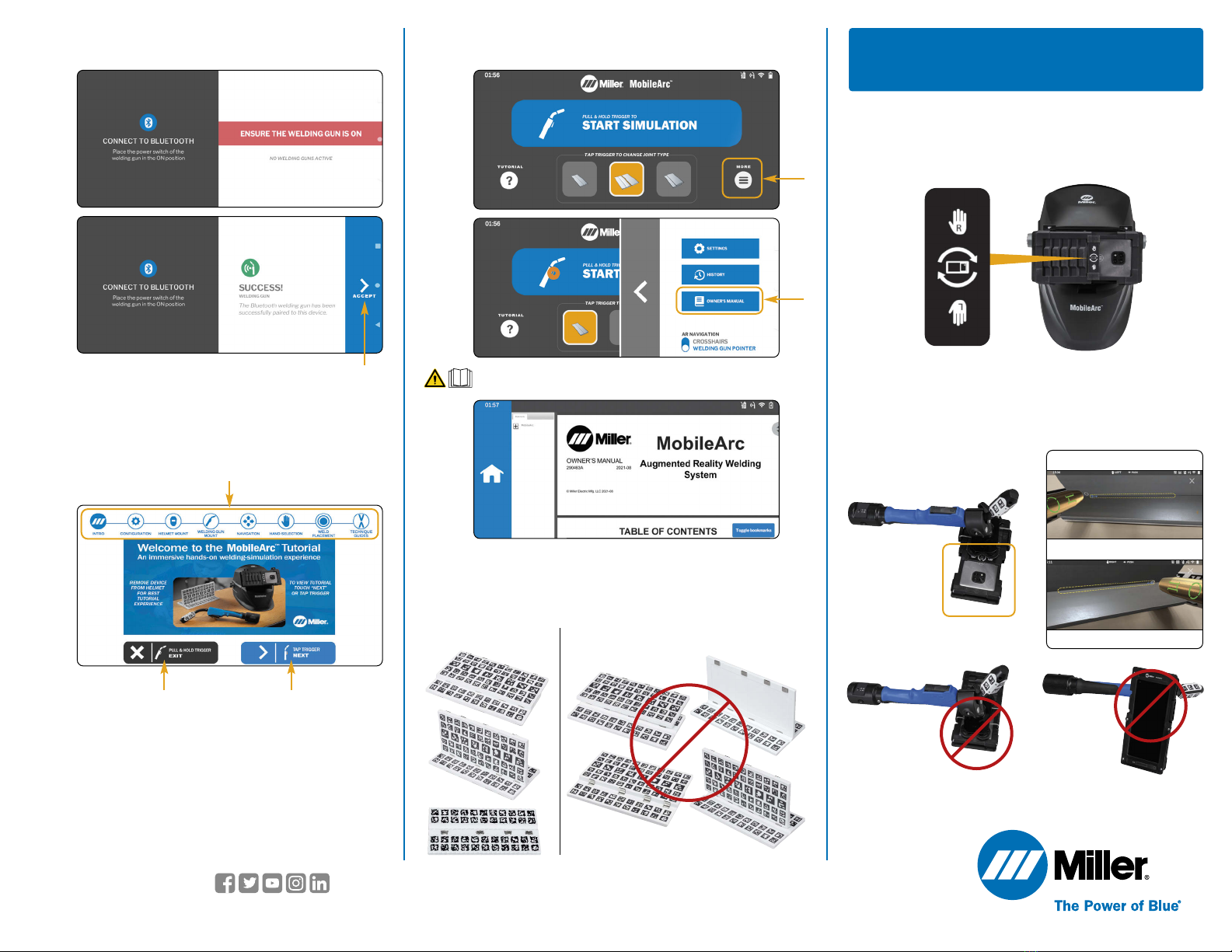

MobileArc™Quick Start Guide

Follow the steps below to set up your MobileArc Augmented Reality Welding System.

1Applymatching coloreddotsto mobile device

and welding gun.

2Conrm that all other MobileArc welding guns

within 100 meters are powered off. Turn on

welding gun that is to be congured.

3Charge mobile device by plugging charger into

mobile device and then into 120-volt receptacle.

Turn onmobile device by pressing and holding

the power button for approximately 2–3 seconds.

Off On

PowerVolume

4Launch MobileArc applicationby pressing icon.

After selecting language and unit/standards, review

the EULA agreement and press ACCEPT to accept. 6Enteryour email address to receive your PIN

code email.

5SelectWiFi network and connect.

For networks

with password

protection, enter

password and

press VALIDATE.

For networks

with two-factor

authentication,

select internet

button to view

Enter required

MobileArc app

and press

VALIDATE.

You will receive an email with your PIN code

at the address you provided. Note: All devices

activated with the same email address will have

the same PIN code.

Sample

email.

Appearance

may vary.

Enter your PIN code, then press VALIDATE.

AB123456C

MillerWelds.com

7Pairwelding gun. Wait for welding gun to connect

to the MobileArc application, then press ACCEPT.

8Use touchscreento navigate through tutorial.

Navigation header provides quick access to various

content, while selecting NEXT cycles through

tutorial and selecting EXIT leaves tutorial.

Navigation

9Access the Owner’s Manual by pressing MORE,

and then selecting OWNER’S MANUAL.

Gun mount. Orient mobile device so camera

has a clear view of nozzle and buttons are

accessible. Alignment can be ne-tuned in

the simulation mode by loosening the

adjustment nut.

Orient workpieces with sides ush and no fully

visible magnets. For butt joint, ensure workpiece is

oriented so magnets are on side closest to user.

Helmetmount. Mount mobile device to helmet

with device oriented according to dominant

welding hand (right hand up for right-handed

welding, left hand up for left-handed welding).

ExitNext

Correct–

camera is

clear and

buttons are

accessible

Incorrect–

camera is

covered

CorrectIncorrect

Incorrect–

buttons

are covered

Correct nozzle alignment

Left-handed user

Right-handed user

Read Owner’s Manual carefully before operating unit.

Two interactive viewing OPTIONS are available for

this system. Helmetmount (view is welderexclusive)

and gun mount (view can be shared).
