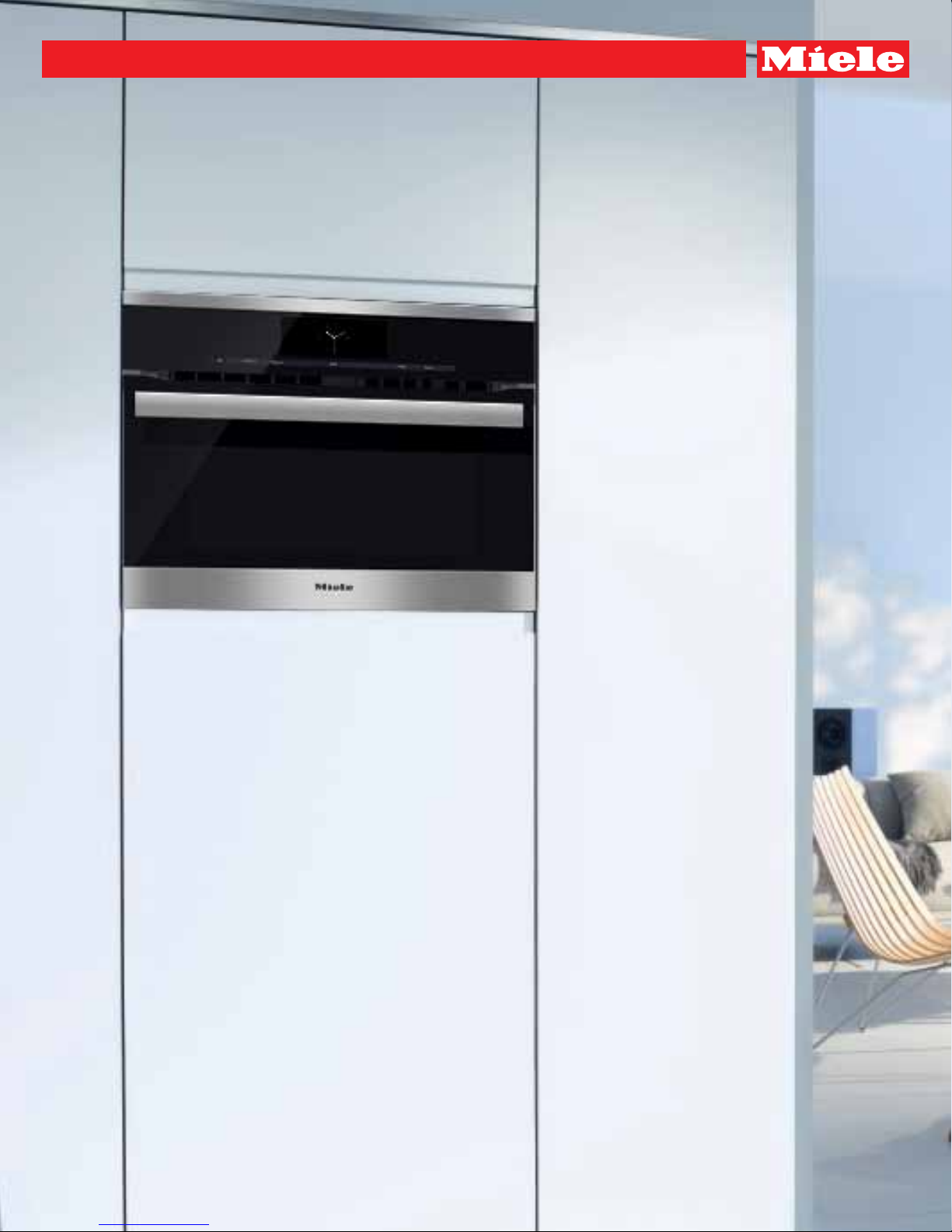

Miele PureLine H 6800 BM Manual de usuario

PureLine

60cm Speed Oven

H 6800 BM

8mieleusa.com

PureLine 60cm Speed Oven

H 6800 BM

FOREVER BETTER

H 6800 BM

Page 2 of 9

H 6800 BM

Features:

•M Touch innovative and revolutionary

controls are both easy to operate

and navigate. An intuitive swipe of

the screen will quickly lead you to

your desired selection

•19 operating modes

•Rapid Preheat

•Roast probe for perfect roasting results

•MasterChef menu offers over 100

food types to cook to perfection

•Favorites - up to 20 recipes

•1,000 watt microwave

•Popcorn button

•Minute Plus button - time and power

individually programmable

•PerfectClean interior

•Timer

•Sabbath Program

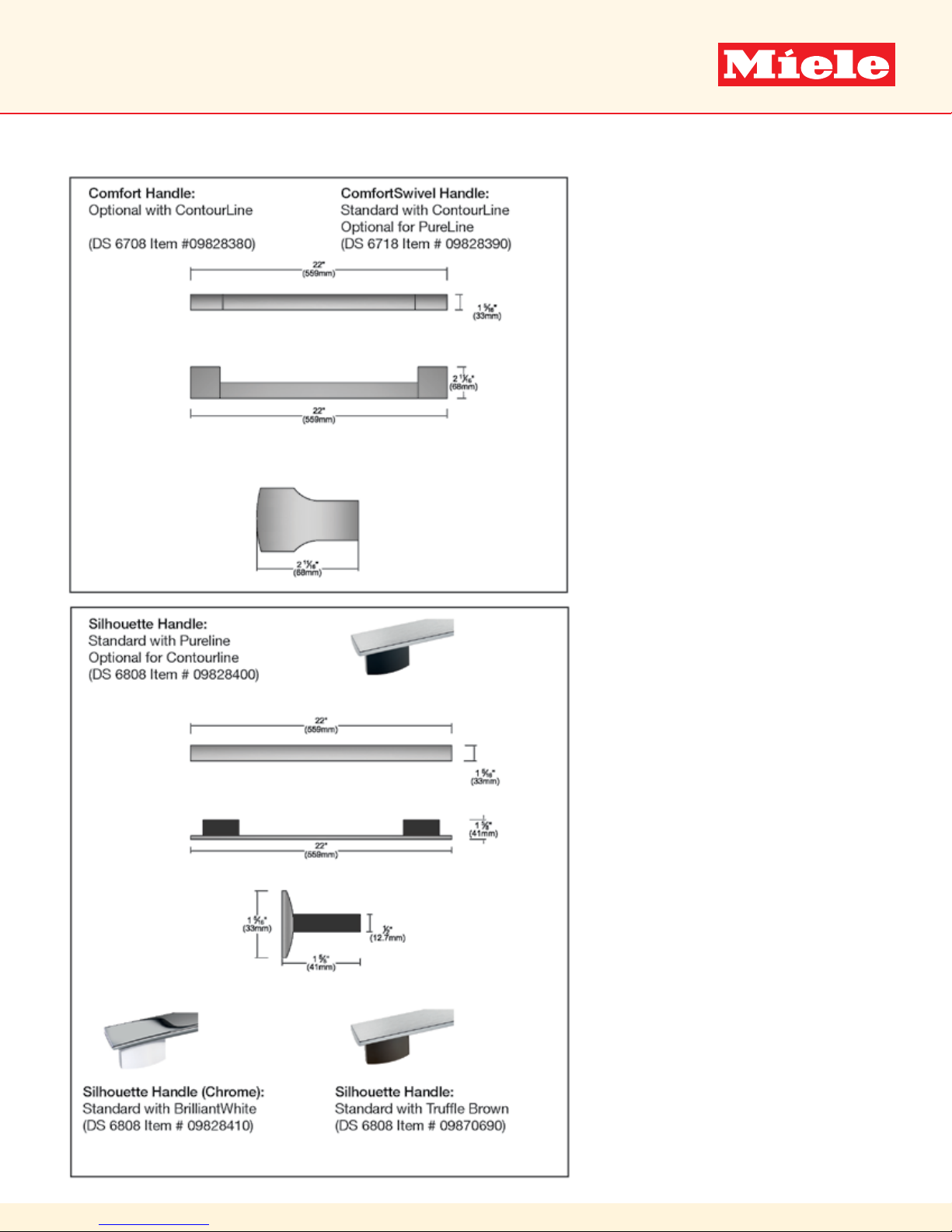

•The simple yet sleek Silhouette

handle seems to oat enhancing its

modern design lines

PureLine 60cm Speed Oven

H 6800 BM

FOREVER BETTER

H 6800 BM

Page 3 of 9

PureLine 60cm Speed Oven

H 6800 BM

FOREVER BETTER

H 6800 BM

Page 4 of 9

SPECIFICATIONS

H 6800 BM — Item 22680054USA

Overall Unit Width - Excluding Fascia Dimension 221/16” (560mm)

Overall Height - Excluding Fascia Dimension 171/2” (445mm)

Overall Unit Depth - Excluding Fascia Dimension 219/16” (549mm)

Oven Door Clearance 3413/16” (885mm)

Overall Oven Interior Capacity 1.31 cu.ft - 37.0 liters

Overall Fascia Dimensions 237/16” (595mm) W x 1715/16” (455.5mm) H

x 7/8” (22mm) D

Oven Interior Dimensions 181/8” (460mm) W x 8” (202mm) H

x 153/8” (390mm) D

Built-In

Cabinet Width 221/16” — 223/8” (561mm — 568mm)

Minimum Cabinet Depth min. 217/8” (550mm)

Minimum Cabinet Opening Height 173/4” — 1713/16” (448 — 452mm)

Minimum Base Support 125 lbs

Additional Cut-outs Required No

Electrical

Electrical Requirements 240/208V AC, 60Hz, 20A circuit with Nema

14-30 outlet

Power Cord Molded NEMA 14-30 configured plug

Cut out for power cord Minimum 3” square

Electrical Rating 2.2kW (240V), 1.76kW (208V)

Total Amps 9.16A on 240V, 8.46A on 208V

Shipping

Shipping Weight 126 lbs

Shipping Dimensions 255/8” W (727mm) x 2413/16” (630mm) H

x 27” (686mm) L

Support

Call 800.843.7231

20/20 82020technologies.com

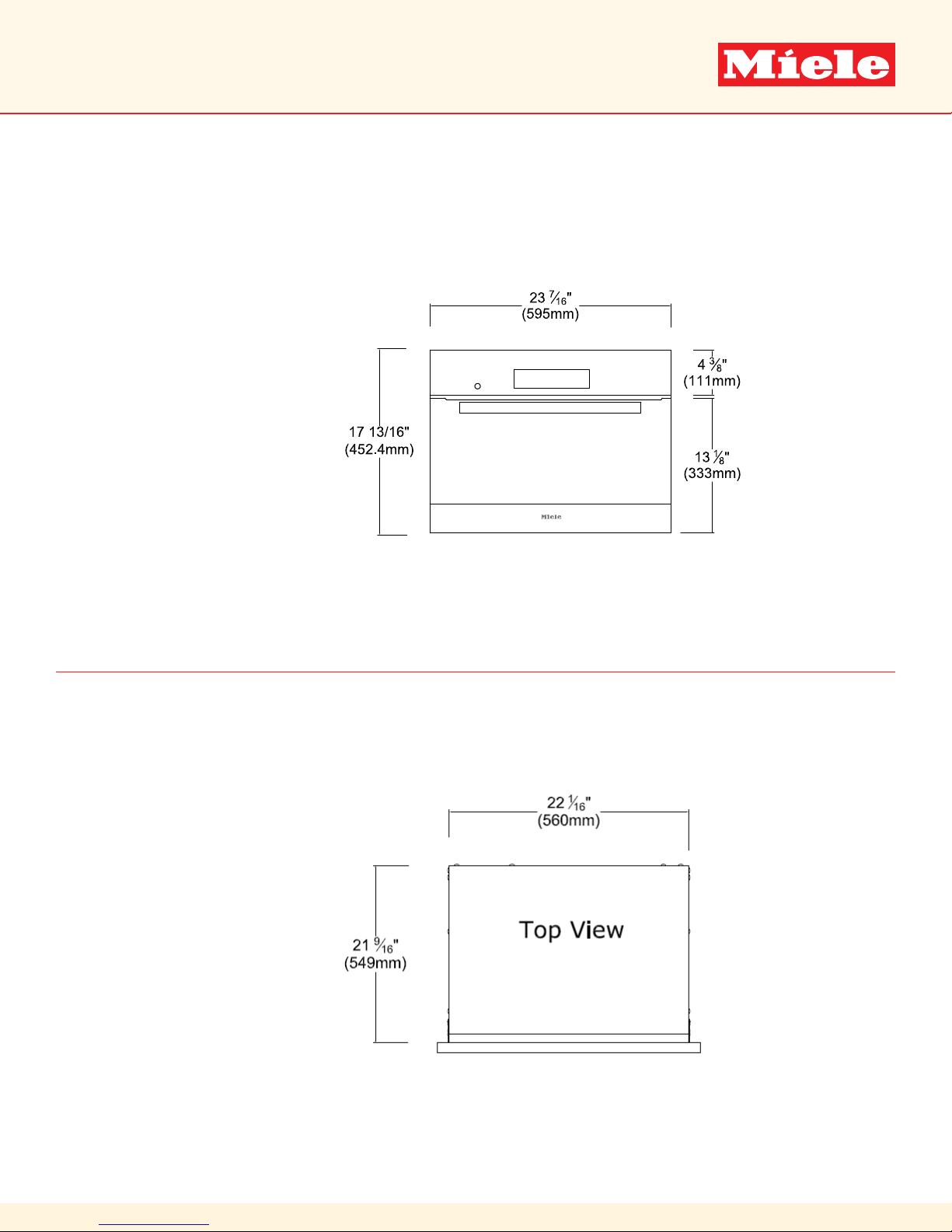

PRODUCT VIEWS

H 6800 BM

Page 5 of 9

PureLine 60cm Speed Oven

H 6800 BM

FOREVER BETTER

Fascia

Top View

PureLine 60cm Speed Oven

H 6800 BM

FOREVER BETTER

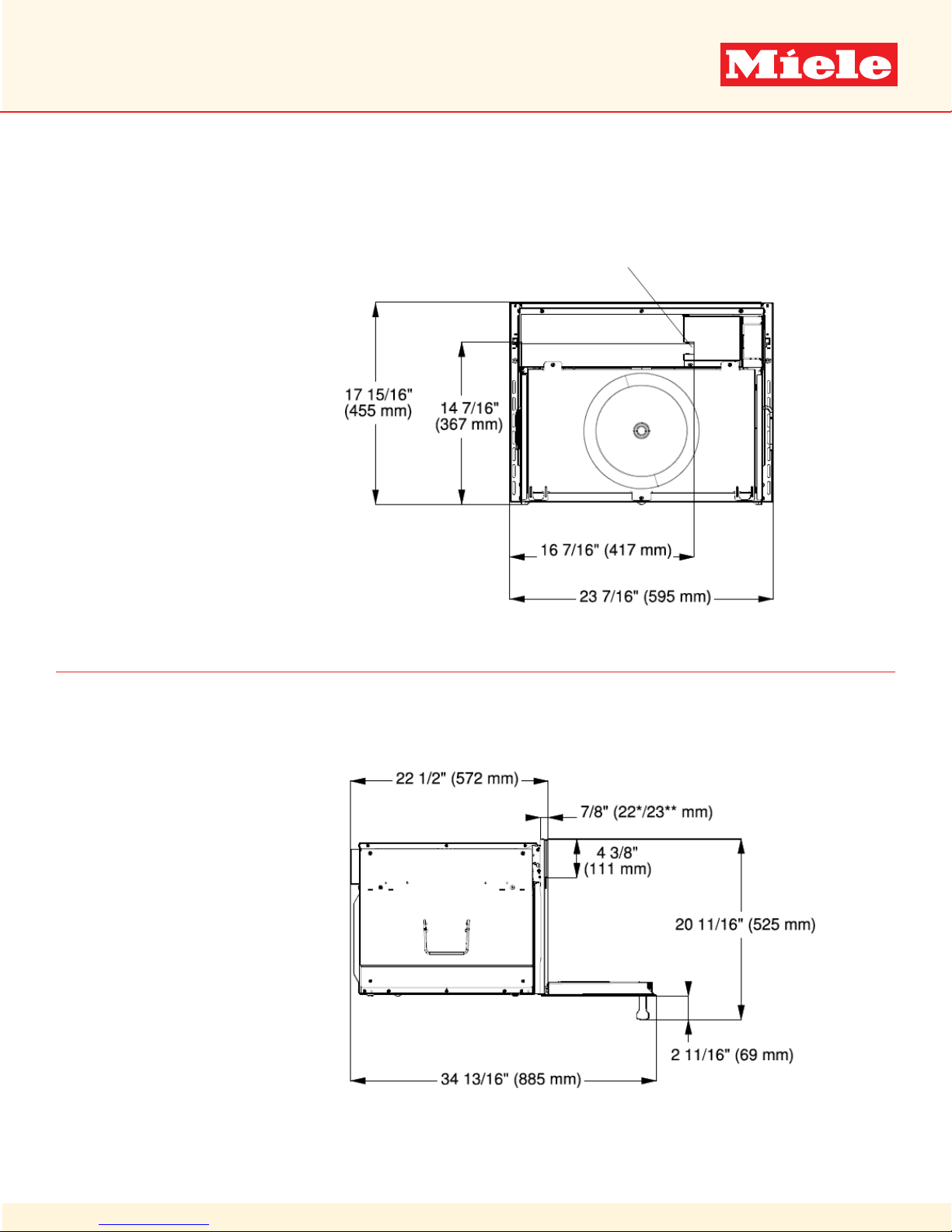

PRODUCT VIEWS

Rear View

Electrical Connection

H 6800 BM

Page 6 of 9

Side View

* Oven with glass front

** Oven with metal front

PureLine 60cm Speed Oven

H 6800 BM

FOREVER BETTER

H 6800 BM

Page 7 of 9

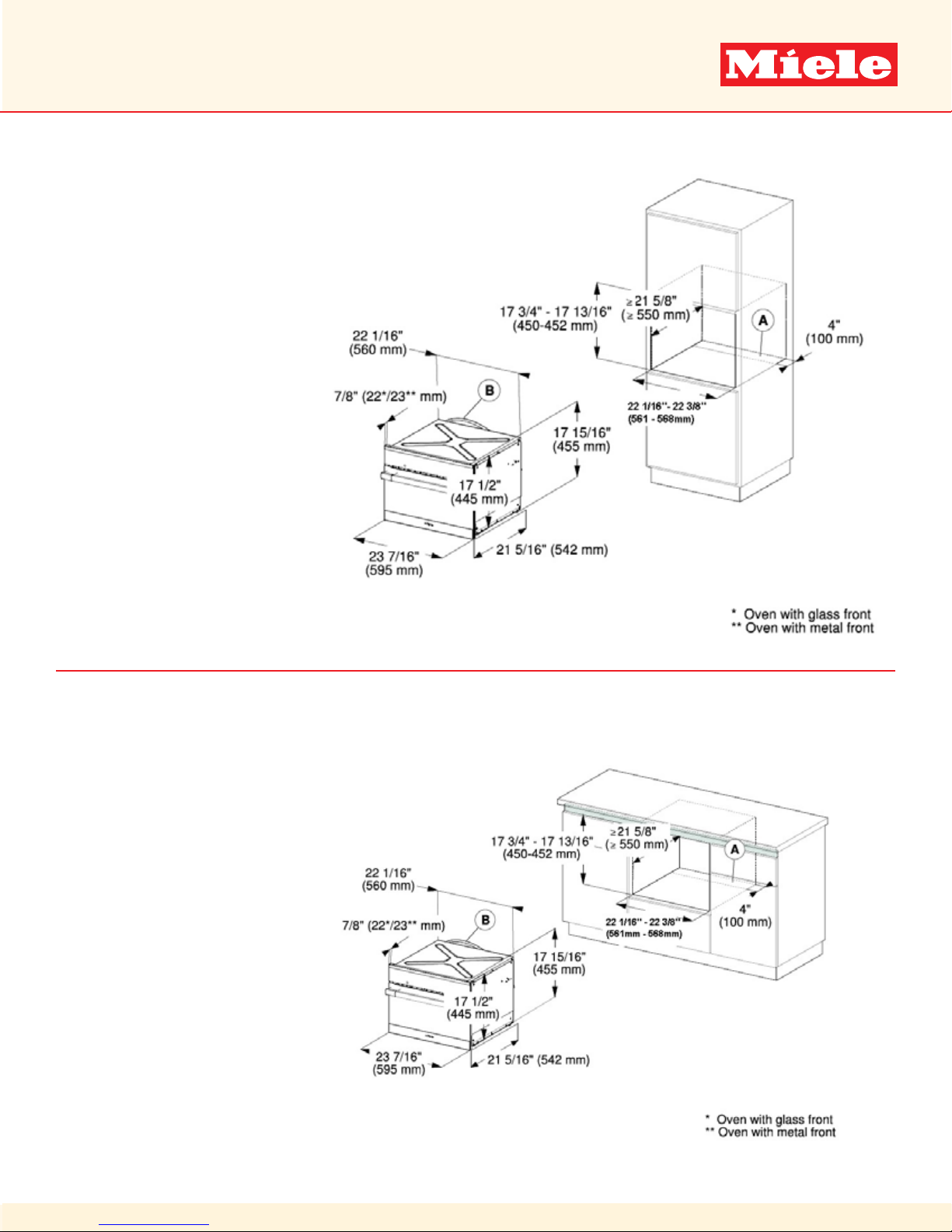

INSTALLATION SPECIFICATIONS

Install in Tall Cabinet

Undercounter Installation

PureLine 60cm Speed Oven

H 6800 BM

FOREVER BETTER

H 6800 BM

Page 8 of 9

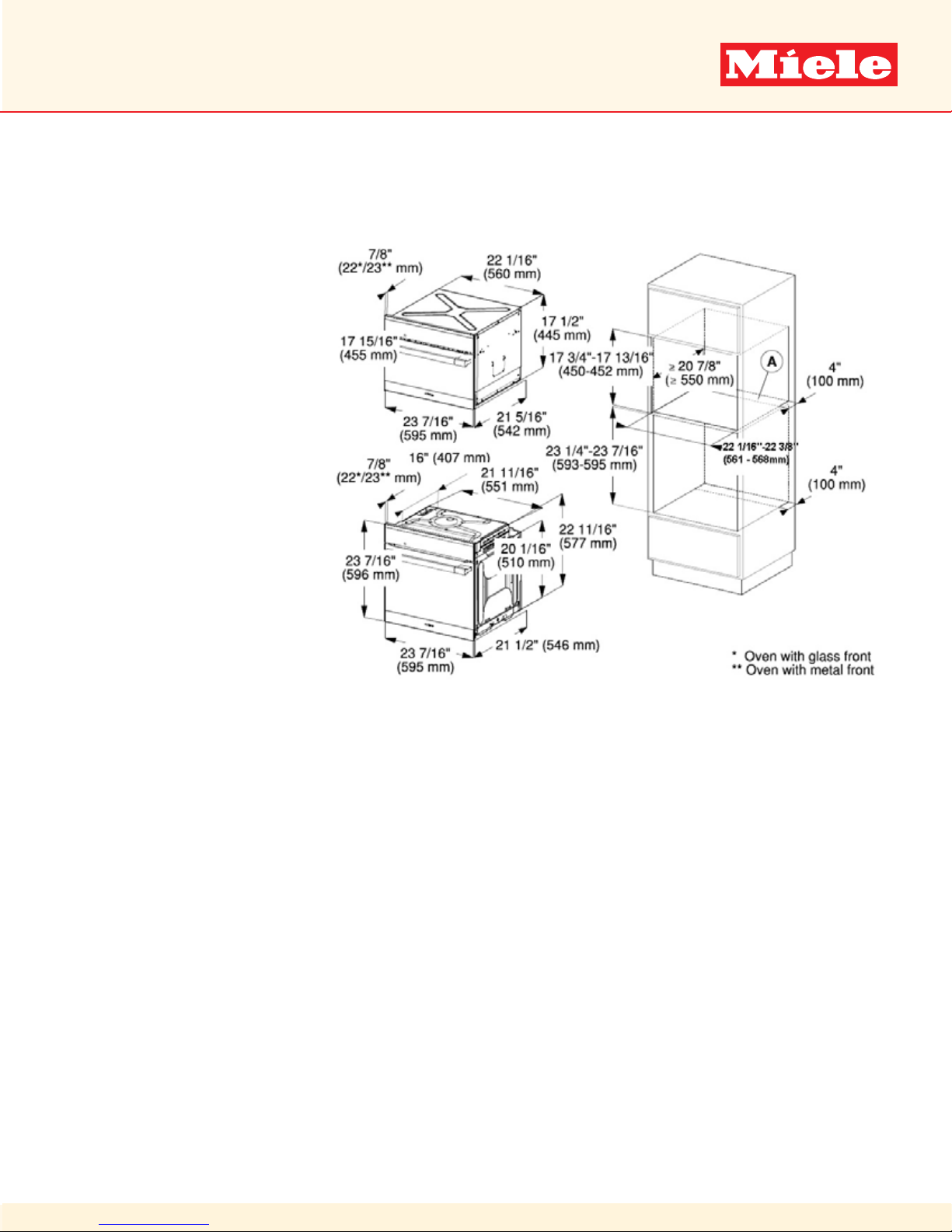

INSTALLATION SPECIFICATIONS

Over 60cm Installation

PureLine 60cm Speed Oven

H 6800 BM

Page 9 of 9

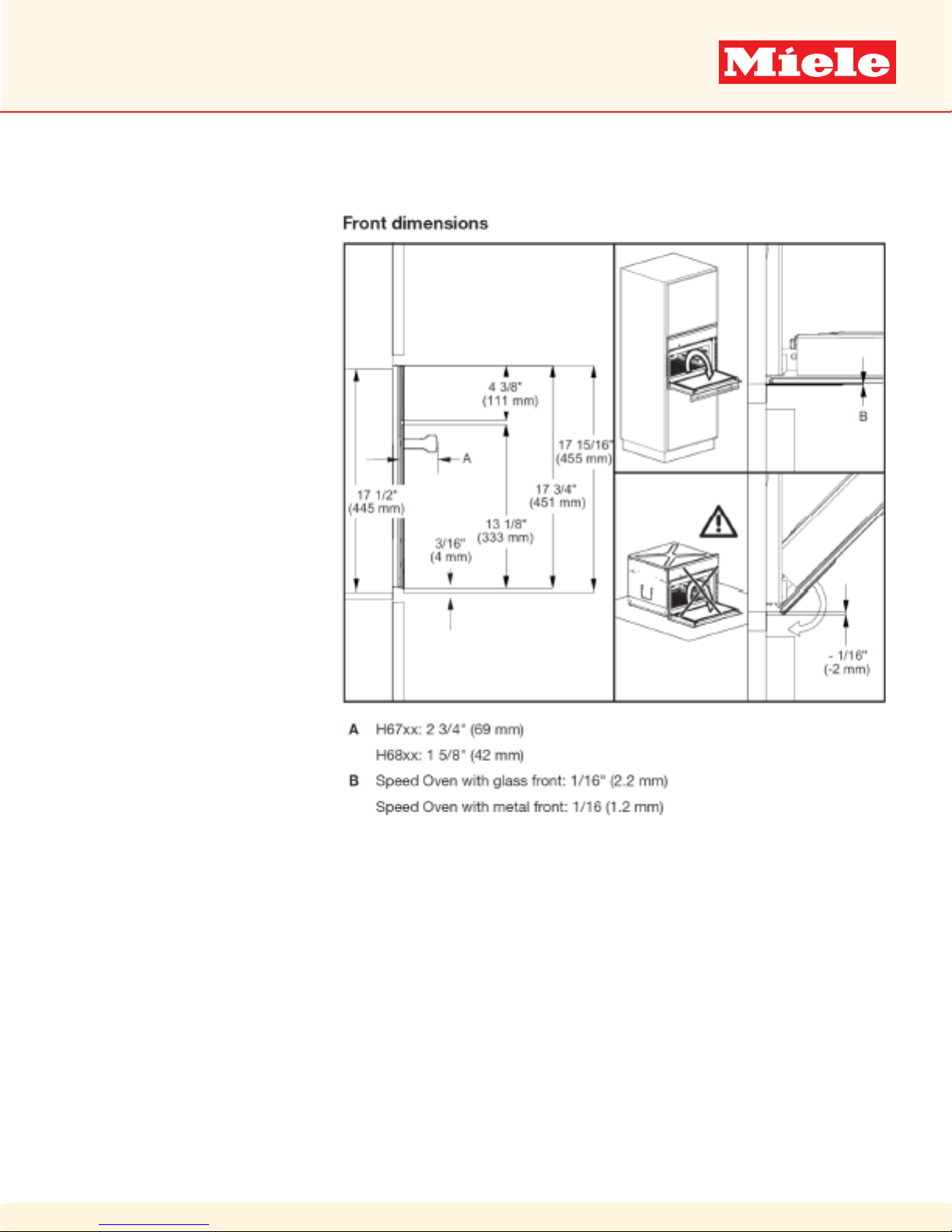

INSTALLATION SPECIFICATIONS

Door Swing

FOREVER BETTER
