Miele H 6700 BM Manual de usuario
Operating and Installation Instructions
Speed Oven
To prevent accidents and machine damage, read these instructions
before installation or use.
en – US, CA M.-Nr. 09 786 930
Technical Service
126
After sales service
In the event of a fault which you cannot
easily correct yourself, please contact:
– your Miele dealer, or
– the Miele Technical Service
Department.
See back cover for contact details.
Please quote the model and serial
number of your appliance when
contacting Miele.
This information is given on the data
plate, visible on the front frame of the
oven, with the door fully open.
Warranty
For further information, please refer to
your warranty booklet.
Caring for the environment
127
Disposal of the packing
material
The cardboard box and packing
materials protect the appliance during
shipping. They have been designed to
be biodegradable and recyclable.
Ensure that any plastic wrappings,
bags, etc. are disposed of safely and
kept out of the reach of children.
Danger of suffocation!
Disposal of your old appliance
Do not dispose of this appliance with
your household waste.
Old appliances may contain materials
that can be recycled. Please contact
your local recycling authority about the
possibility of recycling these materials.
Before discarding an old appliance
ensure that it presents no danger to
children while being stored for disposal.
Unplug it from the outlet, cut off its
power cord and remove any doors to
prevent hazards.
Electrical connection
128
CAUTION:
Before servicing, disconnect the
power supply by either removing the
fuse, shutting off the power main or
manually "tripping" the circuit
breaker.
Installation, repair and maintenance
work must be performed by a Miele
authorized service technician. Work
by unqualified persons could be
dangerous and may void the
warranty.
Before connecting the appliance to
the power supply, make sure that the
voltage and frequency listed on the
data plate correspond with the
household electrical supply. This
data must correspond to prevent
machine damage. Consult an
electrician if in doubt.
Only operate the appliance after it
has been installed into cabinetry.
The plug must be plugged into an
appropriate outlet that is installed
and grounded in accordance with all
local codes and ordinances.
WARNING: THIS APPLIANCE MUST
BE GROUNDED
Installer: Please leave these
instructions with the consumer.
The voltage can be adjusted (see
"Settings - Electrical Version").
SAVE THESE INSTRUCTIONS FOR
THE ELECTRICAL INSPECTOR'S
USE.
Installation diagrams
129
Appliance and cut-out dimensions
Miele ovens can be installed flush or proud. Discuss your installation
requirements with your architect, designer and installer.
Installation into a tall cabinet
B
A
B
A
7/8" (22*/23** mm) 22 1/16"
(560 mm)
17 1/2" (445 mm)
21 9/16" (549 mm)
23 7/16"
(595 mm)
17 15/16"
(455 mm)
22 1/16"
(560 mm)
4"
(100 mm)
17 3/4" - 17 13/16"
(450-452 mm)
21 5/8"
( 550 mm)
Cut-out (4" x 22" / 100 mm x 560 mm) in the bottom of the cabinet for power
cord and ventilation
Power cord with plug
*Oven with glass front
** Oven with metal front
Front design may vary depending on model. For the more current specifications
please visit the Miele website.
Installation diagrams
130

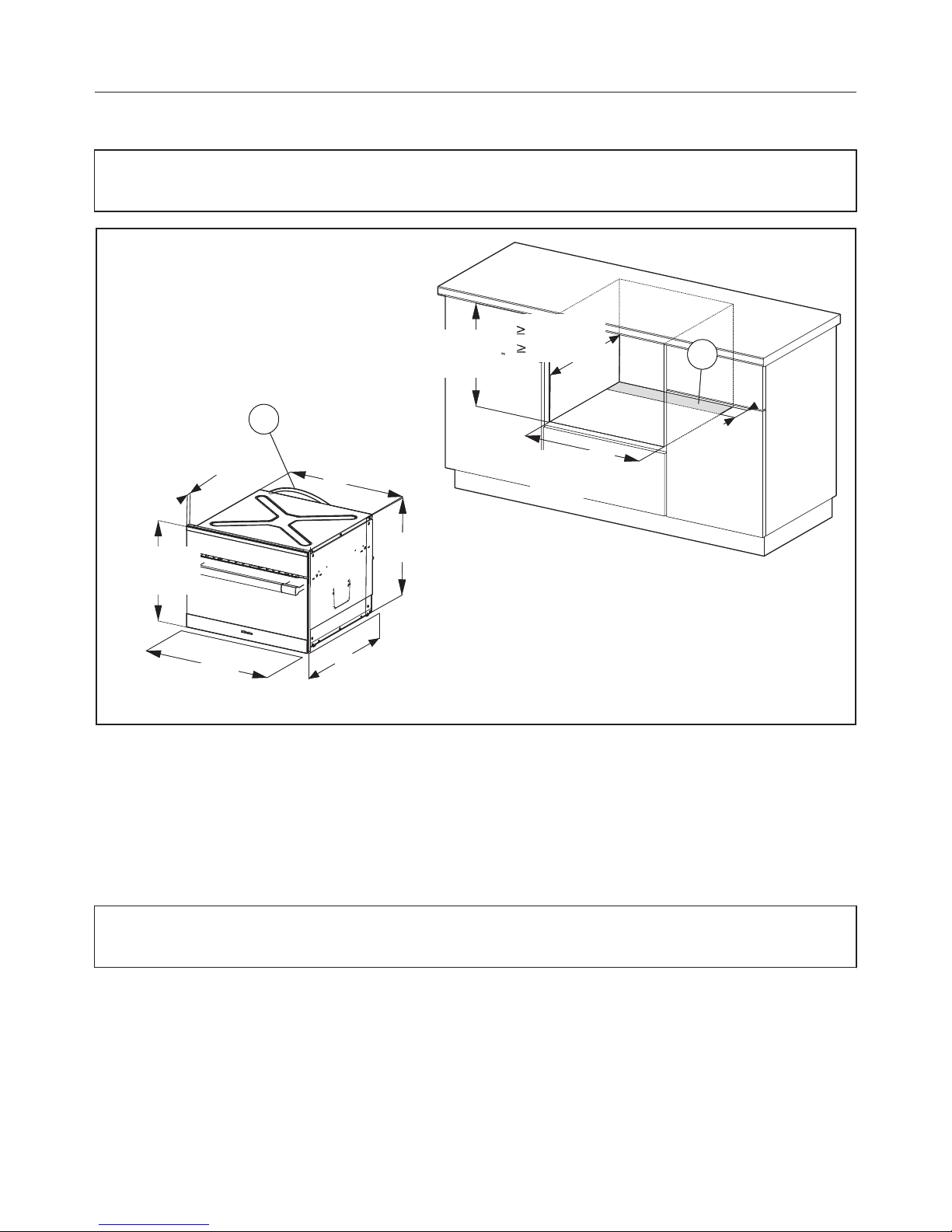

Undercounter installation
If installed underneath a cooktop, the installation instructions for the cooktop
must also be taken into account.
B
A
B
A
7/8" (22*/23** mm) 22 1/16"
(560 mm)
17 1/2" (445 mm)
21 9/16" (549 mm)
23 7/16"
(595 mm)
17 15/16"
(455 mm)
22 1/16"
(560 mm)
4"
(100 mm)
18 1/8" - 18 5/16"
(460-465 mm)
21 5/8"
( 550 mm)
Cut-out (4" x 22" / 100 mm x 560 mm) in the bottom of the cabinet for power
cord and ventilation
Power cord with plug
* Oven with glass front
** Oven with metal front
Front design may vary depending on model. For the more current specifications
please visit the Miele website.
Installation diagrams
131

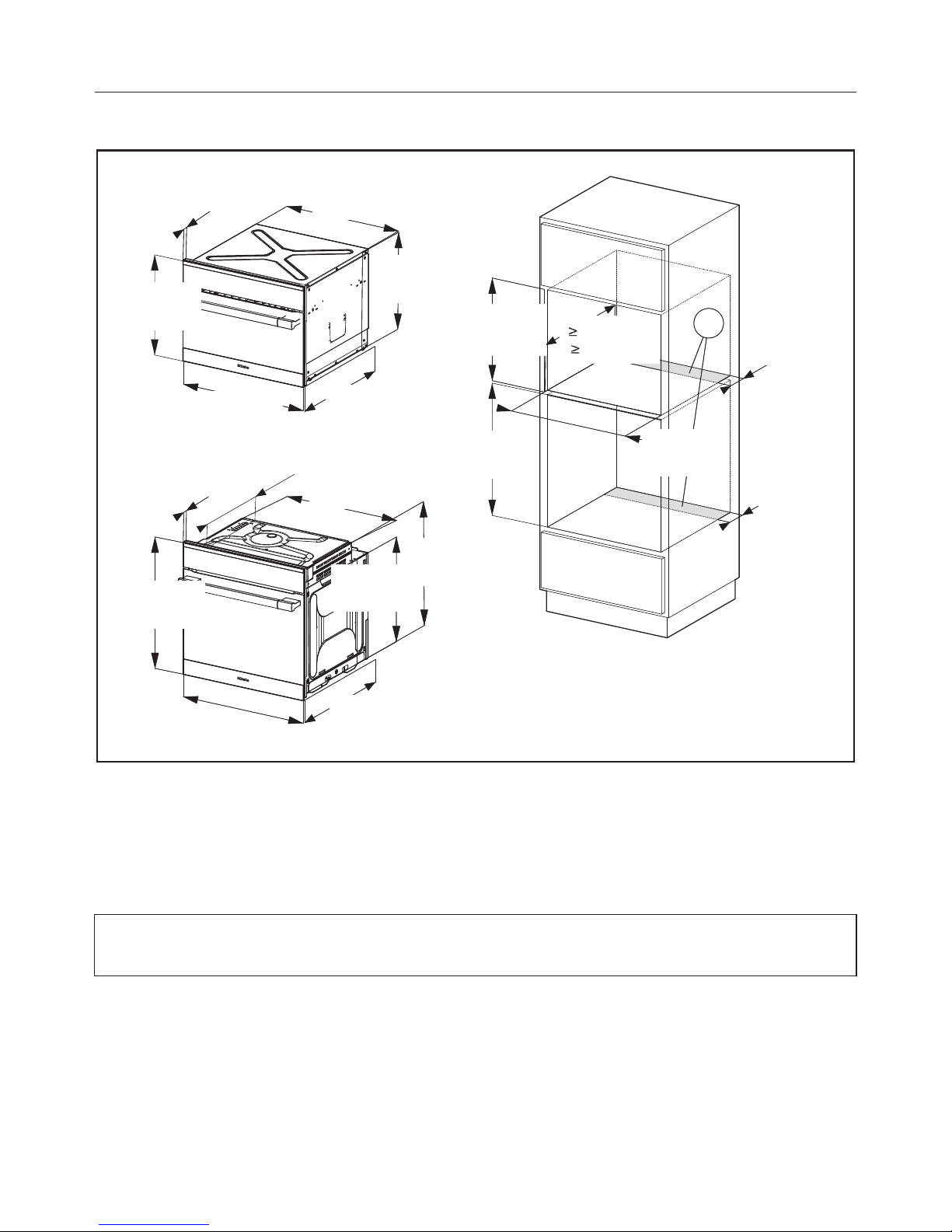

Installation in a tall cabinet in combination with an oven
7/8"
(22*/23** mm) 22 1/16"
(560 mm)
17 1/2"
(445 mm)
21 9/16"
(549 mm)
23 7/16"
(595 mm)
17 15/16"
(455 mm)
7/8"
(22*/23** mm)
16" (407 mm)
21 11/16"
(551 mm)
22 11/16"
(577 mm)
20 1/16"
(510 mm)
21 1/2" (546 mm)
23 7/16"
(595 mm)
23 7/16"
(596 mm)
AA 4"
(100 mm)
4"
(100 mm)
20 7/8"
( 530 mm)
22 1/16"
(560 mm)
23 1/4"-23 7/16"
(590-595 mm)
17 3/4"-17 13/16"
(450-452 mm)
Cut-out (4" x 22" / 100 mm x 560 mm) in the bottom of the cabinet for power
cord and ventilation
*Oven with glass front
** Oven with metal front
Front design may vary depending on model. For the more current specifications
please visit the Miele website.
Installation diagrams
132

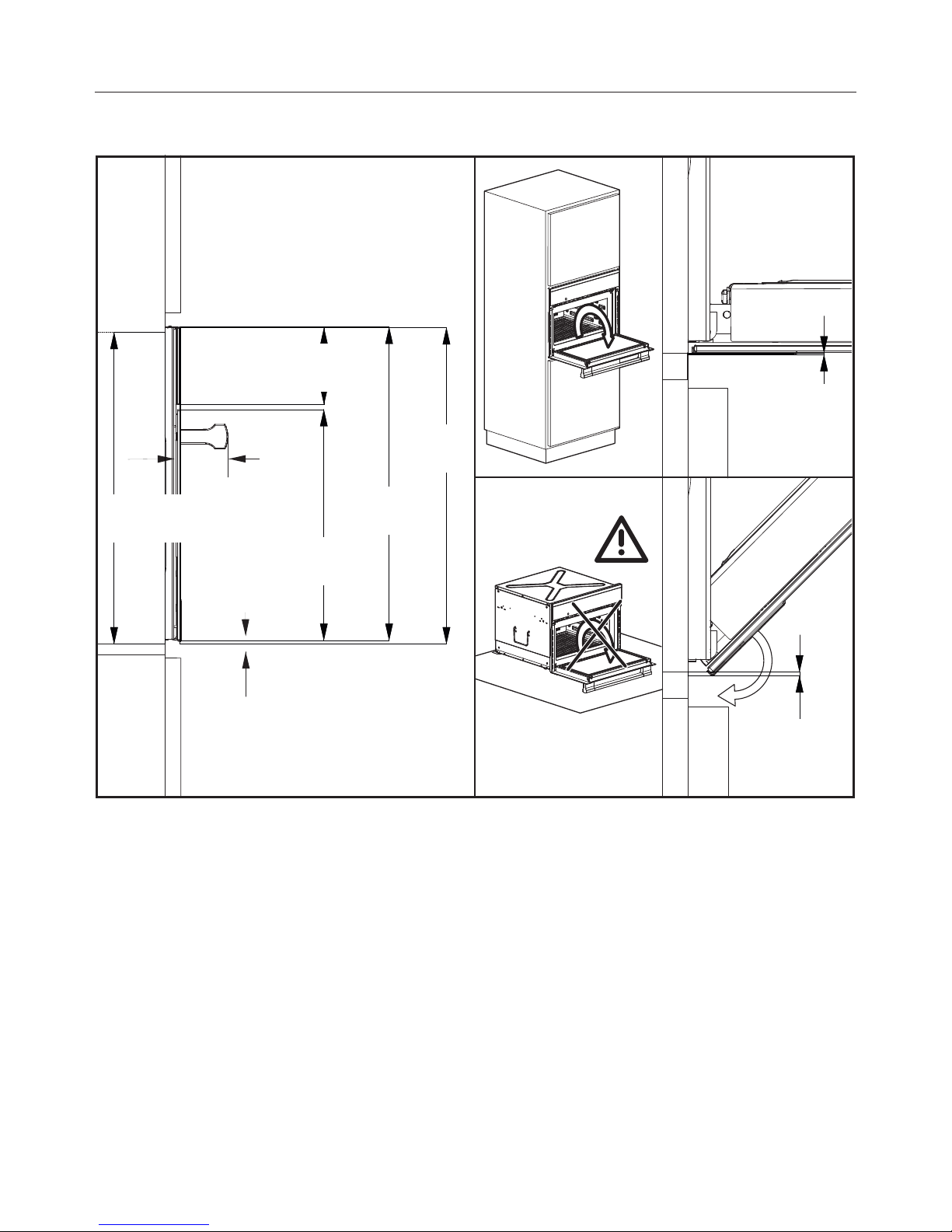

Front dimensions
A
17 1/2"
(445 mm)
3/16"
(4 mm)
13 1/8"
(333 mm)
4 3/8"
(111 mm)
17 3/4"
(451 mm)
17 15/16"
(455 mm)
B
- 1/16"
(-2 mm)
AH67xx: 2 3/4" (69 mm)
H68xx: 1 5/8" (42 mm)
BSpeed Oven with glass front: 1/16" (2.2 mm)
Speed Oven with metal front: 1/16 (1.2 mm)
Installation
133
The oven must not be operated
until it has been properly installed
within cabinetry.
Mounting the door handle
(depending on model)
Mount the handle onto the retaining
bolts.
Use the supplied Allen wrench to
tighten all four bolts.
If there are side handles, please
remove them.
Connect the power cord to the
electrical supply.
Push the oven into the cabinetry up
to the oven trim and align it.
Open the door and use the screws
supplied to secure the oven to the
side walls of the cabinetry through
the holes in the oven trim.
Copyright and licenses
134
Miele uses software to operate and control the appliance.
The copyright authorisation from Miele and other relevant software suppliers (e.g.
Adobe) must be respected.
Miele and their suppliers reserve the rights to the software components.
In particular the following are prohibited:
– copying and distribution,
– modifications and derivations,
– decompilation, reverse engineering, disassembling and other such reductions of
software.
This product contains Adobe® Flash® Player Software under licence from Adobe
Systems Incorporated, Adobe Macromedia Software LLC. Adobe and Flash are
registered trademarks of Adobe Systems Incorporated.
Components which fall under GNU General Public Licence and further Open
Source licenses are integrated into the software.
An overview of the integrated Open Source components and a copy of the current
licence can be obtained at http://www.miele.com/device-software-licenses. You
will need to enter the specific product name.
Miele will provide the source code for all components of software licensed under
the GNU General Public License and comparable Open Source licenses.
