Installation Plan
Professional Dishwasher
PG 8056
Mat. no.: 10 251 400
en - US
page1/6InstallationplanPG8056
Installation instruction
Observe installation instructions when installing machine.
This dishwasher is suitable for residential and commercial use.
Installation
Installation should only be carried out by authorized installers in
accordance with valid regulations, relevant standards and health and
safety codes!
Condensate
Only use commercial grade cabinetry in the vicinity of this dishwasher
as condensate may otherwise cause damage.
Machine feet
To ensure stability install the included floor bracket BBF-80 (Installation
Instructions Mat.no.: 09788890)
Electrical
connection
It is recommended to make electrical connection via a plug and socket
so that electrical safety checks can be carried out easily. The socket
must be accessible after machine installation.
With a fixed installation, this must be via a main switch to be provided
on site, which must completely isolate the machine from the power
supply with a contact gap of at least 1/8’’ (3 mm).
If necessary, an equipotential bond with good contact connection must
be provided in accordance with all appropriate national and local
regulations.
Protection class IP21
Non-return device
Connection to a drinking water supply is permitted without
an additional non-return device.
External dosing
system (optional)
Connect up to two dosing systems at the rear panel for liquid cleaning
agent and rinse aid.
InstallationplanPG8056page2/6

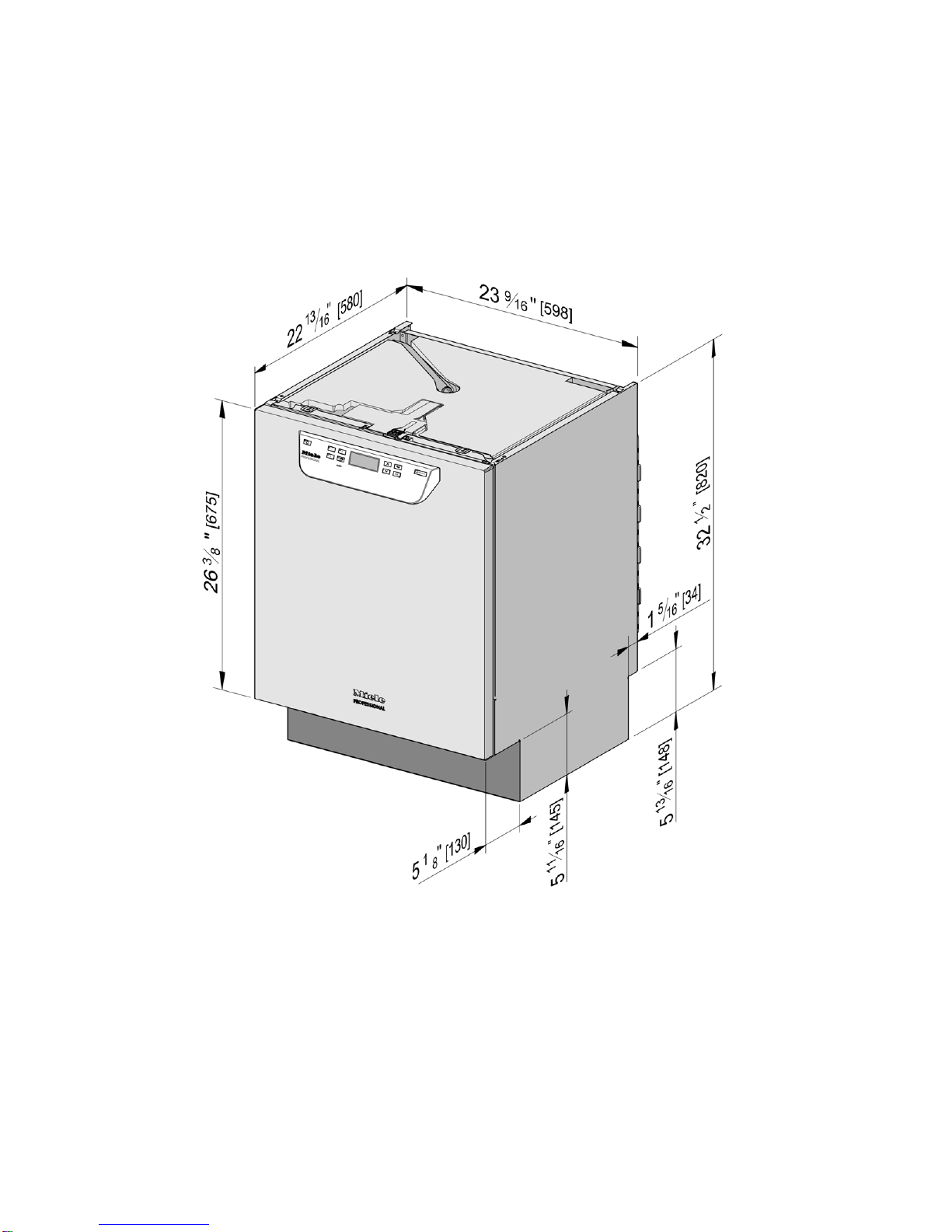

Dimensions in drawings in inches & [mm]
EL Electrical connection WW Hot water
KW Cold water AW Drain water
DS External dosing connection (optional)
page3/6InstallationplanPG8056
Dimensions in drawings in inches & [mm]
InstallationplanPG8056page4/6
Electrical connection (208 V)
Voltage (default) 2 AC 208V 60 Hz 2 AC 208V 60 Hz
Rated load 5.8 kW 5.8 kW
Fuse rating 2 × 30 A 2 × 30 A
Minimum cross-section 3 × AWG 10 3 × 5.2 mm²
Length of electrical cord (UL 921) with plug approx. 5‘ 7“ approx. 1.7 m
Electrical connection NEMA L6-30 NEMA L6-30
Voltage (convertible) 3 AC 208V 60 Hz 3 AC 208V 60 Hz
Rated load 5.8 kW 5.8 kW
Fuse rating 3 × 20 A 3 × 20 A
Minimum cross-section 4 × AWG 12 4 × 3.3 mm²
Length of electrical cord (UL 921) with plug approx. 5‘ 7“ approx. 1.7 m
Electrical connection NEMA L15-20 NEMA L15-20
Electrical connection (240 V)
Voltage (default) 2 AC 240V 60 Hz 2 AC 240V 60 Hz
Rated load 5.8 kW 5.8 kW
Fuse rating 2 × 30 A 2 × 30 A
Minimum cross-section 3 × AWG 10 3 × 5.2 mm²
Length of electrical cord (UL 921) with plug approx. 5‘ 7“ approx. 1.7 m
Electrical connection NEMA L6-30 NEMA L6-30
Voltage (convertible) 3 AC 240V 60Hz 3 AC 240V 60Hz
Rated load 5.8 kW 5.8 kW
Fuse rating 3 × 20 A 3 × 20 A
Minimum cross-section 4 × AWG 12 4 × 3.3 mm²
Length of electrical cord (UL 921) with plug approx. 5‘ 7“ approx. 1.7 m
Electrical connection NEMA L15-20 NEMA L15-20
Cold water connection
Max. temperature 68 °F 20 °C
Max. water hardness 73 gpg 70 °d
Min. flow pressure 29 psi 200 kPa
Min. flow pressure with extended water intake 5.8 psi 40 kPa
Max. pressure 145 psi 1,000 kPa
Throughput 2 gal/min 7.5 l/min
Connection thread - on site (flat sealing) 3/4“ Male Garden Hose
Thread 3/4“ Male Garden
Hose Thread
(USA: 11.5 NH)
Length of connection hose (supplied) approx. 5‘ 7“ approx. 1.7 m
page5/6InstallationplanPG8056
Hot water connection
Max. temperature 149 °F 65 °C
Max. water hardness 73 gpg 70 °dH
Min. flow pressure 29 psi 200 kPa
Min. flow pressure with extended water intake 5.8 psi 40 kPa
Max. pressure 145 psi 1,000 kPa
Throughput 2 gal/min 7.5 l/min
Connection thread - on site (flat sealing) 3/4“ Male Garden Hose
Thread 3/4“ Male Garden
Hose Thread
(USA: 11.5 NH)
Length of connection hose (supplied) approx. 5‘ 7“ approx. 1.7 m
Drain water
Drain hose (internal diameter x wall thickness) 7/8” × 1/4” 22 × 6 mm
Length of Commercial Dishwasher drain hose 4’ 11” approx. 1.5 m
Length of Commercial Dishwasher drain hose, max. 13’ 1’’ approx. 4.0 m
Drain pump head height from floor level, min. 1’ 300 mm
Drain pump head height from floor level, max. 3’ 3” 1 m
Drain hose delivery, max. 4.2 gal/min 16 l/min
On-site hose connector (external diameter x length) 7/8” × 1 3/16” 22 × 30 mm
External dosing system (optional)
Connect up to 2 dosing systems at the rear panel for liquid cleaning agent and rinse aid.
Machine feet
Height adjustable 0 - 2 3/8“ 0-60 mm
Foot diameter 1 3/8“ 35 mm
Entry point into housing 8 M 8 M
Heat dissipation to room
Heat transfer by emission 1194 btu/h 0.35 kWh/h
Load on removal 1365 btu/h 0.40 kWh/h
InstallationplanPG8056page6/6
Machine data
Unit height 32 5/16“ 820 mm
Height including cover 32 7/8“ 835 mm
Width 23 9/16“ 598 mm
Depth 22 13/16“ 580 mm
Door height 26 3/8“ 670 mm
Net weight 154 lbs 70 kg
Dynamic floor load 1.200 N 1.200 N
Width including transport pallet 26 3/8“ 670 mm
Depth including transport pallet 29 1/8“ 740 mm
Height including transport pallet 36 1/4“ 920 mm
Set-up conditions
Ambient temperature 41-104 °F 5-40 °C
Max. humidity up to 88°F / 31°C 80% 80%
Max. humidity up to 104°F / 40°C 50% 50%
Max. altitude above sea level 6560‘ 2,000 m
page7/6InstallationplanPG8056
U.S.A.
Miele, Inc.
National Headquarters
9IndependenceWay
Princton,NJ08540
Phone:800‐991‐9380
Fax:609‐419‐4241
www.mieleusa.com
Technical Service & Support
Nationwide
Phone:800‐991‐9380
Fax:800‐220‐1348
Allrightsreserved!Date:2015‐06‐09Mat.no.:10251400
