Miele KM 5731 Manual de usuario

Operating and Installation instructions

Ceramic cooktops with induction

KM 5731 / KM 5733

KM 5753

To avoid the risk of accidents or

damage to the appliance it is

essential to read these

instructions before it is installed

or used for the first time. M.-Nr. 06 661 730

en - AU, NZ

Description of the appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

KM 5731..........................................................4

KM 5733..........................................................5

KM 5753..........................................................6

Cooking zone controls and displays ....................................7

Timer controls and display ...........................................8

Cooking zones .....................................................8

Warning and safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Caring for the environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Before using for the first time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Cleaning for the first time............................................17

Induction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Principle .........................................................18

Pans ............................................................20

Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Sensors .........................................................21

Switching on .....................................................21

Settings .........................................................22

Auto heat-up .....................................................23

Booster..........................................................25

Switching off and residual heat indicators...............................26

Safety features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Safety lock .......................................................27

Stop and Go......................................................28

Safety switch-off...................................................29

Overheating protection .............................................30

Contents

Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Setting the minute minder ...........................................31

Switching a cooking zone off automatically..............................32

Combi Settings ...................................................33

Timer default setting ...............................................33

Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Problem solving guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Optional accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

After sales service, data plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Safety instructions for installation .....................................43

Safety clearances .................................................44

Building-in dimensions .............................................47

Preparing the worktop ..............................................50

Installing the cooktop...............................................50

Sealant ..........................................................51

Tiled worktop .....................................................51

Electrical connection ...............................................52

Connection diagram ...............................................53

Contents

KM 5731

abcd Cooking zones

eCooking zone controls and display (see relevant chapter)

fTimer controls and display (see relevant chapter)

gSafety lock indicator lamp

hSafety lock sensor control

iCooktop ON/OFF sensor control

Description of the appliance

KM 5733

abc Cooking zones

eCooking zone controls and display (see relevant chapter)

fTimer controls and display (see relevant chapter)

gSafety lock indicator lamp

hSafety lock sensor control

iCooktop ON/OFF sensor control

Description of the appliance

KM 5753

abcd Cooking zones

eCooking zone controls and display (see relevant chapter)

fTimer controls and display (see relevant chapter)

gSafety lock indicator lamp

hSafety lock sensor control

iCooktop ON/OFF sensor control

Description of the appliance

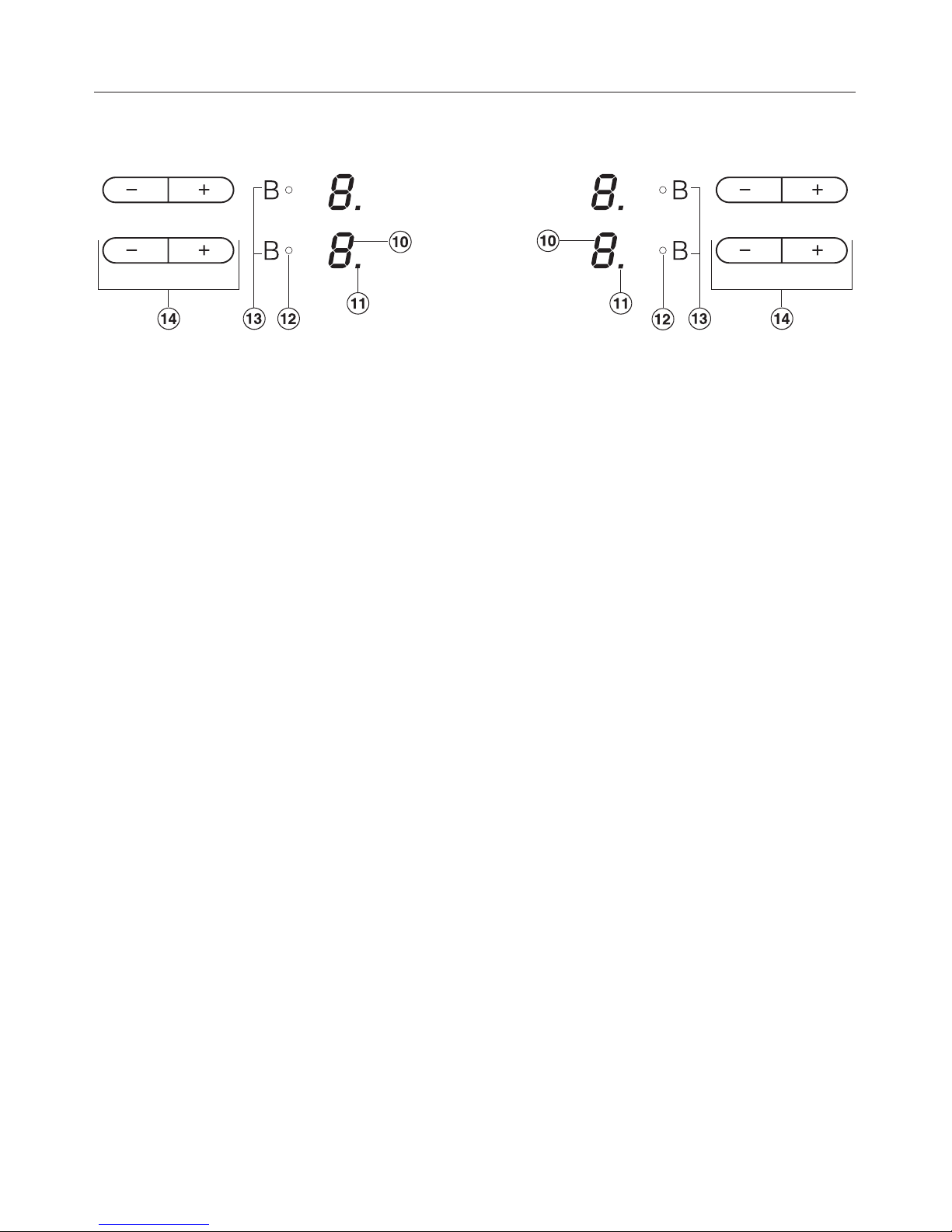

Cooking zone controls and displays

jDisplays:

0= Cooking zone ready for use

1bis 9= Power setting

#= Residual heat

ß= No pan on cooking zone or pan unsuitable (see "Induction")

F= Fault (see "Safety switch-off")

A= Auto heat-up when the power setting range has been extended

P0 etc. = Programme (see "Programming")

S0 etc. = Status (see "Programming")

kIndicator lamp for Auto heat-up or extended power setting (see "Programming"),

e.g. the front left cooking zone

lIndicator lamp for Booster

mBooster sensor controls

nPower setting sensor controls

Description of the appliance

Timer controls and display

oSensor control for switching on the timer, switching between timer functions and

selecting a cooking zone for automatic switch-off

pSensor controls to set a time

qTimer display

rIndicator lamp for automatic switch-off, e.g. of the rear right cooking zone

sIndicator lamp minute minder

Cooking zones

Cooking

zone

KM 5731

minimum to maximum

Cin cm*

Rating in watts

230 V**

y14 - 20 normal:

with Booster:

1850

2500

w14 - 20 normal:

with Booster

1850

2500

x16 - 23 normal:

with Booster:

2300

3200

z10 - 16 normal:

with Booster:

1400

1800

Total: 7400

* Pans of any base diameter within the given range may be used.

** The wattage quoted may vary depending on the size and material of the pans

used.

Description of the appliance

Cooking zone KM 5733

minimum to maximum

Cin cm*

Rating in watts

230 V**

f18 - 28 normal:

with Booster

2400

3200

x14 - 20 normal:

with Booster:

1850

2500

z10 - 16 normal:

with Booster:

1400

1800

Total: 6900

Cooking zone KM 5753

minimum to maximum

Cin cm*

Rating in watts

230 V**

y18 - 28 normal:

with Booster:

2400

3200

w10 - 16 normal:

with Booster

1400

1800

x14 - 20 normal:

with Booster:

1850

2500

z14 - 20 normal:

with Booster:

1850

2500

Total: 7400

* Pans of any base diameter within the given range may be used.

** The wattage quoted may vary depending on the size and material of the pans

used.

Description of the appliance

This appliance complies with all

relevant local and national safety

requirements. Improper use of the

appliance can, however, present a

risk of both personal injury and

material damage.

To avoid the risk of accidents and

damage to the appliance, please

read these instructions carefully

before installation and before using

it for the first time.

They contain important notes on the

installation, safety, operation and

care of the appliance.

Keep these instructions in a safe

place and ensure that new users are

familiar with the content. Pass them

on to any future owner.

Correct application

~This appliance is intended for

domestic use for the preparation of

food only.

Any other usage is at the owner's risk

and could be dangerous. The

manufacturer cannot be held liable for

damage resulting from incorrect or

improper use of the appliance.

~This appliance is not intended for

use by persons (including children)

with reduced physical, sensory or

mental capabilities, or lack of

experience and knowledge, unless they

have been given supervision or

instruction concerning use of the

appliance by a person responsible for

their safety.

Warning and safety instructions
