Operating and installation instructions

Gas cooktops

KM 2256

KM 2257

KM 2257-1

To avoid the risk of accidents or

damage to the appliance, it is

essential to read these

instructions before it is installed

and used for the first time. M.-Nr. 07 012 921

en - AU, NZ

WO This appliance can be used in countries other than those specified on

the appliance. It is, however, set up for connection to the gas and electricity

supplies in the countries specified. For use in other countries, please contact

Miele in your country.

Guide to the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Cooktop ..........................................................5

Burners ..........................................................6

Accessories .......................................................8

Warning and safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Caring for the environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Before using for the first time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Rapid ignition system ..............................................18

Controls .........................................................18

Switching on .....................................................19

Regulating the flame ...............................................20

Pans . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Wok ring ......................................................22

Combi insert ...................................................22

Energy saving tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Safety features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Thermoelectric safety ignition ........................................24

Safety switch-off...................................................24

Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

General notes ....................................................25

Stainless steel surfaces .............................................26

Pan support, control knob ...........................................26

Burners .........................................................27

Problem solving guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Optional accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Contents

Safety instructions for installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Safety clearances. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

KM 2256 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Appliance and building-in dimensions .................................35

Installation .......................................................36

General installation tips .............................................37

KM 2257 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Appliance and building-in dimensions .................................38

Installation .......................................................40

KM 2257-1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Appliance and building-in dimensions .................................42

Installation .......................................................44

Securing the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

After installation ...................................................46

Electrical connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Gas connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Burner ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Conversion to another type of gas. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Jet table .........................................................51

To change the main jets ............................................52

To change the small jets ............................................56

After changing the jets..............................................57

After sales service, data plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Contents

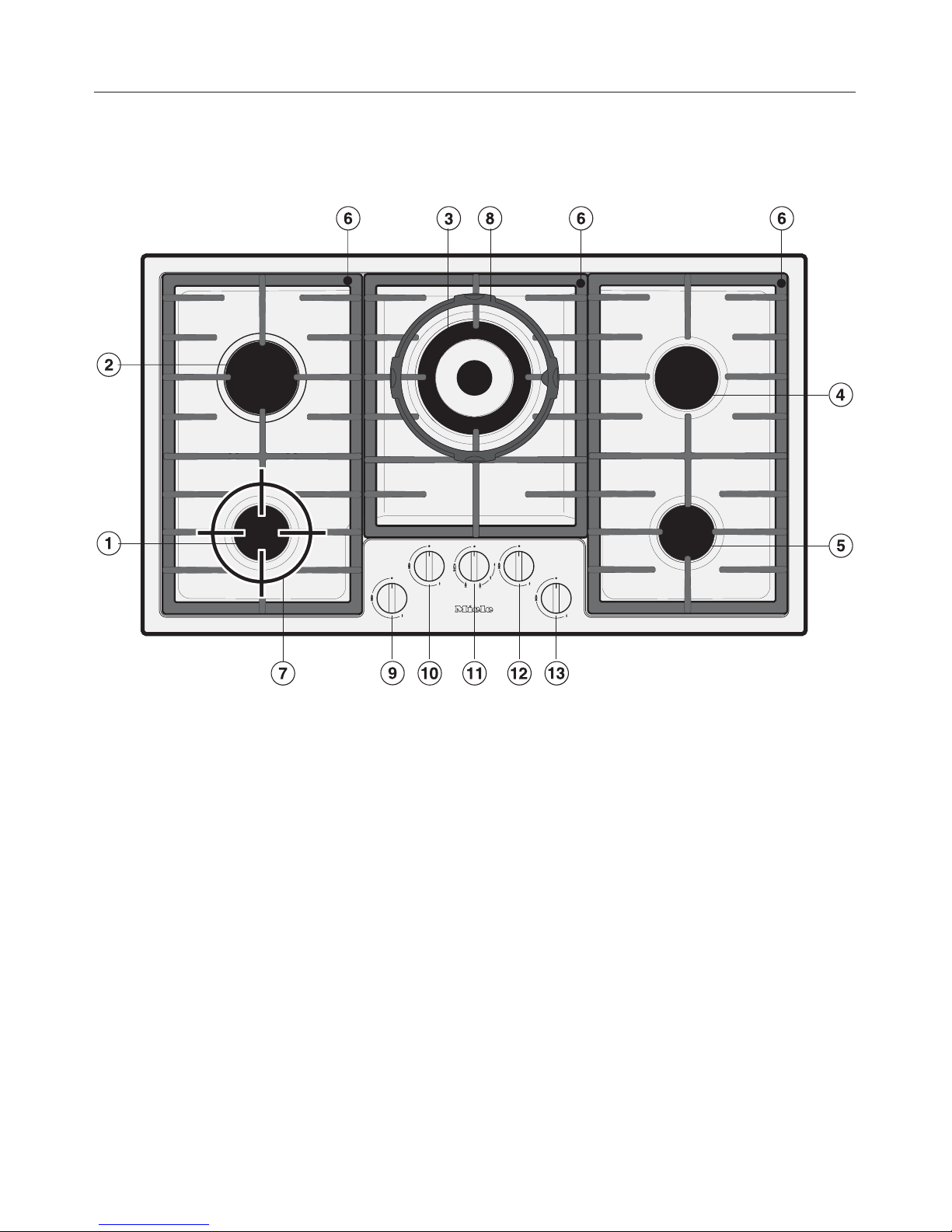

Cooktop

KM 2256 / KM 2257 / KM 2257-1

aSimmer burner

bExtra high-speed burner

cDual Wok

dHigh-speed burner

eStandard burner

fPan support (in three sections)

gCombi insert

hWok ring

Controls:

iFront left

jBack left

kMiddle

lBack right

mFront right

Guide to the appliance

Burners

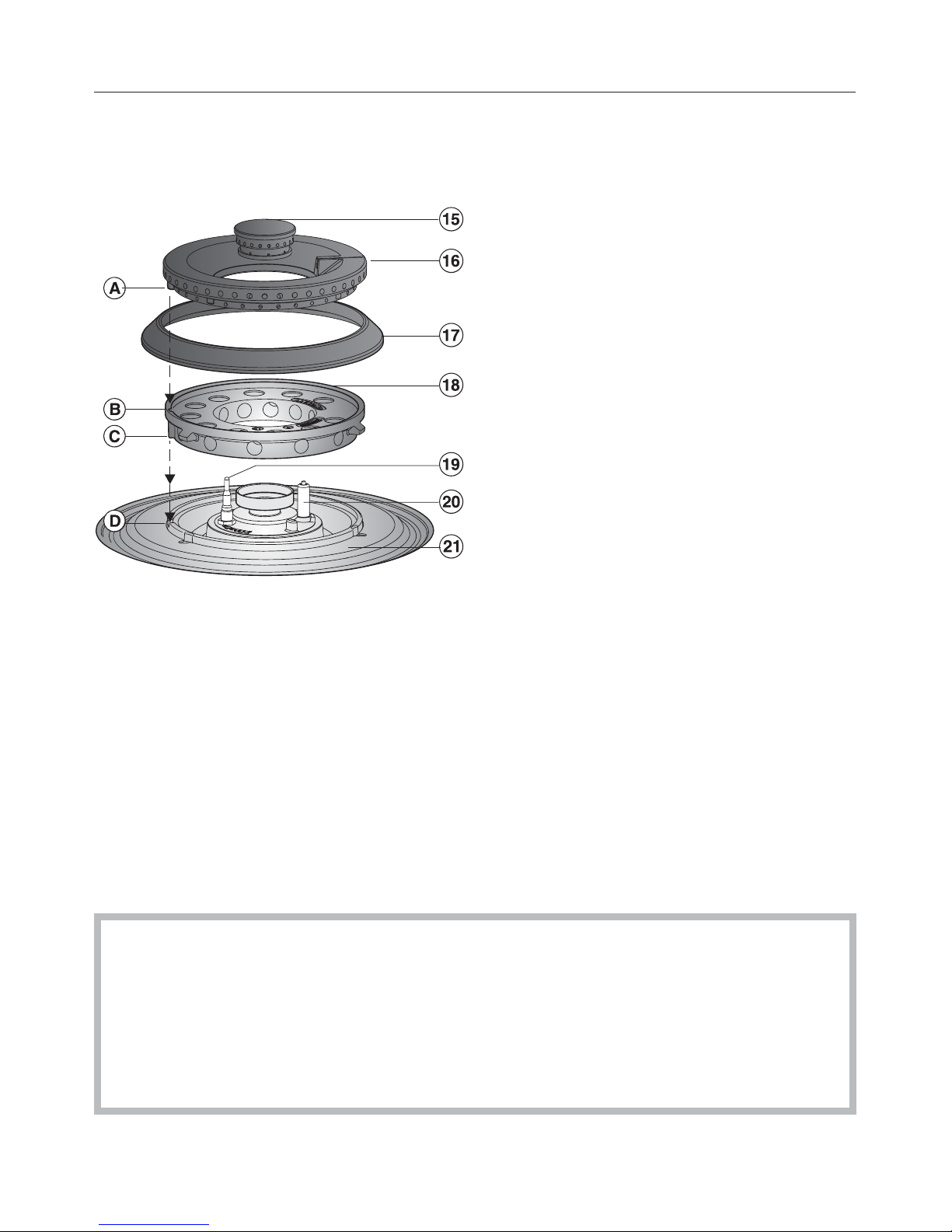

Dual Wok burner

oInner cover to burner

pOuter cover to burner

qBurner ring

rBurner head

sIgnition safety device

tIgnitor

uBurner base

Position of the burner components

The proper functioning of the burner can only be guaranteed if the burner

components are positioned correctly:

The lobe aon the burner cap must fit into the recess bof the burner head.

The pin con the burner head must fit into the recess dof the burner base.

The burner components cannot be twisted if they are in the correct position.

Guide to the appliance

Simmer, standard, high-speed and extra high-speed burners

nBurner cap

rBurner head

sIgnition safety device

tIgnitor

uBurner base

Guide to the appliance

Accessories

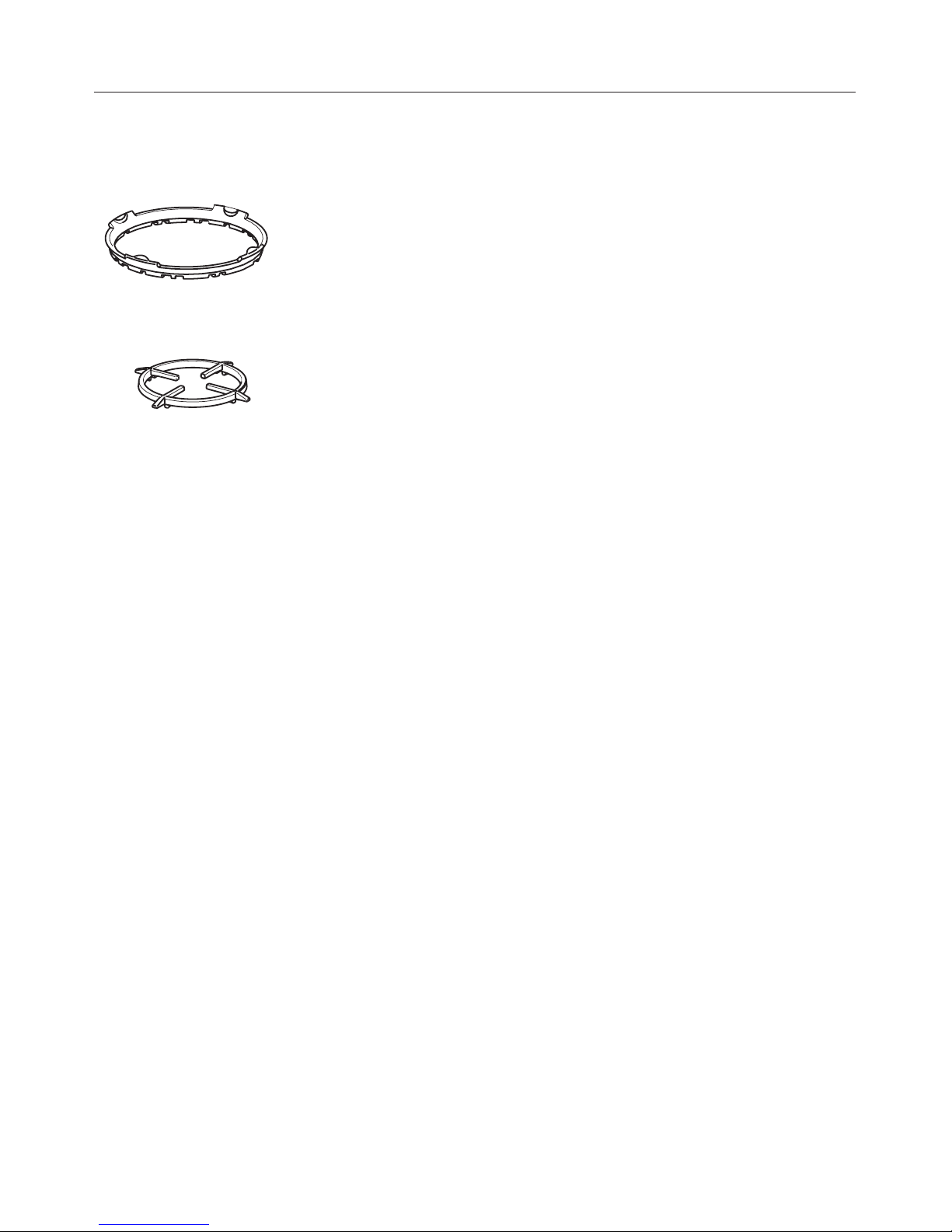

Wok ring

The wok ring supplied gives additional stability to the wok,

especially to those with a rounded base.

Combi insert for small and large pans

If you are using a pan which is smaller or larger than that

recommended in the table under "Pans", then the combi

insert supplied must be used.

Guide to the appliance

This appliance complies with all

relevant local and national safety

requirements. Inappropriate use

can, however, lead to personal injury

and damage to property.

To avoid the risk of accidents and

damage to the appliance, please

read these instructions carefully

before using it for the first time.

They contain important notes on

installation, safety, use and

maintenance.

Keep these instructions in a safe

place and ensure that new users are

familiar with the contents. Pass them

on to any future owner.

Correct application

~This appliance is designed for

domestic use and for use in similar

environments by guests in hotel or

motel rooms, bed & breakfasts and

other typical living quarters. This does

not include common/shared facilities or

commercial facilities within hotels,

motels or bed & breakfasts.

~This appliance must only be used to

cook food and keep it warm.

Any other usage is at the owner's risk

and could be dangerous. Miele cannot

be held liable for damage resulting

from incorrect or improper use or

operation.

~This appliance is not intended for

use by persons (including children)

with reduced physical, sensory or

mental capabilities, or lack of

experience or knowledge, unless they

have been given supervision or

instruction concerning its use by a

person responsible for their safety.

~The appliance is not suitable for

outdoor use.

~This appliance must not be installed

and used in mobile installations such as

ships etc.

~Do not modify this appliance.

Warning and safety instructions

Safety with children

~Children should be supervised to

ensure that they do not play with the

appliance.

~Older children may use the gas

cooktop only when its operation has

been clearly explained to them and

they are able to use it safely. They must

be aware of the potential dangers

caused by incorrect operation.

~The appliance gets hot when in use

and remains hot for quite a while after

being switched off. To safeguard

against burning, keep children well

away from the appliance at all times.

~Do not store anything which might

arouse a child's interest in storage

areas above or next to the appliance.

Otherwise they could be tempted into

climbing onto the appliance with the

risk of burning themselves. Danger of

burning.

~Keep all pans out of reach of

children. Turn pan handles inwards

away from the edge of the cooktop.

Danger of burning or scalding. Special

ooktop guards are available from

certain retail outlets.

~Packaging, e.g. cling film,

polystyrene and plastic wrappings,

must be kept out of the reach of babies

and young children. Danger of

suffocation. Dispose of or recycle all

packaging safely as soon as possible.

Warning and safety instructions
