Chapter 1: Before You Begin

Starting the tester for the  rst time

When the tester is rst used the operator is asked to enter a

couple of items such as language, date and time. Changes

can be made afterwards by going in to the Utility Menu and

selecting CONFIG TESTER.

Safety

Because of the possibility of personal injury, always use

extreme caution when working with batteries. Follow

all manufacturers’ instructions and BCI (Battery Council

International) safety recommendations.

General Precautions

 Battery acid is highly corrosive. If acid enters your

eyes, immediately ush them thoroughly with run-

ning cold water for at least 15 minutes and seek

medical attention. If battery acid gets on your skin or

clothing, wash immediately with water and baking

soda.

 Always wear proper safety glasses or face shield

when working with or around batteries.

 Keep hair, hands, and clothing as well as the analyzer

cords and cables away from moving engine parts.

 Remove any jewelry or watches before you start

servicing the battery.

 Use caution when working with metallic tools to

prevent sparks or short circuits.

 Never lean over a battery when testing, charging or

jump starting it.

Risk of explosive gases.

Never smoke or allow a spark or

ﬂ ame in the vicinity of a battery.

Batteries can produce a highly explosive mix

of hydrogen gas and oxygen, even when the

battery is not in operation. Always work in a

well-ventilated area.

Wash hands after handling.

REQUIRED BY CALIFORNIA PROP. 65: Battery posts, terminals,

and related accessories contain lead and lead compounds,

chemicals known to the state of California to cause cancer and

birth defects or other reproductive harm.

The tester is manufactured in line with the latest state of the

art and according to recognised safety standards. If used

incorrectly or misused, however, it can cause

- injury or death to the user or a third party,

- damage to the tester and other material assets belonging

to the operator,

- inecient operation of the tester.

All persons involved in commissioning, operating, maintaining

and servicing the tester must

- be suitably qualied,

- have knowledge of and experience in dealing with

testers and batteries and

- read and follow these operating instructions carefully.

Chapter 1: Before You Begin

Conventions Used in This Manual

To help you learn how to use your analyzer, the manual uses these symbols and typographical conventions:

Convention Description

!The safety symbol followed by the word WARNING or CAUTION indicates instructions for avoiding

hazardous conditions and personal injury.

CAUTION The word CAUTION indicates instructions for avoiding equipment damage.

The wrench symbol indicates procedural notes and helpful information.

UP ARROW The text for keypad buttons and soft-key functions are in bold capital letters.

CAPITAL LETTERS The text for screen options are in regular capital letters.

MAR-800P

Midtronics B.V. Hoofdveste 6–8 Houten NL

www.midtronics.com 5

Chapter 2: Overview

Connections and Data Ports

Integrated thermal printer

Release lever for the paper compartment

door

Paper slot

LCD screen with Main Menu

Control Panel: keypad and power button

6-pin connector for the battery test cable

(see the next page for detail)

Spring-loaded data card slot for test data

storage and software upgrades.

Infrared temperature sensor with a range of

-28 °C to +93 °C (-20 °F to +200 °F)

Data transmitter: sends test results to a PC

using an optional hardware and software kit

Chapter 2: Overview



Integrated thermal printer





Paper slot







6-pin connector for the battery test cable



Spring-loaded data card slot for test data



Infrared temperature sensor with a range of



Data transmitter: sends test results to a PC



















MAR-800P

Midtronics B.V. Hoofdveste 6–8 Houten NL www.midtronics.com

Chapter 2: Overview

Connecting the Battery Test Cable

To prevent damage to the analyzer’s circuitry, do not

connect the analyzer to a voltage source greater than

30 Vdc.

To connect the battery test cable to the analyzer align the

arrow on the cable

connector with

the arrows on the

analyzer’s housing.

Hold the part of the

cable connector as

shown and firmly

insert the connector

into analyzer’s six-pin

receptacle. Do not

twist.

To avoid damaging

the battery test cable,

always hold the

ridged part of the cable connector (as shown in the photo)

when inserting and removing the cable.

Removing and Inserting the Data Card

The analyzer ships with a plastic insert in the data card slot to

protect it from dust and debris. To remove the plastic insert

or a data card, push briey on its edge to release it and pull it

from the slot.

When inserting a card, push it into the slot until it locks. The

card is correctly inserted when it is not protruding from the

slot. To protect the card slot and enable the analyzer to read

and write to the card, leave the card in the slot.

Data Entry Methods

To perform a particular test or function, the tester will ask for

dierent types of information. This means that the methods

you use to enter information will change depending on

the type of information requested. The four types of entry

methods are described below.

Typically, the soft key below the right half of the screen

conrms your choice, although the word above it may vary. In

a similar fashion, the soft key below the left half of the screen

cancels your choice or returns you to the previous screen,

although the word above it may also vary.

Menu icons

A menu icon is a graphical representation of a function you

can select. To select an icon, use the LEFT or RIGHT ARROW

key to highlight it. Highlighting changes the icon to a white

picture on a black background. To conrm your selection,

press the appropriate soft key.

Option Buttons

Some lists have option buttons before each item. To select

an item, use the UP/DOWN ARROW keys to move the dot

into the button next to the item you want. You can also use

the alphanumeric keypad to enter the number preceding

the option button. To confirm your selection, press the

appropriate soft key.

Scrolling Lists

Scrolling lists contain items that extend above and below the

screen or the selection box that contains them. To indicate

that there are more items, the symbols appear to the right

of the rst visible or highlighted item on the list.

Alphanumeric Entries

Even though the tester does not use an alphanumeric keypad

it is possible to enter alphanumeric values. When applicable

the alphanumeric values appear on the display. Use the UP/

DOWN or LEFT/RIGHT ARROW keys to scroll and conrm

this with the > key. To return one or more steps use the < key.

Hold the

cable

connector

here

Arrows

MAR-800P

Midtronics B.V. Hoofdveste 6–8 Houten NL

www.midtronics.com 7

Chapter 2: Overview

Display and Keypad

The keypad and display work together to help you quickly

nd and use the right tools at the right time. The display also

keeps you on track with on-screen navigation aids, directions

and messages.



















Internal Batteries Status Indicator

This indicator appears in the screen’s top left corner, lets you

know the status and charge level of the analyzer’s six 1.5-volt

batteries. The Xin the top left corner of the screen shows

that the analyzer is powered by the battery you’re testing to

conserve the analyzer’s internal batteries.

Voltmeter

When you rst connect the analyzer to a battery it functions

as a voltmeter. The voltage reading appears above the left soft

key until you move to other menus or functions.

Soft Keys

Press the two Soft Keys linked to the bottom of the screen to

perform the functions displayed above them. The functions

change depending on the menu or test process. So it may be

helpful to think of the words appearing above them as part

of the keys. Some of the more common soft-key functions are

SELECT, BACK, and END.

POWER Key

Press the POWER button to turn the analyzer on and o.

The analyzer also turns on automatically when you connect its

test leads to a battery.

Title Bar

The title bar shows you the name of the current menu,

test tool, utility, or function.

Selection Area

The selection area below the Title Bar contains selectable

items or dialog boxes that display information or require a

response.

Menu Screen Arrows

When displayed in menu screens, the menu screen arrows

show you which ARROW key on the keypad to press to display

other icons or screens. The Up and Down Menu Screen Arrows,

for example, indicate when to press the UP ( ) and DOWN

( ) ARROW keys to display the screens above and below the

current screen.

The Left and Right Menu Screen Arrows tell you when to use the

LEFT

( )

or RIGHT

( )

ARROW keys to select an icon.

When displayed under a list of options, the menu screen

arrows show you which keypad arrow to press to highlight a

character or item in a list.

Scroll Bar

Another navigational aid is the scroll bar on the right side of

the screen. The position of its scroll box shows you whether

the screen is the top (or only screen), middle, or last in a series.

ARROW keys

Press the UP ARROW key to move up to the next selectable

item or row. When entering text, use the UP ARROW key to

move to the previous character.

To select from this type of list, use the UP/DOWN ARROW

keys to scroll to the item, or use the keypad to enter your

choice, and press the appropriate soft key.

MAR-800P

Midtronics B.V. Hoofdveste 6–8 Houten NL www.midtronics.com

Chapter 2: Overview

Menu Structure

This section will help you get to your destination while letting

you know what test leads you may need when you arrive.

The test leads are represented by symbols for their connectors.

Main Menu

The Main Menu is the starting point for all tools and utilities,

which are depicted as icons. Some icons lead directly to the

function they represent, while others are menu icons that lead

to two or more functions. Menu icons are marked here with an

asterisk (

) and are mapped on the following pages.

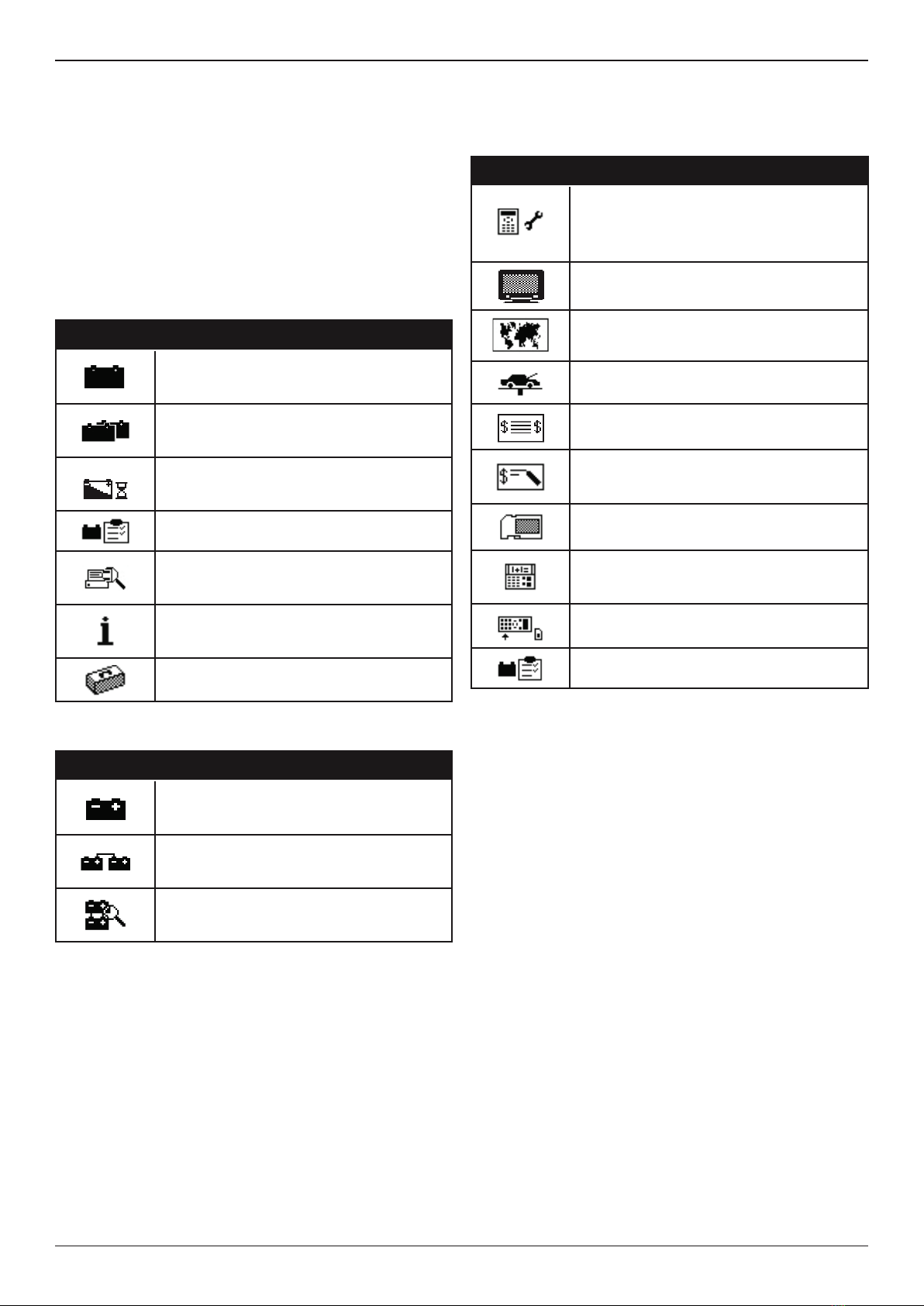

Icon Description

The BATTERY TEST tests a starter or

auxiliary battery using the battery information

you select in a series of screens.

The GENERATE PAIR modus allows you

to check whether two batteries can be used

together.

The DRAIN TEST allows you to test the

battery with taking the drain current in

account.

QC MODE is used for testing stock or

compound batteries.

PRINT/VIEW for the test results of the last

performed tests, and totals by battery test

decision.

VERSION INFO contains information on the

built, version, serial number, a test counter,

and more.

UTILITY MENU includes functionality to setup

the tester.

Print/View Menu

Icon Description

BATTERY RESULTS displays the results of

the last battery test performed and the totals

by battery test decision.

PAIR RESULTS displays the results of the

last battery test performed and the totals by

battery test decision.

PACK RESULTS displays the results of the

last battery test performed and the totals by

battery test decision.

Utility Menu

The Utility Menu lets you customize your analyzer for your

needs.

Icon Description

The CONFIG TESTER menu allows you to

set the following parameters:

TIME, MODE, DATE, FORMAT,

TEMPERATURE UNITS, and WRITE FAIL.

The DISPLAY allows you to set the contrast

of the LCD.

With the LANGUAGE menu you can select

one of the 23 available languages.

Create your own address details for printouts

with the SHOP INFO icon.

If you have created a coupon in the COUPON

utility, use coupon to enable or disable.

EDIT COUPON allows you to create and store

up to three separate coupons to be printed on

test results.

With FORMAT CARD you erase all

information on the data card

With CLEAR COUNTERS you can reset

statistical data like the battery test decision

totals.

With UPDATE you can install new software on

the tester

QC MODE allows you to add and delete

batteries, and import and export battery lists.

MAR-800P

Midtronics B.V. Hoofdveste 6–8 Houten NL

www.midtronics.com 9

Chapter 3: Test Preparation

Inspecting the Battery

Before starting the test visually inspect the battery for:

•Cracked, buckled, or leaking case. If you see any of these

defects, replace the battery.

•Corroded, loose, or damaged cables and connections. Re-

pair or replace them as needed.

•Corrosion on the battery terminals, and dirt or acid on the

case top. Clean the case and terminals using a wire brush

and a mixture of water and baking soda.

•Low electrolyte level. If the electrolyte level is too low, add

distilled water to ll up and fully charge the battery. Do

not overll.

•Corroded or loose battery tray and hold-down xture.

Tighten or replace as needed.

Testing Out-of-Vessel (Battery Test)

The preferred battery test location is in the vessel. However, if

you plan to test out of the vessel:

•Always disconnect the negative cable from the battery

rst and reconnect it last.

•Always use a carry tool or strap to lift and transport the

battery.

Testing In-Vessel (System Test)

The preferred test position is at the battery posts.

At the start of the test, make sure all vessel accessory loads

are o. If systems in the vessel are still active it might lead

to a SYSTEM NOISE message, the tester will automatically

continue to test the battery until the noise is gone.

Connecting to the Battery

CAUTION: Do not connect the tester to a voltage source

greater than 30 Vdc.

Connect the clamps to the battery: the red clamp to the

positive (+) terminal and the black clamp to the negative (–)

terminal.

If you connect the clamps in the wrong polarity (positive to

negative or negative to positive), the tester displays CLAMPS

REVERSED! Reconnect the clamps correctly.

To make sure both sides of the clamps are gripping the

terminals, rock the each clamp back and forth. A poor

connection will prevent testing, and the tester will display

the message CHECK CONNECTION. If the message reappears

after you have correctly reconnected the clamps, clean the

terminals and reconnect.

Setting User Preferences

Before starting your test you may want to customize the use of

your analyzer by setting preferences in the Utility Menu. The

menu has settings for the display’s date and time, the contrast

and backlight time, a utility to customize printouts, among

others.

To conserve the analyzer’s internal batteries, the tester

will turn o after 30 seconds of inactivity.

Chapter 3: Test Preparation

MAR-800P

Midtronics B.V. Hoofdveste 6–8 Houten NL www.midtronics.com

Chapter 4: Battery Test

The tester guides you through the steps of selecting your

battery test parameters and interpreting the results. Before

you start the test, review the instructions in Chapter 3: Test

Preparation.

1. In the Main Menu select the BATTERY TEST icon.

Press the SELECT soft key to continue.

2. Select the purpose of the battery at test.

1 STARTER

2 AUXILIARY

Press the NEXT soft key to continue. In case of STARTER

please continue with step 4.

3. In case of AUXILIARY please press the UP ()or DOWN

() ARROW key and select the capacity of the battery.

50 AH

Press ENTER.

4. Select the age of the battery.

1 IN SERVICE

2 NEW BATTERY

Press the NEXT soft key to continue. In case of NEW

BATTERY please continue with step 6.

5. Select the location of the battery.

1 OUT OF VESSEL

2 IN VESSEL

Press the NEXT soft key to continue. In case of IN VESSEL

please follow the steps of the sub chapter In Vessel.

6. Select the battery type.

1 FLOODED LEAD ACID

2 AGM FLAT

3 AGM SPIRAL

4 GEL

Press the NEXT soft key to continue. The BACK soft key

returns you to the Main Menu at the start of the test and

to the previous screen as you progress.

7. Select the rating units.

1 MCA 5 DIN

2 EN 6 SAE

3 CCA 7 IEC

4 JIS 8 NONE (AUXILIARY)

Battery Standards

Rating

System Description Range

MCA Marine Cranking Amps 100 to 2000

EN (A) European Norm 100 to 2000

CCA Cold Cranking Amps (specied

by SAE): The amount of

current a battery can provide at

0 ºF (–17.8 ºC).

100 to 2000

JIS Japanese Industrial Standard:

(shown on a battery as a

combination of numbers and

letters)

73 numbers

from 26A17

to 245H52

DIN (A) Deutsche Industrie-Norm 100 to 1250

SAE (A) European labeling of CCA 100 to 2000

IEC (A) International Electrotechnical

Commission

100 to 1250

If you select JIS, the analyzer asks for the JIS part number.

Scroll to the part number. To increase your scrolling speed,

hold the UP ()or DOWN () ARROW key, or use the

LEFT () or RIGHT ()ARROW key to move up or down

four part numbers at a time.

Press the NEXT soft key to continue.

8. Press an UP ()or DOWN () ARROW key to select the

BATTERY RATING.

550 CCA

Press ENTER.

9. Hold the bottom of the tester ve centimeters above

the battery case so that the IR temperature sensor on its

underside can approximate the battery temperature.

Press NEXT to lock in the battery temperature.

10. In some cases the tester needs to know if the battery has

been charged before the test. Select BEFORE CHARGING

when the battery has not been charged. Select AFTER

CHARGE when the battery has been fully charged with an

external charger.

1 BEFORE CHARGE

2 AFTER CHARGE

Press NEXT to start the test. The results will be shown.

Press NEXT to proceed with the system test. For instruc-

tions please see Chapter 5: System Test.

Tabla de contenidos

Otros manuales de Instrumento de medición de Midtronics

Midtronics

Midtronics PBT-300 Manual de usuario

Midtronics

Midtronics CPX-900 WiFi Manual de usuario

Midtronics

Midtronics PBT-100 AP Manual de usuario

Midtronics

Midtronics MDX-655P Manual de usuario

Midtronics

Midtronics MDX-655 Manual de usuario

Midtronics

Midtronics EXP-1003 HD Manual de usuario

Midtronics

Midtronics EXP-1002 Manual de usuario

Midtronics

Midtronics MDX-650 MILITARY Manual de usuario

Midtronics

Midtronics HYB-1000 Manual de usuario

Midtronics

Midtronics MDX-645P Manual de usuario

Midtronics

Midtronics MDX-650 MILITARY Manual de usuario

Midtronics

Midtronics DSS-5000 Manual de usuario

Midtronics

Midtronics EBT-965P Manual de usuario

Midtronics

Midtronics EXP-803 Manual de usuario

Midtronics

Midtronics RIVIAN CPX-900 Manual de usuario

Midtronics

Midtronics CPX-950 EU Manual de usuario

Midtronics

Midtronics MDX-600 Series Manual de usuario

Midtronics

Midtronics MDX-650P MILITARY Manual de usuario

Midtronics

Midtronics MDX-652P Manual de usuario

Midtronics

Midtronics PowerSensor Micro700 Manual de usuario

Midtronics

Midtronics CELLTRON MAX Manual de usuario

Midtronics

Midtronics MDX-640 Manual de usuario

Midtronics

Midtronics DSS-5000P NI Manual de usuario

Midtronics

Midtronics MDX-700P HD Manual de usuario

Manuales populares de Instrumento de medición de otras marcas

Suaoki

Suaoki D40 Manual de usuario

Elster

Elster BK-G1.6 Manual de usuario

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manual

Duratool

Duratool D03128 Manual de usuario

Vega

Vega VEGAPULS 65 Manual de usuario

Tonghui

Tonghui TH2618B Manual de usuario

Tenmars

Tenmars TM-801 Manual de usuario

MSR

MSR 145 Manual de usuario

TPS

TPS WP-82 Manual de usuario

ELMETRON

ELMETRON CP-511 Manual de usuario

PCB Piezotronics

PCB Piezotronics 003C30 Manual de usuario

Tenma

Tenma 72-10465 Manual de usuario

Endress+Hauser

Endress+Hauser Proline Promag 50 Especificaciones técnicas

Siemens

Siemens SITRANS F Coriolis FCT030 Manual de lista de piezas

KLINGER

KLINGER CMF V Series Manual de usuario

EXFO

EXFO FTB-2 Manual de operación y mantenimiento

Keysight

Keysight M8290A Manual de usuario

ADTEK

ADTEK MW-5 Manual de usuario
