Getting Started with the
VS-1 Smart Camera
83-111017-02
v4.1.0, February 2010
Copyright ©2010
Microscan Systems, Inc.
Tel: 425.226.5700 / 800.251.7711
Fax: 425.226.8250
ISO 9001 Certified
Issued by TüV USA
All rights reserved. The information contained herein is proprietary and is provided solely for the purpose of
allowing customers to operate and/or service Microscan manufactured equipment and is not to be released,
reproduced, or used for any other purpose without written permission of Microscan.
Throughout this manual, trademarked names might be used. We state herein that we are using the names to the
benefit of the trademark owner, with no intention of infringement.
Disclaimer
The information and specifications described in this manual are subject to change without notice.
Latest Manual Version
For the latest version of this manual, see the Download Center on our web site at:
www.microscan.com.
Technical Support
Warranty and Terms of Sale
For Standard Warranty information, see: www.microscan.com/warranty.
Microscan Systems, Inc.
Renton Headquarters
Tel: 425.226.5700 / 800.251.7711
Fax: 425.226.8250
Nashua Office
Tel: 603.598.8400
Fax: 603.577.5918
Microscan Europe
Tel: 31 172 4233 60
Fax: 31 172 4233 66
Microscan Asia Pacific
Tel: 65 6846 1214
Fax: 65 6846 4641
v4.1.0, February 2010 Getting Started with the VS-1 Smart Camera iii
Contents
PREFACE Welcome! v
Purpose of This Manual v
Manual Conventions v
CHAPTER 1 Using a VS-1 Smart Camera for the First
Time 1-1
Establishing a Network Connection and Making a FrontRunner™
Device Button for Your Camera 1-1
Creating a New Job to Acquire Images 1-5
CHAPTER 2 The VS-1 Smart Camera in Action - Simple
Examples 2-1
Icons 2-2
Simple Blob Tool 2-3
Simple Flaw Tool 2-12
Simple Fast Edge Tool 2-19
Simple Data Matrix Tool 2-36
Training Tools 2-41
Where To Now? 2-42
Contents
iv Getting Started with the VS-1 Smart Camera v4.1.0, February 2010
CHAPTER 3 The VS-1 Smart Camera in Action - Advanced
Example 3-1
Advanced Example Using Multiple Tools 3-2
Input Datums 3-2
Procedure 3-2
Where To Now? 3-21
Index 1-1
v4.1.0, February 2010 Getting Started with the VS-1 Smart Camera v
Preface
PREFACE Welcome!
Purpose of This Manual
This manual is designed to get you up and running with your VS-1 Smart
Camera quickly and confidently.
Please don’t be intimidated by the size of this Getting Started manual. It
contains a large number of images that will help you as you create new
Jobs using the tutorials.
Manual Conventions
The following typographical conventions are used throughout this manual.
• Items emphasizing important information are bolded.
• Menu selections, menu items and entries in screen images are
indicated as: Run (triggered), Modify..., etc.
Preface
vi Getting Started with the VS-1 Smart Camera v4.1.0, February 2010
v4.1.0, February 2010 Getting Started with the VS-1 Smart Camera 1-1
1
Using a VS-1 Smart
Camera for the First
1
CHAPTER 1 Using a VS-1 Smart
Camera for the First Time
Before proceeding with this chapter, you should have:
• Completed installation of Visionscape®software;
• Suitably mounted and wired the VS-1 Smart Camera (see Chapter 2
of Visionscape® Smart Camera Guide)
Establishing a Network Connection and Making a
FrontRunner™ Device Button for Your Camera
This section assumes familiarity with basic wired networking concepts
such as IP addresses and DHCP servers. If these terms are not familiar,
please talk to your IT department and see “Setting Up Network
Communications” in the Visionscape® Smart Camera Guide.
A network connection is required to communicate with the VS-1 Smart
Camera. In order that the VS-1 Smart Camera be recognized, it must
have a valid IP address. As shipped, the VS-1 Smart Camera will try to
obtain an IP address from a DHCP server so, if your network is configured
for DHCP, you will be able to connect to your camera without changing
any settings. However, if your network requires a static IP address to be
assigned, or if you would like to use a cross-link cable, please see
Chapter 1Using a VS-1 Smart Camera for the First Time
1-2 Getting Started with the VS-1 Smart Camera v4.1.0, February 2010
“Setting Up Network Communications” in the Visionscape® Smart
Camera Guide.
Note: When using a VS-1 Smart Camera in a production environment, it
MUST be programmed to use a static IP address instead of DHCP. This is
to prevent loss of communications due to IP lease renewal by the DHCP
server.
Follow these steps when connecting the VS-1 Smart Camera for the first
time:
1. Connect the VS-1 Smart Camera to the same network as the PC that
will be running the FrontRunner™ software.
2. Apply power to the VS-1 Smart Camera; be sure to do this AFTER
making the physical connection to the network.
3. Start the FrontRunner™ application by selecting Start > Visionscape
> Visionscape FrontRunner. The main FrontRunner™ screen is
displayed, as shown in Figure 1–1.
FIGURE 1–1. FrontRunner™ Main Screen
4. Select View > Network Overview to display the Network Overview
window, as shown in Figure 1–2.
Device Buttons
Device Bar
Toolbar
Establishing a Network Connection and Making a FrontRunner™ Device
Using a VS-1 Smart
Camera for the First
1
v4.1.0, February 2010 Getting Started with the VS-1 Smart Camera 1-3
FIGURE 1–2. Network Overview Screen — No Camera Selected
Your camera should appear in the network overview list. The camera
name will be of the form HawkeyeXXXXXX, where the X’s represent
the last part of the camera’s MAC address.
5. Click on the row that lists your camera. The network information area
should update and display the Change Network Settings … button, as
shown in Figure 1–3.
FIGURE 1–3. Network Overview Screen — Camera Selected
6. If the info area displays a red background identifying a camera
communication problem, it means that the camera and the PC, even
though connected to the same network, are not using the same
logical IP addressing. See “Setting Up Network Communications” in
the Visionscape® Smart Camera Guide to correct the communication
problem.
7. Click the Change Network Settings button, which displays the login
screen. Enter the default user name (hawkeye) and password
(“vision”) and click OK. You will see the Change HawkEye Network
Settings dialog box (Figure 1–4), which allows you to change the
name of your camera.
Chapter 1Using a VS-1 Smart Camera for the First Time
1-4 Getting Started with the VS-1 Smart Camera v4.1.0, February 2010
FIGURE 1–4. Change Network Settings Dialog Box
8. Highlight the existing camera name, type in a new name (no spaces
are allowed), and click OK. You will see the name of your camera
change in the network overview. You can close the Network Overview
Window.
9. From FrontRunner™, click to display the Select Device dialog
box.
10. Click on the camera name you just assigned and click OK. You will
see a new device button appear for your camera, as shown in
Figure 1–5.
FIGURE 1–5. VS-1 Device Button Added
Tabla de contenidos
Otros manuales de Cámara digital de Microscan
Microscan
Microscan HAWK MV-4000 Manual de usuario
Microscan
Microscan Vision MINI Xi Smart Camera Manual de usuario
Microscan
Microscan MicroHAWK MV-20 Manual de usuario
Microscan

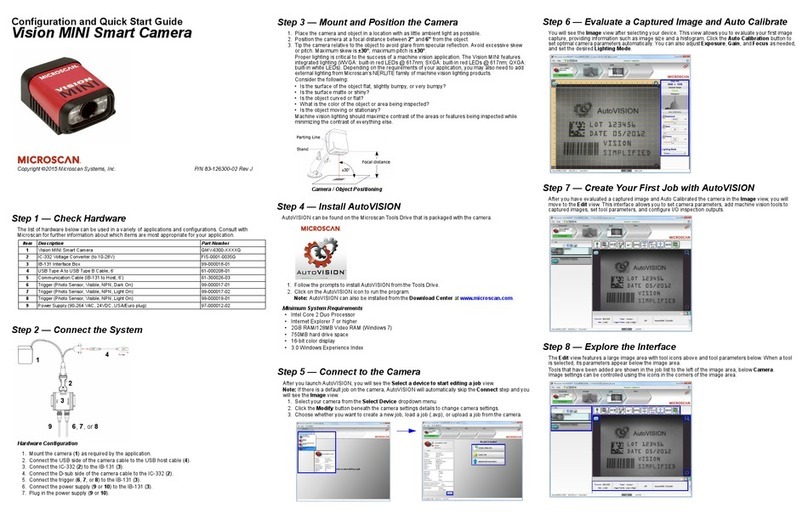

Microscan Vision MINI Manual de usuario
