Metrologic MS5100 Eclipse Series Manual de usuario

work may be reproduced, transmitted, or stored in any form or by any means

without prior written consent, except by reviewer, who may quote brief

passages in a review, or provided for in the Copyright Act of 1976.

Trademarks

Metrologic is a registered trademark of Metrologic Instruments, Inc.

Products identified in this document are hereby acknowledged as

trademarks, registered or otherwise, of Metrologic Instruments, Inc. or their

respective companies.

TABLE OF CONTENTS

Introduction........................................................................................................... 1

Scanner and Accessories................................................................................. 2

Scanner Components....................................................................................... 4

Maintenance..................................................................................................... 4

Caution and Serial Number Labels................................................................... 5

Cable Removal................................................................................................. 6

Cable Connection Warning............................................................................... 6

Installation

RS232, Light Pen or Laser Emulation .............................................................. 7

IBM 46xx or OCIA ............................................................................................ 8

Keyboard Wedge.............................................................................................. 9

Stand-Alone Keyboard ................................................................................... 10

Low Speed USB (-38)..................................................................................... 11

Full Speed (-40).............................................................................................. 11

Scanner Operation ............................................................................................. 12

How to Use CodeGate®and the Manual Activation Mode.............................. 12

Two Modes of Operation ................................................................................ 12

Indicators........................................................................................................ 13

Audible .................................................................................................... 13

Visual....................................................................................................... 14

Failure ..................................................................................................... 15

Depth of Field ................................................................................................. 16

Configuration Modes ...................................................................................... 17

Troubleshooting Guide ....................................................................................... 20

RS232 Demonstration Program ......................................................................... 23

Design Specifications ......................................................................................... 24

Applications and Protocols ................................................................................. 26

Default Settings .................................................................................................. 27

Upgrading the Flash ROM Firmware.................................................................. 32

iii

TABLE OF CONTENTS

Scanner and Cable Terminations

Scanner Pinout Connections .......................................................................... 33

Cable Connector Configurations .................................................................... 35

Regulatory Compliance

Safety ............................................................................................................. 37

EMC ............................................................................................................... 38

Limited Warranty ................................................................................................ 40

Patents ............................................................................................................... 41

Index .................................................................................................................. 42

INTRODUCTION

The MS5145 Eclipse™is a single-line, hand-held laser scanner.

Equipped with Metrologic’s patented CodeGate®technology, Eclipse can be

used in a wide variety of applications. CodeGate technology allows the user to

easily target the desired bar code and complete the data transmission with a

simple press of a button. This combination makes Eclipse a perfect selection for

menu scanning, point-of-sale, document processing and inventory control.

With Metrologic’s state-of-the-art scanning technology embedded inside, the

MS5145 Eclipse has a longer working range and a wider scan field than a typical

CCD. The width of the scan line grows as the scanner moves further away from

bar codes. In addition, the laser beam pulses making lining up bar codes easy,

and when the scanner senses a bar code (CodeSense®Mode), the laser beam

automatically switches to scan mode and activates CodeGate to ensure high-

speed scanning and accuracy.

Metrologic has included many standard features such as: user configurable Flash

ROM, PowerLink user-replaceable cables, MetroSet®2and MetroSelect®

configuration, and data editing (parsing).

ECLIPSE

MODEL NUMBER INTERFACE

MS5145 – 00 Laser Emulation

MS5145 – 9 OCIA

MS5145 – 11 IBM 468X/469X, RS232-TXD, RXD, RTS, CTS

MS5145 – 14 RS232 - TXD, RXD, RTS, CTS, DTR, DSR

MS5145 – 38 RS232 Low Speed USB,

Keyboard Emulation or Serial Emulation*

MS5145 – 40 Full Speed USB

MS5145 – 41 RS232/Light Pen Emulation

MS5145 – 47 Keyboard Wedge, Stand Alone Keyboard and RS232

Transmit/Receive

* Configurable for Keyboard Emulation Mode or Serial Emulation Mode. The default

setting is Keyboard Emulation Mode.

INTRODUCTION

Scanner and Accessories

BASIC KIT

Part # Description

MS5145 Eclipse Scanner

00-02544xMetroSelect Single-Line Configuration Guide*

70-79016xMS5100 Eclipse Series Installation and User’s Guide*

* Available on the Metrologic website - www.metrologic.com

OPTIONAL ACCESSORIES

Part # Description

AC to DC Power Transformer- Regulated 5.2VDC @ 1A output.

46-00525 90VAC to 255VAC, United States, Canada and Japan

46-00526 90VAC to 255VAC, Continental European

46-00527 90VAC to 255VAC, United Kingdom

46-00528 90VAC to 255VAC, Australia

46-00529 90VAC to 255VAC, China

46-00530 90VAC to 255VAC, India

Other items may be ordered for the specific protocol being used. To order additional items,

contact the dealer, distributor or call Metrologic’s Customer Service Department at

1-800-ID-METRO or 1-800-436-3876.

INTRODUCTION

Scanner and Accessories

OPTIONAL ACCESSORIES

Part # Description

55-55000x-3 RS232 PowerLink Cable with Built in Power Jack

2.1 m (7 ft.) straight cord, long strain relief, black

55-55002x-3 Keyboard Wedge PowerLink Cable with Adapter

2.1 m (7 ft.) straight cord, long strain relief, black

55-55020x-3 Stand Alone Keyboard PowerLink Cable,

2.1 m (7 ft.) straight cord, long strain relief, black

55-55235x-N-3 USB Low Speed Communication Cable, Type A

1.5 m (5 ft.) straight cord, long strain relief, black

55-55200x-N-3

USB Full Speed Cable, Locking Pus-Power™ Type A

3 m (10 ft.) straight cord, long strain relief, black

This cable is for use with full speed USB (-40)

interface only.

MVC** IBM and OCIA Applications,

Metrologic Voltage Converter Cable, ±12VDC to +5.2VDC

** Contact a Metrologic customer service representative for additional

information on the MVC converter cable series and the host connections

available.

46-46633 Countertop Stand

Other items may be ordered for the specific protocol being used. To order additional items,

contact the dealer, distributor or call Metrologic’s Customer Service Department at

1-800-ID-METRO or 1-800-436-3876.

INTRODUCTION

Scanner Components

ITEM NO. DESCRIPTION

1 Mode Select Button/CodeGate Button (see page 12)

2 Red LED (see page 14)

3 Green LED (see page 14)

4 Red Output Window (Laser Aperture)

5 Speaker (see page 13)

6 10-Pin RJ45, Female Socket (see page 33)

7 Pin Hole for Cable Release (see page 6)

Figure 1. Scanner Components

Maintenance

Smudges and dirt can interfere with the proper scanning of a bar code.

The output window should be routinely cleaned with glass cleaner sprayed onto a

lint free, non-abrasive cleaning cloth.

INTRODUCTION

Caution and Serial Number Labels

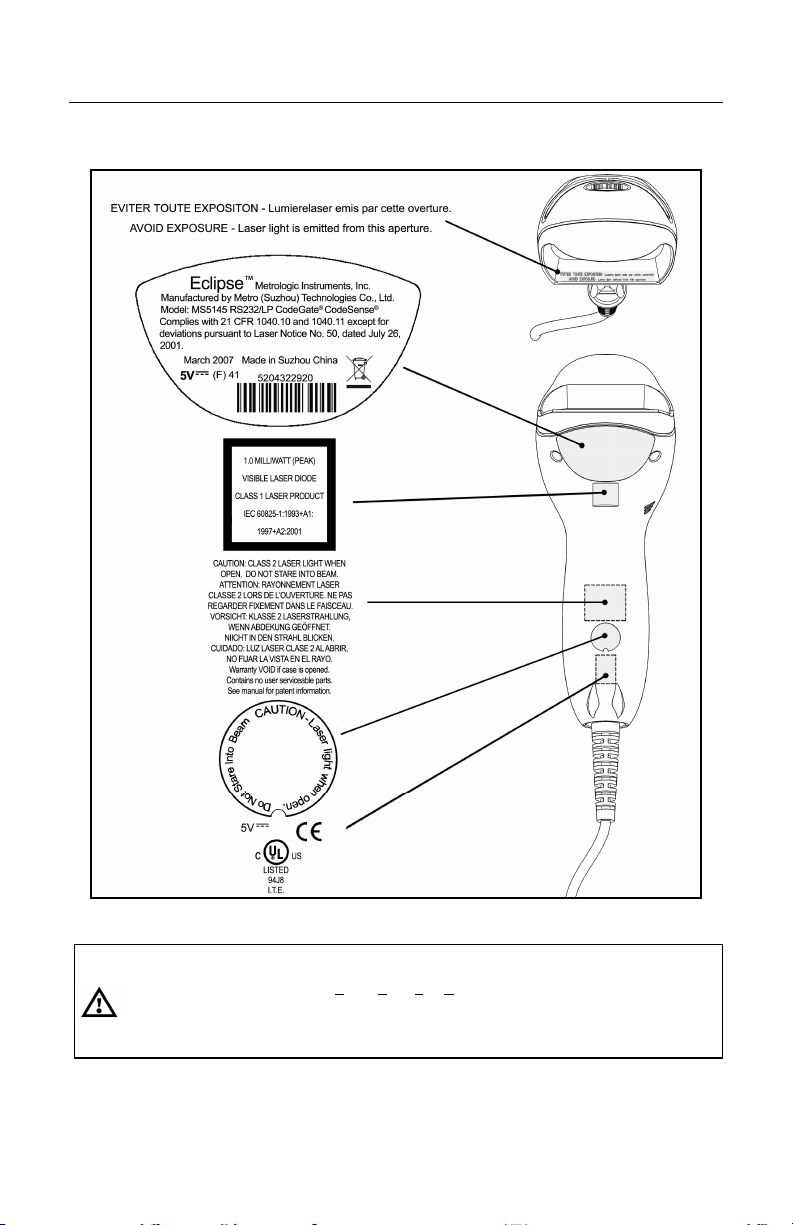

Figure 2. Label Location on the Bottom of the Scanner with Example

Caution

To maintain compliance with applicable standards, all circuits connected to the scanner must

meet the requirements for SELV (Safety Extra Low Voltage) according to EN/IEC 60950-1.

To maintain compliance with standard CSA C22.2 No. 60950-1/UL 60950-1 and norm

EN/IEC 60950-1, the power source should meet applicable performance requirements for a

limited power source.

Figure 5.

INTRODUCTION

Cable Removal

Disconnect the power supply from the PowerLink cable and turn off power to the

host system before removing the cable from the scanner.

1. Locate the small ‘pin-hole’ beneath

the Eclipse logo on the front side of

the scanner near the end of the

handle.

2. Bend an ordinary paperclip into the

shape shown.

3. Insert the paperclip (or other small

metallic pin) into the small ‘pin-hole’.

There will be a faint ‘click’ when the

connector’s lock releases.

4. Pull gently on the cable’s strain-relief

to remove the cable.

Cable Connection Warning

Important: If the PowerLink cable is not fully latched the unit can power

intermittently.

Figure 4.

Figure 3.
