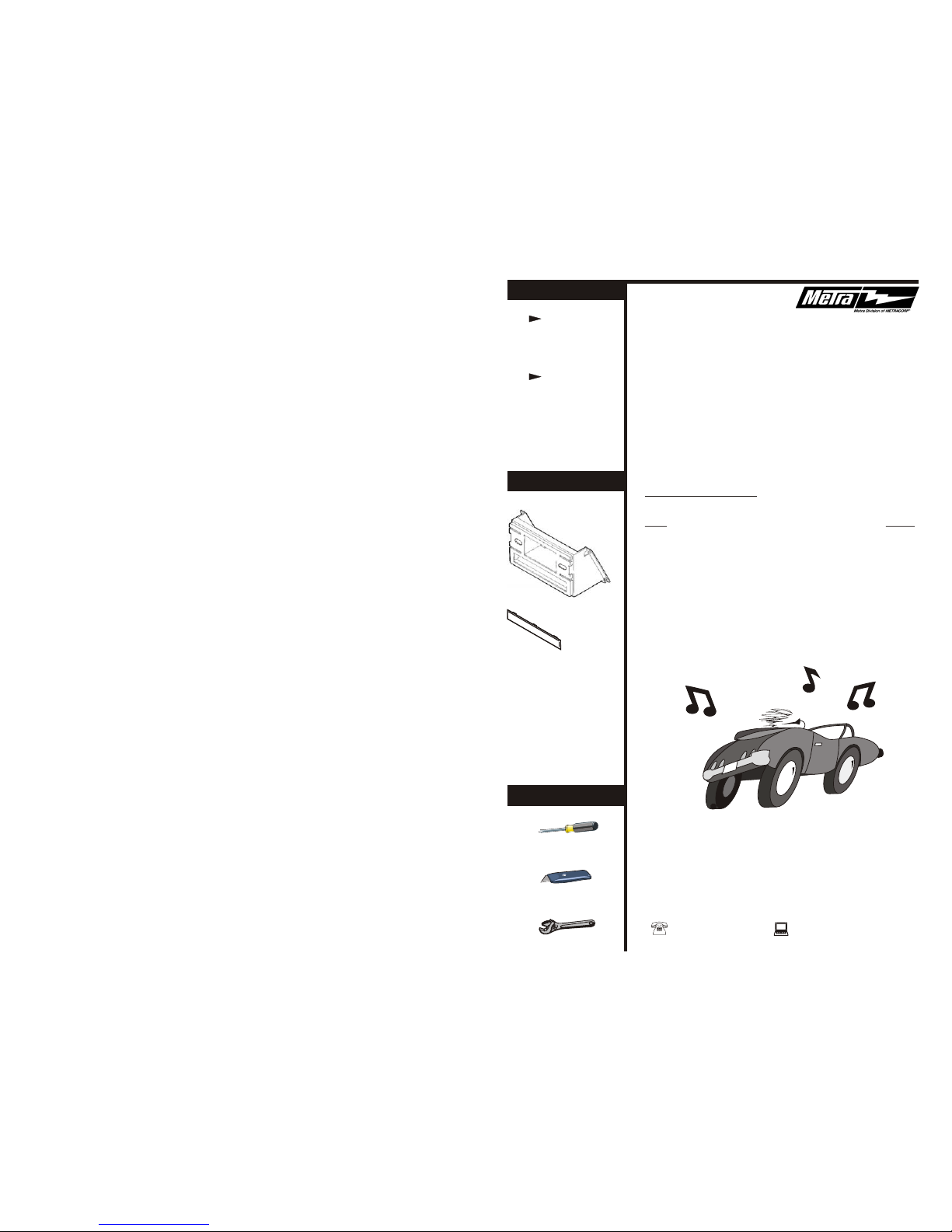

Metra Electronics 99-7006 Manual de usuario

KIT COMPONENTS

Equalizer

Dummy Plate

KIT FEATURES

Shaft and

DIN unit

provisions

Equalizer

provisions

APPLICATIONS

CAR PAGE

EAGLE

Talon 1995-98..........................................................1-2

MITSUBISHI

Eclipse 1995-99........................................................1-2

99-7006

INSTALLATION

INSTRUCTIONS

TOOLS REQUIRED

Cutting tool

Adjustable wrench

Phillips screwdriver

Radio Housing

1-800-221-0932 www.metraonline.com

rev. 230701

ALL VEHICLES

Disconnect the negative battery terminal to prevent an accidental short circuit. Slide the front

seats forward. Remove (1) cover cap and (1) Phillips screw from each side of the center

console. Unclip the cupholder/ashtray assembly from the center console and remove (2)

Phillips screws exposed. Unclip the radio trim bezel and remove (2) Phillips screws exposed.

Unscrew the gear shifter knob. Disconnect the cigarette lighter and light wiring. Lift up on the

center console and remove. Remove (4) Phillips screws securing the factory head unit and

disconnect thewiring.

4 5

Locate the factory wiring harness in the

dash. Metra recommends using the

proper mating adaptor and making

connections as shown. (Isolate and

individually tape off the ends of any

unused wires to prevent electrical short

circuit).

Re-connect the battery terminal and test the unit

for proper operation. Mount the head unit/kit

assembly to the sub-dash with (4) Phillips screws

previously removed in step #1.

A) Strip wire ends back ½"

B) Twist ends together

C) Solder

D) Tape

Fig. A

Center console

Radio trim bezel

2-SHAFT HEAD UNITS: Slide the aftermarket head unit into the kit and secure with shaft

nuts. (see Fig. A)

DIN HEAD UNITS: Cut and remove the shaft supports from the Radio Housing. Slide the

DIN cage into the Housing and secure by bending the metal locking tabs down. Slide the

aftermarket head unit into the cage until secure. (see Fig. B)

IF AN EQUALIZER WILL BE INCLUDED: Slide the aftermarket equalizer into the back of the

Radio Housing. Using the hardware included with the equalizer, mount the unit to the kit.

(see Fig. A)

IF AN EQUALIZER WILL NOT BE INCLUDED: Snap the Equalizer Dummy Plate into the

Radio Housing. (see Fig. B)

Fig. B
