METHVEN Kiri 3 Manual de usuario

Kiri 3 Hole Faucet

for Basin

Operating Pressure: Min. 35kPa (5 PSI), Max. 1000kPa (145 PSI). Recommended

150-500kPa (22-72 PSI). Install a pressure limiting valve if supply exceeds 1000kPa.

Operating Temperature: Recommended 50ºC (122ºF) at the mixer.

Max 80ºC (176ºF).

Inlet Connections:All 1/2” BSP

Methven warrants this product against manufacturing defects and that it is

suitable for use under the operating conditions specified in this instruction sheet.

For your warranty please refer to www.methven.biz or call Customer Service

New Zealand

0800 804 222

Australia

1800 035 330

USA

800 975 5409

Installation Guide

Technical Specifications

0800 195 1602

433173 Issue A

R35mm ( 1

3/8

”) Min.

20mm (13/16”)

DO NOT CRUSH

HOSE OR

SWAGED ENDS

DO NOT STRETCH OR TWIST HOSES

CORRECT

INCORRECT

All pipework must be thoroughly flushed prior to the installation of the mixer. Inline

filters must be fitted on both hot and cold supplies to prevent foreign particles damaging

the ceramic cartridge.

IMPORTANT

Please read all of the instructions before installation

This faucet is designed for equal and unequal pressure systems.

This mixer is not recommended for use in uncontrolled heating systems such as

wetbacks or solar heater units.

32 - 42

(1 1/4” -

15/8”)

40 max

(1 9/16”)

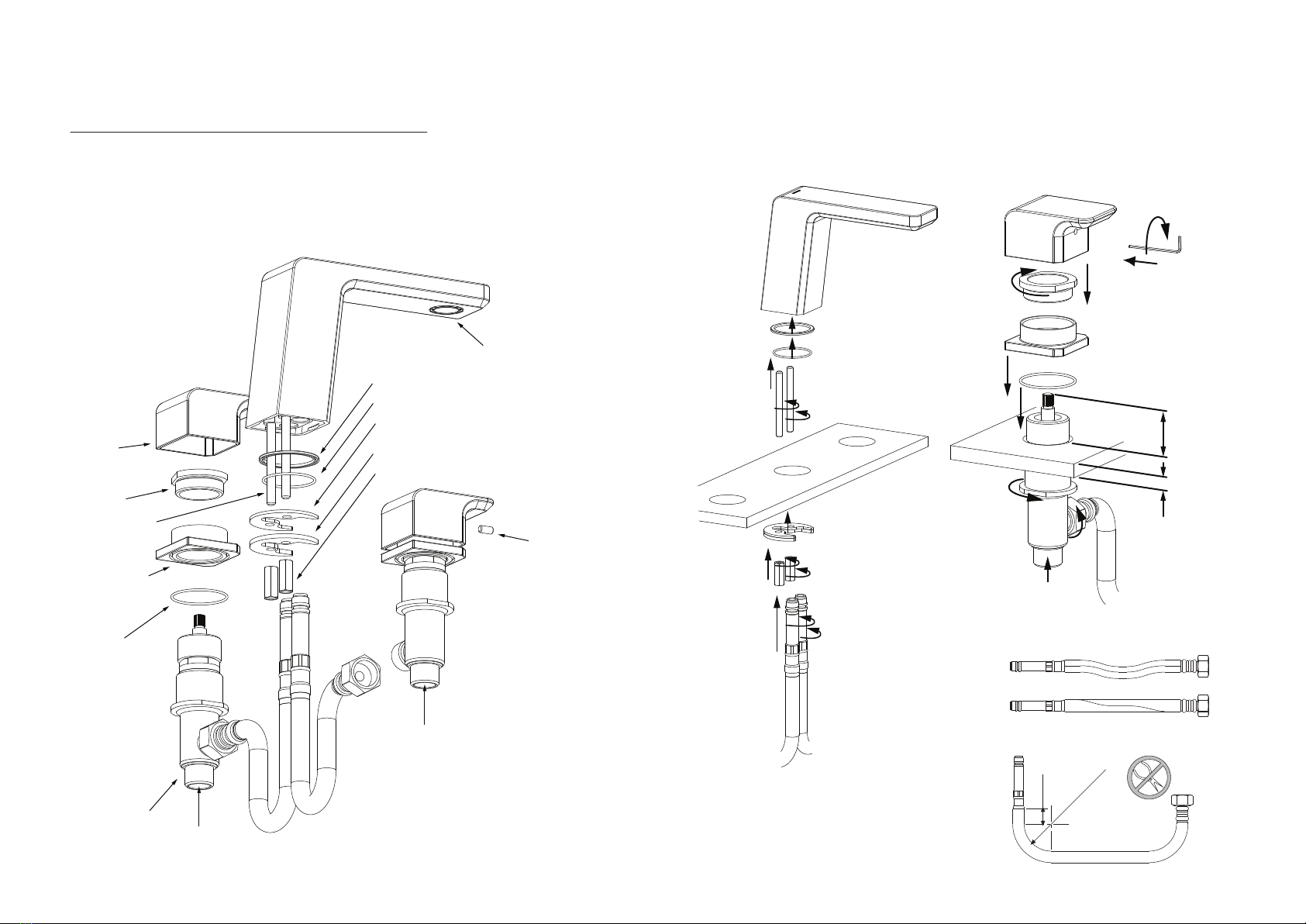

M5 Grubscrew

Stream shaper

Body Assembly

O-ring

Handle plate

Lock nut

Handle

Mounting nuts

Mounting plate

Mounting gasket

O-ring

Base ring

Cold

Hot

Mounting stud

Inlet

Hot

Cold

2.5mm Allen key
