METHVEN 439860 Manual de usuario

Periodically. the aerator should be removed as shown below, and cleaned under running water.

Methven warrants this product against manufacturing defects and that it is suitable for use

under the general operating conditions speciﬁed in this instruction sheet. However, regional

regulations apply and may aﬀect your warranty. Please refer to www.methven.com or call

customer service for full details.

New Zealand Australia UK

www.methven.com

ISSUE A

Technical Speciﬁcations:

Operating Pressure:

Min: kPa/ bar

Max: kPa/ bar*

Operating Temperature:

Hot: Max °C*

Cold: Min °C

Inlet Connections:

All ½" BSP

* Regional speciﬁc regulations apply.

Please refer to your warranty statement

at www.methven.com

Wall Mounted Spout

Installation Guide

USE PARALLEL FITTINGS ONLY

Care and Cleaning:

Never use abrasives or abrasive cleaning agents to clean this product. Clean regularly with

contamination free warm soapy water and a damp soft cloth.

Step

The wall lining hole should be cut or

Installation:

•

Step

Install a female 1/2” BSP elbow (not supplied)

in the wall cavity such that the front face of the

•

elbow is mm behind the front face of the

stud.

0 - 15mm

35-40mm

25 max

Finished wall thickness

ﬁnished as per the dimensions shown

in the diagram on the right.

Measure the distance from the front of

•

the ﬁnished wall surface to the front

face of the elbow.

Cut the inlet connector so that the thread

•

length is mm longer than the measured

distance.

Step

Apply thread tape to the inlet connector

•

to ensure a good seal.

Screw inlet connector into the elbow such

•

that the front face of the hex shoulder is mm

proud of the ﬁnished wall surface.

3 max

Step

Ensure the faceplate o-ring is assembled

•

to the faceplate.

Slider the faceplate onto the spout body and

•

position with the notch towards the bottom.

Apply silicone to the faceplate to create a

•

seal with the ﬁnished wall surface.

Push the spout and faceplate onto the inlet

•

connector and secure in place by tightening

the grub screw ﬁrmly using the hex key.

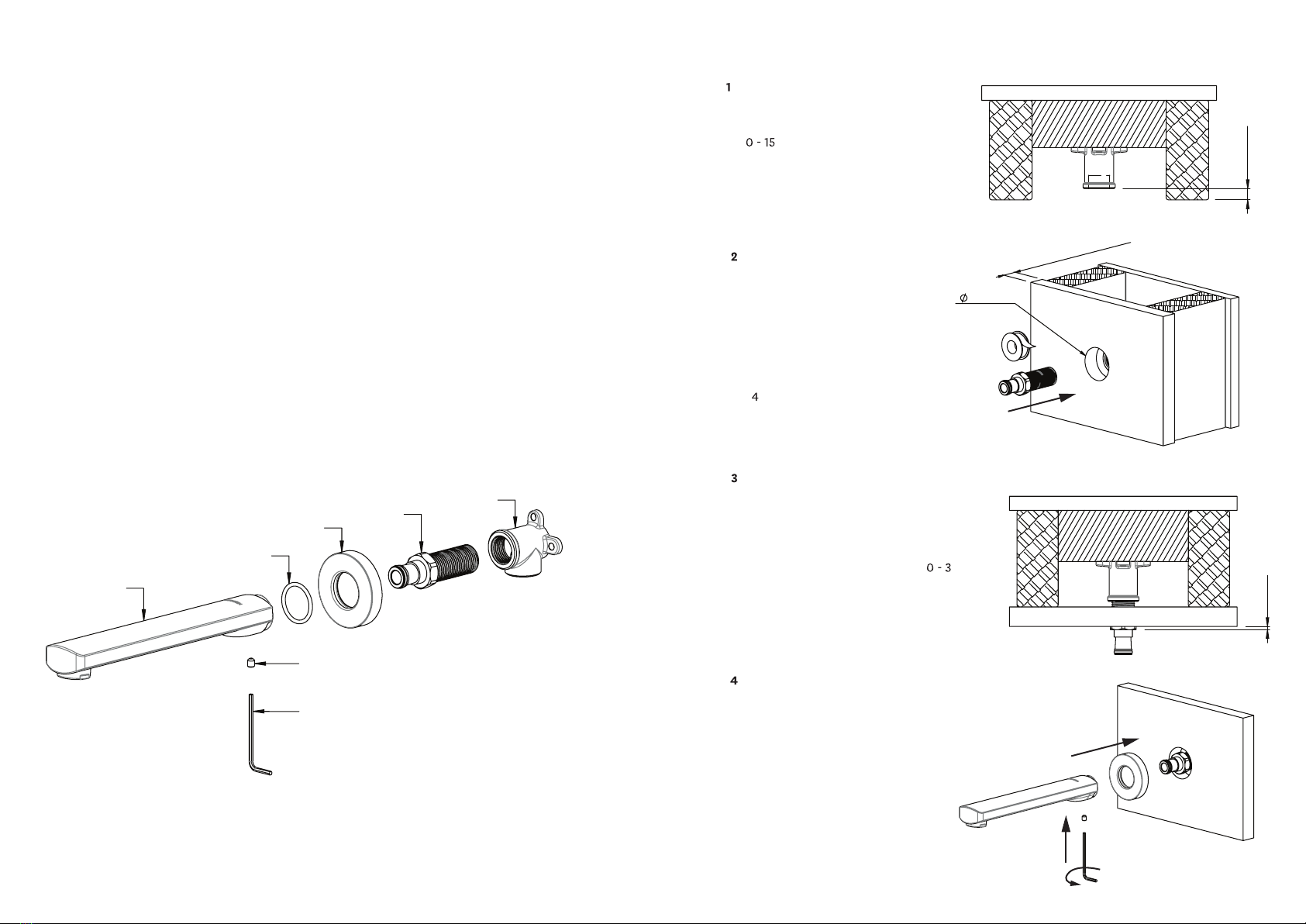

Inlet Connector

Faceplate

Faceplate O-ring

Spout

Grub Screw

Hex Key

" BSP Female Elbow

(Not Supplied)

IMPORTANT: Please read all of the instructions before installation.

General:

•

Methven recommends this product is installed by a licensed plumber in compliance with

all relevant regional regulations.

All pipe work must be thoroughly ﬂushed prior to the installation of the spout

After installation all connections must be checked for leaks.

All outlets used primarily for personal hygiene shall deliver water at a safe temperature as

per regional regulations.

This spout is not recommended for use in uncontrolled heating systems such as wet-backs

or solar heating units unless a suitable tempering valve is ﬁtted.

If limited water ﬂow is experienced, locate aerator and clean away foreign material as

required.

It is the responsibility of the installer to ensure a waterproof seal is achieved between the

product and mounting surface. If in doubt about the quality of the seal, remove the

product and reinstall.
