Meitav-tec FPC-02-120V Manual de usuario

FPC-02 Series

Installation and Operating manual

Index

Introduction…………………………………………………………………...……. 3

FPC-02 Installation notes ……...…………...…………………………………... 4

Wiring the FPC-02-120V, FPC-02-120V-MDB ………………………………. 5

Wiring the FPC-02-240V, FPC-02-240V-MDB ………………………………. 6

Operating instructions…………………………………………………………….7

Turning the system ON and OFF………………………………………………. 7

Selecting temperature scale……………………………………………………..7

Selecting Automatic or Manual mode …………………………………………. 7

Heater indication…………..……………………………………………………... 7

Snow flake icon and digital time indication……………………………………. 7

Technician settings……………………………………………………………….. 8

Enter technician settings mode…………………………………………...……. 8

P01 - Temperature set point……………………………………………………. 8

P02 - Lower limit temperature for heating …………………………………….. 9

P03 -Time delay before stopping the heater……..…………………………….9

P04 - Manual mode ON time……………………………………………………. 10

P05 – Not in use……………………………….………………………………….10

P06 - Enable/Disable 2nd temperature sensor (Aquastat)…………………… 10

P07 – Not in use……………………………….………………………………….11

P08 – MODBUS MAC Address for building automation (option)…….…...… 11

P09 - Test conditions mode…………………………………………………….. 12

Save changes and return to normal display…………………………...…..…. 12

Restore default values……………………………………………………………. 12

DIP Switch settings……………………………………………………………….. 13

DIP switch S2 - Short measuring times (test only) …………………………... 13

DIP switches S3 and S4 – not in use………………...………………………... 13

Temperature reading errors……………………………………………………... 14

MODBUS communication error……………………..………………………….. 14

Temperature sensor not connected or short circuit ……...………………….. 14

Calibrating and testing the internal GFCI …………………………………….. 14

MODBUS object list……………………………...……………………………….. 15

Tel: (856) 2882882

Tel: +972-3-9626462

Fax: +972-3-9626620

support@meitavtec.com

FPC-02 Series

Owner’s manual & Technician Settings

Pg. 2

Introduction

The FPC-02 Series power boxes offer smart and easy control for HEAT TRACING SYSTEMS.

It can operate one heating zones.

Typical applications include pipes, valves and gutters.

The backlit LCD screen provides full interface and information to the system status.

The FPC-02 offers various operating and programming options such as:

- Switchable temperature scales (°F or °C) - Adjustable Lower ambient temperature limit to stop

- Both Automatic and Manual modes heater (lockout)

- Energy saving temperature limit - Commissioning/Test environment

- Adjustable heater hold on off delay

Tel: (856) 2882882

Tel: +972-3-9626462

Fax: +972-3-9626620

support@meitavtec.com

FPC-02 Series

Owner’s manual & Technician Settings

Pg. 3

Temperature sensor

FPC-02

Operating panel

FPC-02 General system layout

Zone 1

Aquastat sensor (option)

Pipe

Sensor

Heater

Tel: (856) 2882882

Tel: +972-3-9626462

Fax: +972-3-9626620

support@meitavtec.com

FPC-02 Series

Owner’s manual & Technician Settings

Pg. 4

FPC-02 Series Installation

Installation notes

Familiarize yourself with the markings, warnings, components and terminology.

The FPC-02 power boxes and its accessories must be installed by a qualified electrician in

accordance with local regulations and the requirements of the NEC (NFPA 72 ) and the CEC part 1.

WARNING: Ensure the power is disconnect from all circuits before mounting the power box and

making any connections. Contact with components carrying hazardous voltage can cause electric

shock and may result in severe personal injury or death.

Installer must ensure the installation of approved disconnect means, for all power supply

circuits feeding this unit.

The power boxes are suitable for indoor wall mount installation only.

Ensure wiring according to the provided schematics using copper conductors only.

Make sure the wire gauge (AWG) is suitable for the circuit amperage draw, as specified in the

NEC/CEC table 1.

Ensure that the main breakers (fuses) are suitable for the heating systems rating (80% load).

Grounding means must comply with local regulations and CEC/NEC.

Ensure that the heating system/de-icing system connected to this unit complies with the UL 499 or

UL 515 & CSA 22.2 # 130.3 standard and is certified / listed by an NRTL.

Ensure that all wiring is rated for the application at 60°C (140°F as per UL 515 CSA 22.2 #130

clause 12 table 12.1.

Beware that any holes punched for conduit are to compromise the integrity of the enclosure ratings.

Ground fault equipment protection (GFEP)

The ground fault interrupter/residual current detector installed in this system is a Non class A GFCI,

intended for equipment protection.

Familiar yourself with its operation and required setting.

The GFEP should be tested monthly. Please refer to the GFEP testing instructions on page 14 of

this manual.

PLEASE READ THIS MANUAL AND THE SAFETY WARNINGS CAREFULLY BEFORE INSTALLING

AND USING THE CONTROLLER AND SAVE IT FOR FUTURE USE

Wiring the FPC-02

Heater load connection

Provide terminals L, N with up to 120 VAC, 30 AMP.

Make sure the wire Gauge (AWG) is suitable for the circuit Amperage draw, as specified in the NEC/

CEC table 1.

Tel: (856) 2882882

Tel: +972-3-9626462

Fax: +972-3-9626620

support@meitavtec.com

FPC-02 Series

Owner’s manual & Technician Settings

Pg. 5

Heater

Load

connection

120 VAC, 30A

Branch circuit protection

and disconnect provided

by installer. Max. 30A

PYROULS

(By Meitav-tec)

LLNN NO NC HE C C 1 2

Aquastat

(option)

Heat

Indication

(24VAC)

FPC-02-120V

Caution: Incorrect voltage may cause fire or seriously damage the unit.

Heater

Load

connection

120 VAC, 30A

PYROULS

(By Meitav-tec)

LLNN NO NC HE C C 1 2

Aquastat

(option)

Heat

Indication

(24VAC)

*GFEP Indication - Dry Contact

Main

Supply

120 VAC

FPC-02-120V-MDB

A B

MODBUS

Communication cable

2x22AWG

Twisted, Shielded

RS485

Branch circuit protection

and disconnect provided

by installer. Max. 30A

Main

Supply

120 VAC

GFEP

Indication

Dry Contact

(NO/NC)

*See table

GFEP

Indication

Dry Contact

(NO/NC)

*See table

GFEP Tripped

GFEP NOT Tripped

NO - COM NC - COM

SHORT OPEN

OPEN SHORT

Wiring the FPC-02

Heater load connection

Provide terminals L, N with up to 240 VAC, 30 AMP.

Make sure the wire Gauge (AWG) is suitable for the circuit Amperage draw, as specified in the NEC/

CEC table 1.

Tel: (856) 2882882

Tel: +972-3-9626462

Fax: +972-3-9626620

support@meitavtec.com

FPC-02 Series

Owner’s manual & Technician Settings

Pg. 6

Heater

Load

connection

240 VAC, 30A

PYROULS

(By Meitav-tec)

NO NC HE C C 1 2

Aquastat

(option)

Heat

Indication

(24VAC)

FPC-02-240V

Caution: Incorrect voltage may cause fire or seriously damage the unit.

Heater

Load

connection

240 VAC, 30A

PYROULS

(By Meitav-tec)

L2L2L1L1 NO NC HE C C 1 2

Aquastat

(option)

Heat

Indication

(24VAC)

FPC-02-240V-MDB

A B

MODBUS

Communication cable

2x22AWG

Twisted, Shielded

RS485

L2L2L1L1

*GFEP Indication - Dry Contact

GFEP Tripped

GFEP NOT Tripped

NO - COM NC - COM

SHORT OPEN

OPEN SHORT

Branch circuit protection

and disconnect provided

by installer. Max. 30A

Main

Supply

240 VAC

Branch circuit protection

and disconnect provided

by installer. Max. 30A

Main

Supply

240 VAC

GFEP

Indication

Dry Contact

(NO/NC)

*See table

GFEP

Indication

Dry Contact

(NO/NC)

*See table

Operating instructions

Turning the system ON and OFF

Press the [SELECT] button to switch between modes:

“Automatic” Heating will start and stop automatically depending on the set point

and ambient temperatures.

“Manual ON” Heating will start regardless of the set point and ambient

temperatures and will stop after a preset time (pls. refer to the

“Manual ON” section in the tech. settings).

Note: Mode will always return to “Automatic” after switching the unit OFF and ON.

Press and hold the [ON] button for 0.5 seconds to turn the system ON or OFF.

The words “ON” or “OFF” will appear on display.

When ON, the green LED on the front panel will also turn ON .

Selecting Automatic or Manual mode

Selecting temperature scale

Press the [+] button for Celsius.

Press the [-] button for Fahrenheit.

Tel: (856) 2882882

Tel: +972-3-9626462

Fax: +972-3-9626620

support@meitavtec.com

FPC-02 Series

Owner’s manual & Technician Settings

Pg. 7

Heater indication

Heater ON Heater OFF

Black icon – Heater ON

White icon – Heater OFF

A solid snow flake icon will appear on display during normal heater operation.

Snow flake icon and digital time indication

A blinking snow flake icon will appear on display during heater off delay or when manual mode is

activated. The digital clock will count down the remaining time until the heater is turned off.

The snow flake icon will disappear from display as long as the heater is turned off.

When ON, the red LED on the front panel indicating heater operation will also turn ON .

P01 - Temperature set point

Move DIP switch S1 located on the side of thermostat to ON position.

“P01” and the temperature set point will appear on display.

Use the [+] and [-] buttons to adjust the temperature set point.

Range: 5…60°F / -15…+15°C, Default: 37°F / 3°C

As long as the ambient temperature is lower than the temperature

set point P01, the FPC-02 will turn ON.

Tel: (856) 2882882

Tel: +972-3-9626462

Fax: +972-3-9626620

support@meitavtec.com

FPC-02 Series

Owner’s manual & Technician Settings

Pg. 8

Temperature

set point

Technician settings

Use the technician settings mode to view and adjust the following parameters:

P01 Temperature set point

P02 Lower ambient temperature limit to stop

the heater

P03 Time delay before stopping the heater

P04 ON time for manual mode

P05 Not in use

P06 Enable/Disable 2nd temperature sensor

logic (Aquastat)

P07 Not in use

P08 MODBUS MAC Address for home

automation system (option)

P09 Commissioning / Test mode

Restore defaults

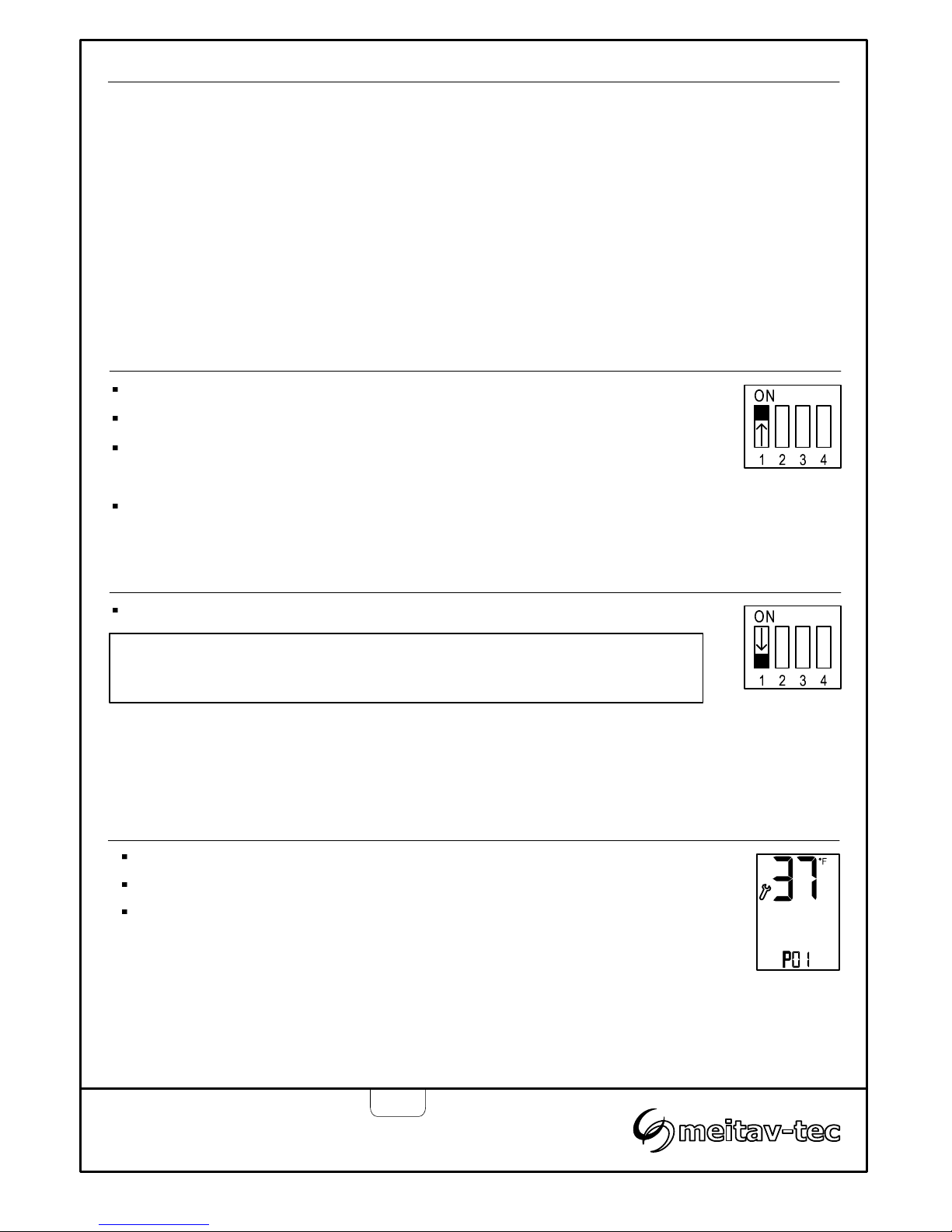

Disconnect power and open the internal door by releasing the two screws.

Move DIP switch S1 located on the side of thermostat to ON position.

Press the [SELECT] and [+] buttons simultaneously to move forward to the next

technician parameter.

Press the [SELECT] and [-] buttons simultaneously to return to the previous

technician parameter.

Enter technician settings mode

Enter technician

settings mode

Important: Changes made to technician parameters will not take effect as

long as DIP switch S1 is in ON position. Save changes

and exit

technician

settings mode

Parameters:

Save changes and exit technician settings mode

Move DIP switch S1 located on the side of thermostat to OFF position.

Technician settings (Cont’)

P03 -Time delay before stopping the heater

Tel: (856) 2882882

Tel: +972-3-9626462

Fax: +972-3-9626620

support@meitavtec.com

FPC-02 Series

Owner’s manual & Technician Settings

Pg. 9

Press the [SELECT] and [+] buttons simultaneously.

“P03”, “dL” and the time delay before stopping the heater (Hold ON) will

appear on display. The hours will blink.

Use the [+] and [-] buttons to adjust the hours of the time delay.

Range: 0000...9999 minutes Default: 120 minutes

Note 1. The time delay countdown will start when the ambient temperatures

rises above the set point temperature.

Note 2. The staggering sequence will continue during the time delay period.

Time delay

(minutes)

Cont’

P02 - Lower limit temperature for heating

Press the [SELECT] and [+] buttons simultaneously.

“P02” and the low limit temperature will appear on display.

When the temperature on the temperature sensor drops below the low

temperature limit, the heating system will stop.

Use the [+] and [-] buttons to adjust the temperature set point.

Range: -40…+23°F / -40…-5°C Default: -40°F / -40°C

Press the [SELECT] and [+] buttons simultaneously again.

The word “ON” or “OFF” will appear on display.

Use the [+] and [-] buttons enable (ON) or disable (OFF) the P02

parameter.

If disabled, the heating system will operate without low temperature

limitations.

Low limit

Temperature

P02

enabled

P02

disabled

Technician settings (Cont’)

Tel: (856) 2882882

Tel: +972-3-9626462

Fax: +972-3-9626620

support@meitavtec.com

FPC-02 Series

Owner’s manual & Technician Settings

Pg. 10

P05 – Not in use

Cont’

P06 – Enable/Disable Temperature sensor / Aquastat logic

Press the [SELECT] and [+] buttons simultaneously.

“P06” and the number “0” or “1” will appear on display.

Use the [+] and [-] buttons to select between:

“0” - Logic set by both TEMPERATURE SENSOR

and AQUASTAT (default).

“1” - Logic set by TEMPERATURE sensor only.

“2” - Logic set by AQUASTAT sensor only

Logic by

temperature

sensor only

Logic by

temperature

sensor and

aquastat

Logic by aquastat

sensor only

P04 - Manual mode ON time

Press the [SELECT] and [+] buttons simultaneously.

“P04”, “On” and the time “Manual ON” mode time period will appear on

display. The hours will blink.

The delay time parameter defines a time frame in which the heater remains

ON after receiving an “Manual ON” command.

Use the [+] and [-] buttons to adjust the hours of the working time.

Range: 00...99 hours Default: 03 hours

Press the [SELECT] and [+] buttons simultaneously again.

The minutes will blink.

Use the [+] and [-] buttons to adjust the minutes of the working time.

Range: 00...59 minutes Default: 00 minutes

Manual ON

(minutes)

Press the [SELECT] and [+] buttons simultaneously.

“P05” will appear on display.

Proceed to P06.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Controladores de meitav-tec

meitav-tec

meitav-tec PYROCON12-TRACE Manual de usuario

meitav-tec

meitav-tec PYROCON19 Manual de usuario

meitav-tec

meitav-tec PYROBOX3/19 Manual de usuario

Manuales populares de Controladores de otras marcas

Digiplex

Digiplex DGP-848 Instrucciones de funcionamiento

YASKAWA

YASKAWA SGM series Manual de usuario

Sinope

Sinope Calypso RM3500ZB Manual de usuario

Isimet

Isimet DLA Series Style 2 Manual de instalación

LSIS

LSIS sv-ip5a Manual de usuario

Rockwell Automation

Rockwell Automation 1769-L31 Manual de usuario

Airflow

Airflow Uno hab Manual de usuario

ABB

ABB ACS580-01 drives Manual de usuario

Panasonic

Panasonic GM1 Series Manual de usuario

Emerson

Emerson SW93 Manual de usuario

AutoAqua

AutoAqua Smart ATO micro SATO-120P Manual de usuario

Panasonic

Panasonic FP? Positioning Unit RTEX Manual de usuario

Samson

Samson Type 5824 Manual de servicio

Alpha IP

Alpha IP MIOB 21001 Manual de usuario

Siemens

Siemens OpenAir GMA 1 Series Manual de usuario

Surecom

Surecom SR-629 Manual de usuario

Fishman

Fishman TriplePlay Manual de usuario

Regulus

Regulus SRS1 T Manual de usuario

meitav-tec FPC-02-120V Manual de usuario

Manuales populares de Controladores de otras marcas
