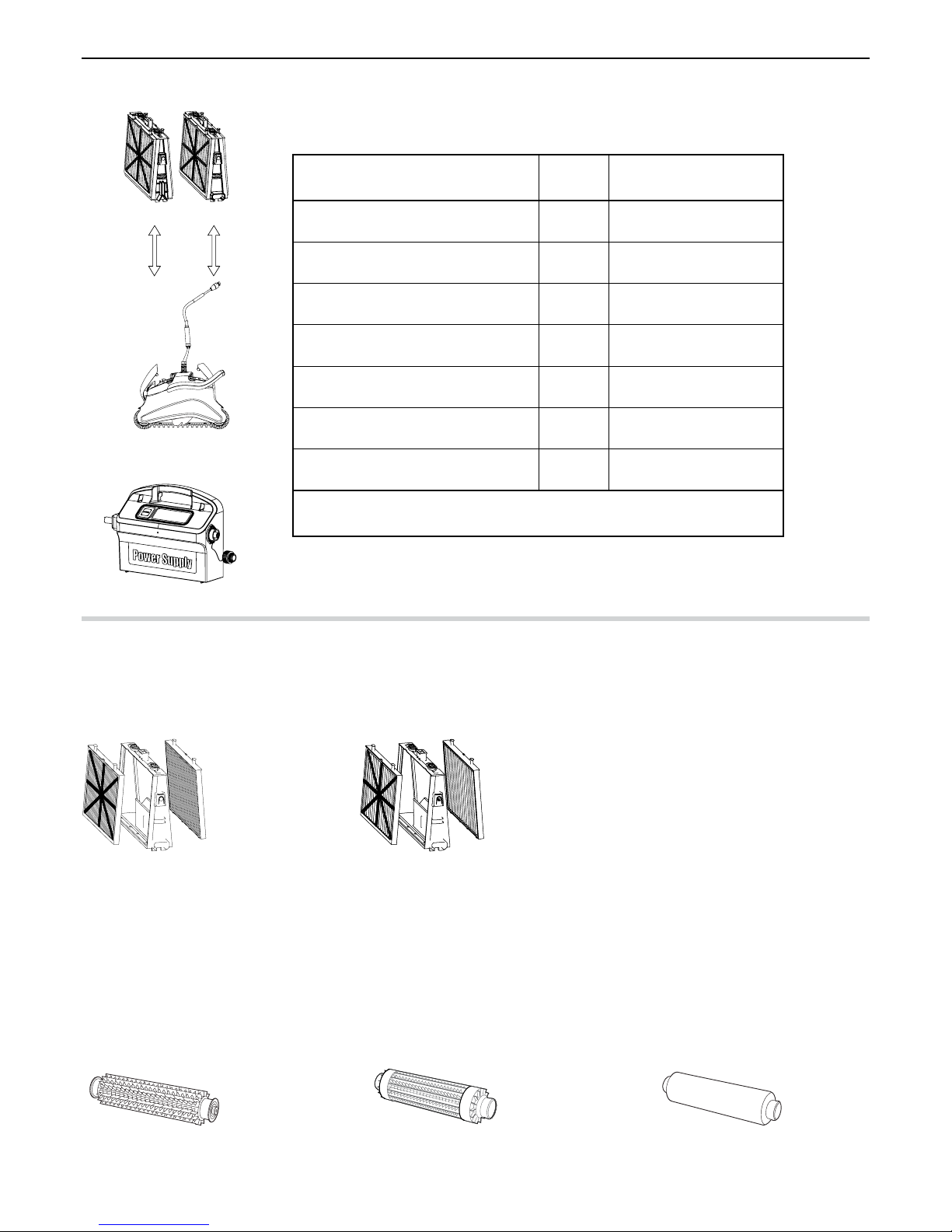

What You’ll Find Inside the Box

Part X Comment

Base frame for ﬁlter elements 2

Ultra-ﬁne ﬁlter 4 ﬁlters

Bag for ﬁlters storage 1

Spring ﬁlter 4 ﬁlters

“S” clip 4

Power supply unit 1

Robot pool cleaner 1

Optional components available on request

from your robot pool cleaner distributor

Section 1 - Description of Main Components

1. Filters

Dual-level ﬁltration system:

Spring ﬁlter + base frame

For dirty pools with large debris such as

leaves etc. – Useful for beginning of season.

Ultra-ﬁne ﬁlter cartridge + base frame

For day-to-day use.

Factory default.

2. Brushes

There are three types of optional brushes, each designed to provide optimal traction on different pool surfaces.

Only one type set is provided with your robot pool cleaner.

PVC Brush

For concrete, PVC, ﬁberglass and liner.

Combined Brush

For rough ceramic surface and mosaic tiles.

Wonder Brush

For smooth ceramics.

Power supply Unit

Robot pool cleaner

Filter and cartridges

click

clickclick

click

clickclick

click

English

Only use the original supplied power supply unit.

The Power supply unit is splash proof – do not immerse it in water.

Unplug the power supply unit before any servicing activity.

Do not plug the power supply unit in before placing the pool cleaner in the water.

Ensure the mains outlet is protected by a ground fault interrupter (GFI) or an earth leakage interrupter (ELI).

Important: Do not enter the swimming pool while the pool cleaner is working.

Section 2 – Robot pool cleaner Operation

Part 1 – Preparing the Robot Pool Cleaner for Use

Laying out the cable

Unwind minimal required cable to cover the entire pool size, straight the cable along the pool side.

Make sure there are no twists or kinks.

On/Off

switch

On/Off

switch

3. Power supply unit

Digital, “Switch-Mode” power supply:

• Input - 100-250 AC Volts

• 50-60 Hertz

• 180 Watt

• Output - 30 VDC

• IP 54

Swivel

3 Meter

10 feet

3English

Turning the robot pool cleaner ON

1. Plug the ﬂoating cable from the robot pool

cleaner into the power supply unit.

2. Plug the electrical cable from the power

supply unit into the mains.

3. Press the ON/OFF switch

4. The robot pool cleaner will now start to work.

Floating cable

On/Off

switch

Important: Do not enter the swimming pool while the pool cleaner is working.

Part 2 - Into the water

Inserting the robot pool cleaner into the pool.

Place the robot pool cleaner into the pool

and release the handle.

Note: When using the combined brushes or Wonder brushes, gently squeeze the Wonder brush material until it is totally wet.

English

Part 3 - Taking the robot pool cleaner out of the water

Unplug power supply before any servicing activity.

1. If the robot pool cleaner has not ﬁnished its cycle, turn off the power supply

unit and unplug the mains.

2. Pull the ﬂoating cable gently until the robot pool cleaner has risen to the

surface, then lift by the handle.

Important: Do NOT lift the robot pool cleaner from the water by its cable.

Section 3 - Routine Maintenance

Part 1 - Extracting and cleaning the ﬁlter elements

Unplug power supply before any servicing activity.

2 3

5English

Reinstall the ﬁlters according to the diagram

DO NOT FORCE THE FILTERS INTO PLACE.

Grooved end ﬁtting Octagonal end ﬁtting

Recommendation: Rinse all brushes with clean water after each cleaning cycle.

Part 2 - Dismantling and cleaning the impeller

Unplug power supply before any servicing activity.

Dismantle the impeller cover and

clean around the impeller housing,

then reassemble.

Reassembling the ﬁlter elements

Insert the locating tabs at the bottom of the

ﬁlter element into their groves on the base frame,

then close the “S” clip.

Locating tab

Locating tab groove

English

Coil the cable and store in dry cool area.

Do NOT store the robot pool cleaner exposed to direct sunlight.

Do NOT store the robot pool cleaner exposed to excessive heat.

Do NOT store the robot pool cleaner exposed to frost.

Section 4 – Storage Advice

Troubleshooting Guide

Before contacting your robot pool cleaner distributor please read through this guide.

The pool water condition must be within the following parameters:

PH: 7.0 – 7.8 NaCl: Max 5,000 ppm

Temperature: 6˚C(43˚F) to 34˚C(93˚F) Chlorine: Max 4 ppm

Symptom Solution

Cable twisting or cable coils up Check for any obstruction in the pool

Remove excess cable from the pool

Make sure ﬁlter cartridge is clean

Straighten cable and lay it in the sun periodically

Robot pool cleaner is moving in circles or does not reach

all pool areas

Check for foreign objects in moving parts

Make sure ﬁlter elements are clean and that the ﬁlter doors

are closed

Make sure that there is enough cable laid out to cover the

whole pool

Before using the robot pool cleaner at the beginning of the sea-

son you should brush any algae from the ﬂoor and walls

of the pool

Robot pool cleaner not sinking Make sure the Wonder brushes or the combined brushes are

soaked in water

Motor is not working

Check if the impeller is blocked

Check if the drive system is blocked

Electrical problem (power supply), check power source.

If power source is in order, please contact your robot pool

cleaner distributor

Robot pool cleaner ﬂips on its side Clean the ﬁlter cartridge

Additional troubleshooting is available at our Website:

www.maytronics.com

7French

Liste des pièces fournies dans l’emballage

Pièces X Remarques

Châssis des composants du ﬁltre 2

Filtre ultraﬁn 4 ﬁltres

Poche de rangement des sacs ﬁltres 1

Filtre pour nettoyage de printemps 4 ﬁltres

crochet en “S” 4

Bloc d’alimentation 1

Robot nettoyeur de piscine 1

Les éléments optionnels sont disponibles sur demande

de la part de votre distributeur de robots nettoyeurs de piscines

Chapitre 1 - Description des principaux composants

1. Filtres

Système à double ﬁltrage

Filtre Printemps

(pour nettoyage de printemps) + châssis

Pour piscines sales contenant des saletés

de grande taille, par ex. des feuilles – utile

en début de saison.

Cartouche de ﬁltre ultraﬁn + châssis

A usage quotidien.

Réglage d’usine, déﬁni par défaut.

2. Brosses

Trois types de brosses sont proposés en option, chacune d’elles étant conçue pour fournir une traction optimale sur différentes

surfaces de piscine. Un seul ensemble brosse est fourni avec votre robot nettoyeur de piscine.

Brosse PVC

pour surfaces en béton, PVC, ﬁbre de verre

et à revêtement.

Brosse combinée

pour surface rugueuse en céramique et

pavés en mosaïque.

Brosse Wonder

pour sols en céramique lisse.

Bloc d’alimentation électrique

Robot nettoyeur de piscine

Filtre et cartouches

click

clickclick

click

clickclick

click

French

3. Bloc d’alimentation électrique

Alimentation numérique avec

«Mode Interrupteur» (Switch mode):

• Entrée - 100-250 AC Volts

• 50-60 Hertz

• 180 Watts

• Sortie - 30 VDC

• IP 54

Chapitre 2 – Fonctionnement du robot nettoyeur de piscine

1ère partie – Préparation du robot nettoyeur de piscine

Disposition du câble

Déroulez le minimum nécessaire de câble pour assurer la couverture de toute la piscine. Veillez à le poser bien droit le long de la paroi

et vériﬁez qu’il ne présente ni nœuds ni torsades.

Marche/Arrêt

Utilisez exclusivement le bloc d’alimentation électrique d’origine.

Le bloc d’alimentation électrique est conçu anti-éclaboussures – Ne pas l’immerger dans l’eau.

Débranchez l’alimentation avant d’entreprendre toute activité d’entretien.

Ne branchez pas l’alimentation avant d’avoir placé le robot nettoyeur dans l’eau.

Assurez-vous que la prise du secteur est protégée par un interrupteur de mise à la terre (GFI) ou de fuite à la terre (ELI).

Important: Ne PAS entrer dans la piscine lorsque le nettoyeur de piscine fonctionne.

3 mètres

10 feet Pivot (Swivel)
