MasterChef S480 Manual de usuario

S480 Barbecue

Assembly Manual

85-3064-8 (G43237) Propane

85-3065-6 (G43238) Natural Gas

1 YEAR LIMITED WARRANTY

Manual Revision #: 12022013 PD

ANS Z21.58b-2012-CSA 1.6b-2012

ANS Z21.58b-2012-CSA 1.6b-2012 ANS Z21.58b-2012-CSA 1.6b-2012

ANS Z21.58b-2012-CSA 1.6b-2012

READ AND SAVE MANUAL FOR FUTURE REFERENCE.

Assemble your grill immediately.

Missing or damaged parts claims must be submitted within 30 days of purchase date.

For product inquiries, parts, warranty and troubleshooting support,

please call 1-855-453-2150.

DANGER

1. If you smell Gas:

a. Shut o gas to the appliance

b. Extinguish any open ame

c. Open lid

d. If odor continues, keep away from

the appliance and immediately

call your gas supplier or your

re department

2. Requires two people to complete the

assembly process.

3. Beware of sharp edges.

WARNING

Failure to follow all of the Manufacturer’s

instructions could result in hazardous res,

explosions, property damage, or serious

personal injury or even death.

Follow all leak check procedures carefully

prior to operation of barbecue, even if grill

was dealer assembled. Do not try to light

this barbecue without reading the Lighting

Instructions section of this manual.

THIS MANUAL MUST REMAIN WITH THE PRODUCT AT ALL TIMES

CAUTION

Read and follow all safety statements,

assembly instructions, use and care

directions before attempting to assemble

and cook.

WARNING

1. Do not store or use gasoline or other

ammable liquids or vapours in the

vicinity of this or any other appliance.

2. An LP cylinder not connected for use shall

not be stored in the vicinity of this or any

other appliance.

WARNING

IN DIRECT SUN, AND IN OPERATION,

YOUR BBQ’S STAINLESS STEEL AND

PAINTED STEEL PARTS CAN BECOME

VERY HOT.

CAUTION

Sharp edges. Wear gloves when assembling

your grill.

THIS BARBECUE IS FOR OUTDOOR USE ONLY

CONTACT CALL CENTRE IF ANY PARTS ARE MISSING

1-855-453-2150

INSTALLER OR ASSEMBLER/CONSUMER

This manual should be kept with the BBQ at

all times.

HEAVY ARTICLE NEEDS 2 TO LIFT

To ORDER non-warranty replacement parts or accessories, or to register your warranty,

please visit us on the web at

www.masterchefbbqs.com

TOOLS NEEDED FOR ASSEMBLY

• #2 Phillips screwdriver (long and short)

• ¼” Slotted screwdriver (long and short)

• Adjustable wrench

• Pliers

Before assembling the barbecue, read these

instructions carefully.

Assemble the barbecue on a at, clean surface.

Grill is heavy. You should have at least two people

assemble the barbecue together.

Notes: Do not fully tighten all the nuts during

this initial stage.

Caution:

Sheet metal can cause injury. Wear gloves when installing the grill.

HARDWARE PACK

1/4” X 13mm Screw

X 20

#8X3/8” Self Tapping Screw

X 12

Wheel Spacer

X 2

¼” - 20UNC Nut

X 8

Ø7 Fiber Washer

X 8

Hitch Pin

X 1

Washer (Wheel)

X 1

1 2 3

4 5 6

KEY # DESCRIPTION PART NUMBER QUANTITY

1 1/4” x 13mm Screw 20120-13013-036 20

2 1/4”-20UNC nut 31220-13000-036 8

3 #8X3/8” self tapping screw 24200-42008-136 12

4 φ7 Fiber washer G431-0018-9000 8

5 Wheel spacer G305-0024-9088 2

6 Hitch pin G306-0005-9088 1

7 Washer 40300-08000-036 1

PARTS LIST PROPANE FOR 8530648 G43237

KEY # QUANTITY DESCRIPTION PART NO.

AA 1 Top lid assembly G432-F000-01

AB 1 Thermometer and bezel G432-000K-01

AC 2 Lid handle brackets G352-0015-01

AD 1 Top lid handle G432-000J-01

AE 2 Lid bumpers-back G303-0038-01

AF 2 Lid bumpers-front G430-00B8-01

AG 2 Screws for lid G430-0024-02

BA 1 Burner box assembly G432-F100-01

BB 4 Burner G432-B600-01

BC 1 Electrode set, main burner G501-0010-01

BD 3 Burner brace assembly G432-0078-01

BE 4 Flame tamer G430-0005-01

BF 3 Cooking grate G432-4300-01

BG 1 Warming rack G432-0001-01

CA 1 Control panel G432-000H-01

CB 1 Manifold assembly G432-5B00-01

CC 1 Regulator G511-0031-01

CD 4 Bezel, control knob G430-0027-02

CE 4 Control knob G432-0090-01

CF1 1 Electronic ignition assembly G409-0021-A1

CF2 1 Electronic ignition button G409-0030-01

CG 1 Grease cup hook G305-0043-01

CH 1 Grease cup G430-0033-02

CI 1 Heat shield G432-Q101-01

DA 1 Cart side panel, right G451-0D00-01

DB 1 Cart side panel, left G451-0C00-01

DC 2 Back Brace G432-E300-01

DD 1 Front panel G432-0033-01

DE 2 End caps G430-0023-01

DF 2 Wheel G210-0018-02

DG 1 Wheel axle G430-0007-02

DH 1 Match holder G401-0079-01

DI 1 Tank exclusion G432-5302-01

DJ 1 Gas Tank Support G307-0016-01

EA 1 Side shelf table, right G451-0B00-01

EB 1 Side shelf fascia, right G451-0061-01

EC 1 Side shelf table, left G451-0A00-01

ED 1 Side shelf fascia, left G451-0060-01

F1 1 Hardware pack G432-B037-01

F2 1 Assembly instructions G432-M037-01

F3 1 Safe use and care manual G451-M018-02

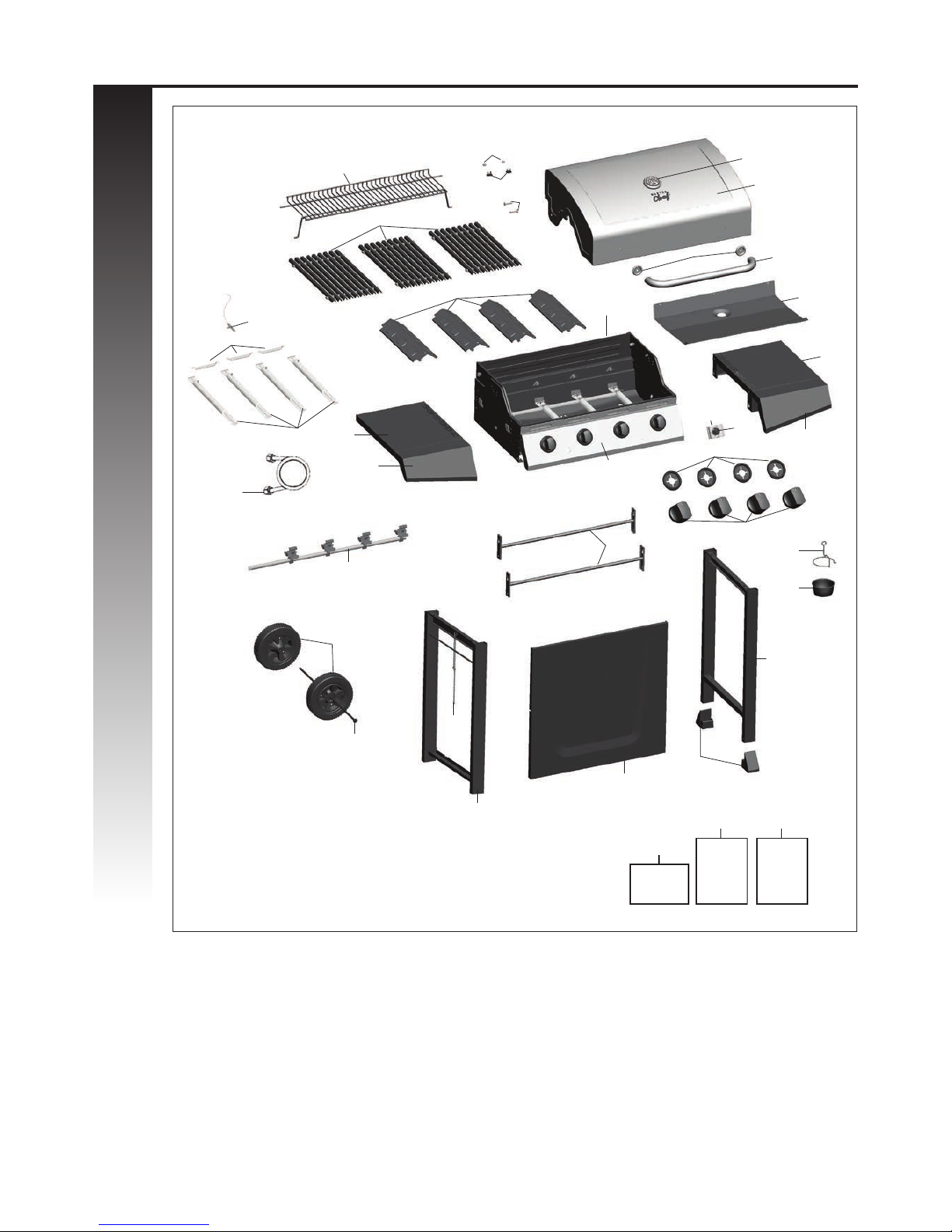

EXPLODED DIAGRAM PROPANE FOR 8530648 G43237

CF2

CF1

HARDWARE

PACK

F2 F3

ASSEMBLY

MANUAL

SAFETY

AND CARE

MANUAL

PARTS LIST NATURAL GAS FOR 8530656 G43238

KEY # QUANTITY DESCRIPTION PART NO.

AA 1 Top lid assembly G432-F000-01

AB 1 Thermometer and bezel G432-000K-01

AC 2 Lid handle brackets G352-0015-01

AD 1 Top lid handle G432-000J-01

AE 2 Lid bumpers-back G303-0038-01

AF 2 Lid bumpers-front G430-00B8-01

AG 2 Screws for lid G430-0024-02

BA 1 Burner box assembly G432-5H00-01

BB 4 Burner G432-B600-01

BC 1 Electrode set, main burner G501-0010-01

BD 3 Burner brace assembly G432-0078-01

BE 4 Flame tamer G430-0005-01

BF 3 Cooking grate G432-4300-01

BG 1 Warming rack G432-0001-01

CA 1 Control Panel G432-000H-01

CB 1 Manifold assembly G432-5K00-01

CC 1 Natural gas hose G501-0099-01

CD 4 Bezel, control knob G430-0027-02

CE 4 Control knob G432-0090-01

CF1 1 Electronic ignition assembly G409-0021-A1

CF2 1 Electronic ignition button G409-0030-01

CG 1 Grease cup hook G305-0043-01

CH 1 Grease cup G430-0033-02

CI 1 Heat shield G432-Q101-01

DA 1 Cart side panel,right G451-0D00-01

DB 1 Cart side panel,left G451-0C00-01

DC 2 Back Brace G432-E300-01

DD 1 Front panel G432-0033-01

DE 2 End Caps G430-0023-01

DF 2 Wheel G210-0018-02

DG 1 Wheel Axle G430-0007-02

DH 1 Match holder G401-0079-01

EA 1 Side shelf table (right) G451-0B00-01

EB 1 Side shelf fascia (right) G451-0061-01

EC 1 Side shelf table (left) G451-0A00-01

ED 1 Side shelf fascia (left) G451-0060-01

F1 1 Hardware pack G432-B037-01

F2 1 Assembly instructions G432-M037-01

F3 1 Safe use and care manual G451-M018-02

EXPLODED DIAGRAM NATURAL GAS FOR 8530656 G43238

CF2

CF1

HARDWARE

PACK

F2 F3

ASSEMBLY

MANUAL

SAFETY

AND CARE

MANUAL

PROPANE MODEL ONLY.

NATURAL GAS MODEL WILL NOT

HAVE TANK EXCLUSION (DI) AS

SHOWN.

Note: You will need two people for this step.

Assemble the tank exclusion (DI) to the left and

right cart side panels (DB, DA), as shown.

Note: The left cart side panel (DB) will have

large holes on the end of the legs for

assembling the wheel axle (DG).

Note: the tank exclusion should sit in the

middle hole on the left and right side panel.

ASSEMBLY INSTRUCTIONS

YOU WILL NEED:

X 6

Front View

Close Up

a. Assemble the front panel (DD) to the left and

right cart side panels (DA and DB) as shown.

2DB

b. Ensure that the slots on the tank exclusion (DI)

align with the slots on the front panel.

Note: Turn Cart assembly upside down.

a. Place wheel (DF) and wheel spacer (#5) onto

the wheel axle (DG). “Cone”side of wheel

should be against cart side panel, gure B.

b. Insert wheel axle assembly (DG) through wheel

axle hole in the front and rear of the left cart

side panel (DB), as shown.

c. To complete wheel assembly position the

wheel spacer (#5), wheel (DF), wheel washer

(#7) and hitch pin (#6), onto wheel axle (DG)

as shown.

d. Insert end caps (DE) into right cart side panel

(DA).

Assemble two back braces (DC) to the left and

right cart side panels (DA and DB) as shown.

ASSEMBLY INSTRUCTIONS

876

YOU WILL NEED:

X 2

X 8

X 1

Back View

Close upClose up

PROPANE MODEL ONLY.

Assemble the gas tank support (DJ) to left cart

side panel (DB).

Note: TWO PEOPLE required for this step.

Ensure that the regulator hose (CC) (Propane

models only) is hanging outside of cart.

Position the lid and burner box assembly (A&B),

onto the cart assembly (C), and assemble.

YOU WILL NEED:

ASSEMBLY INSTRUCTIONS

X 4

A B

Back View

Close up
