Portable Charcoal Grill

Product no. 085-2202-6 (TG2172111-MC)

INSTRUCTION MANUAL

Toll-free: 1-855-803-9313

Read this manual thoroughly before using and save it for future reference.

Table of ContentsWarnings

•To the installer or person assembling this appliance: Leave this manual with this appliance for future reference.

•This instruction manual contains important information necessary for the proper assembly and safe use

of the appliance.

•Read and follow all warnings and instructions before assembling and using the appliance.

•Follow all warnings and instructions when using the appliance.

•Keep this manual for further reference.

SAFETY SYMBOLS:

The symbols and boxes shown below explain what each heading means.

Read and follow all of the messages found throughout the manual.

DANGER: Indicates an imminent hazardous situation which, if not avoided, will result in death or

serious injury.

WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in

death or serious injury.

CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or

moderate injury.

Warnings 2

Product Diagram 3

Component List 4

Hardware List 5

Assembly Instructions 6

Limited Warranty

Product no. 085-2202-6 (TG2172111-MC) |

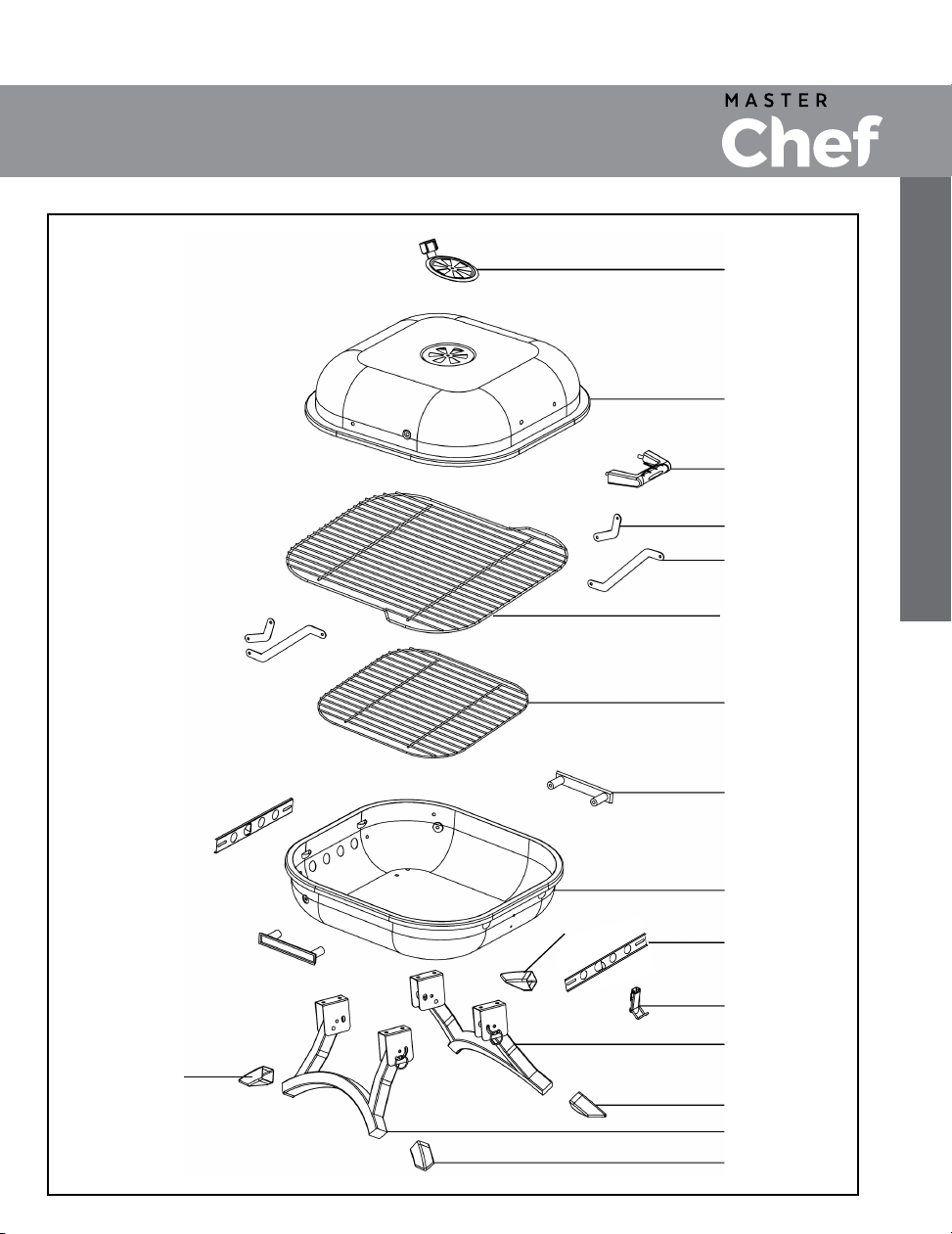

Product Diagram

12R

13B

12L

13A

13B

Component List

Key No. Description Qty.

1 1

2 Lid 1

3 1

4 Short Lid Bracket 2

5 2

6 Cooking Grate 1

7 1

8 Body Handle 2

9 1

10 Grill Body Air Vent 2

11 1

Lid Air Vent

Lid Handle

Long Lid Bracket

Charcoal Grate

Grill Body

Latch

12L Left Leg Assembly 1

12R 1

13A Foot Cap A 2

13B 2

Right Leg Assembly

Foot Cap B

The following tools are required for assembly and are not included:

Pliers

Philips & Flathead Screwdrivers

Adjustable Wrench

Product no. 085-2202-6 (TG2172111-MC) |

Hardware List

Part No. Description Diagram Qty.

A Bolt M6 x 12 12

B Bolt M5 x 12 13

C Bolt M3 x 10 2

E Washer M5 x 12mm Dia. 13

D Washer M6 x 12mm Dia. 14

F Nut M6 10

G Nut M5 13

H Nut M3 2

Step 1

Step 2

Assembly Instructions

Attach Lid Handle (3) to Lid (2)

by inserting 2 Washer M6 (D)

and 2 Nut M6 (F).

Attach Lid Air Vent (1) to

Lid (2) by inserting 1 Bolt

M5 x 12 (B), 1 Washer

M5 (E) and 1 Nut M5 (G).

E G ADH

Attach Grill Body Handle (8)

to left and right side of Grill

Body (9) by inserting 2 Bolt

M6 x 12 (A) and 2 Washer

M6 (D) for each handle.

Attach Grill Body Air Vent (10)

to front and rear of Grill Body (9)

by inserting 2 Bolt M5 x 12 (B),

2 Washer M5 (E) and 2 Nut

M5 (G).

Attach Latch (11) to Grill Body (9)

by inserting 2 Bolt M3 x 10 (C) and

2 Nut M3 (H).

Product no. 085-2202-6 (TG2172111-MC) |

Assembly Instructions

Step 3

Insert Foot Cap A (13A) to front

of Left Leg Assembly (12L) and

Foot Cap B (13B) to rear of Left

Leg Assembly (12L) as illustrated.

Insert Foot Cap B (13B) to front

of Right Leg Assembly (12R) and

Foot Cap A (13A) to rear of Right

Leg Assembly (12R) as illustrated.

Step 4

Attach Left and Right Leg Assembly

(12L & 12R) under Grill Body by

inserting 4 Bolt M6 x 12 (A), 4 Washer

M6 (D) and 4 Nut M6 (F) for each leg

assembly as illustrated.

13A

13B

13A

13B

12R

12L

Front

Rear

Front

Rear

12R

12L

Assembly Instructions

Step 5

Attach each Short Lid

Bracket (4) to both ends of

Grill Body and Lid using 4

Bolt M5 x 12 (B), 4 Washer

M5 (E) and 4 Nut M5 (G)

to connect.

Attach each Long Lid

Bracket (5) to both ends of

Grill Body and Lid using 4 Bolt

M5 x 12 (B), 4 Washer M5 (E)

and 4 Nut M5 (G) to connect.

Product no. 085-2202-6 (TG2172111-MC) |

Assembly Instructions

Step 6

Place Charcoal Grate (7)

and Cooking Grate (6) into

the Grill Body.

Step 7

Tighten all Hardwares.

Finished!

Always unfold the legs during cooking and lighting!

Assembly Instructions

Step 8

Folding Legs for transportation

and storage:

1. Close the Lid and lock the Latch.

2. Pull the latch on both leg

assemblies to unlock then fold

the legs as illustrated.

CAUTION:

•DO NOT fold the legs during cooking and lighting!

Product no. 085-2202-6 (TG2172111-MC) |
