MasterChef PRIME Series Manual de usuario

PRIME 4-BURNER

PROPANE BARBECUE

Assembly Manual

085-3176-2 / G42501

1 YEAR LIMITED WARRANTY

ANS Z21.58-2018 / CSA 1.6-2018

ANS Z21.58-2018 / CSA 1.6-2018 ANS Z21.58-2018 / CSA 1.6-2018

ANS Z21.58-2018 / CSA 1.6-2018

READ AND SAVE MANUAL FOR FUTURE REFERENCE.

Assemble your grill immediately.

Missing or damaged parts claims must be submitted within 30 days of purchase date.

For product inquiries, parts, warranty and troubleshooting support,

please call 1-855-453-2150.

Manual Revision #: 01072020JC

DANGER

1. If you smell gas:

a. Shut o gas to the appliance.

b. Extinguish any open ame.

c. Open lid.

d. If odour continues, keep away from

the appliance and immediately

call your gas supplier or your

re department.

2. Requires two people to complete the

assembly process.

3. Beware of sharp edges.

WARNING

Failure to follow all of the Manufacturer’s

instructions could result in hazardous res,

explosions, property damage, serious

personal injury or even death.

Follow all leak check procedures carefully

prior to operation of barbecue, even if grill

was dealer assembled. Do not try to light

this barbecue without reading the Lighting

Instructions section of this manual.

THIS MANUAL MUST REMAIN WITH THE PRODUCT AT ALL TIMES

CAUTION

Read and follow all safety statements,

assembly instructions, use and care

directions before attempting to assemble

and cook.

WARNING

1. Do not store or use gasoline or other

ammable liquids or vapours in the

vicinity of this or any other appliance.

2. An LP cylinder not connected for use must

not be stored in the vicinity of this or any

other appliance.

WARNING

IN DIRECT SUNLIGHT, AND IN

OPERATION, YOUR BARBECUE’S

STAINLESS STEEL AND PAINTED STEEL

PARTS CAN BECOME VERY HOT.

CAUTION

Sharp edges. Wear gloves when assembling

your grill.

THIS BARBECUE IS FOR OUTDOOR USE ONLY.

CONTACT CALL CENTRE IF ANY PARTS ARE MISSING.

1-855-453-2150

INSTALLER OR ASSEMBLER/CONSUMER

This manual should be kept with the barbecue

at all times.

HEAVY ARTICLE: NEEDS 2 TO LIFT

To order non-warranty replacement parts or accessories, or to register your warranty,

please visit us at

www.masterchefbbqs.com

HARDWARE PACK

1/4”X18 Screw Assembly

X 2

1/4”-20UNC×13 Screw

X 36

NO.10-24UNC x18 Screw

X 1

Axle Spacer

X 2

φ6.5 Washer

X 6

NO.10-24UNC×13 Screw

X 6

NO.10-24UNC Nut

X 1

Hitch Pin

X 2

ST4.2×8 Tapping Screw

X 8

φ8 Washer

X 2

1 3

KEY # DESCRIPTION PART NUMBER QUANTITY

1 1/4”X18 Screw Assembly G560-3900-9091 2

2 φ6.5 Washer G466-0042-9000 6

3 1/4”-20UNC×13 Screw 20120-13013-036 36

4 NO.10-24UNC×13 Screw 20124-10013-036 6

5 ST4.2×8 Tapping Screw 24200-42008-136 8

6 NO.10-24UNC x18 Screw 20124-10018-036 1

7 NO.10-24UNC Nut 31224-10000-036 1

8 Axle Spacer G305-0024-9088 2

9 Hitch Pin G306-0005-9088 2

10 φ8 Washer 40300-08000-036 2

TOOLS NEEDED FOR ASSEMBLY

• #2 Star-head screwdriver (long and short)

• ¼” Slotted screwdriver (long and short)

• Adjustable wrench

• Pliers

Caution:

Sheet metal can cause injury. Wear gloves when installing the grill.

BEFORE ASSEMBLING THIS BARBECUE, READ THE INSTRUCTIONS CAREFULLY.

Assemble the barbecue on a flat, clean surface. The grill is heavy, two people are

recommended to complete assembly.

PARTS LIST (PROPANE) FOR 085-3176-2 / G42501

KEY # QUANTITY DESCRIPTION PART NO.

AA 1 Top lid assembly G425-5000-01

AB 1 Thermometer G425-5004-01

AC 1 Thermometer bezel G425-5005-01

AD 1 Top lid handle G425-5001-01

AE 2 Top lid handle bezel C404-2002-01

AF 4 Lid bumpers G527-0002-01

AG 2 Screws for lid G352-0054-01

BA 1 Burner box assembly G425-0400-01

BB 4 Main burner G425-5400-01

BC 1 Electrode set, main burner G425-5501-01

BD 3 Carryover assembly G451-W402-01

BE 4 Flame tamer G425-0004-01

BF 3 Cooking grate G425-0001-01

BG 1 Warming rack G425-0002-01

BH 1 Heat shield G425-5607-01

BI 1 Grease cup G430-0033-02

BJ 1 Grease cup hook G305-0043-01

CA 1 Control panel G425-0500-01

CB 4 Control knob G425-0003-01

CC 1 Ignitor G451-000D-01

CD 1 Manifold assembly G425-5700-01

CE 1 Regulator G425-5702-01

DA 1 Side shelf table, right G425-0600-01

DB 1 Side shelf fascia, right G425-0700-01

DC 1 Side shelf support brace, right G425-5201-01

DD 1 Side shelf table, left G425-0800-01

DE 1 Side shelf fascia, left G425-0900-01

DF 1 Side shelf support brace, left G425-5301-01

EA 1 Front cart leg with end cap, right ---------- 3 G425-5603-01

EB 1 Rear cart leg with end cap, right -----------4 G425-5604-01

EC 1 Lower brace , right G451-1Y00-01

ED 1 Tank exclusion wire, right G425-5609-01

EE 1 Front cart leg with end cap, left ------------1 G425-5601-01

EF 1 Rear cart leg with end cap, left -------------2 G425-5602-01

EG 1 Lower brace, left G451-1X00-01

EH 2 Upper brace G451-1W00-01

EI 1 Match holder G401-0079-01

EJ 1 Gas tank support G307-0016-01

EK 2 Back brace G451-1H00-01

EL 2 Front panel G425-5605-01

EM 1 Tank exclusion wire, rear G425-5608-01

FA 2 Wheel G437-0037-01

FB 2 Wheel axle G425-5606-01

FC 2 Feet G470-4K01-01

G1 1 Hardware pack G425-B001-01

G2 1 Assembly instructions G425-M001-01

G3 1 Safe use and care manual G425-M001-02

EXPLODED DIAGRAM (PROPANE) FOR 085-3176-2 / G42501

DE DF

EH EH

HARDWARE

PACK

G2 G3

ASSEMBLY

MANUAL

SAFETY

AND CARE

MANUAL

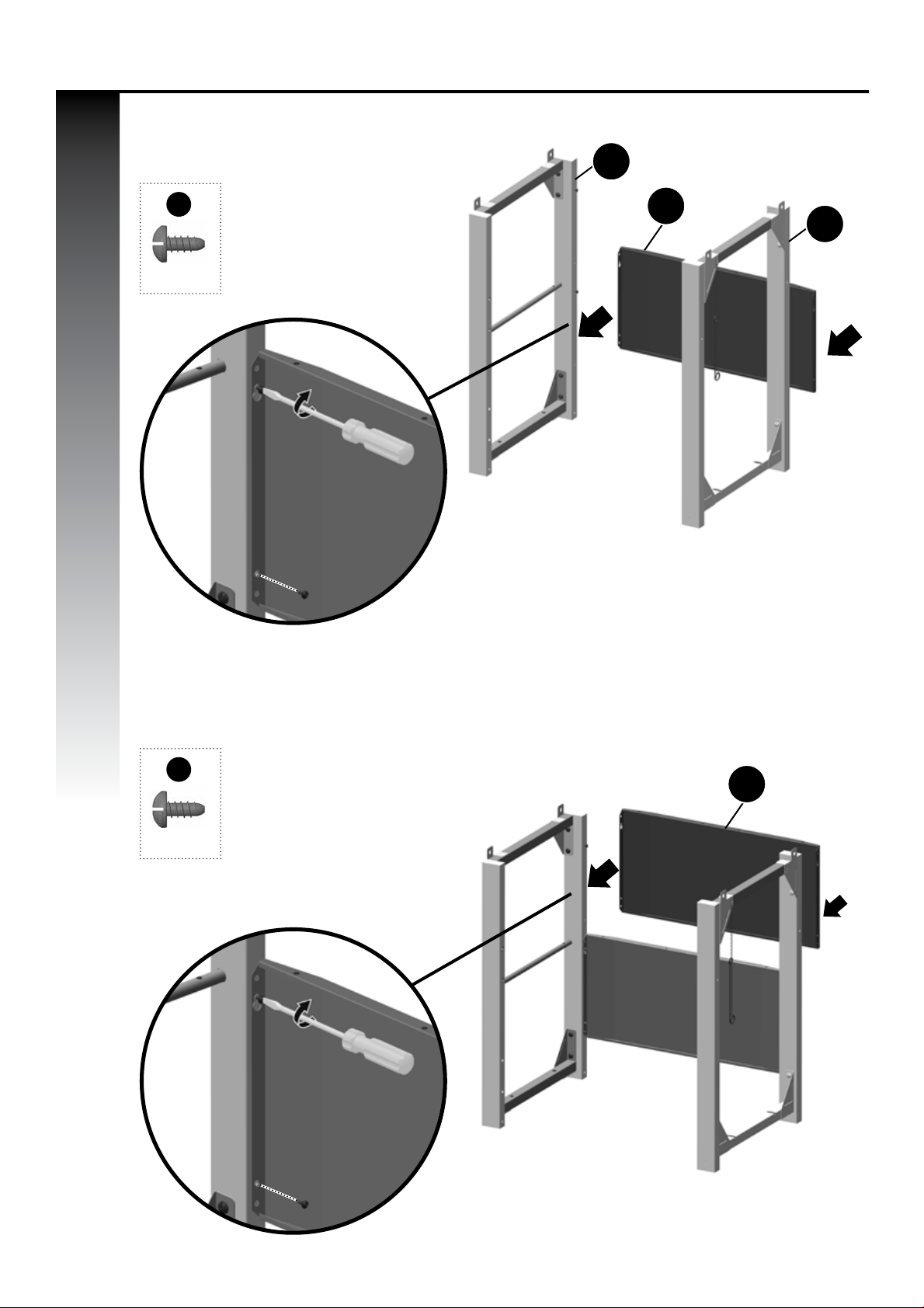

ASSEMBLY INSTRUCTIONS

YOU WILL NEED:

X 4

(1)

(2)

ATTENTION:

Part EG is used for installing

the propane tank in step 19.

YOU WILL NEED:

X 4

ASSEMBLY INSTRUCTIONS

(4)

(3)

ASSEMBLY INSTRUCTIONS

3YOU WILL NEED:

X 4

(3)

(1)

ASSEMBLY INSTRUCTIONS

4YOU WILL NEED:

X 2

YOU WILL NEED:

X 2

(3)

(1)

ASSEMBLY INSTRUCTIONS

YOU WILL NEED:

X 4

(4)

(2)
