Martin Acrobat Manual de usuario

Acrobat

user manual

P/N 35000039

1 mounting bracket

2 swivel locks

3 focus adjustment

4 lamp access

5 13 mm clamp hole

6 air vent

7 AC input & main

fuse

8 data sockets

9 DIP-switch

reproduced, in any form or by any means, without

permission in writing from Martin Professional A/S,

Denmark.

Printed in Denmark.

P/N 35000039, Revision B

Acrobat user manual Introduction 3

NTRODUCTION

Thank you for selecting the Martin Acrobat. The Acrobat is an automated disco

lighting fixture that provides strobe effects, continuous electronic dimming, 18

color/gobo effects, a revolving mirror drum with variable swivel angle, adjustable

focus, and DMX and stand-alone control options.

ACROBAT SAFETY INFORMATION

Warning! This product is not for household use. It presents risks of

lethal or severe injury due to fire and heat, electric shock, and

falls.

Read this manual before powering or installing the fixture, follow the safety

precautions listed below and observe all warnings in this manual and printed on

the fixture. If you have questions about how to operate the fixture safely, please

contact a Martin distributor for assistance.

To protect yourself and others from electric shock

• Disconnect the fixture from AC power before removing or installing the lamp,

fuses, or any part, and when not in use.

• Always ground (earth) the fixture electrically.

• Use only a source of AC power that complies with local building and electrical

codes and has both overload and ground-fault protection.

• Do not expose the fixture to rain or moisture.

• Refer all service to a qualified technician.

• Never operate the fixture with missing or damaged lenses and/or covers.

4 Introduction Acrobat user manual

To protect yourself and others from burns and fire

• Never attempt to bypass the thermostatic switch or fuses. Always replace

defective fuses with ones of the specified type and rating.

• Keep all combustible materials (for example fabric, wood, paper) at least 0.1

meters (4 inches) away from the fixture. Keep flammable materials well away

from the fixture.

• Do not illuminate surfaces within 0.3 meters (12 inches) of the fixture.

• Provide a minimum clearance of 0.1 meters (4 inches) around fans and air vents.

• Replace the lamp if it becomes defective or worn out. When replacing the lamp,

allow the fixture to cool for at least 5 minutes before opening the fixture or

removing the lamp. Protect your hands and eyes with gloves and safety glasses.

• Never place filters or other materials over the lens or mirror drum.

• The exterior of the fixture can reach temperatures up to 60° C (140° F). Allow the

fixture to cool for at least 5 minutes before handling.

• Do not operate the fixture if the ambient temperature (Ta) exceeds 40° C (104° F).

To protect yourself and others from injury due to falls

• When suspending the fixture above ground level, verify that the structure can hold

at least 10 times the weight of all installed devices.

• Verify that all external covers and rigging hardware are securely fastened and use

an approved means of secondary attachment such as a safety cable.

• Block access below the work area whenever installing or removing the fixture.

UNPACKING

The packing material is carefully designed to protect the fixture during shipment -

always use it to transport the fixture.

The Acrobat comes with:

• mounting bracket

• 1.5-meter, 3-wire IEC power cable

•usermanual

Important! The mirror drum is secured for transport with a plastic tie. Cut

and remove the tie before use.

Acrobat user manual Lamp installation 5

AMP

INSTALLATION

The Acrobat uses a 24V, 250W ELC halogen lamp. Two models are available, an

economical 300 hour lamp from Philips and a high-output 50 hour lamp from

Osram. Installing any other lamp may damage the fixture!

Lamp life can be extended beyond the stated average hours by reducing the lamp

voltage slightly using DIP-switch pin 12. Set pin 12 to ON for longer lamp life, or

OFF for maximum brightness.

Allow the lamp to cool for at least 5 minutes before packing and moving the

fixture. To avoid possible damage, remove the lamp when shipping the fixture.

Warning! Always disconnect the fixture from AC power and allow it to

cool for 5 minutes before installing the lamp.

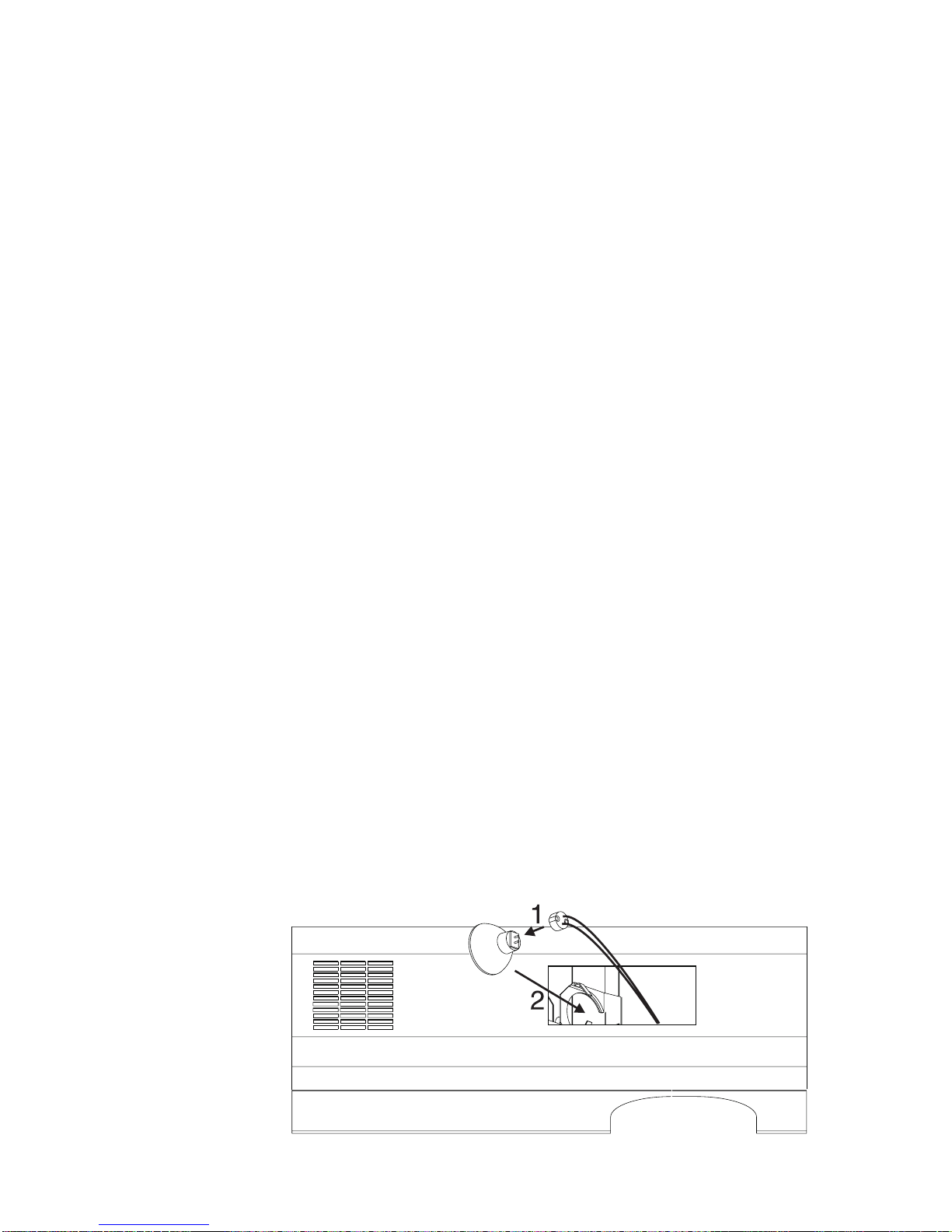

To install a lamp in the Acrobat

1 Disconnect the fixture from AC power. If replacing a lamp, allow it to cool for

5 minutes before removing the lamp access cover. The lamp cools faster with

the cover in place.

2 Remove both screws from the lamp access cover and lift the cover off.

3 If replacing a lamp, grasp the old lamp by the reflector and pull it out of the

holder. Then pull the socket off the lamp. Do not pull the wires.

4 Push the socket fully onto the pins of the new lamp.

5 Gently push the lamp into the holder until it snaps into place.

6 Replace the lamp access cover and screws.

6 AC power connection Acrobat user manual

POWER

CONNECTION

The Acrobat’s operating voltage is printed on the serial number label near the AC

input. Verify that the operating voltage closely matches the AC supply voltage

before applying power. Contact your Martin dealer if the operating voltage differs

from the supply voltage by more than five percent.

To install a plug on the mains lead

The fixture’s mains lead may require a grounding-type cord cap that fits your

power distribution cable or outlet. Consult a qualified electrician if you have

any doubts about proper installation.

Warning! For protection from dangerous electric shock, the fixture must

be grounded (earthed). The AC mains supply shall have

overload and ground-fault protection.

Important! Verify that the feed cables are undamaged and rated for the

current requirements of all connected devices before use.

• Following the cord cap manufacturer’s instructions, connect the yellow and

green wire to ground (earth), the brown wire to live, and the blue wire to

neutral. The table below shows some pin identification schemes.

Wire Pin Marking Screw color

brown live “L” yellow or brass

blue neutral “N” silver

yellow/green ground green

Acrobat user manual Installation 7

NSTALLATION

The Acrobat can be permanently installed or hung with a clamp (not included), or

it can be placed on the floor as described below. For maximum lamp life, do not

place the fixture directly on or beside a speaker cabinet or other source of strong

vibrations.

Once the Acrobat is installed and connected, the focus may be adjusted by

loosening and sliding the focus adjustment knob.

Warning! Block access below the work area before proceeding.

Warning! Always use a secure means of secondary attachment.

To install the mounting bracket

• Install the mounting bracket on the chassis as shown. Place the washers on

the stud before the bracket.

To install or hang the Acrobat

1 Verify that the structure can support at least 10 times the weight of all

installed fixtures, clamps, cables, auxiliary equipment, etc.

2 If hanging the fixture with a rigging clamp, verify that the clamp is

undamaged and is designed for the fixture’s weight. Bolt the clamp securely

to the bracket with a grade 8.8 (minimum) M12 bolt and lock nut, or as

8 Installation Acrobat user manual

recommended by the clamp manufacturer, through the clamp hole in the

mounting bracket.

3 If permanently installing the fixture, verify that the hardware (not included)

and mounting surface can bear at least 10 times the fixture’s weight. The four

6 mm holes and the clamp hole in the mounting bracket may be used for

attachment.

4 Working from a stable platform, clamp or fasten the fixture to the structure.

5 Install a safety cable that can hold at least 10

times the weight of the fixture through/over the

support and mounting bracket as shown.

6 Loosen the swivel locks, tilt the fixture to the

desired angle, and retighten.

7 Verify that the fixture is at least 0.3 meters (12 in.)

from the surface to be illuminated and at least 0.1

meters (4 in.) from any combustible materials.

Verify that the clearance around the air vents is at

least 0.1 meters (4 in.).

To use the bracket as a floor stand

The Acrobat may be placed on

the floor by standing it squarely

on the drum end or with the

support of the mounting bracket.

Never lay the fixture flat on its

back!

1 Install the mounting bracket as described above.

2 Set the fixture flat on its drum end or in one of the positions shown below.

Adjust the mounting bracket and tighten both swivel locks.

3 Verify (1) that the fixture is stable, (2) that the fixture is at least 0.3 meters (12

in.) from the surface to be illuminated and at least 0.1 meters (4 in.) from any

combustible materials, and (3) that the clearance around the air vents is at

least 0.1 meters (4 in.).

Rigging clamp not shown!

Acrobat user manual DIP-switch settings 9

DIP-

SWITCH

SETTINGS

This section describes how to select the address, when used with a controller, and

how to select various options using the DIP-switch.

DMX ADDRESS SELECTION

When the Acrobat is used with a DMX controller, its DIP-switch must be set to a

control address. The control address, also known as the start channel, is the first

channel used to receive instructions from the controller. For independent control,

each fixture must be assigned its own control address and non-overlapping

channels.

Two Acrobats may, however, share the same address if you want them to respond

identically. In this case, the fixtures receive the same instructions and individual

control is not possible.

The Acrobat uses 6 channels for full DMX operation. There is also a 1-channel

DMX mode that is described on page 14.

To set a DMX address

1 Select an address for the fixture on your controller.

2 Look up the DIP-switch setting for the address on page 10.

3 Set pins 1 through 9 to the ON (1) or OFF (0) position as listed in the table.

4 Set pin 10 to the OFF position.

5 Set pin 11 to the OFF position for full 6-channel DMX operation or to the ON

position for 1-channel DMX operation.

10 DIP-switch settings Acrobat user manual

DIP-SWITCH ADDRESS TABLE

Find the address in the table below. Read the settings for pins 1 - 5 to the left and

read the settings for pins 6 - 9 above the address. “0” means OFF and “1” means

ON.

Important! Pins 10 and 11 must be OFF for full DMX control. Pin 10 must

be OFF and pin 11 must be ON for 1-channel DMX control.

',306ZLWFK#6HWWLQJ

3# #2))

4# #21

&<3333333344444444

&;3333444433334444

&:3344334433443344

&93434343434343434

&4 &5 &6 &7 &8

3 3 3 3 3 65 97 <9 45; 493 4<5 557 589 5;; 653 685 6;7 749 77; 7;3

4 3 3 3 3 4 66 98 <: 45< 494 4<6 558 58: 5;< 654 686 6;8 74: 77< 7;4

3 4 3 3 3 5 67 99 <; 463 495 4<7 559 58; 5<3 655 687 6;9 74; 783 7;5

4 4 3 3 3 6 68 9: << 464 496 4<8 55: 58< 5<4 656 688 6;: 74< 784 7;6

3 3 4 3 3 7 69 9; 433 465 497 4<9 55; 593 5<5 657 689 6;; 753 785 7;7

4 3 4 3 3 8 6: 9< 434 466 498 4<: 55< 594 5<6 658 68: 6;< 754 786 7;8

3 4 4 3 3 9 6; :3 435 467 499 4<; 563 595 5<7 659 68; 6<3 755 787 7;9

4 4 4 3 3 : 6< :4 436 468 49: 4<< 564 596 5<8 65: 68< 6<4 756 788 7;:

3 3 3 4 3 ; 73 :5 437 469 49; 533 565 597 5<9 65; 693 6<5 757 789 7;;

4 3 3 4 3 < 74 :6 438 46: 49< 534 566 598 5<: 65< 694 6<6 758 78: 7;<

3 4 3 4 3 43 75 :7 439 46; 4:3 535 567 599 5<; 663 695 6<7 759 78; 7<3

44343 44 76 :8 43: 46< 4:4 536 568 59: 5<< 664 696 6<8 75: 78< 7<4

3 3 4 4 3 45 77 :9 43; 473 4:5 537 569 59; 633 665 697 6<9 75; 793 7<5

4 3 4 4 3 46 78 :: 43< 474 4:6 538 56: 59< 634 666 698 6<: 75< 794 7<6

34443 47 79 :; 443 475 4:7 539 56; 5:3 635 667 699 6<; 763 795 7<7

4 4 4 4 3 48 7: :< 444 476 4:8 53: 56< 5:4 636 668 69: 6<< 764 796 7<8

3 3 3 3 4 49 7; ;3 445 477 4:9 53; 573 5:5 637 669 69; 733 765 797 7<9

43334 4: 7< ;4 446 478 4:: 53< 574 5:6 638 66: 69< 734 766 798 7<:

3 4 3 3 4 4; 83 ;5 447 479 4:; 543 575 5:7 639 66; 6:3 735 767 799 7<;

4 4 3 3 4 4< 84 ;6 448 47: 4:< 544 576 5:8 63: 66< 6:4 736 768 79: 7<<

33434 53 85 ;7 449 47; 4;3 545 577 5:9 63; 673 6:5 737 769 79; 833

4 3 4 3 4 54 86 ;8 44: 47< 4;4 546 578 5:: 63< 674 6:6 738 76: 79< 834

3 4 4 3 4 55 87 ;9 44; 483 4;5 547 579 5:; 643 675 6:7 739 76; 7:3 835

44434 56 88 ;: 44< 484 4;6 548 57: 5:< 644 676 6:8 73: 76< 7:4 836

3 3 3 4 4 57 89 ;; 453 485 4;7 549 57; 5;3 645 677 6:9 73; 773 7:5 837

4 3 3 4 4 58 8: ;< 454 486 4;8 54: 57< 5;4 646 678 6:: 73< 774 7:6 838

34344 59 8; <3 455 487 4;9 54; 583 5;5 647 679 6:; 743 775 7:7 839

4 4 3 4 4 5: 8< <4 456 488 4;: 54< 584 5;6 648 67: 6:< 744 776 7:8 83:

3 3 4 4 4 5; 93 <5 457 489 4;; 553 585 5;7 649 67; 6;3 745 777 7:9 0

43444 5< 94 <6 458 48: 4;< 554 586 5;8 64: 67< 6;4 746 778 7:: 0

3 4 4 4 4 63 95 <7 459 48; 4<3 555 587 5;9 64; 683 6;5 747 779 7:; 0

4 4 4 4 4 64 96 <8 45: 48< 4<4 556 588 5;: 64< 684 6;6 748 77: 7:< 0

Otros manuales para Acrobat

Tabla de contenidos

Otros manuales de Equipo de iluminación de Martin

Martin

Martin MAC 301 Wash Manual de usuario

Martin

Martin MAC Aura FX Manual de usuario

Martin

Martin Mania EF3 Manual de usuario

Martin

Martin Alien LED Downlight Manual de usuario

Martin

Martin PAL 1200 FX Manual de usuario

Martin

Martin M1 HD Manual de usuario

Martin

Martin M2GO Guía de configuración

Martin

Martin MAC 350 Entour Manual de usuario

Martin

Martin Stagebar 2 RGBAW Manual de usuario

Martin

Martin MAC Viper Profile Guía de configuración

Martin

Martin Alien 05 Manual de usuario

Martin

Martin MAC 250 Wash Manual de usuario

Martin

Martin Tripix 300 Manual de usuario

Martin

Martin MAC 575 Krypton Manual de usuario

Martin

Martin MAC 500 Manual de usuario

Martin

Martin Mania DC1 Manual de usuario

Martin

Martin RoboScan Pro 918 Manual de usuario

Martin

Martin MAC Viper Profile Manual de usuario

Martin

Martin ELP CL Manual de usuario

Martin

Martin MAC Axiom Hybrid Manual de usuario

Martin

Martin MAC 101 Series Manual de usuario

Martin

Martin LIGHTING DIRECTOR Manual de usuario

Martin

Martin Mania SCX500 Manual de usuario

Martin

Martin Exterior 200 LED Manual de usuario

Manuales populares de Equipo de iluminación de otras marcas

Brizo

Brizo 8SP-MU-4 Manual de usuario

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Manual de usuario

IKEA

IKEA BJÖRKSPIREA Manual de usuario

Laserworld

Laserworld Evolution Series ES-400RGB Manual de usuario

Alien

Alien RG STAR Manual de usuario

EuroLite

EuroLite LED B-40 Manual de usuario

Qazqa

Qazqa Suplux SL 3 Black 103062 Manual de usuario

Commercial Electric

Commercial Electric 54568141 Manual de usuario

CREE LIGHTING

CREE LIGHTING 304 Series Manual de usuario

Goobay

Goobay 49867 Manual de usuario

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Manual de usuario

Alkalite

Alkalite Krypton KT-81 Manual de usuario

Clas Ohlson

Clas Ohlson GU10 Manual de usuario

DTS

DTS DELTA 10 F Manual de usuario

ring

ring Solar Steplight Manual de usuario

One Stop Gardens

One Stop Gardens 57696 Instrucciones de montaje

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Manual de usuario

SIREM

SIREM Swimeo A2 Manual de usuario
