Marshall Electronics V-R653-IMD-3GTE Manual de usuario
1
Marshall Electronics
Model No. V-R653-IMD-3GTE
High Definition LCD Monitor with In-Monitor Display
Operating Instructions
Edition 2 Revision 8W
2
This page intentionally left blank
3
Table of Contents
Installation and Initial Setup ------------------------------------------------------------------------------------------------------5
Top and Front Panel Features ----------------------------------------------------------------------------------------------------6
Rear Panel Features-----------------------------------------------------------------------------------------------------------------7
Compatible Input Formats---------------------------------------------------------------------------------------------------------8
MAIN MENU AND NAVIGATION--------------------------------------------------------------------------------------------------9
Using the menu buttons........................................................................................................................................................................9
Using the RotoMenu knob ....................................................................................................................................................................9
MARKER SETUP SUBMENU..................................................................................................................................................................10
VIDEO CONFIGURATION SUBMENU....................................................................................................................................................12
COLOR CONFIGURATION SUBMENU...................................................................................................................................................15
SYSTEM CONFIGURATION SUBMENU .................................................................................................................................................16
DEINTERLACER SUBMENU...................................................................................................................................................................18
OSD CONFIGURATION SUBMENU .......................................................................................................................................................19
CC CONFIGURATION SUBMENU..........................................................................................................................................................23
AUDIO CONFIGURATION SUBMENU ...................................................................................................................................................24
IMD CONFIGURATION SUBMENU .......................................................................................................................................................25
SERVICE SUBMENU..............................................................................................................................................................................28
Specifications----------------------------------------------------------------------------------------------------------------------- 29
Dimensions-------------------------------------------------------------------------------------------------------------------------- 30
Maintenance------------------------------------------------------------------------------------------------------------------------ 31
Warranty ---------------------------------------------------------------------------------------------------------------------------- 31
4
5
Installation and Initial Setup
■Unpacking
Carefully unpack the V-R653-IMD-3GTE monitor and verify that the following items are included:
• V-R653-IMD-3GTE Monitor
• V-PS12-5V-1 DC Power Supply
• Operating Instructions
Inspect the unit for any physical damage that may have occurred during shipping. Should there be any damage, immediately
contact Marshall Electronics at (800) 800-6608. If you are not located within the continental United States, call +1 (310) 333-
0606.
■Installation
The V-R653-IMD-3GTE can be mounted in any standard EIA 19” equipment rack. The attached rack ears can be angled to provide
the user control over the viewing angle. Adequate ventilation is required when installed to prevent possible damage to the
monitor’s internal components. Please see the Dimensions section for more information.
■Connections, Power-On and Initial Setup
Plug the DC Power Supply into an AC power source (100-240 V @ 50/60 Hz). Attach the Power connector to the back of the
monitor. Connect the required cables for video signal input and output. (Power must be applied to the V-R653-IMD-3GTE for the
active loop-though output to be activated.) The monitor defaults to ‘ON’ when power is supplied. Video will automatically be
detected and displayed on the screen.
6

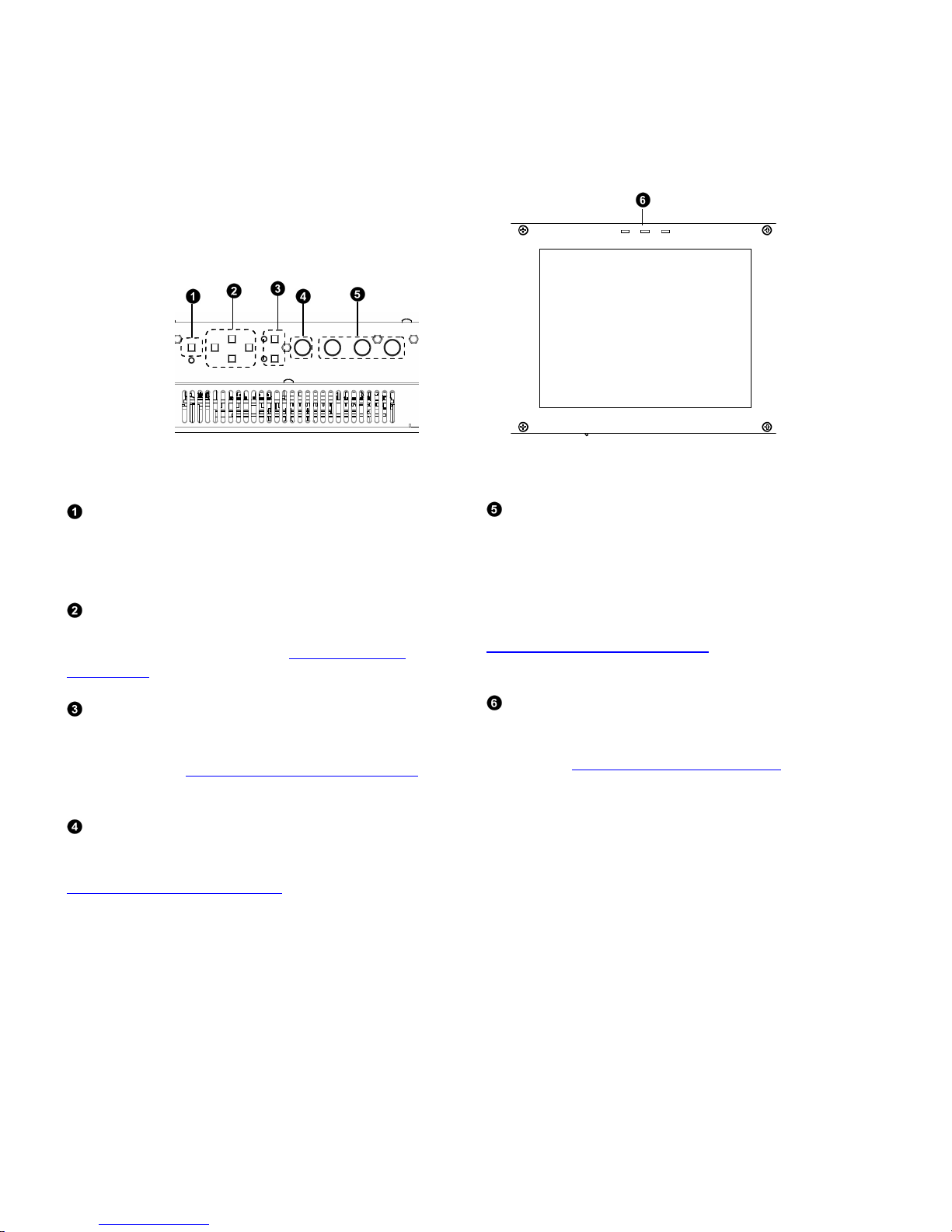

Top and Front Panel Features
Power Button
Turn the monitor panel off or on by pressing the power
button. In the ON state, the LED on the power button will
illuminate green.
Menu Navigation Buttons
Use the Menu, ↑, ↓, and Select buttons to display and
navigate the on-screen menu. See MAIN MENU AND
NAVIGATION for details on using the Menu.
User-Definable Function Buttons
Two user-definable function buttons can be used for direct
access to various settings. Functions are assigned using the on-
screen menu. See SYSTEM CONFIGURATION SUBMENU for
information on changing Functions.
RotoMenu™Knob
The RotoMenu™knob is alternate means of accessing and
navigating the main menu, using only a single control. See the
Using the RotoMenu knob section for details on using the
RotoMenu.
Image Adjustment Knobs
Use the image adjustment knobs to adjust color saturation,
brightness and contrast of the image. The status of each image
adjustment parameter is shown on the bottom left of the
screen, with values ranging from 0 to 100. Pressing a knob
once displays the current value. Pressing a knob twice resets
the corresponding adjustment to the default setting. See
VIDEO CONFIGURATION SUBMENU for information on Blue
Only calibration.
LED Tally
Three LED tally lights (yellow, red, green) are available above
the screen. Each tally light can be controlled from a variety of
sources. See IMD CONFIGURATION SUBMENU for more
details.
7
Rear Panel Features
3G-SDI Input and Output
The V-R653-IMD-3GTE has one HD-SDI input and one active
loop-through output. See Compatible Input Formats for
details on accepted formats.
Headphone Jack
The 1/8” jack on the back of the monitor takes two channels
of embedded SDI audio and provides a Headphone audio
signal. Volume can be adjusted via the RotoMenu knob or in
the Audio Configuration submenu. See the Audio
Configuration section for instructions on how to select the two
audio channels.
RS-422/485 Serial Interface
The RS-422/485 ports are used to remotely control the IMD or
all V-R653-IMD-3GTE features, using a variety of industry
standard protocols. (Note: Connector/pin-out may need to be
adapted depending on protocol and controlling device used).
Only one connection to either port is needed to control the
monitor. The second port can be used to loop multiple
monitors in the same bus. See IMD CONFIGURATION
SUBMENU for further details.
Tally / GPI Interface (HD-15)
LED tally, OSD tally and GPI can be activated via the HD-15
connector by connecting the corresponding pin to ground. A
variety of external devices can be used to perform the contact
closure. No additional power should be supplied to the HD-15
port. See the System Configuration section for details on
configuring GPI.
Power Input
Connect the 12VDC input to the power input connector.
Power can be supplied from the included power supply, or
from a variety of DC sources supplying at least 5.0 Amps at 12
Volts.
8
Compatible Input Formats
SDI/HDSDI Inputs
525i/ 59.94, 625i/ 50
720p/ 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
1080p/ 23.98, 23.98sF, 24, 24sF, 25, 29.97, 30
1035i/ 59.94, 60
1080i/ 50, 59.94, 60
3G-SDI Inputs
3G – Level A and Level B
YCbCr, YCbCr+A, RGB, RGB+A
1080p/ 60, 59.94, 50
1080p/ 30, 29.97, 25, 24, 23.98, 30sF, 29.97sF, 25sF, 24sF, 23.98sF
1080i/ 60, 59.94, 50
9
MAIN MENU AND NAVIGATION
Access and navigate the main menu using the 4 menu buttons or the RotoMenu™knob:
Using the menu buttons
• Press the MENU button to enter the main menu.
• Use the and buttons to scroll through the main menu or each submenu.
• Press the SELECT button to enter a submenu or choose a setting.
• Press the MENU button to exit the main menu, or return to the main menu from a submenu.
Using the RotoMenu knob
• Press the RotoMenu™knob to enter the main menu.
• Rotate the knob to scroll up or down in the main menu or each submenu.
• Press the RotoMenu™knob to enter a submenu or choose a setting.
The menu automatically times out after 15 seconds of being idle.
Main Menu
10
MARKER SETUP SUBMENU
Use the Marker Setup submenu to select various types of markers and settings in 4:3, 16:9, or Full Screen mode.
■Marker Enable
The Marker Enable setting turns 16:9 or 4:3 screen markers On or Off. By default, this setting is On. If you turn the setting OFF,
the markers are automatically turned ON the next time you initiate a Screen Marker through a Function Button or through the
Marker submenu.
■16:9 Markers
Use this setting to superimpose one of 10 markers on the screen when in 16:9 or Full Screen mode. This setting is disabled when
the aspect ratio is set to 4:3, or when Pixel-to-Pixel mode is enabled. Note that in Full Screen mode, markers are vertically
stretched along with the picture to fit the 16:10 screen.
• Off (No Marker)
• 95% Safe Area
• 93% Safe Area
• 90% Safe Area
• 88% Safe Area
• 80% Safe Area
• 1.85:1 Aspect Ratio
• 2.35:1 Aspect Ratio
• 4:3 Aspect Ratio
• 14:9 Aspect Ratio
• 13:9 Aspect Ratio
16:9 Marker Examples:
Marker Setup Submenu
OFF (No Marker) 90% Safe Area
