Marshall Electronics V-MD702 Manual de usuario

Marshall Electronics

Model No.

V-MD702

Dual 7” Rack Mount Monitor

Operating Instructions

V-MD702 Operating Instructions

Product Overview

Marshall Electronics proudly presents the MD series of rack mount monitors that offer a flexible modular solution to

system integration. These new rack-mountable monitors can be configured with a variety of video inputs that can

be "swapped" or interchanged in the field based on your evolving needs and requirements. This eliminates the

need to upgrade or replace equipment when a different input or application is required. This "future proof" solution

provides flexibility and reassurance when necessary, especially in multi-monitor rack mount units.

Table of Contents

Product Overview 2

Installation and Accessories 3

Dimensions 3

Monitor Rear 6

Compatible Input Formats 7

Menu and Navigation 8

Video Configuration Submenu 8

Marker Configuration Submenu 11

Filter Configuration Submenu 14

System Configuration Submenu 15

Function Presets Submenu 16

IMD & Tally Configuration 17

System Information Submenu 18

Network Configuration Submenu 18

Network Control Page 20

Status Tab 20

Menu 21

Network Configuration 29

Specifications 33

Maintenance 34

Warranty 34

V-MD702 Operating Instructions

Installation and Accessories

Carefully unpack the V-MD702 monitor and verify that the following items are included:

• V-MD702 Monitor

• V-PS12-5V-1 Twist Lock Connector

• Operating Instructions

Inspect the unit for any physical damage that may have occurred during shipping. Should there be any damage,

immediately call Marshall Electronics Customer Service at (800) 800-6608. If you are not located within the

continental United States, call +1 (310) 333-0606.

Dimensions

V-MD702 Operating Instructions

V-MD702 Monitor

Monitor Keypad

Tally LED

Modular / Video

Inputs

Tally / Ethernet /

Power

V-MD702 Operating Instructions

Monitor Front

[Power]

Turn the monitor off or on by pressing the power

button. The LED on the power button is at full

illumination when the monitor is OFF.

[Input Select]

Use the Input Select buttons to change the video

input to display. The S1 slot is reserved for any

of the available MD Series modules.

[F1 – F2 – F3 – F4]

Four user-definable function buttons can be used

for direct access to various settings. Functions

are assigned using the on-screen menu

Menu Buttons

Use the Menu, ▲, ▼, and Select buttons to

display and navigate the on-screen menu.

[BRIGHT, COLOR , TINT

CONTRAST]

The BRIGHT, COLOR, TINT and CONTRAST

buttons function as Image Adjustment buttons.

The status of each image adjustment parameter

is shown on the top left of the screen, with values

ranging from 0 to 100.

Note: The TINT function is only available for

NTSC VIDEO signals.

Monitor Number

This silkscreened number will indicate the panel

number on the V-MD system.

POWER

LED Tally

Buttons

–

BRIGHT - COLOR – TINT – CONTRAST

Monitor

Number

Input Select

V-MD702 Operating Instructions

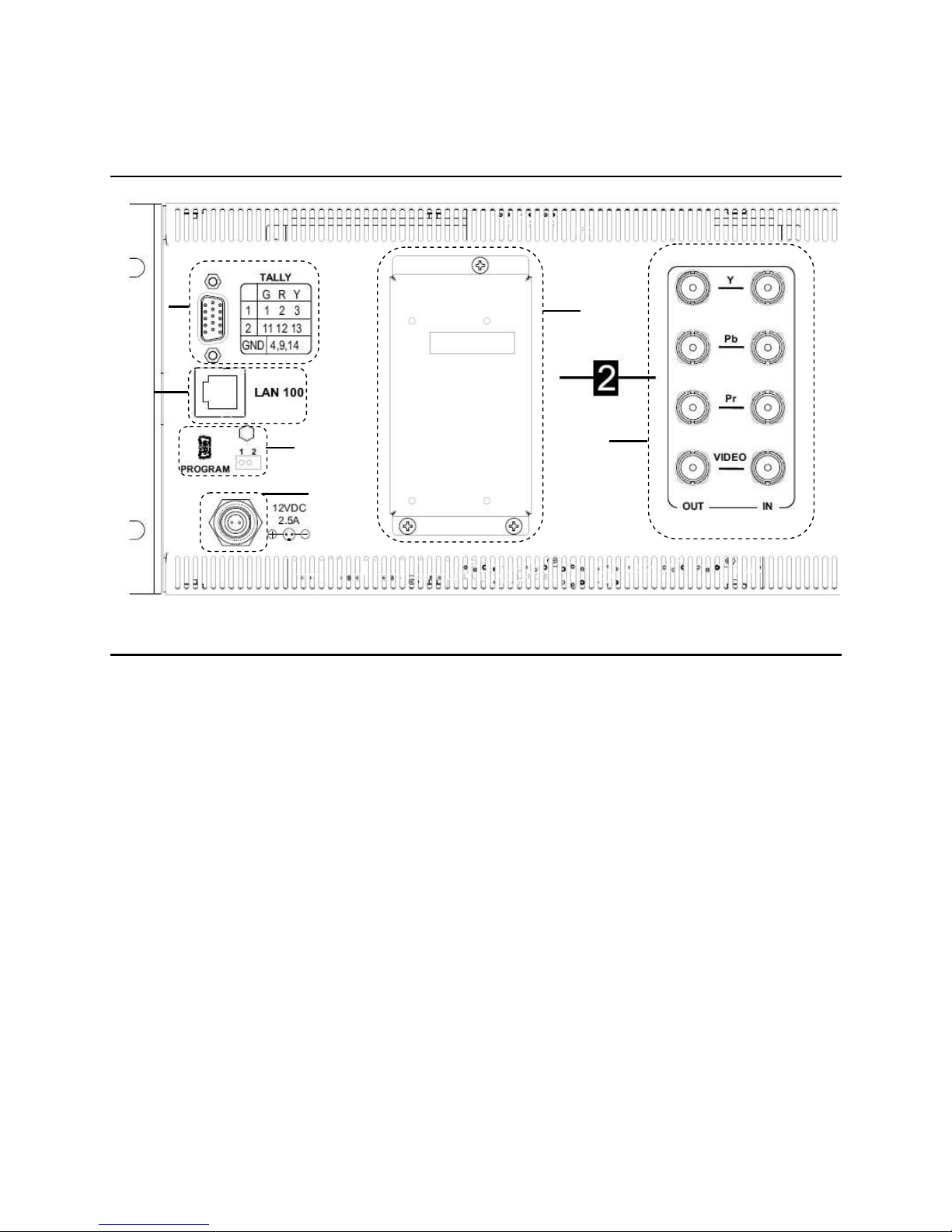

Monitor Rear



Tally Connector

The LED tally can be activated via the HD-15

connector by connecting the corresponding pin to

ground. A variety of external devices can be

used to perform the contact closure. No

additional power should be supplied to the HD-15

port.



Network Port

The Network Port is used to access the Network

Control Page for the V-MD702 monitor. Use a

regular RJ45 Ethernet cable to connect the V-MD

monitor to your network. Please see the

Network Configuration Submenu section of

this manual for further connection details.



Service Connector

This is for factory and Upgrade use ONLY.

Please contact Marshall Electronics for further

information on upgrading the V-MD monitor.

This, along with the Monitor 1 / Monitor 2 selector

allow you to control which monitor to service.

Please contact Marshall Electronics before any

attempted service to this monitor.



Power Input

Connect the 12 VDC input to the Twist-Lock

power input connector. Power can be supplied

from the included power supply or from a variety

of DC sources supplying at least 2.5 Amps at 12

Volts.

IMPORTANT: If using a power source other than

the included power supply, be sure that the

polarity of the DC input is correct:

Pin 1: +12 VDC

Pin 2: GND



Module Slot

The V-MD monitor comes with Module Slots for

Marshall Electronics’ line of future proof Input

Modules. Please contact Marshall Electronics for

a list of compatible Input Modules.



YPbPr / VIDEO Inputs

The V-MD monitor comes standard with VIDEO

and YPbPr analog inputs for each monitor

display.

Power Input

Tally Connector

Module

Slot

Network Port

Service Connector

YPbPr /

VIDEO

Inputs

V-MD702 Operating Instructions

Compatible Input Formats

The following standards are supported by the V-MD702 monitors and available input modules:

MD-3GSDI-B – 3G/HD/SDI Input Module

SD-SDI –

480i 59.94, 576i 50

HD-SDI –

720p (60 / 59.94 / 50 / 30 / 29.97 / 25)

1080i (60 / 59.94 / 50)

1080p (30 / 29.97/ 25 / 24 / 24sF/ 23.98 / 23.98sF)

3G-SDI – YCbCr (4:2:2) 10 Bit – Level A and B

1080p (60 / 59.94 / 50)

YCbCr/RGB (4:4:4) 10 Bit – Level A and B

1080i (60 / 59.94 / 50)

1080p (30 / 29.97 / 29.97sF / 25 / 25sF / 24 / 24sF / 23.98 / 23.98sF)

MD-HDSDIx2-B – Two-channel HDSDI Input Module with Switched Output

SD-SDI –

480i 59.94, 576i 50

HD-SDI –

720p (60 / 59.94 / 50 / 30 / 29.97 / 25)

1080i (60 / 59.94 / 50)

1080p (30 / 29.97/ 25 / 24 / 24sF/ 23.98 / 23.98sF)

V-MD702 Operating Instructions

Menu and Navigation

Access the main menu by pushing and holding the MENU button on the front panel of the monitor.

•Step through menu items using the ▲and ▼buttons.

•Choose a submenu or select a menu item by pressing SELECT.

•Return to the previous menu by pressing MENU.

•Exit the main menu by pressing MENU. The menu will automatically time out after 15 seconds.

Only unit screen 1 will have the Network Configuration option available. All network settings can be configured

from unit screen 1.

Video Configuration Submenu

V-MD702 Operating Instructions

■Color Temperature

Use this setting to choose one of three color temperature presets:

• D55 (5500K)

• D65 (6500K)

• D93 (9300K)

• USER (Adjustable Color Bias and Gain)

• Linear (No processing is applied to the panel)

Use this setting to enable monochrome mode. Only the luminance of the image will be displayed as a grayscale

picture.

■RGB Bias and Gain

Select this submenu to fine-tune the monitor’s color balance (R, G, B). This should only be done by someone

experienced with video engineering, as this will alter the overall color shading of the screen. The purpose is to

allow color matching to other types of monitors and/or displays. Note: The Color Temperature preset will

automatically switch to USER when Color Bias settings are adjusted. It is normal for color bias adjustments to

be very subtle.

When selecting the RGB Bias and Gain submenu, gain adjustment indicators will appear at the top of the

screen, and bias adjustment indicators will appear at the bottom of the screen:

Use the ▲and ▼buttons to select each individual bias or gain control. Press SELECT to begin adjusting the

control. Use the ▲and ▼buttons to increase or decrease the value.

Alternately, the image adjustment buttons (Brightness, Color, Tint, Contrast) can be used to easily adjust the bias

and gain settings as shown below. The buttons affect whichever row of controls (gain or bias) is currently selected.

■Check Field

Use the check field modes for monitor calibration or to analyze individual color components of an image. In

Monochrome mode, all color is disabled and only a grayscale image is shown. In Blue, Green, and Red check

field modes, only the selected color will be shown.

Use the following procedure when calibrating the monitor to SMPTE color bars with the following procedure:

1. Allow the monitor to warm up for at least 5-10 minutes.

2. Display SMPTE split-field color bars on the monitor using an external source.

3. Enable Monochrome mode.

4. Locate the pluge pattern (super black, black, and gray bars) at the lower-right corner of the screen. Adjust the Brightness

button until there is no visible difference between the super black and black bars, but the gray bar is still visible.

RGB Bias and Gain

V-MD702 Operating Instructions

5. Adjust the Contrast button until an even grayscale appears along the top bars.

6. Disable Monochrome mode.

7. Enable Blue Check Field mode and adjust the Color button so that the outermost bars (white and blue) appear to match in

brightness.

8. Composite NTSC only: Adjust the Tint button until the third bar from the left (cyan) and the third bar from the right (magenta)

appear to match in brightness.

9. Disable Blue Check Field mode.

■Ratio Settings

Use to switch between Full Screen, 4:3 and 16:9 aspect ratios.

As the V-MD702 monitor has a native resolution of 800 x 480 RGB pixels, incoming images are automatically

scaled to fit the screen:

• In Full Screen mode, images are scaled to fill the entire screen (800 x 480).

• In 4:3 mode, images are scaled to fill the center 4:3 portion of the screen (640 x 480). With a 16:9 source,

images will be centered with a black letter-box added on the left and right sides.

• In 16:9 mode, images are scaled to a 16:9 portion of the screen (800 x 450), with a black letter-box added

top and bottom.

Note: The aspect ratio setting is ignored when Pixel-to-Pixel mode is enabled.

■Pixel-to-Pixel

Use this setting to enable Pixel-to-Pixel mode.

This Pixel-to-Pixel mode bypasses the monitor’s internal scaling function and displays incoming images in their

native resolution and aspect ratio, with a one-to-one mapping:
