Marmitek IR CONTROL PRO 8 Manual de usuario

20177 / 20080901 • IR CONTROL PRO 8TM

ONTROL P

USER MANUAL 3

GEBRAUCHSANLEITUNG 9

GUIDE UTILISATEUR 15

MODO DE EMPLEO 21

MANUALE D’ISTRUZIONE 27

GEBRUIKSAANWIJZING 33

IR CONTROL PRO 8™

INFRARED EXTENDER SET

20177_20080901_UG_IR_CONTROL_PRO8_def 18-09-2008 10:55 Pagina 1

2© MARMITEK

20177_20080901_UG_IR_CONTROL_PRO8_def 18-09-2008 10:55 Pagina 2

SAFETY WARNINGS

• To prevent short circuits, this product should only be used inside and only in dry spaces.

Do not expose the components to rain or moisture. Do not use the product close to a

bath, swimming pool etc.

• Do not expose the components of your systems to extremely high temperatures or bright

light sources.

•

In case of improper usage or if you have altered and repaired the product yourself, all guarantees

expire. Marmitek does not accept responsibility in the case of improper usage of the product or

when the product is used for purposes other than specified. Marmitek does not accept

responsibility for additional damage other than covered by the legal product responsibility.

• Do not open the product: the device may contain live parts. The product should only be

repaired or serviced by a qualified repairman.

• Only connect the adapter to the mains after checking whether the mains voltage is the

same as the values on the identification tags. Never connect an adapter when it is

damaged. In that case, contact your supplier.

• This product is not a toy. Keep out of reach of children.

TABLE OF CONTENTS

INTRODUCTION 3

1. OPERATION 3

2. CONTENTS OF THE PACKAGE 4

3. INSTALLATION 4

4. FREQUENTLY ASKED QUESTIONS 6

5. TECHNICAL DATA 7

6. OPTIONAL ACCESSORIES 8

INTRODUCTION

Congratulated on buying the Marmitek Ir Control Pro 8. With it you can extend the IR (infrared) signals of

remote controls. The IR Control Pro 8 makes it possible to control up to 8 A/V devices while these are in a

closed cupboard or when your A/V equipment is out of sight. The IR Control Pro 8 is a universal IR

extender set and is exchangeable with several other IR products of Marmitek and many other makes.

1. OPERATION

The IR receiver of the IR Control Pro 8 receives the signal of your remote control and converts it into an

electric signal which is relayed to the IR module. Up to 8 IR LEDs can be connected to this module. These

IR LEDs make an IR signal of the electrical signal which is received by the IR sensor of your a/V apparatus.

All signals of your remote control are relayed one to one to all connected IR LEDs. If the IR receiver

receives a signal of your remote control it will light up so that you can check the system if it works

properly.

3IR CONTROL PRO 8TM

ENGLISH

20177_20080901_UG_IR_CONTROL_PRO8_def 18-09-2008 10:55 Pagina 3

2. CONTENTS OF THE PACKAGE

3. INSTALLATION

1. STATUS Connection for a STATUS power adapter (not supplied)

2. POWER Connection for the POWER power adapter (supplied)

3. (INPUT) Connection for max. 3 IR receiver(s) (1 x supplied)

4. (EMITTERS 1 till 4) Connection for max. 4 IR Extension cables with each 2 IR LEDs.

(2 x supplied)

5. Fastening holes for stable assembling of the IR Module on a smooth underground.

4© MARMITEK

V+

A. 1 x IR Module

B. 1 x IR Receiver

(with connector)

C. 2 x IR Extension cable

with 2 IR LEDs

D. 1 x Power adaptor

E. 1 x Manual

ABC

Picture 1

20177_20080901_UG_IR_CONTROL_PRO8_def 18-09-2008 10:55 Pagina 4

To check the proper working of the system it is advisable first to test the formation as

planned. For this reason connect everything as described as follows but don’t fix or screw the

components yet.

1. Install the IR Module at a place within reach behind or next to your A/V equipment and

near a 230V plug (230Volt/50Hz). Take into account the length of the cable of the IR

LEDs and make sure that the connections are kept accessible if possible.

Plug the required IR Extension cables (with the 2 IR LEDs) into the IR Module (Picture 1 nr. 4).

A self-adhesive foil is supplied with the IR LEDs. With that you can fasten the IR LEDs to

the IR window of your A/V equipment. Note: it’s tricky work. First test the position and

working of the IR LEDs before fixing them permanently to the IR window of your A/V

equipment. Note: If you use only one of the 2 LEDs, then leave the second IR LED

unused. Never remove it from the IR extension cable!

3. Now connect the IR Receiver to the IR Module, for your convenience the connection clip

has been connected to the wiring of the IR Receiver, take care when plugging in of the

correct position (nuts up) and colours of the wiring. When you have to disconnect the

wiring for instance because a connecting clip won’t go through a hole in the furniture,

connect afterwards the wiring to the clip according to the connection scheme in Picture 2.

4. Place the supplied IR receiver in such a way that it is visible for your infrared remote

control and if possible not in the vicinity of potential sources of disturbance like direct sun

light, TL lighting, energy saving lamps etc. The infrared LED indicator on the IR receiver

lights up or flashes when it receives an infrared signal. Use the LED indicator to place the

IR receiver in the place with the least interference (LED indicator is not activated or only

faintly lights up). Because of the supplied self-adhesive strip installation is possible almost

everywhere. Experiment for the correct place before you fix the IR receiver definitively.

Note: The adhesive strip can cause discoloration on certain surfaces or leave glue

remnants by removal.

5. Connect the power adapter to the ‘POWER’ connection of the IR module and plug the

adapter to a wall plug. (230V/50Hz). Check if the ‘POWER’ LED is on.

5IR CONTROL PRO 8TM

ENGLISH

V+

Picture 2

IR Module IR LEDs

(Max. 4 IR extender cables)

IR Receiver

(Max. 3)

09734 09733

V+ Black Black

G Black Black

ST - -

IR White White

20177_20080901_UG_IR_CONTROL_PRO8_def 18-09-2008 10:55 Pagina 5

TIP:

• With the help of the supplied IR Extension cables 4 A/V devices can be controlled with

the IR Module, which is simply to be extended to maximal 8 A/V devices with the help of

one ore two optional obtainable IR LEDs. (Art. Nr. 09843).

• With the help of an extra IR Receiver you can also control your A/V equipment from

another place (if desired you can extend the connection cable of the IR receiver.)

- built-in IR receiver Art. nr. 09733

- built-on IR receiver Art. nr. 09734

STATUS CONNECTION (Power adapter not supplied)

You can send a Power Status signal to the IR module by connecting a Power adapter to this

connection (not supplied; 12VDC/200mA), which is switched by the device to be controlled.

When the A/V device or contact is switched in a LED will light up in the IR Module so that

you can see that the A/V device is switched in. (see picture 3).

4. FREQUENTLY ASKED QUESTIONS

The IR Receiver does not respond to signals of my remote control.

Observe the following directions:

• Check the connections, is the power adapter connected to the correct connection? This

must be connected to the ‘POWER’ connection, the green lamp will burn when the

power adapter is plugged in the plug.

• Both the built-in and the built-on IR Receiver has a reception sensibility of about 10

metres at an opening Angle of 90 degrees. Range is also dependent on the remote

control used. The IR reception indication LED in the IR Receiver will light up at reception

of an IR signal.

6© MARMITEK

V+

Picture 3

Power adapter 12V/200mA (optional)

Circuit power on back

of A/V equipment

230V/50Hz

20177_20080901_UG_IR_CONTROL_PRO8_def 18-09-2008 10:55 Pagina 6

• The IR Receiver does not work together with some A/V apparatus and models which use

a higher IR frequency like for instance Bang&Olufsen (B&O) .

• Sometimes it may be that the IR Receiver is troubled by so-called interference (direct

sunlight, TL lighting, energy saving lamps etc). In that case you ought to re-direct the IR

Receiver a bit for a better result.

Can I use the IR Receiver near a flat screen TV ?

Yes, sometimes it may happen that the IR receiver suffers some disturbance from the TV

screen. Then move the IR receiver in such a way that it is not in the direct radiation of the TV.

It is easy to test. The infrared LED indicator on the IR receiver lights up or flashes when it

receives an infrared signal. Use the LED indicator to place the IR receiver in the place with the

least interference (LED indicator is not activated or only faintly lights up).

Do you have questions that were not answered in the above mentioned ?

Then look at www.marmitek.com.

5. TECHNICAL DATA

IR Module

Feed POWER: 230VAC/50Hz, 12VC 500mA (supplied).

Feed STATUS: 12VDC 200mA. Plug, - 5.5 mm outside / + 2.1 mm

inside (not supplied).

IR LEDs connections: 4 x 3.5 mm jack plug (mono).

IR Receiver connection: 1 Connector for maximal 3 parallel connected receivers.

Dimensions: 85x49x24xmm (fastening points inclusive).

IR receiver built-on

Frequency range: 30-100 KHz.

IR reception range: ± 10 metres.

Length of cable: 2 metres, extendable to max 300 metres (UTP or equivalent).

IR receiver: Reception indication LED.

IR reception angle: 90° (+45°/-45° from centre).

Dimensions receiver bloc: 51x10x8mm.

IR receiver built-in (optional)

Frequency range: 30-100 KHz.

IR reception range: ± 10 metres

Length of cable: 2 metres, extendable to max 300 metres (UTP or equivalent).

IR receiver: Reception indication LED.

IR reception angle: 90°(+45°/-45° from centre)

Dimensions receiver: Diameter 11.7 mm - Drilling size 12 mm - Length 50 mm

Built-in depth 55 mm - Maximal thickness of material 40 mm.

7IR CONTROL PRO 8TM

ENGLISH

V+:

IR:

Black

White

V+:

IR:

Black

White

20177_20080901_UG_IR_CONTROL_PRO8_def 18-09-2008 10:55 Pagina 7

IR Extension cable

Connection: 3.5mm jack plug

IR LEDs: 2x IR LED

Length of cable: 3 metres (from plug to division 2m, from division to LED 1m).

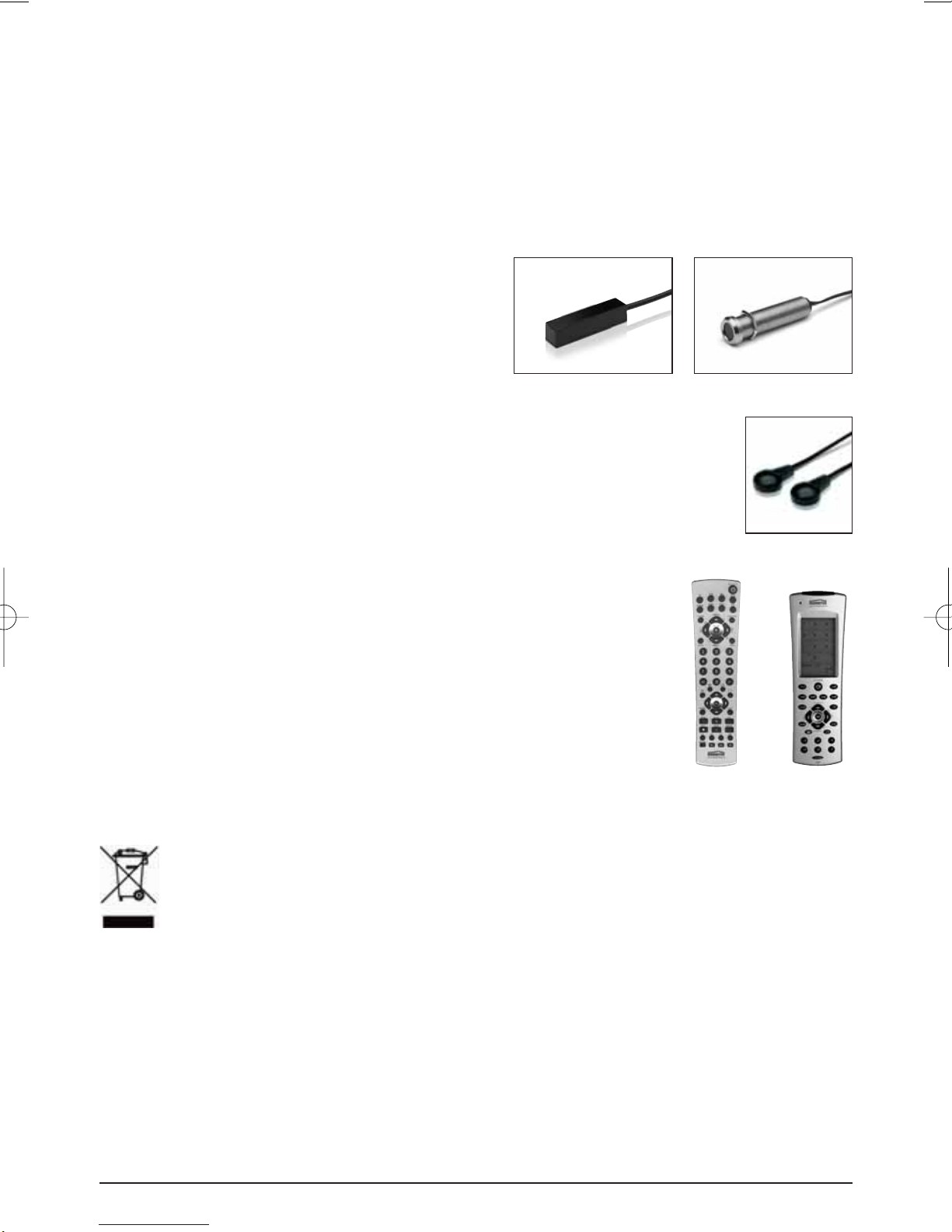

6. OPTIONAL ACCESSORIES

Extra IR receiver

Built-on Art.nr. : 09734

Panel Mount Art.nr.: 09733

With the help of an extra IR Receiver you can also

operate your A/V from another room. See for

more information www.marmitek.com.

Extra IR Extension cable Art.nr.: 09843

With the help of an extra IR extension cable you can operate 2 extra A/V

devices. (Extendable to maximal 8 A/V apparatus). See for more information

www.marmitek.com.

Marmitek EasyControl8™ Art.nr.: 09662

Marmitek EasyTouch35™ Art.nr.: 09664

With both universal remote controls you can control 8 A/V devices:

TV, video, DVD, cable, satellite, audio, Marmitek X10 and digital

satellite. Through pre-programmed codes and learner function they

work always. The EasyTouch35™ is provided with a convenient

Touchscreen with pale blue screen lighting. See for more information

www.marmitek.com.

Environmental Information for Customers in the European Union

European Directive 2002/96/EC requires that the equipment bearing this symbol on the product and/or its packaging

must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed

of separately from regular household waste streams. It is your responsibility to dispose of this and other electric and

electronic equipment via designated collection facilities appointed by the government or local authorities. Correct

disposal and recycling will help prevent potential negative consequences to the environment and human health. For more

detailed information about the disposal of your old equipment, please contact your local authorities, waste disposal service, or

the shop where you purchased the product.

8© MARMITEK

09733

09843

0966409662

09734

20177_20080901_UG_IR_CONTROL_PRO8_def 18-09-2008 10:55 Pagina 8

SICHERHEITSHINWEISE

• Um Kurzschluss vorzubeugen, dieses Produkt bitte ausschließlich innerhalb des Hauses und nur in

trockenen Räumen nutzen. Setzen Sie die Komponenten nicht Regen oder Feuchtigkeit aus. Nicht

neben oder nahe eines Bades, Schwimmbades usw. verwenden.

• Setzen Sie die Komponente Ihres Systems nicht extrem hohen Temperaturen oder starken

Lichtquellen aus.

• Bei einer zweckwidrigen Verwendung, selbst angebrachten Veränderungen oder selbst

ausgeführten Reparaturen verfallen alle Garantiebestimmungen. Marmitek übernimmt bei einer

falschen Verwendung des Produkts oder bei einer anderen Verwendung des Produktes als für den

vorgesehenen Zweck keinerlei Produkthaftung. Marmitek übernimmt für Folgeschäden keine

andere Haftung als die gesetzliche Produkthaftung.

• Dieses Produkt ist kein Spielzeug. Außer Reichweite von Kindern halten.

• Das Produkt niemals öffnen (ausgen.des Batteriefachs): Das Gerät kann Teile enthalten, worauf

lebensgefährliche Stromspannung steht. Überlassen Sie Reparaturen oder Wartung nur Fachleuten.

• Schließen Sie den Netzadapter erst dann an das Stromnetz an, nachdem Sie überprüft haben, ob

die Netzspannung mit dem auf dem Typenschild angegeben Wert übereinstimmt. Schließen Sie

niemals einen Netzadapter an, wenn diese beschädigt sind. In diesem Fall nehmen Sie Kontakt mit

Ihrem Lieferanten auf.

INHALTSANGABE

EINFÜHRUNG 9

1. BETRIEB 9

2. VERPACKUNGSINHALT 10

3. INSTALLATION 10

4. HÄUFIG GESTELLTE FRAGEN 12

5. TECHNISCHE DATEN 13

6. OPTIONAL ERHÄLTLICH 14

EINFÜHRUNG

Herzlichen Glückwunsch zum Erwerb des Marmitek IR Control Pro 8™. Mit diesem Set können

Sie IR (Infrarot-) Signale von Fernbedienungen verlängern. Das IR Control Pro 8™ Set ermöglicht

es, bis zu 8 A/V Geräte zu bedienen, während diese sich in einem geschlossenen Schrank oder

außer Sichtweite befinden. Das IR Control Pro 8™ ist ein universelles IR Verlängerungsset und mit

verschiedenen anderen Marmitek® IR Produkten und vielen anderen Marken austauschbar.

1. BETRIEB

Der IR Empfänger des IR Control Pro 8™ Sets empfängt das Signal Ihrer Fernbedienung und setzt

dieses in ein elektrisches Signal um, das an das IR Modul weitergegeben wird. An dieses Modul

können bis zu 8 IR LED angeschlossen werden. Diese IR LED wandeln das elektrische Signal wieder in

ein IR Signal um, was von dem IR Sensor Ihres A/V Geräts empfangen wird. Alle Signale Ihrer

9IR CONTROL PRO 8TM

DEUTSCH

20177_20080901_UG_IR_CONTROL_PRO8_def 18-09-2008 10:55 Pagina 9

Fernbedienung werden eins zu eins an alle angeschlossenen IR LED weitergegeben. Wenn der IR

Empfänger ein IR Signal Ihrer Fernbedienung empfängt, so wird diese aufleuchten sodass Sie das

System auf korrekten Betrieb kontrollieren können.

2. VERPACKUNGSINHALT

3. INSTALLATION

1. STATUS

Anschluss für einen STATUS Speisungsadapter

(nicht mitgeliefert).

2. POWER

Anschluss für den POWER Speisungsadapter

(mitgeliefert).

3. (INPUT)

Anschluss für max. 3 IR Empfänger (1x

mitgeliefert).

4. (EMITTERS 1 t/m 4)

Anschluss für max. 4 IR Verlängerungskabel mit

je 2 IR LED, (2x mit enthalten).

5. Befestigungslöcher für eine stabile Montage

des IR Moduls auf einem flachen Untergrund.

10 © MARMITEK

V+

A 1x IR Modul

B 1x IR Empfänger

(mit Connector)

C 2x IR Verlängerungskabel

mit 2 IR LED

D 1x Speisungsadapter

E 1x Gebrauchsanleitung

ABC

Abbildung 1

IR Modul

20177_20080901_UG_IR_CONTROL_PRO8_def 18-09-2008 10:55 Pagina 10

Tabla de contenidos

Idiomas:

Otros manuales de Extensor de Marmitek

Marmitek

Marmitek Powermid XS Manual de usuario

Marmitek

Marmitek VideoControl3 Manual de instrucciones

Marmitek

Marmitek GIGAVIEW 820 Manual de usuario

Marmitek

Marmitek MegaView 91 Manual de usuario

Marmitek

Marmitek MegaView 121 Manual de usuario

Marmitek

Marmitek POWERMID XL Manual de usuario

Marmitek

Marmitek GIGAVIEW 745 Manual de usuario

Marmitek

Marmitek IR CONTROL 8 Manual de usuario

Marmitek

Marmitek GigaVideo 580 Manual de instrucciones

Marmitek

Marmitek IR 100 USB Manual de usuario

Marmitek

Marmitek Invisible Control 6 XTRA Manual de usuario

Marmitek

Marmitek MegaView 65 Manual de usuario

Marmitek

Marmitek POWERMID XL Manual de instrucciones

Marmitek

Marmitek MegaView61 Manual de usuario

Marmitek

Marmitek IR 100 USB Manual de usuario

Marmitek

Marmitek MegaView70 Manual de usuario

Marmitek

Marmitek Megaview 80 Manual de usuario

Marmitek

Marmitek GIGAVIDEO 570 Manual de usuario

Marmitek

Marmitek MegaView 76 Manual de usuario

Marmitek

Marmitek Powermid XS Manual de usuario

Marmitek

Marmitek GIGAVIEW810 Manual de usuario

Marmitek

Marmitek Megaview60 Manual de usuario

Marmitek

Marmitek IR Control 10 XTRA Manual de usuario

Marmitek

Marmitek MegaView 60 Manual de usuario

Manuales populares de Extensor de otras marcas

SY HDBT-60T Manual de usuario

Appsys ProAudio

Appsys ProAudio ADX-16 Manual de usuario

Atlona

Atlona RS232 Manual de usuario

IDK

IDK OPF-TH1000-A Manual de usuario

Enable-IT

Enable-IT 824WP Manual de usuario

Worx

Worx Landroid RadioLink WA0864 Hoja de especificaciones

TP-Link

TP-Link TL-WA730RE Manual de usuario

Camplex

Camplex CMX-HDMI-SFPL Manual de usuario

SC&T

SC&T HE03-4K Manual de usuario

Samsung

Samsung SCS-26UC4 Manual de usuario

Foxun

Foxun SX-GES24 Manual de usuario

MuxLab

MuxLab 500771 Manual de usuario

foxunhd

foxunhd SX-AEX01 Manual de usuario

TERK Technologies

TERK Technologies LFIRX2 Manual de usuario

Devolo

Devolo Audio Extender Manual

Edimax

Edimax EW-7438RPn V2 Manual de usuario

Shinybow USA

Shinybow USA SB-6335T5 Manual de usuario

SECO-LARM

SECO-LARM ENFORCER EVT-PB1-V1TGQ Manual de usuario
