Marantz PM8003 Manual de usuario

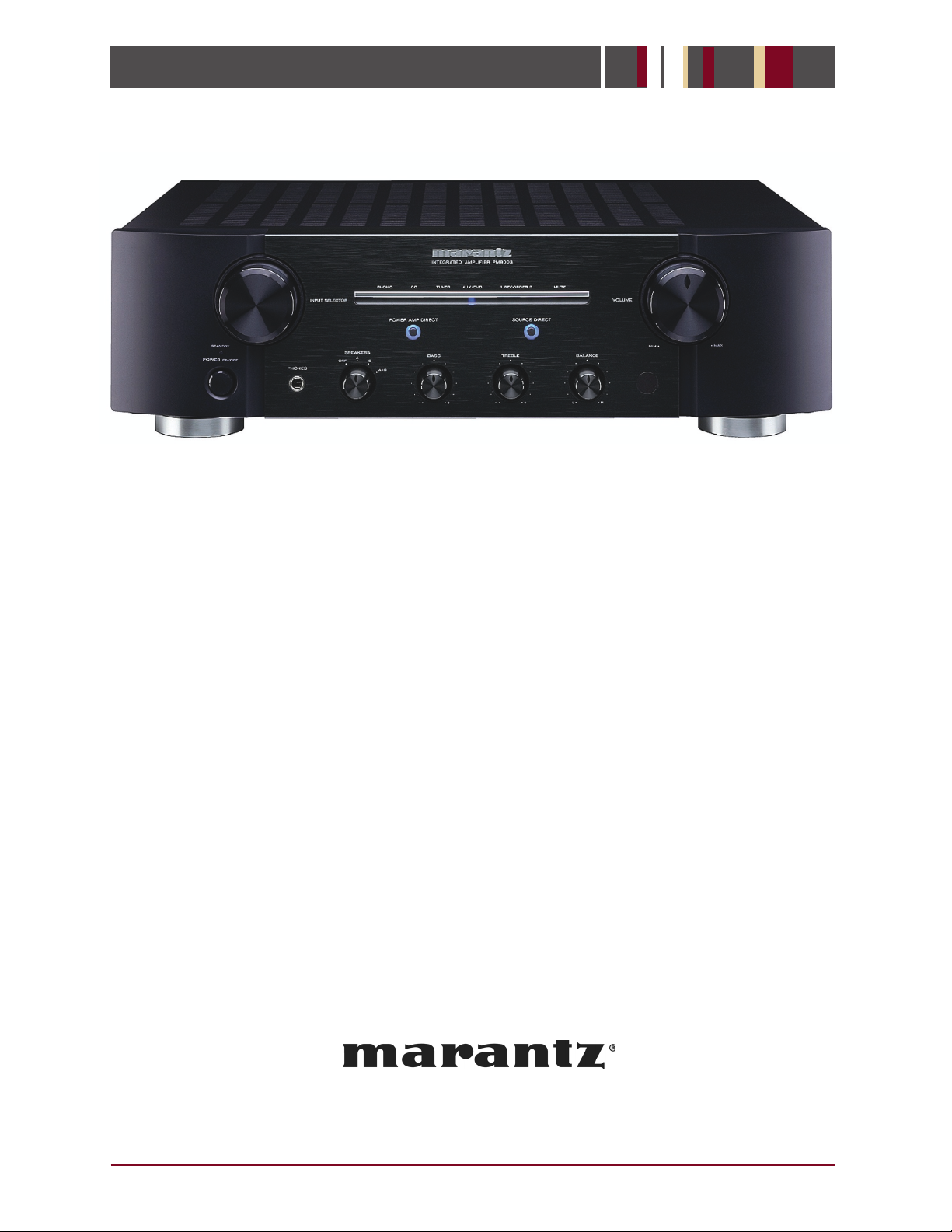

If the Marantz PM8003 were a boxer and not an integrated amplifier, it would automatically top the “best

pound-for-pound” ratings. That’s because it possesses a rare combination of power and finesse that results

in totally fulfilling music reproduction. From its elegant appearance to its refined circuitry, the PM8003 is

convincing to listen to and convenient to use. In short, it’s simply another Marantz legend in the making.

• Sophisticated new aluminum/reinforced resin front panel

• Fully discrete current-feedback amplifier

• Constant current feedback phono preamplifier

• High quality Headphone section

• Brand new HDAM-SA3 modules

• Double-shielded large capacity Toroidal power transformer

• Marantz-custom power supply capacitors

• Short signal path construction

• High instantaneous peak current capability

• Audiophile-grade semiconductors throughout

• Marantz original design custom speaker binding posts

• Power amp direct input & Pre Out

• Gold plated rear panel terminals

• Triple layer bottom chassis

PM8003

Integrated Amplifier

Life AmplifiedTM

PM8003

Integrated Amplifier

Life AmplifiedTM

*All specifications, dimensions and weights are subject to change without notice.

D&M Holdings, Marantz, Marantz America, Inc. or any of its subsidiaries will not assume any liability for errors in this spec sheet which may result in consequential errors

being made by retail dealers, designers, custom installers, cabinet makers or end users, etc based upon information contained within this document.

Power Amp Direct In: 1 / Pre Out: 1

MM (Constant Current Feedback Phono EQ circuit)

Unbalanced: 5

Unbalanced: 2

1/1

0/0

0.02% (20Hz – 20kHz, 2 channel driven, 8 ohms load)

PHONO:MM:2mV/47k ohms, LINE:200mV/20k ohms, Power Amp Direct In:1.6V/20k ohms

5Hz – 100kHz ±3dB (CD, 1W, 8 ohms load)

PHONO:MM:87dB, LINE:90dB, POWER AND DIRECT IN:106dB

70W (8 ohms), 100W (4 ohms)

HDAM-SA3

Double-shielded Toroidal Transformer

•

Newly Developed Marantz Original Custom x2 pair

Bass (50Hz): +/- 10dB, Treble (20kHz): +/- 10dB

•

Black

Aluminum/Glass-reinforced resin

Marantz System Remote Controller

AC120V 60Hz

200W (UL60065)

17-5/16 x 5-1/8 x 15

26.5

IN/OUTPUTS

AUDIO

Main In/Pre Out

Bridge Mono Mode/Bi-Amp Mode

Headphone Out

Phono Input

Analog L&R In

Analog L&R Out

OTHER

External control

D-Bus Remote (RC-5) In/Out

AC Outlets (Switched/Unswitched)

SPECIFICATIONS

THD

Input Sensitivity/Impedance

Frequency Response

S/N Ratio

Number of Channels

Output Power

HDAM

Power Transformer

Current Feedback Amplifier

Speaker Terminal

Tone Control

Source Direct

Speaker A/B

GENERAL

Color

Front Panel

Remote Control

Power Requirement

Power Consumption

Dimensions W x H x D (Inches)

Weight (lbs)
