Thank you for choosing a Marantz Pre

Tuner.

This guide provides step-by-step

instructions for setting up your Pre

Tuner.

Please do not return this unit to the

store – call for assistance.

If you need help… :

If you need additional help in solving

problems, contact Marantz customer

service in your area.

www.marantz.com

Welcome Before You Begin

Required for Setup

TV RCA cables XLR cables

HDMI cable Power ampliﬁer Speakers /

Speaker cables

Optional

LAN cable Wi-Fi router

• When connecting this unit to a device that is compatible with the Deep Color, 4K and ARC

functions, use a “High Speed HDMI cable with Ethernet” that displays the HDMI logo.

• These drawings are for illustrative purposes only and may not represent the actual product(s).

1. AV8805N_QSG_ENG_00A_1204.indd 1 2017/12/04 15:16:13

PrintingColor:Black

All manuals and user guides at all-guides.com

What’s In the Box

Quick Start Guide Power cord

Safety Instructions Sound calibration

microphone

Cautions on Using

Batteries

Sound calibration

microphone stand

Notes on radio Remote control unit

(RC039SR)

Cable labels R03/AAA batteries

Pre Tuner External antennas

for Bluetooth/

wireless connectivity

• The included sound calibration microphone stand is convenient for use

when performing Speaker Calibration. Using your own tripod or the supplied

Sound calibration microphone stand enables settings to be automatically

conﬁgured to the optimum listening environment, providing exceptionally

high performance.

1. AV8805N_QSG_ENG_00A_1204.indd 2 2017/12/04 15:16:14

PrintingColor:Black

All manuals and user guides at all-guides.com

Important: External Antennas

The removable external antennas are required for both

Bluetooth and Wireless network connectivity. Please make

sure to connect the antennas before attempting to use the

Bluetooth or Wi-Fi features of the AV8805.

nConnecting the external antennas for

Bluetooth/Wireless connectivity

For each of the two antennas:

qPlace the antenna evenly over the antenna terminal

located at the upper left or right corner of the rear panel.

wTurn the antenna clockwise until it is fully connected. Do

not over tighten.

eRotate the antenna upwards for the best possible

reception.

1CBL/SAT

2DVD

1CBL/SAT

3Blu-ray 6AUX2 7 CD

2CD

1TV

AUDIO

5MEDIA PLAYER

4GAME

5MEDIA PLAYER

2DVD

3Blu-ray 6CD

4GAME

1CBL/SAT

2DVD

3Blu-ray

4GAME

RS-232C

7.1CHIN

REMOTECONTROL

DCOUT

UNBALANCEDPRE OUT

(ASSIGNABLE)

(ASSIGNABLE) (ASSIGNABLE)

VIDEO

COMPONENTVIDEO

VIDEO

OUT

COMPONENT

VIDEOOUT

ARC

MONITOR1

MONITOR

MONITOR/ZONE3

ZONE2

3Blu-ray

MONITOR2

COAXIAL

OPTICAL

STRAIGHTCABLE

IN OUT

DC12V150mA MAX.

1 2

ZONE2 ZONE3

FRONTFRONT

SURROUND

CENTER

SUBWOOFER

SURROUNDBACK

CENTER

SURROUNDBACK

HEIGHT2

HEIGHT4/FRONTWIDE

HEIGHT1

AUDIOIN

(ASSIGNABLE)

(ASSIGNABLE) (ASSIGNABLE)

ASSIGNABLE ASSIGNABLE ASSIGNABLE ASSIGNABLE ASSIGNABLE

(ASSIGNABLE)

HDMIIN 4K / HDCP2.2 HDMIOUT 4K / HDCP2.2

BALANCEDXLR IN

BALANCEDXLR PRE OUT

FLASHER DIGITALAUDIO IN

1CBL/SAT

ACIN

NETWORK

POWERSUPPLY

5V/1.5A

CONNECTION

GND

HOT(+)

COLD(-)

HEIGHT3

FRONT CENTER SURROUND SURROUNDBACK HEIGHT1 HEIGHT2 HEIGHT3 HEIGHT4/FRONTWIDE

SUBWOOFER1 SUBWOOFER2

1 2

SUBWOOFER

Bluetooth/Wi-Fi

ANTENNA

Bluetooth/Wi-Fi

ANTENNA

SIGNAL

GND

TUNER

AUDIOIN

PHONO

AUDIOIN

q w e

1. AV8805N_QSG_ENG_00A_1204.indd 3 2017/12/04 15:16:14

PrintingColor:Black

All manuals and user guides at all-guides.com

1Installing batteries in the

remote control unit

Batteries

There are four steps to the setup

process.

1Installing batteries in the remote control unit

2Connecting the Pre Tuner, Power Ampliﬁer

and your TV

3Following the On-Screen Setup Assistant

4Downloading the Mobile Apps

Setup

1. AV8805N_QSG_ENG_00A_1204.indd 4 2017/12/04 15:16:15

PrintingColor:Black

All manuals and user guides at all-guides.com

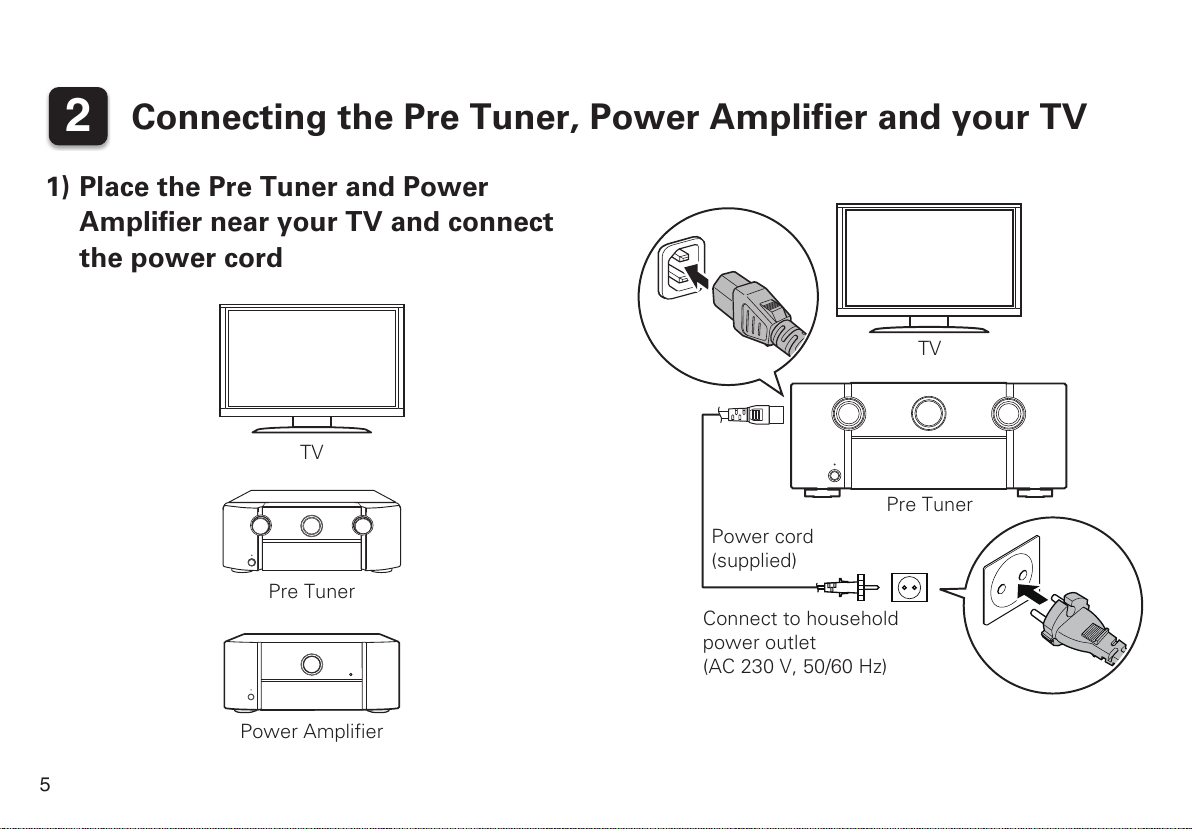

2Connecting the Pre Tuner, Power Ampliﬁer and your TV

1) Place the Pre Tuner and Power

Ampliﬁer near your TV and connect

the power cord

Pre Tuner

Power Ampliﬁer

Pre Tuner

Power cord

(supplied)

Connect to household

power outlet

(AC 230 V, 50/60 Hz)

1. AV8805N_QSG_ENG_00A_1204.indd 5 2017/12/04 15:16:16

PrintingColor:Black

All manuals and user guides at all-guides.com

all-guides.com

2) Connect the Pre Tuner to your home network

Wired LAN

Connect an Ethernet cable (not included) between your Pre

Tuner and your network router.

Router

To LAN port

Wireless LAN

When connecting to wireless LAN (Wi-Fi), follow the

instructions in “Connecting the external antennas for

Bluetooth/Wireless connectivity” and connect the antennas.

1. AV8805N_QSG_ENG_00A_1204.indd 6 2017/12/04 15:16:16

PrintingColor:Black

All manuals and user guides at all-guides.com

3) Connect the Pre Tuner to your TV

with an HDMI cable

(ARC)

HDMI IN

HDMI OUT

MONITOR1

(ARC)

ARC

MONITOR1

HDMI cable

Pre Tuner (Rear panel)

ARC (Audio Return Channel) :

If your TV supports ARC, your TV can send audio back to the Pre Tuner

when you are using your TV’s built-in video sources (TV tuner, Smart TV

streaming services, etc…) ARC requires that you enable HDMI CEC on

your TV. Please refer to your TV’s Owner’s Manual for instructions on how

to setup HDMI CEC. Note that some TV manufacturers use other names

for the HDMI CEC function.

4) Turn on the TV

TV remote control unit

5) Select the appropriate HDMI input on

your TV

HDMI

TV/

VIDEO

INPUT or

TV remote control unit

1. AV8805N_QSG_ENG_00A_1204.indd 7 2017/12/04 15:16:17

PrintingColor:Black

All manuals and user guides at all-guides.com
