QUICK START GUIDE
AV Preampli er
1.AV 10 U_ENG_QSG_220728.indd 11.AV 10 U_ENG_QSG_220728.indd 1 2022/07/28 17:36:372022/07/28 17:36:37
1
Scan the QR code or visit support.marantz.com/
for setup help, technical support, warranty assistance, or
customer support contact information.
Thank you for choosing a Marantz AV 10.
Use the Setup Assistant function to help congure the settings for this unit when you rst set it up.
Follow the guidance displayed on the TV screen connected to this unit to congure the settings.
This manual describes the procedure up until starting the Setup Assistant.
Welcome
Please do not return this product to the store.
If you need help...
1.AV 10 U_ENG_QSG_220728.indd 11.AV 10 U_ENG_QSG_220728.indd 1 2022/07/28 17:36:372022/07/28 17:36:37
2
EN
FR
ES
Before you begin
Required for setup
TV
HDMI® cable
RCA cables
XLR cables
or
Optional
LAN cable
Wi-Fi® router
or
Power amplier
Speakers /
Speaker cables
• When connecting this unit to a device that is compatible with the Deep Color, 4K, ARC and eARC functions, use a “High Speed HDMI cable with
Ethernet” that displays the HDMI logo.
• When connecting this unit to a device that is compatible with 8K and 4K 120Hz video, use a certied “Ultra High Speed HDMI cable”. If you use a
dierent HDMI cable, the video may not display or other problems may occur.
1.AV 10 U_ENG_QSG_220728.indd 21.AV 10 U_ENG_QSG_220728.indd 2 2022/07/28 17:36:382022/07/28 17:36:38
3

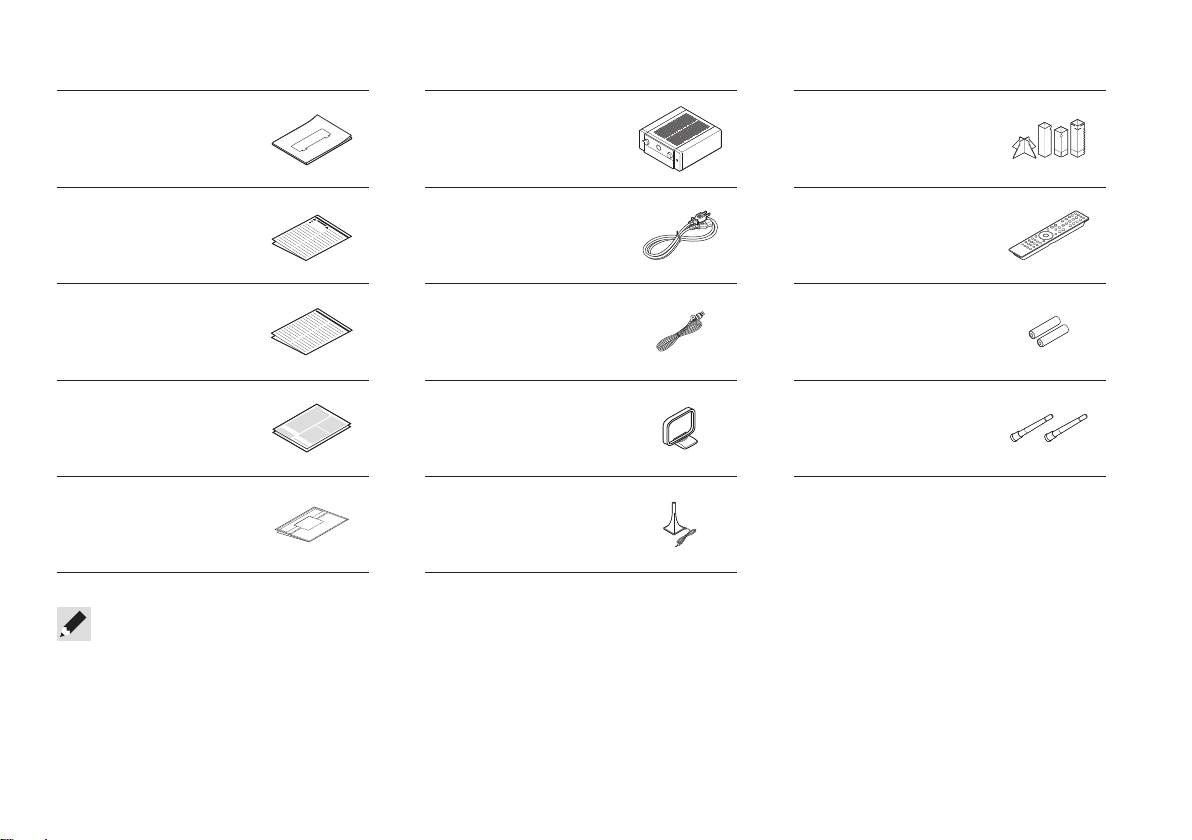

What’s in the box
Quick start guide AV 10 Sound calibration
microphone stand
Safety instructions Power cord Remote control
(RC047SR)
Notes on radio FM indoor antenna 2× R03/AAA batteries
Warranty
(for USA and Canada) AM loop antenna
External antennas for
Bluetooth®/wireless
connectivity
Cable labels Sound calibration
microphone
• The included sound calibration microphone stand is convenient for performing speaker calibration. Using your own tripod or the supplied sound
calibration microphone stand enables settings to be automatically con gured to the optimum listening environment, providing exceptionally high
performance.
1.AV 10 U_ENG_QSG_220728.indd 31.AV 10 U_ENG_QSG_220728.indd 3 2022/07/28 17:36:392022/07/28 17:36:39
4
EN
FR
ES
Attach the included cable labels
The supplied cable labels include labels for the speaker and HDMI cables.
Attach a cable label to each cable that matches the speakers and HDMI devices being connected, as shown below.
This makes it easy to identify and properly connect the cables between your components.
1.AV 10 U_ENG_QSG_220728.indd 41.AV 10 U_ENG_QSG_220728.indd 4 2022/07/28 17:36:392022/07/28 17:36:39
5
1) Place the antenna evenly over the antenna terminal located
at the upper left or right corner of the rear panel.
2) Turn the antenna clockwise until it is fully connected.
Do not over tighten.
3) Rotate the antenna upwards for the best possible
reception.
1) 2) 3)
Setup
Optional
If you are connecting the AV 10 to a wired network, connect an
Ethernet cable (not included) between the AV 10 and your router.
Do not connect the Ethernet cable if you are connecting the AV 10
to a wireless network.
Router
LAN port
Connect the antennas
• The antennas are required for both Bluetooth and Wi-Fi functions.
1.AV 10 U_ENG_QSG_220728.indd 51.AV 10 U_ENG_QSG_220728.indd 5 2022/07/28 17:36:392022/07/28 17:36:39
6
EN
FR
ES
TV
AV 10
Power ampli er
AV 10
Power cord
Place the AV 10 and power ampli er
near your TV
Connect the power cord
1.AV 10 U_ENG_QSG_220728.indd 61.AV 10 U_ENG_QSG_220728.indd 6 2022/07/28 17:36:392022/07/28 17:36:39
7
(ARC)
HDMI IN
HDMI OUT
MONITOR 1
(ARC/eARC)
ARC
MONITOR1
eARC
HDMI cable
AV 10 (Rear panel)
Using a high-quality HDMI cable*, connect one end to the HDMI
port labeled “eARC” or “ARC” on your TV. Connect the other end to
the HDMI OUT MONITOR 1 port on your AV 10.
What is ARC and eARC?
Audio Return Channel or “ARC” sends audio back to the AV 10
using the same HDMI cable that sends video from your AV 10 to
your TV. This allows your AV 10 to process the sound from your
TV’s built-in tuner and apps. TVs with an Enhanced Audio Return
Channel or “eARC” port provide additional support for high bitrate
multichannel audio (Dolby Atmos, Dolby TrueHD, DTS-HD and
DTS:X). Please refer to your TV owner’s manual for details about
eARC support for your particular model.
* For 4K TVs, we recommend using an HDMI cable labeled “High
Speed” and “with Ethernet” .
* For 8K TVs, we recommend using an HDMI cable labeled “Ultra
High Speed”.
Connect the AV 10 to your TV
1.AV 10 U_ENG_QSG_220728.indd 71.AV 10 U_ENG_QSG_220728.indd 7 2022/07/28 17:36:392022/07/28 17:36:39
8
EN
FR
ES
TV remote control
Turn on the TV Select the appropriate HDMI
input on your TV
HDMI
or
TV/
VIDEO
INPUT
TV remote control
1.AV 10 U_ENG_QSG_220728.indd 81.AV 10 U_ENG_QSG_220728.indd 8 2022/07/28 17:36:402022/07/28 17:36:40
9
• Press the power On/Standby button on the remote control.
Turn on the AV 10
Install batteries
in the AV 10 remote control
• Batteries can be taken out in reversed order.
1.AV 10 U_ENG_QSG_220728.indd 91.AV 10 U_ENG_QSG_220728.indd 9 2022/07/28 17:36:402022/07/28 17:36:40
