HI-SPEED

USB 2.0

SVGA

CONVERTER

USER

MANUAL

MODEL 179119

MAN-179119-UM-0608-01

Thank you for purchasing the MANHATTAN®Hi-Speed USB 2.0 SVGA

Converter, Model 179119.

Designed to help increase productivity, improve desktop arrangements

and extend the visual work area across dual monitors, this device

makes word processing, editing and multi-tasking more effective with

less-overlapped windows, fewer hidden palettes and better-organized

views. Users can read e-mail on one monitor and open attachments

on the other. Large, complicated spreadsheets can be expanded and

viewed without scrolling.

Presentations are made more compelling with another monitor for more

impact or viewing speaker notes on a separate display. The MANHATTAN

Hi-Speed USB 2.0 SVGA Converter supports resolutions of up to 1280

x 1024 in 16-bit or 32-bit color, and its 16 MB SDRAM memory easily

enhances the workspace without complicated installations or expensive

equipment.

The easy-to-follow instructions in this user manual help make setup and

operation relatively simple, so you’ll soon be enjoying the benets of

these additional features:

• Primary, extended and mirror functions provide display continuity and

dual views

• Portable and connects to any USB port without conicts or external

power supplies

• Plug and Play; Windows compatible

• Lifetime Warranty

System Requirements

• Compatible with Windows 2000/XP/Vista and Win CE (with host

device support)

• Available Hi-Speed USB 2.0 port

Package Contents

• Hi-Speed USB 2.0 SVGA Adapter

• Quick install guide and driver CD with user manual

SAFETY & COMPLIANCE STATEMENTS

FCC

This equipment has been tested and found to comply with FCC Part 15

Subpart B § 15.109/15.107 Class B. Operation is subject to the following

two conditions: 1) This device may not cause harmful interference; and

2) this device must accept any interference, including interference that

may cause undesired operation of the device.

This equipment is in compliance with the requirements of the following

regulations: EN 55022 Class B (2006); EN 55024 (1998+A1:2001+

A2:2003), (IEC/EN 61000-4-2 [1995+A1:1998+A2:2001)/-3(2006]).

C-Tick

This equipment is in compliance with the requirements of the following

regulations: EN 55022 (2006) Class B, AS/NZS CISPR22 © IEC: 2005.

VCCI

This equipment is in compliance with the requirements of the following

regulations: CISPR22 © IEC: 2005.

DRIVER INSTALLATION

Installing the device driver enables your computer’s operating system

to recognize the Hi-Speed USB 2.0 SVGA Converter once it’s connected.

Check your operating system and refer to the appropriate installation

procedure below to begin installing the device driver. IMPORTANT:

• Unplug

the Hi-Speed USB 2.0 SVGA Converter from your PC or

notebook before executing any setup or un-install program.

• Make sure you connect the display device to the VGA (DB15)

connector of the

Hi-Speed USB 2.0 SVGA Converter

and switch it

on before plugging the converter into an available USB 2.0 port on

your PC or notebook.

WindoWs 2000/XP

1. Insert the enclosed driver CD into the CD-ROM drive. The setup

program should be launched automatically; if not, go to Start, then

Run, and then double-click “D:\Setup.exe” (where D: is the path of

your CD-ROM drive).

When the InstallShield

Wizard welcome screen

displays, click “Next” to

continue.

3. When the License

Agreement screen

displays, read it and

select “I accept the

terms of the license

agreement.” Click

“Next” to continue.

4. When the

InstallShield Wizard

Complete screen

displays, select “Yes,

I want to restart my

computer now.”

Click “Finish” to

complete the driver

installation.

5. Connect the external display device (monitor/projector) to the VGA

(DB15) connector of the

Hi-Speed USB 2.0 SVGA Converter

and

switch it on.

6. After rebooting the computer, plug the converter into an available

USB 2.0 port on your PC or notebook. The extended display will be

shown on the second display device.

Verifying Driver Installation (2000/XP)

On the desktop, right-click My Computer → Properties → Hardware →

Device Manager; then double-click “Display adapters” and “Universal

Serial Bus controllers.”

“Universal Serial Bus controllers” should feature:

• “USB 2.0 Graphics Card”

“Display adapters” should feature:

• “USB 2.0 Graphics Card-Extend”

• “USB2.0 Graphics Card-Mirror”

Driver Un-Install (2000/XP)

1. On the desktop,

go to Start →

Settings (Classic

start menu) →

Control Panel →

Add or Remove

Programs.

2. Select “USB 2.0

Graphics Card

(Trigger) (driver

version number)”

and click

“

Remove.”

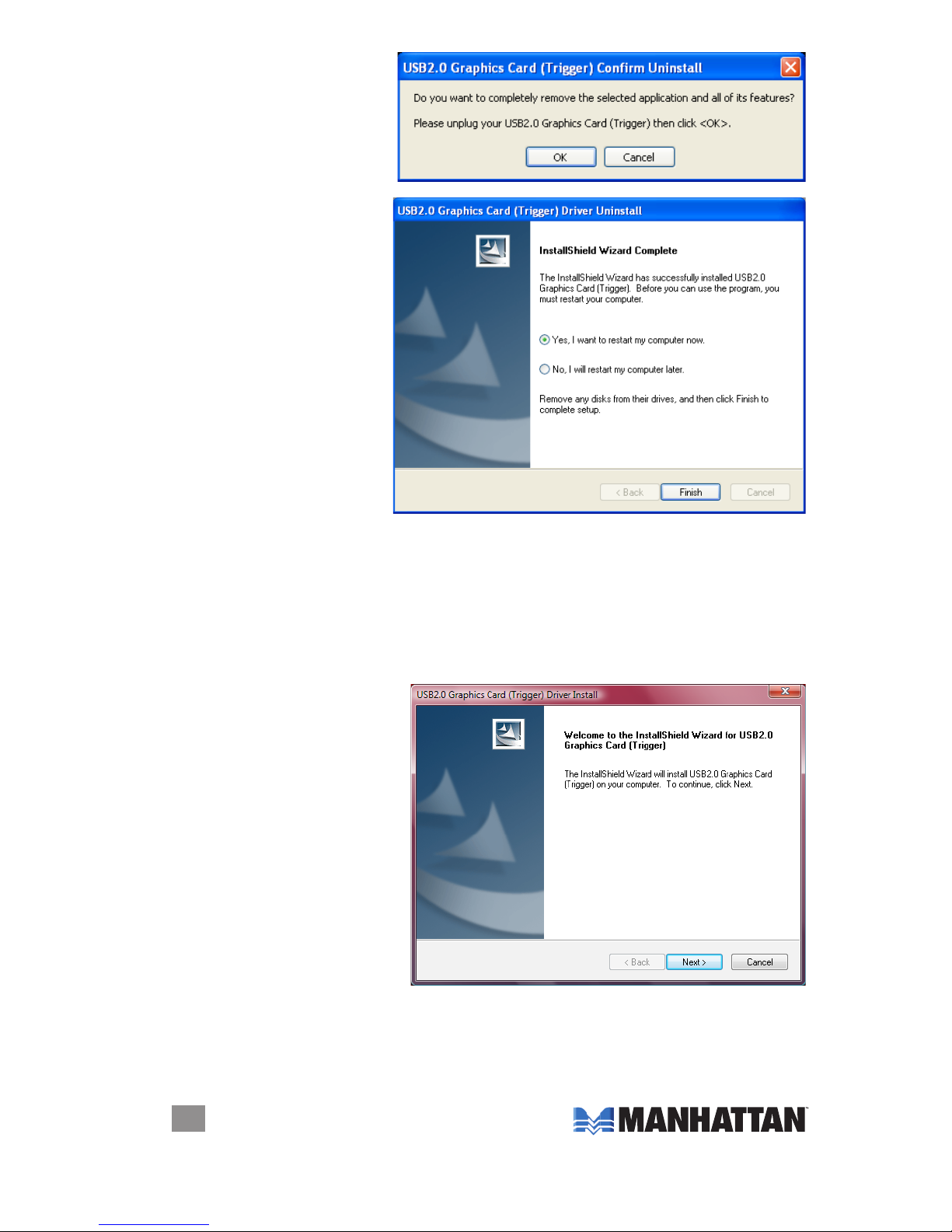

3. Disconnect the Hi-

Speed USB 2.0

SVGA Converter and

click “OK” to continue.

4. Select “Yes, I want to

restart my computer

now” and click

“Finish” to reboot.

After rebooting,

the driver un-install

procedure will be

complete.

WindoWs Vista

1. Insert the enclosed driver CD into the CD-ROM drive. The setup

program should be launched automatically; if not, go to Start, then

Run, and then double-click “D:\Setup.exe” (where D: is the path of

your CD-ROM drive).

When the InstallShield

Wizard welcome

screen displays, click

“Next” to continue.

3. When the License

Agreement screen

displays, read it and

select “I accept the

terms of the license

agreement.” Click

“Next” to continue.

4. The Hi-Speed USB 2.0

SVGA Converter is

conguring your new

software installation...

... and is searching for

installed features.

5. Select “Yes, I want to

restart my computer

now” and click

“Finish” to complete

the driver installation.

6. After rebooting the computer, plug the

Hi-Speed USB 2.0 SVGA

Converter

into an available USB 2.0 port on your PC or notebook.

The extended display will be shown on the second display device.

Verifying Driver Installation (Vista)

On the desktop, right-click My Computer → Properties → Device

Manager; then double-click “Display adapters” and “Universal Serial

Bus controllers.”

“Universal Serial Bus controllers” should feature:

• “USB 2.0 Graphics Card”

“Display adapters” should feature:

• “USB 2.0 Graphics Card-Extend”

• “USB2.0 Graphics Card-Mirror”

Driver Un-Install (Vista)

1. On the desktop,

go to Start →

Control Panel

→ Programs

and Features.

2. Select “USB 2.0

Graphics Card

(Trigger)

(driver version

number)” and click

“

Uninstall.”

3. Disconnect the Hi-

Speed USB 2.0

SVGA Converter and

click “OK” to continue.

4. Select “Yes, I want

to restart my

computer now” and

click “Finish” to

reboot. After

rebooting, the

driver un-install

procedure will be

complete.

FUNCTIONS

The Hi-Speed USB 2.0

SVGA Converter works

with LCD or CRT

monitors. Click the UVT

icon to choose one of

three modes: Primary,

Extended and Mirror

(plus an Off option).

Clicking the UVT icon also

provides access to the

Resolution options, which

can be changed here or by

going to Display Properties/

Settings.

NOTE: All Windows 2000/

XP/Vista resolution settings

are formatted with a 4:3

aspect ratio except for

1280 x 1024, which is 5:4.

(1024 x 768 is the best

choice for viewing DVDs.)

Win CE settings are also

4:3 except for 800 x 480,

which is 15:9.

Primary mode

The system’s main graphics adapter will automatically switch to act

as the secondary graphics adapter, and the main screen will now

work as the extended desktop. The monitor that’s connected to the
