Manhattan 179225 Manual de usuario

HI-SPEED USB 2.0

SVGA CONVERTER

USER MANUAL

MODEL 179225

MAN-179225-UM-0513-06

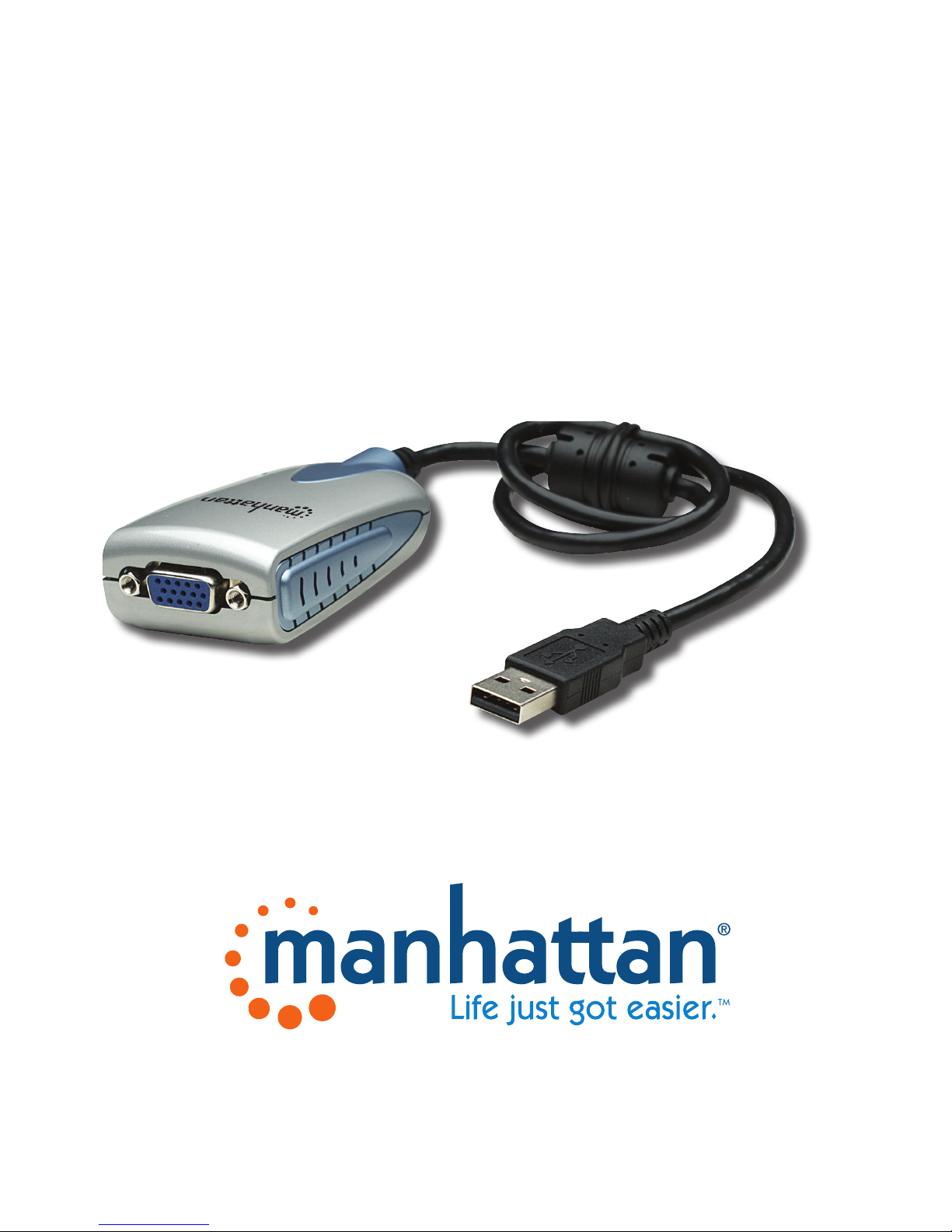

Thank you for purchasing the Manhattan®Hi-Speed USB 2.0 SVGA

Converter, Model 179225.

Designed to help increase productivity, improve desktop arrangements

and extend the visual work area across dual monitors, this device

makes word processing, editing and multi-tasking more effective with

less-overlapped windows, fewer hidden palettes and better-organized

views. Users can read e-mail on one monitor and open attachments

on the other. Large, complicated spreadsheets can be expanded and

viewed without scrolling.

Presentations are made more compelling with another monitor for more

impact or viewing speaker notes on a separate display. The Manhattan

Hi-Speed USB 2.0 SVGA Converter supports resolutions of up to 1600

x 1200 in 16-bit or 32-bit color, and its 16 MB DDRAM memory easily

enhances the workspace without complicated installations or expensive

equipment.

The easy-to-follow instructions in this user manual help make setup and

operation relatively simple, so you’ll soon be enjoying the benets of

these additional features:

• Software manages up to 6 converters – easily add up to 6 displays to

a single PC

• Primary, extended and mirror functions provide display continuity and

dual views

• Portable and connects to any USB port without conicts or external

power supplies

• Windows compatible

• Lifetime Warranty

System Requirements

• Windows 2000/XP/Vista/7/8

• Available Hi-Speed USB 2.0 port

Package Contents

• Hi-Speed USB 2.0 SVGA Converter

• Quick install guide and driver CD with user manual

SAFETY & COMPLIANCE STATEMENTS

FCC

This equipment has been tested and found to comply with FCC Part 15

Subpart B § 15.109/15.107 Class B. Operation is subject to the following

two conditions: 1) This device may not cause harmful interference; and

2) this device must accept any interference, including interference that

may cause undesired operation of the device.

This equipment is in compliance with the requirements of the following

regulations: EN 55022 Class B (2006); EN 55024 (1998+A1:2001+

A2:2003), (IEC/EN 61000-4-2 [1995+A1:1998+A2:2001)/-3(2006]).

C-Tick

This equipment is in compliance with the requirements of the following

regulations: EN 55022 (2006) Class B, AS/NZS CISPR22 © IEC: 2005.

VCCI

This equipment is in compliance with the requirements of the following

regulations: CISPR22 © IEC: 2005.

DRIVER INSTALLATION

Installing the device driver enables your computer’s operating system

to recognize the Hi-Speed USB 2.0 SVGA Converter once it’s connected.

Check your operating system and refer to the appropriate installation

procedure below to begin installing the device driver. IMPORTANT:

• Unplug

the Hi-Speed USB 2.0 SVGA Converter from your PC or

notebook before executing any setup or un-install program.

• Make sure you connect the display device to the VGA (HD15)

connector of the

Hi-Speed USB 2.0 SVGA Converter

and switch it

on before plugging the converter into an available USB 2.0 port on

your PC or notebook (see Steps 6 and 7 below).

WindoWs 2000/XP

1. Insert the enclosed driver CD into the CD-ROM drive. The setup

program should be launched automatically; if not, launch setup.exe

from your CD drive manually.

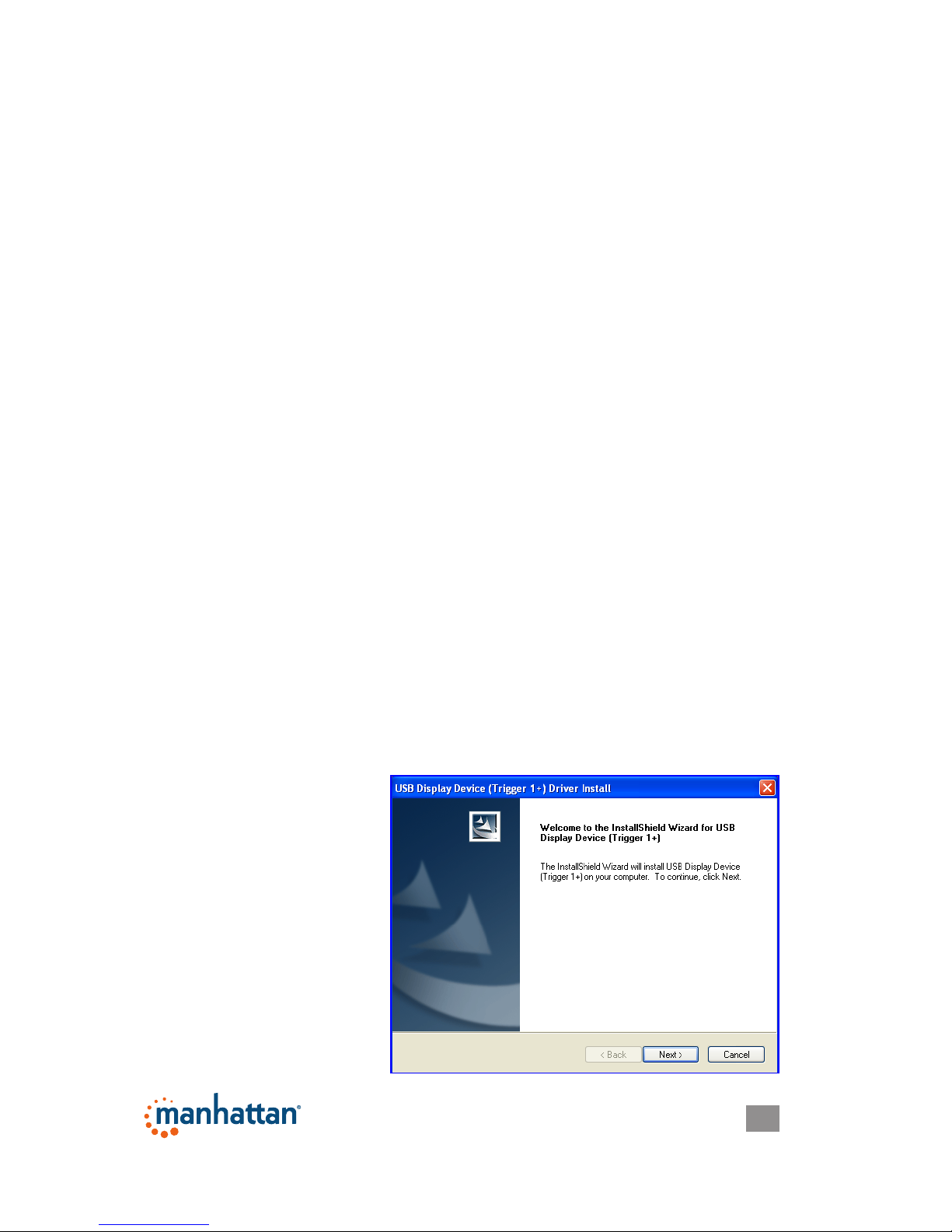

When the InstallShield

Wizard welcome screen

displays, click “Next” to

continue.

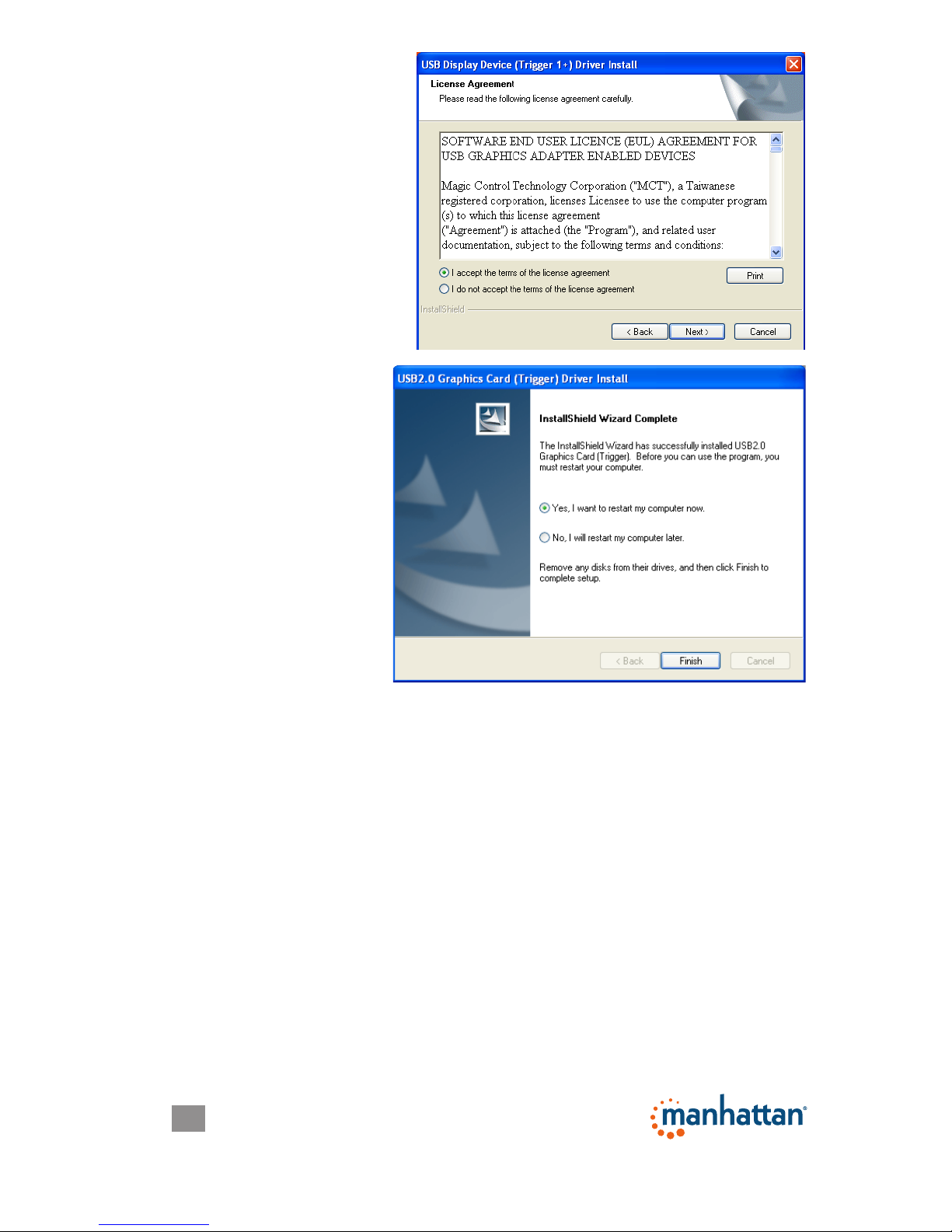

3. When the License

Agreement screen

displays, read it and

select “I accept the

terms of the license

agreement.” Click

“Next” to continue.

4. When the

InstallShield Wizard

Complete screen

displays, select “Yes,

I want to restart my

computer now.”

Click “Finish” to

complete the driver

installation.

5. Connect the external display device (monitor/projector) to the VGA

(DB15) connector of the

Hi-Speed USB 2.0 SVGA Converter

and

switch it on.

6. After rebooting the computer, plug the converter into an available

USB 2.0 port on your PC or notebook. The extended display will be

shown on the second display device.

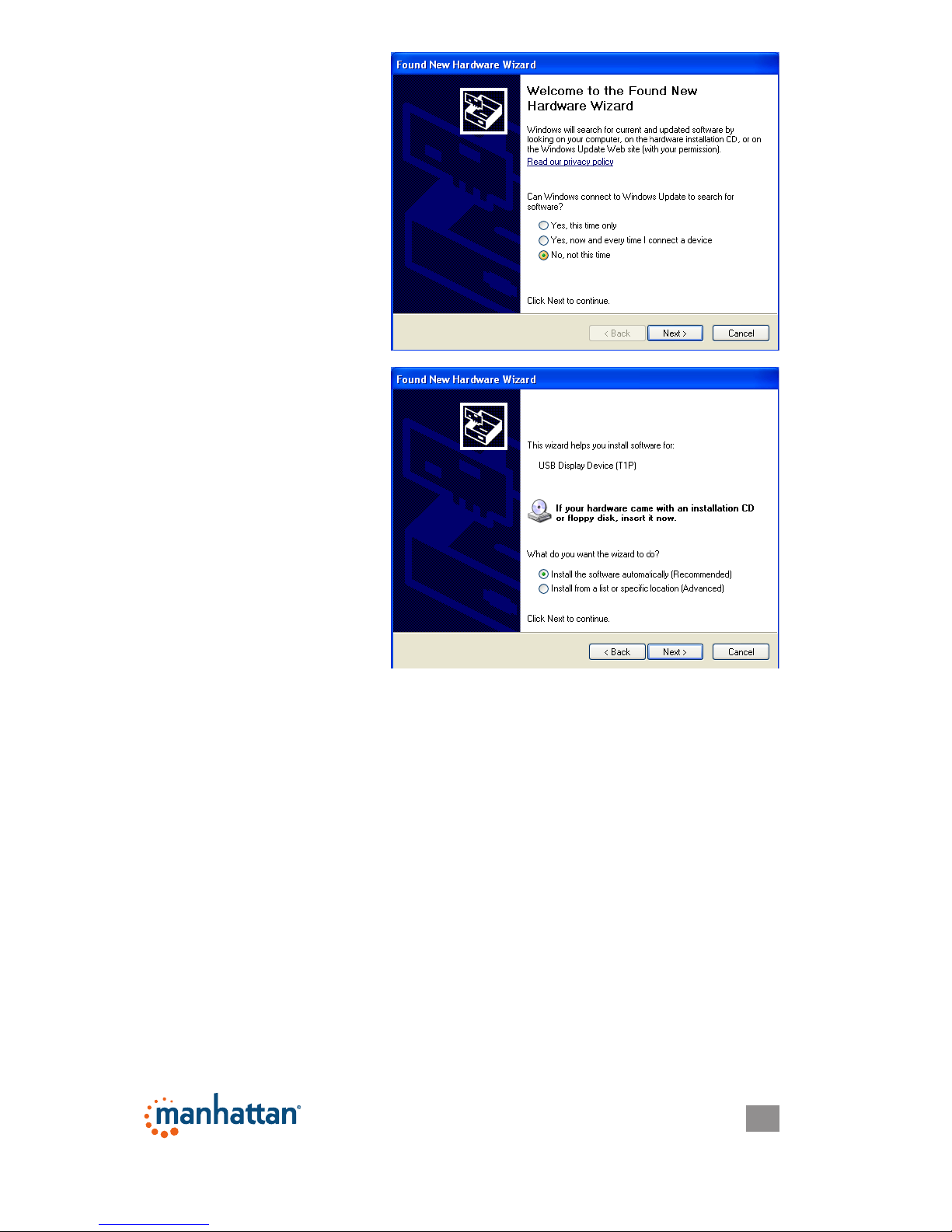

7. When the Welcome

to the Found New

Hardware Wizard

screen displays, select

“no, not this time” and

click “Next.”

8. On the subsequent

screen, select “Install

the software automatically

(Recommended)” and

click “Next.”

9. When the Completing the Found New Hardware Wizard screen

displays, click “Finish” to complete the procedure.

NOTE: To install additional

converters using Windows 2000 or XP, plug

each device into an available USB 2.0 port on the PC or notebook and

repeat Steps 7 – 9. After rebooting, the extended displays will appear.

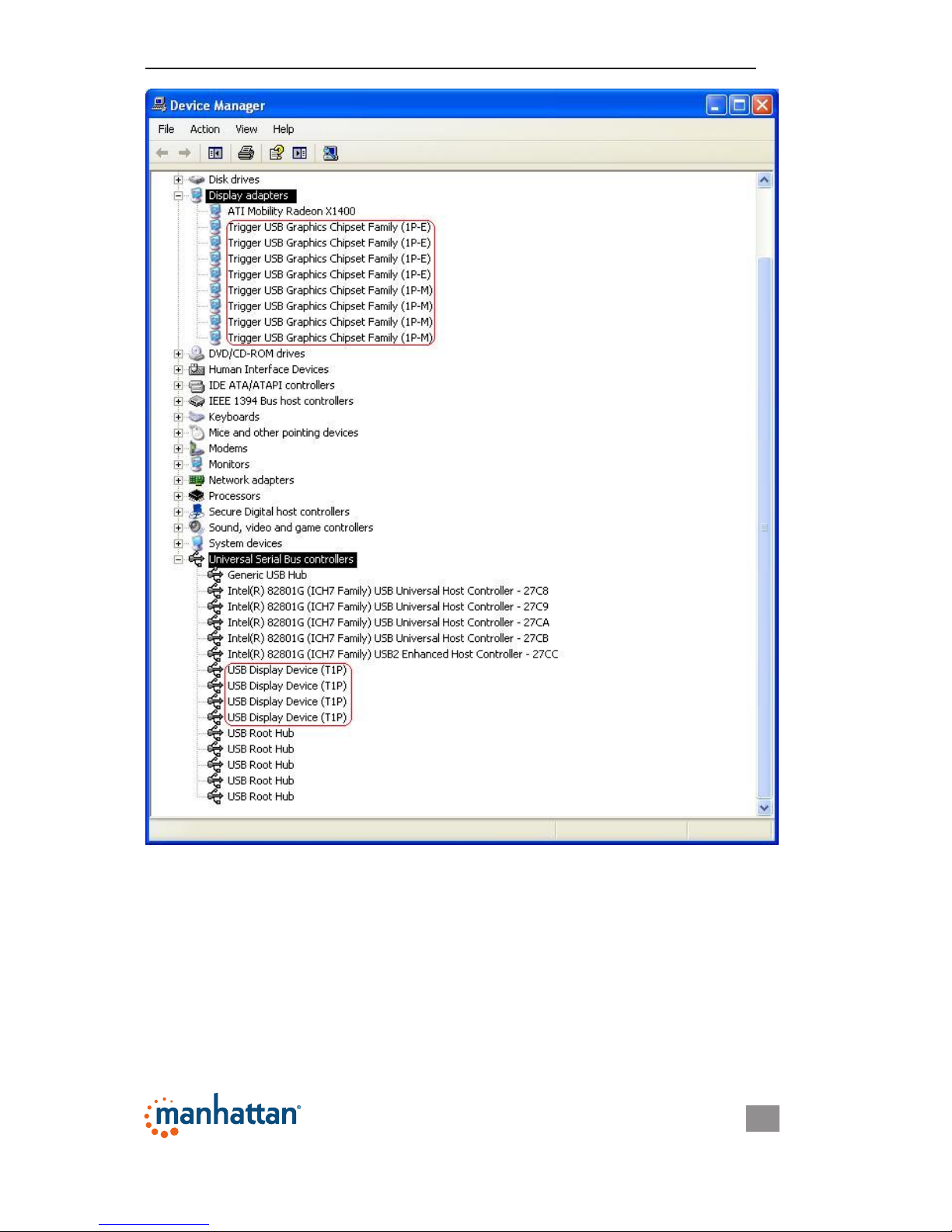

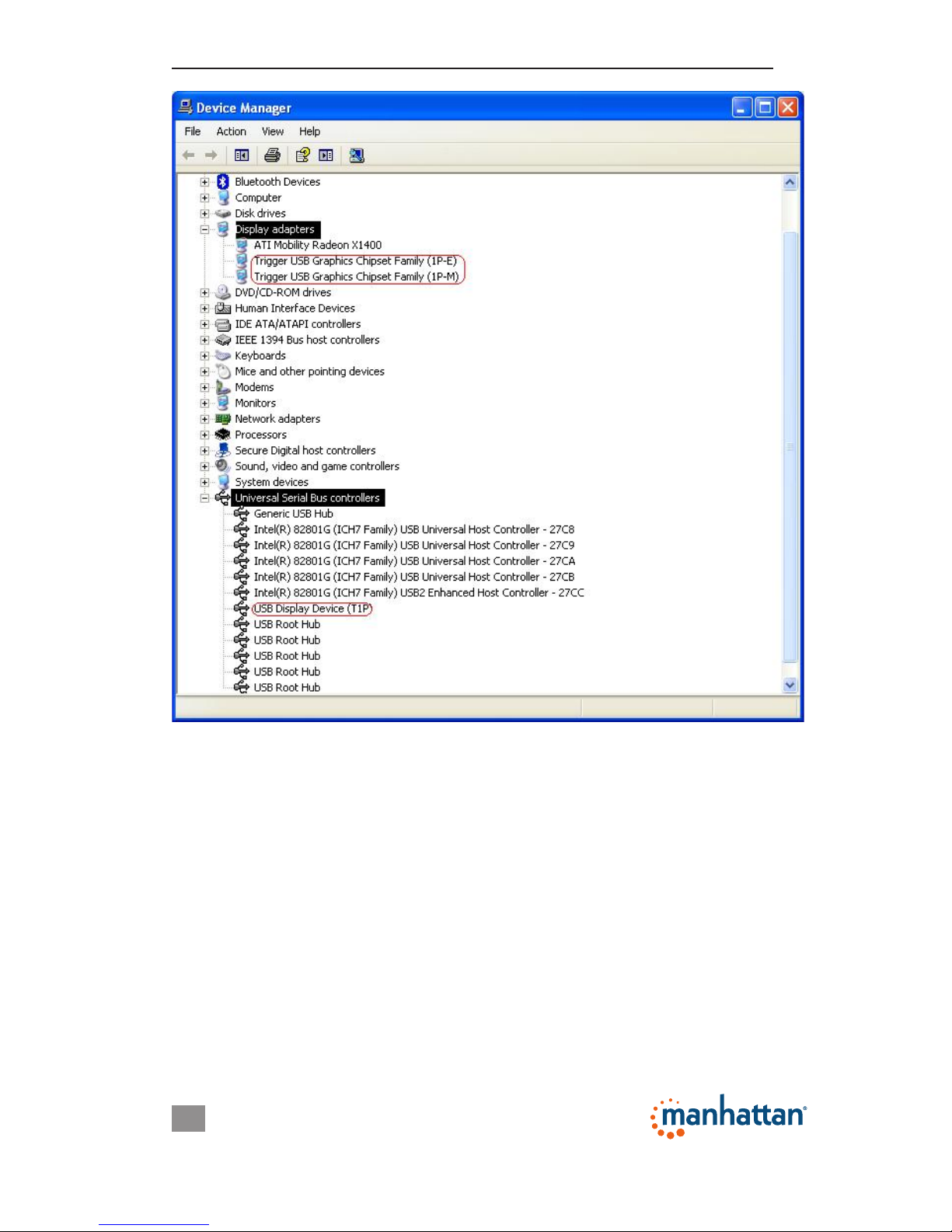

Verifying Driver Installation (2000/XP)

On the desktop, right-click My Computer → Properties → Hardware →

Device Manager. With the converter plugged in, double-click “Display

adapters” and “Universal Serial Bus controllers.”

“Universal Serial Bus controllers” should feature:

• “USB Display Device (T1P)”

“Display adapters” should feature:

• “Trigger USB Graphics Chipset Family (1P-E)”

• “Trigger USB Graphics Chipset Family (1P-M)”

With the installation of a single

Hi-Speed USB 2.0 SVGA Converter:

With the installation of multiple

Hi-Speed USB 2.0 SVGA Converters:

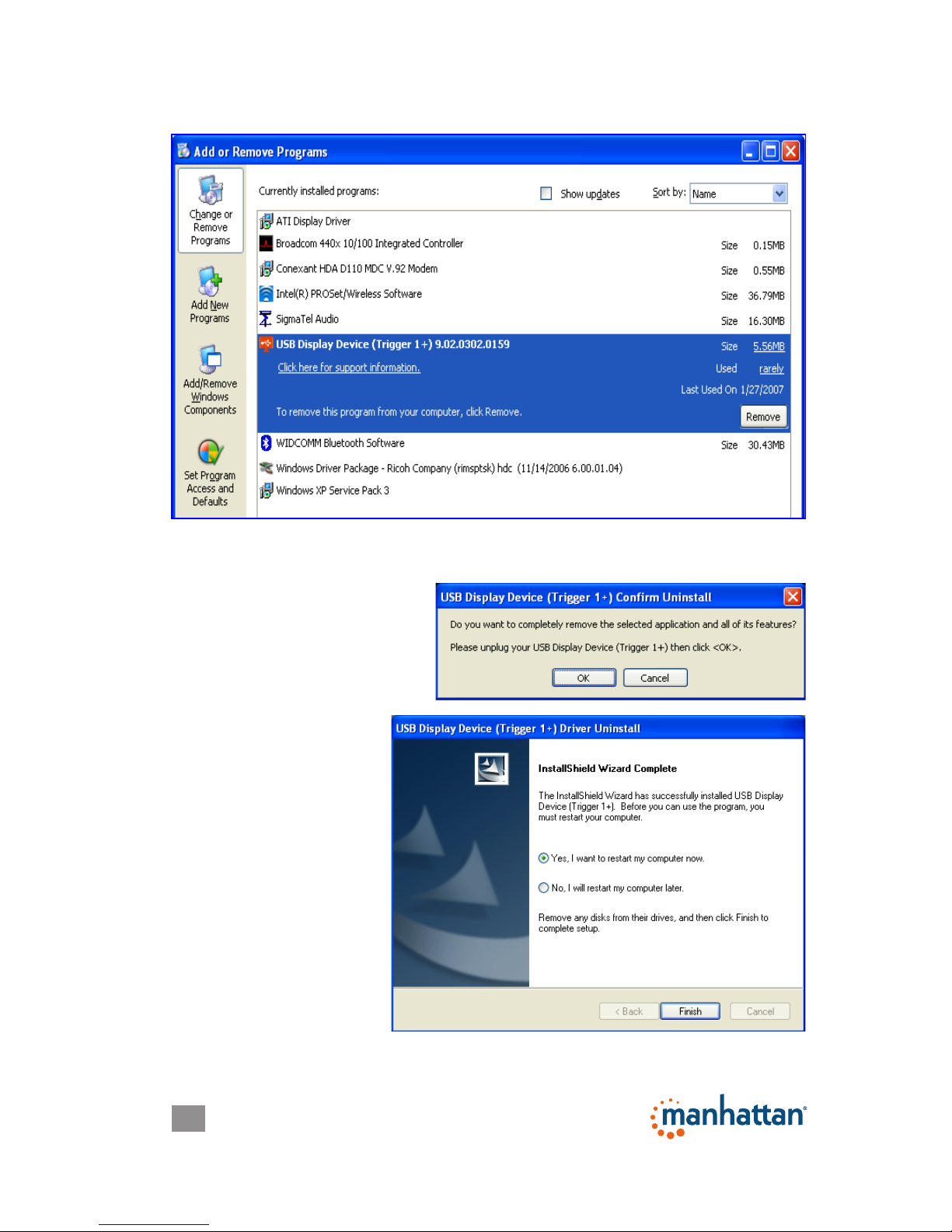

Driver Un-Install (2000/XP)

1. On the desktop, go to Start → Settings (Classic start menu only) →

Control Panel → Add or Remove Programs.

2. Select “USB Display Device (Trigger 1+) (driver version number)”

and click

“

Remove.”

3. Disconnect the Hi-Speed

USB 2.0 SVGA Converter

and click “OK” to continue.

4. Select “Yes, I want to

restart my computer

now” and click

“Finish” to reboot.

After rebooting,

the driver un-install

procedure will be

complete.

WindoWs Vista/7/8

1. Insert the enclosed driver CD into the CD-ROM drive. The setup

program should be launched automatically; if not, launch setup.exe

from your CD drive manually.

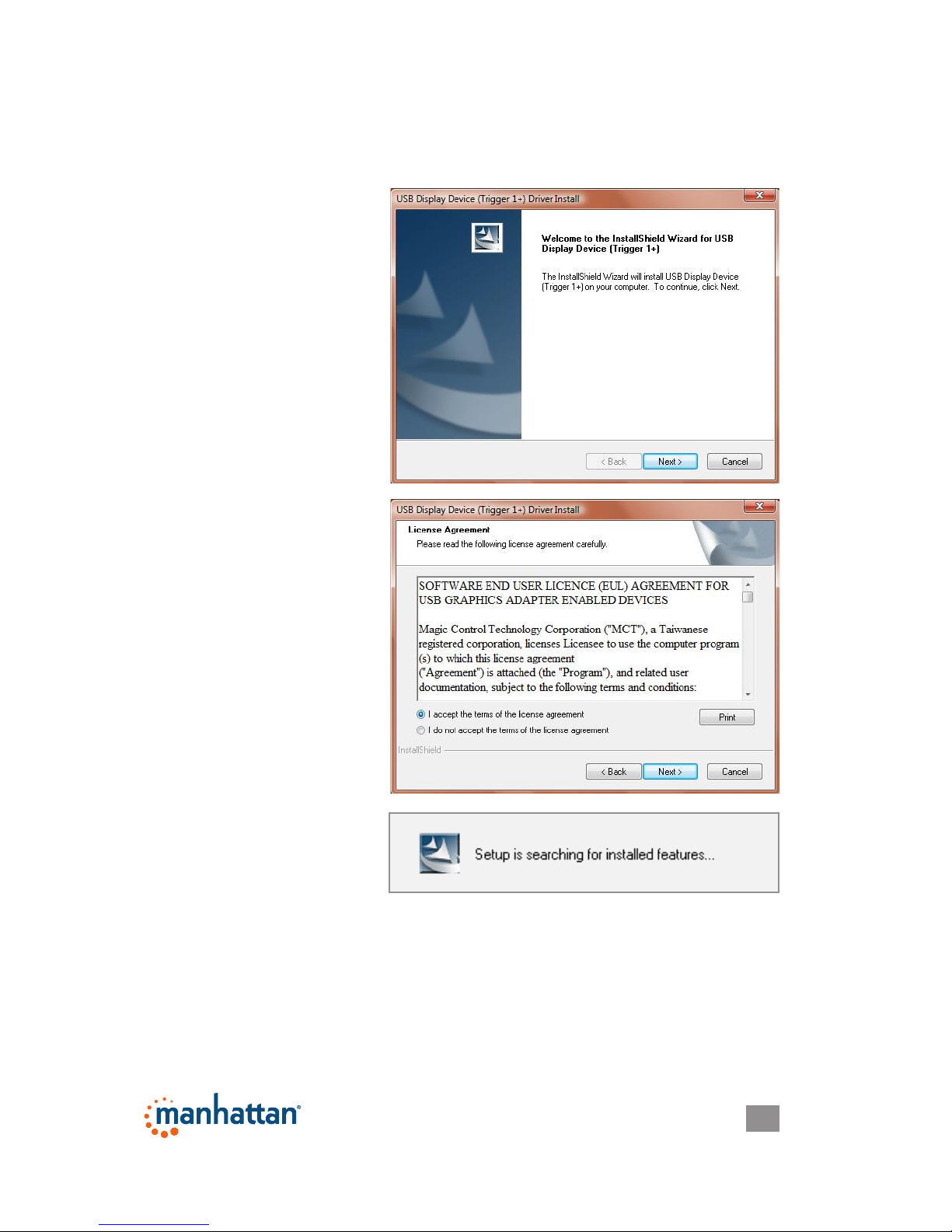

When the InstallShield

Wizard welcome

screen displays, click

“Next” to continue.

3. When the License

Agreement screen

displays, read it and

select “I accept the

terms of the license

agreement.” Click

“Next” to continue.

4. Setup is searching for

installed features.

5. When the InstallShield Wizard Complete screen displays, select

“Yes, I want to restart my computer now” and click “Finish” to

complete the driver installation.

After rebooting, plug the

converter

into an available USB port on

your PC or notebook.

Connect the external display device (monitor/

projector) to the converter’s VGA (HD15) connector and switch it on.

The extended display will be shown on the second display device.

NOTE: To install additional

converters using Windows Vista, just plug

each device into an available USB port on the PC or notebook. After

rebooting, the extended display(s) will install and appear.

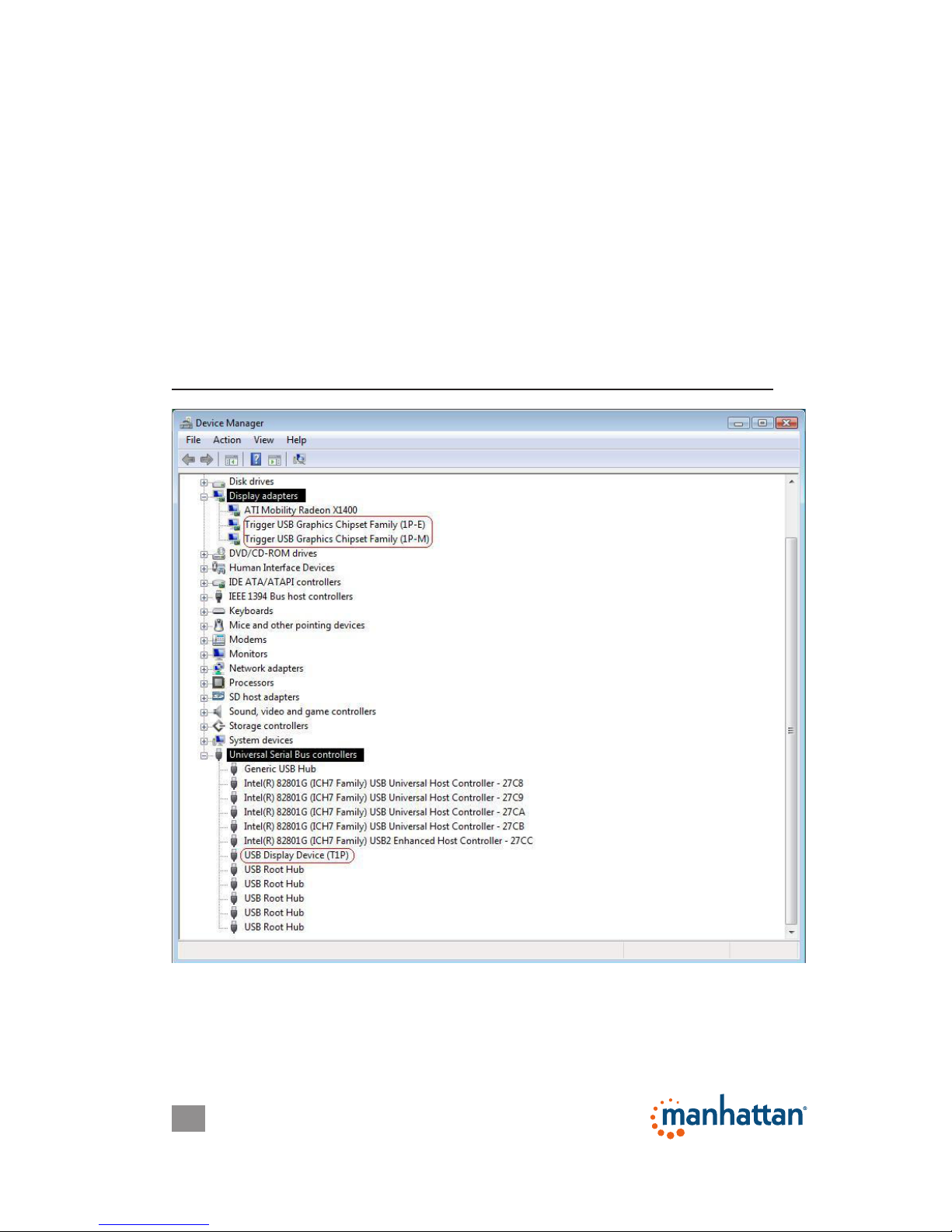

Verifying Driver Installation (Vista/7/8)

On the desktop, right-click My Computer → Properties → Device

Manager; then double-click “Display adapters” and “Universal Serial

Bus controllers.”

“Universal Serial Bus controllers” should feature:

• “USB Display Device (T1P)”

“Display adapters” should feature:

• “Trigger USB Graphics Chipset Family (1P-E)”

• “Trigger USB Graphics Chipset Family (1P-M)”

With the installation of a single

Hi-Speed USB 2.0 SVGA Converter:
