en 3

This quick start guide covers the basic information you need to get started using

your eXplorist GPS receiver. If you need more detailed information on the

functions of your eXplorist GPS receiver, you can download a full user manual in

PDF format from the support section of www.magellangps.com. This manual can

either be viewed or printed from your computer.

By providing the User Manual online in a digital format, Magellan hopes to save a

few trees and help protect the environment.

Additionally, you can purchase a full-color, printed user manual. Details for

purchasing a printed user manual can be found on the same web page as the

user manual download.

Be sure to register your Magellan eXplorist GPS receiver at

www.magellangps.com to be notified of software updates and special offers

User Manual Download

4 en

The Magellan eXplorist receiver is a navigation aid designed to assist you in

arriving at your selected destination. When using the Magellan eXplorist receiver,

these safety rules must be followed to prevent accidents that can result in injury or

death to yourself or others.

Please do not try and change any settings on the Magellan eXplorist receiver

while driving. Come to a complete stop or ask a passenger to make any changes.

This product is an excellent navigation aid, but does not replace the need for

careful orienteering and good judgment. Never rely solely on one device for

navigating.

The Global Positioning System (GPS) is operated by the U.S. Government, which

is solely responsible for the accuracy and maintenance of the GPS network. The

accuracy of position fixes can be affected by the periodic adjustments to GPS

satellites made by the U.S. government and is subject to change in accordance

with the Department of Defence civil GPS user policy and the Federal

Radionavigation Plan. Accuracy can also be affected by poor satellite geometry

and obstructions, like buildings and large trees.

Use only Magellan cables and accessories; the use of non-Magellan cables and

accessories may severely degrade performance or damage the receiver, and will

void the warranty.

The information provided in this document is subject to change without notice.

Improvements and enhancements to the product may occur without any formal

notification. Check the Magellan website (www.magellanGPS.com) for product

updates and additional information.

Maximum normal use temperature is 60°C.

Safety Notice

en 5

[A] Power Button: Press and hold for 2

seconds to turn the receiver on. Press

again to bring up the Power Options

menu.

Pressing and holding the power button

down for 5 seconds will reset the receiver.

Suspend turns the display off but your

track will still be recorded. This reduces

battery life consumption but does not

eliminate it entirely.

[B] [C] User-Defined Buttons: These

buttons can be customised to perform a

variety of functions. Access the Main

Menu and select the Tools icon. Go to

Settings > Assign Button Function > select

button > select the desired function.

By default the [B] button marks your

current position as a waypoint and the [C]

button opens the Camera Preview screen.

When the Camera Preview screen is open, the bottom button can focus the

picture (50% press) and take the picture (100% press).

Microphone

Magellan eXplorist Basics

6 en

Battery Door Removal

Raise the arm [A].

Turn the battery door lock anti clockwise a

quarter turn.

Lift the top of the battery door until the

pivot point at the bottom releases, allowing

the door to become free from the receiver.

When reinstalling the battery door be

sure to first insert the hinge point at the

base of the door.

Accessing the USB Port

Using your fingernail at [B], open the USB Port

cover. When done, be sure to close the cover

firmly to prevent water or dirt from entering the

USB port. (Note that the USB connector is

angled up slightly.)

Camera Speake

Pivot Point

en 7

micro SD card

You can save or load tracks, routes or pictures as

well as access maps downloaded from

www.magellangps.com to a micro SD card (not

included).

Remove the battery door and batteries.

Slide the silver micro SD card retaining plate

towards the top of the receiver.

Lift the retaining plate up with your fingernail.

Insert a micro SD card with the contacts

down, pointing towards the top.

Close the retaining plate and slide towards the bottom of the receiver,

locking the micro SD card in place.

Reinstall the batteries and replace the battery door.

Compass Calibration (610 and 710 only)

The eXplorist 610 and 710 feature an electronic

compass to compute your heading. The receiver

will alert you when the compass needs calibrating

by displaying a red or yellow compass icon in

the status bar.

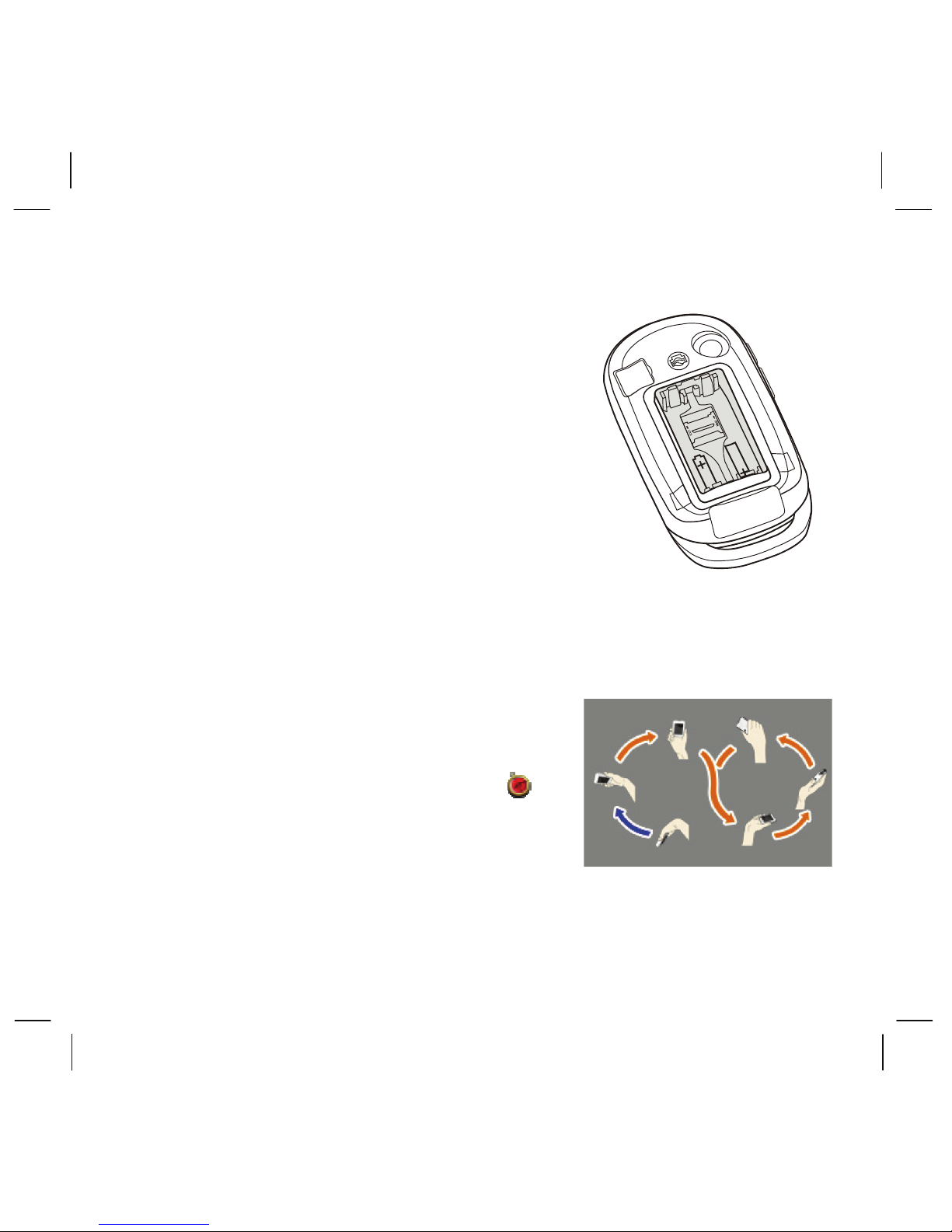

To calibrate the compass move the receiver in a

figure eight motion as shown here.

8 en

The Map screen is the starting point for using your

eXplorist GPS receiver.

Use the zoom in and zoom out controls to

change the map scale. You can customise the

number of navigation fields from zero to four, each

of which can be set to display unique navigation

data.

Navigation lines are displayed on the map

providing you with information about your journey.

Active track Displays a history of your travels when

you are routing to a destination.

Active track Displays a history of your travels when

you are not routing to a destination.

Origin Destination

Line

Originally computed route from point of

origin to your destination.

Route Line Computed multi-leg route.

Point Destination

Line

Guidance from your current position to

the destination.

Map Screen

en 9

Tap the Map screen to bring up the 4-Corner Screen which provides access to the

Dashboard, OneTouch™ menu, Main Menu and Options menu.

Dashboard

OneTouch

Main Menu

Options Menu

4-Corner Menu Screen
