Maeda MC815C Guía del usuario

106E-QG1705-00

QUICK OPERATION GUIDE

CRAWLER CRANE

Serial No. T0001 and up

MC815C

・This operation guide explains basic operation of the machine. Before starting work, always

conduct checks written in “INSPECTION AND MAINTENANCE 9.1 PRE-OPERATION

INSPECTION” in the separate “OPERATION MANUAL”.

For safety cautions and detailed operation of the machine not explained in this book, please

read and understand the separate “OPERATION MANUAL” before operating this machine.

・This operation guide does not replace the operation manual. This is just a short helpful

information paper to assist the trained crane operator with the basic operation of the crane. For

complete and detailed information we refer to the operation manual of the crane.

- 1 -

CONTENTS

ITEM Page

1. DESCRIPTION OF CONTROLS 2

1.1 OUTRIGGER OPERATION PANEL 2

1.2 CONTROL LEVERS 3

2. DESCRIPTION OF MONITOR 4

3. OPERATIONS 8

3.1 STARTING / STOPPING ENGINE 8

3.2 TRAVELLING OPERATION 9

3.3 OUTRIGGER OPERATION 10

3.4 CRANE OPERATION 14

3.5 CRANE STOWAGE OPERATION 15

4. REMOTE CONTROL 17

4.1 STARTING / STOPPING ENGINE 17

4.2 TRAVELLING OPERATION 18

4.3 OUTRIGGER OPERATION 19

4.4 CRANE OPERATION 20

FOR SAFE USE OF THE MACHINE

This manual classifies the risks into the following three categories for easy understanding of the safety

information.

This denotes that there is an imminent hazard which will cause serious injury or

death.

It also provides information on how to avoid such hazard.

This denotes that there is a hazard which can cause serious injury or death.

It also provides information on how to avoid such hazard.

This denotes that there is a potential hazard which may cause minor or moderate

injury or serious damage to the machine.

It also provides information on how to avoid such hazard.

This manual also uses the following indications to provide other precautions for handling the machine and

helpful information.

This denotes that failure to properly handle the machine may damage it or shorten

its life.

This denotes helpful information.

CAUTION

NOTES

- 2 -

1. DESCRIPTION OF CONTROLS

(1) Outrigger operation panel

(2) Left control lever

(3) Right control lever

(4) Monitor

(5) Emergency stop switch

(6) Starter switch

(7) Lock lever

(8) Accelerator pedal

(9) Light switch

(10) Disconnect switch

(11) Override switch

(12) Fuse box

(13) Cigar socket

1.1 OUTRIGGER OPERATION PANEL

(1) Outrigger (1) switch

(2) Outrigger (2) switch

(3) Outrigger (3) switch

(4) Outrigger (4) switch

- 3 -

1.2 CONTROL LEVERS

[Traveling mode]

(1) Accelerator up/down

(pop-up up/down)

(2) Horn

(3) Pop-up Enter

(4) Mode selector switch

(Traveling Hi/Low)

(5) Mode selector switch

(Carry/Pick)

(6) Mode selector switch

(Traveling/Outrigger/

Crane)

(7) Right traveling forward

(8) Right traveling backward

(9) -

(10) -

(11) Left traveling forward

(12) Left traveling backward

(13) -

(14) -

[Outrigger mode]

(1) Accelerator up/down

(pop-up up/down)

(2) Horn

(3) Pop-up Enter

(4) Mode selector switch

(Extension/Ground)

(5) Mode selector switch

(Manual/Auto)

(6) Mode selector switch

(Traveling/Outrigger/

Crane)

(7) -

(8) -

(9) -

(10) -

(11) -

(12) -

(13) -

(14) -

[Crane mode]

(1) Accelerator up/down

(pop-up up/down)

(2) Horn

(3) Pop-up Enter

(4) Mode selector switch

(Crane Hi/Low)

(5) Mode selector switch

(Hook stowage/Fully

automated stowage)

(6) Mode selector switch

(Traveling/Outrigger/

Crane)

(7) Unwinding

(8) Winding

(9) Boom lowering

(10) Boom raising

(11) Boom extension

(12) Boom retraction

(13) Boom clockwise swing

(14) Boom counter-clockwise

swing

- 4 -

2. DESCRIPTION OF MONITOR

[ MONITOR DISPLAY (COMMON TO ALL MODES) ]

(1) Date & Time display

(2) Hour meter

(3) Engine speed

(4) Fuel gauge

(5) Eco mode switch

(6) DPF regeneration

switch

(7) Setting switch

(8) Engine and electric

motor switch

(9) Pop-up select switch

(up)

(10) Pop-up select switch

(down)

(11) Enter switch

(12) Replacement reminder

(13) Engine oil pressure

(14) Engine coolant

temperature

(15) Charge

(16) DPF regeneration

request lamp

(17) Exhaust temperature

alarm lamp

(18) DPF regeneration lamp

(19) Failure

(20) Emergency stop lamp

(21) Light

(22) Electricity on lamp

(23) Mode selector switch

(travel/outrigger/crane)

(24) Leveling instrument

- 5 -

[ MONITOR DISPLAY (TRAVELING MODE) ]

(1) BOOM LENGTH

(2) BOOM ANGLE

(3) WORKING RADIUS

(4) SLEW ANGLE

(5) RATED TOTAL LOAD

(6) ACTUAL LOAD

(7) LOAD CAPACITY

(8)MODE SELECTOR

SWITCH (2) (Traveling

Hi/Low)

(9)MODE SELECTOR

SWITCH (3) (Pick/Carry)

(10) FRONT VIEW CAMERA

MONITOR

(11)LEFT SIDE-VIEW

CAMERA MONITOR

(12)Error codes

- 6 -

[ MONITOR DISPLAY (OUTRIGGER MODE) ]

(1) Outrigger (1) Extension

(ANGLE SET-UP)

(2) Outrigger (2) Extension

(ANGLE SET-UP)

(3) Outrigger (3) Extension

(ANGLE SET-UP)

(4) Outrigger (4) Extension

(ANGLE SET-UP)

(5) Outrigger (1) (MIN)

(6) Outrigger (2) (MIN)

(7) Outrigger (3) (MIN)

(8) Outrigger (4) (MIN)

(9) Outrigger (1) (MID)

(10)Outrigger (2) (MID)

(11)Outrigger (3) (MID)

(12)Outrigger (4) (MID)

(13)Outrigger (1) (MAX)

(14)Outrigger (2) (MAX)

(15)Outrigger (3) (MAX)

(16)Outrigger (4) (MAX)

(17)Outrigger (1) (GROUND

SET-UP)

(18)Outrigger (2) (GROUND

SET-UP)

(19)Outrigger (3) (GROUND

SET-UP)

(20)Outrigger (4) (GROUND

SET-UP)

(21)Crane stow position

(22)Mode selector switch (2)

(Extension/Ground)

(23)Mode selector switch (3)

(Manual/Auto)

(24)Left side-view camera

monitor

(25)Error codes

- 7 -

[ MONITOR DISPLAY (CRANE MODE) ]

(1)Load capacity ratio indication

(2)Lifting height indication (LIFTING

HEIGHT)

(3)Lifting height limiter switch

(4)Boom angle upper limit switch

(5)Boom angle lower limit switch

(6)Working radius limiter switch

(7)Clockwise swing angle limiter switch

(8)Counter-clockwise swing angle limiter

switch

(9)Over un-winding indication (OVER

UN-WINDING)

(10)Hanging mode display

(N mode, P mode, M mode)

(11)Boom length indication (BOOM

LENGTH)

(12)Indication of the number of wires hung

(13)Over-winding indication (OVER

WINDING)

(14)Actual load indication (ACTUAL LOAD)

(15)Rated total load indication (RATED

TOTAL LOAD)

(16)Hook grounding indication (GROUND

CONTACT)

(17)Working radius indication (WORKING

RADIUS)

(18)Boom angle indication (BOOM

ANGLE)

(19)Slew angle indication

(20)Mode selector switch (3) (Hook

stowage/Fully automated stowage)

(21)Mode selector switch (2) (Crane

Hi/Low)

(22)Crane stowage position

(23)Outrigger related indication

(24)Error code

- 8 -

3. OPERATIONS

3.1 STARTING / STOPPING ENGINE

[ STARTING OF ENGINE ]

1. Insert the key into the starter switch, turn and hold the

key in the “ON” position, and wait until the “WARM-UP

MONITOR” indicator lamp goes out.

NOTES

When the starter switch key is turned to the “ON” position,

the “WARM-UP MONITOR” indicator lamp lights up to

indicate that the engine is being warmed up.

When the engine has been warmed up, the “WARM-UP

MONITOR” indicator lamp goes out.

2. When the “WARM-UP MONITOR” lamp goes out, turn the

key to the “START” position.

3. When the engine has started, release your hand from the

key.

The key automatically returns to the “ON” position.

[ STOPPING ENGINE ]

1. Take your foot off the accelerator pedal (6), let the engine

idle for about 5 minutes with no load applied.

2. Turn the starter switch key to the “OFF” position.

The engine stops.

3. Remove the starter switch key.

Otros manuales para MC815C

Tabla de contenidos

Otros manuales de Equipos de construcción de Maeda

Maeda

Maeda MC-285C Guía del usuario

Maeda

Maeda MC-174CRM Manual de usuario

Maeda

Maeda MC815C Manual de usuario

Maeda

Maeda MC285C-3 Manual de usuario

Maeda

Maeda CC1908S-1 Manual de usuario

Maeda

Maeda MC815C Manual de usuario

Maeda

Maeda LC1385M-8B Manual de usuario

Maeda

Maeda LC1385M-8BF Manual de usuario

Maeda

Maeda MC405C-3 Manual de usuario

Maeda

Maeda MK1033C-1 Manual de usuario

Maeda

Maeda MC-305C-2 Guía del usuario

Maeda

Maeda MC-305C-2 Manual de usuario

Maeda

Maeda MC305C-3 Manual de usuario

Maeda

Maeda CC1908S-1 Guía del usuario

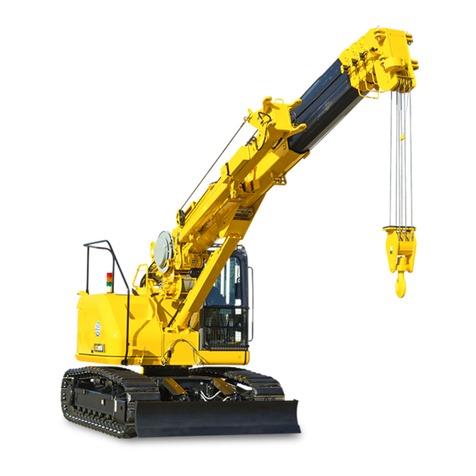

Maeda
