RFTemp2000A

Wireless Temperature Data Logger

Product User Guide

RFTemp2000A Data Logger

Quick Start Steps ........................................... 1

Product Overview .......................................... 2

Additional Features & Operation .................... 3

Mounting Instructions ................................... 4

Product Maintenance ..................................... 5

Recalibration .................................................. 5

RMA Instructions ............................................. 5

General Speciﬁcations.................................. 6-7

RFC1000 Transceiver

Product Overview .......................................... 9

Installation Guide ........................................... 9

Mounting Instruction ................................... 10

Channel Programming ................................. 11

Deployment & Activation .............................. 12

General Speciﬁcations................................... 12

Compliance Information................................ 13

Troubleshooting Tips ............ Back Cover

Table of Contents

1. Install the MadgeTech 4 Software and USB Drivers onto a Windows PC.

2. The RFC1000 interface device comes with a USB cable. Plug one end of the cable into

an available USB port on the PC and plug the opposite end of the cable into the

communication port on the RFC1000.

3. Push and hold the wireless button on the RFTemp2000A for 5 seconds to activate wire-

less communication. The display will conﬁrm “Wireless: ON” and the blue LED will blink

every 15 seconds.

4. Launch the MadgeTech 4 Software. All active MadgeTech Data Loggers that are within

range will automatically appear in the connected devices window. Each data logger in

the list can be identiﬁed by serial number (printed on the exterior of the logger).

5. To claim a device, select the desired data logger in the list and click the Claim icon.

6. Select the start method, reading rate and any other parameters appropriate for the

desired data logging application. Once conﬁgured, deploy the data logger by clicking

the Start icon.

7. To download data, select the device in the list, click the Stop icon, and then click the

Download icon. A graph will automatically display the data.

Quick Start Steps

1. Install the MadgeTech 4 Software and USB Drivers onto a Windows PC.

2. Before plugging the data logger in the computer, make sure the wireless setting on

the device is set to “Wireless: OFF”. If wireless mode is on, press and hold the Wireless

button on the device for 5 seconds.

3. The RFTemp2000A comes with a USB cable. Plug one end of the cable into an available

USB port on the PC and plug the opposite end of the cable into the communication

port on the RFTemp2000A.

4. Launch the MadgeTech 4 Software. The RFTemp2000A will appear in the connected

devices window indicating the device has been recognized.

5. Select the start method, reading rate and any other parameters appropriate for the

desired data logging application. Once conﬁgured, deploy the data logger by clicking

the Start icon.

6. To download data, select the device in the list, click the Stop icon, and then click the

Download icon. A graph will automatically display the data.

Product Operation (Plugged In)

Product Operation (Wireless)

Product User Guide

Product Overview

The RFTemp2000A is a wireless data logger featuring a digital display. The device measures

ambient temperatures, making it ideal for monitoring perishable goods, chemicals and

more. The RFTemp2000A is a wireless temperature monitoring and alarming system with

LCD. A docking base is included with the data logger for mounting purposes.

Selection Buttons

The logger is designed with 3 direct selection buttons: Scroll, Units and Wireless.

•Scroll: Allows user to scroll through current readings, average stats and device status

information displayed on the LCD Screen.

•Units: Allows user to change displayed units of measurement to either °F or °C.

•Wireless: Push and hold this button for 5 seconds to activate or deactivate wireless

communication.

•Manual Reset Option: Allows user to manually reset the statistics within the device to 0

without needing to use the MadgeTech software. Any data recorded up to that point is

recorded and saved. To apply the manual reset, press and hold the scroll key down for

three seconds.

LED Indicators

•Status: Green LED blinks every 5 seconds to indicate unit is logging.

•Wireless: Blue LED blinks every 15 seconds to indicate unit is operating in wireless mode.

•Alarm: Red LED blinks every 1 second to indicate an alarm condition.

RFTemp2000A

Additional Features and Operation

Alarm Settings/Rules

In MadgeTech 4, alarms can be created

on two levels; in the software itself, and

programmed speciﬁcally to the data logger.

Creating alarm rules in the software allows

the user to utilize alarms while real time

recording, and have the added beneﬁt of

features such as e-mail and SMS notiﬁcation.

An alarm that is programmed on the data

logger will only alert the user from the

device itself, whether that is by a ﬂashing

LED, audible alarm, or local LCD notiﬁcation.

Creating a Real time Alarm Rule

1. Within the Device tab in MadgeTech 4, in the Alarms group, click Manage Rules,

then select New.

2. Enter a name in the Rule name box, and select whether notiﬁcations will occur when

All conditions are met or Any condition is met.

3. Select the desired conditions to have met before notiﬁcations occur, and select which

notiﬁcations will occur from the drop down menus.

4. If selecting to receive notiﬁcations by email or text message, click Email settings and

make sure the correct info has been entered. Email and text message notiﬁcations will

not be received if settings are incorrect.

5. Click OK. The OK button will be disabled if the Rule name box is empty.

Changing the Alarm Settings of a Device

1. In the Connected devices panel, select the RFTemp2000A device.

2. Click the Properties button under the device tab at the top of the software, and select

the Alarm tab in the Properties window.

3. The High and Low settings indicate reading thresholds at which the alarm becomes active.

4. The Delay setting indicates how long to wait before the alarm becomes active after

passing an alarm threshold.

5. The Use cumulative alarm delay checkbox indicates whether the alarm delay should

reset when reading values fall back within the alarm threshold.

6. Once the alarm is conﬁgured appropriately, click Apply to save the settings.

**Please refer to the Help ﬁle in the MadgeTech software for more information regarding alarm settings**

Product User Guide

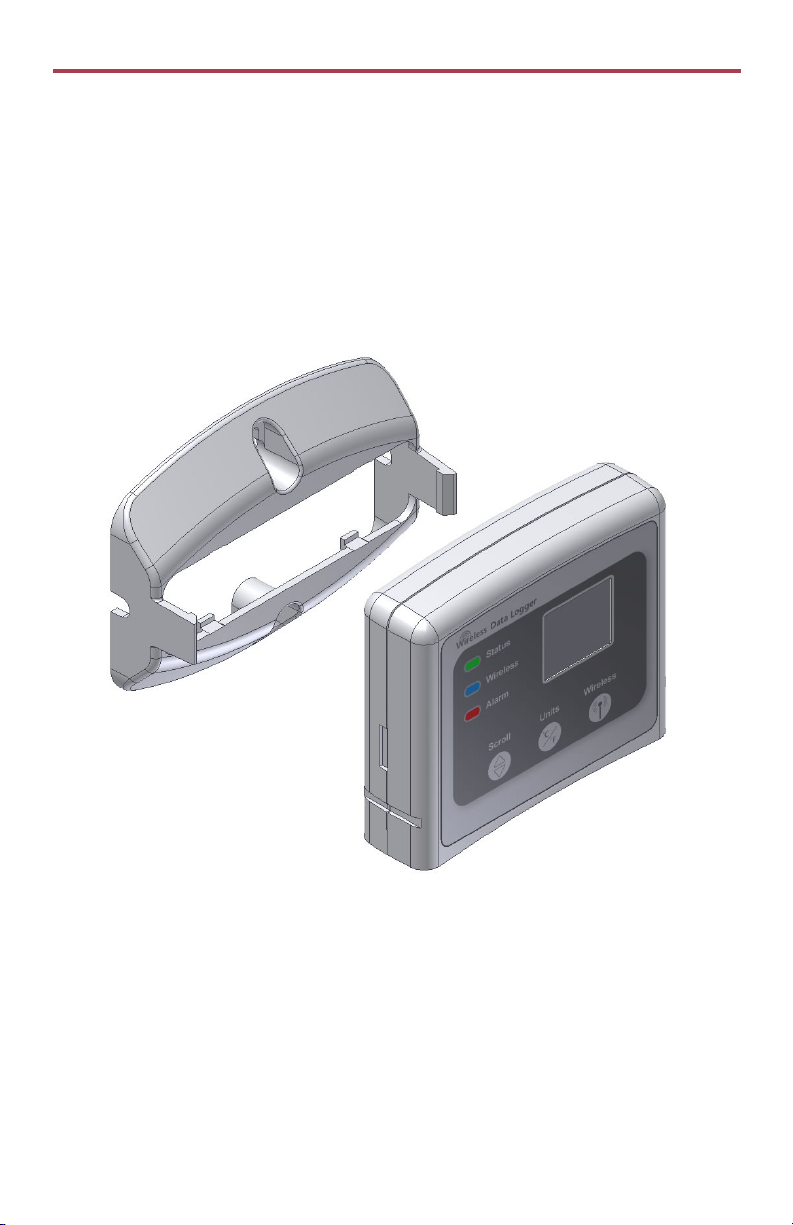

The base provided with the RFTemp2000A can be used in two ways.

• The bottom of the logger snaps in place to use and mount the unit on a table top or

horizontal surface.

• The base can also securely snap to the backside of the logger for wall mounting if desired

(as shown below).

• There are two holes in the base to allow for screws for mounting.

Mounting Instructions

RFTemp2000A

Product Maintenance

Battery Replacement

Materials: U9VL-J Battery

1. On the bottom of the enclosure, open the battery compartment by pulling in on the

cover tab.

2. Remove the battery by pulling it from the compartment.

3. Install the new battery, taking note of the polarity.

4. Push the cover closed until it clicks.

Recalibration

Standard recalibration for the RFTemp2000A is two points, 25 °C and 60 °C.

Recalibration is recommended annually for any MadgeTech data logger; a reminder is

automatically displayed in the software when the device is due.

Countries approved for use, purchase and distribution of the RFTemp2000A:

Australia, Austria, Belgium, Bulgaria, Canada, Chile, China, Columbia, Croatia, Cyprus, Czech Republic, Denmark,

Ecuador, Estonia, Finland, France, Germany, Greece, Honduras, Hungary, Iceland, Ireland, Israel, Japan, Latvia,

Liechtenstein, Lithuania, Luxembourg, Malaysia, Malta, Mexico, New Zealand, Norway, Peru, Poland, Portugal,

Romania, Saudi Arabia, Singapore, Slovakia, Slovenia, South Africa, South Korea, Spain, Sweden, Switzerland,

Thailand, The Netherlands, Turkey, United Kingdom, United States, Venezuela, Vietnam

Product User Guide

Reading Rate 1 reading every second up to 1 reading every 24 hours

Memory 32,256 readings

LED Functionality

• Green LED blinks every 5 seconds to indicate unit is logging

• Blue LED blinks every 15 seconds to indicate unit is in wireless mode

• Red LED blinks every 1 second to indicate alarm condition

Memory Wrap

Around Yes

Start Modes Immediate Start & Delay Start

Calibration Digital calibration through software

Calibration Date Automatically recorded within device

Battery Type Ultralife 9V lithium battery included; user replaceable

Battery Life 5 years typical at 1 minute reading rate

Data Format • For Display: °C or °F

• For Software: Date and time stamped °C, K, °F, or °R

Time Accuracy ±1 minute/month

Computer Interface USB to mini USB, 250,000 baud for standalone operation or RFC1000

required for wireless operation

Software XP SP3/Vista/Windows 7/Windows 8 (MadgeTech 4 only)

Operating

Environment -20 °C to +60 °C (-4 °F to +140 °F); 0 %RH to 95 %RH non-condensing

Dimensions 3.5 in x 3.25 in x 0.95 in

(88.9 mm x 82.6 mm x 24.1 mm) - Data logger only

Weight 4.1 oz (0.2563 lbs)

Enclosure Material ABS Plastic

Alarm

User conﬁgurable audible, on-screen, email and text (SMS) alarms.

Alarm Delay: A cumulative alarm delay may be set in which the device

will activate the alarm (via LED) only when the device has recorded a

user speciﬁed time duration of data.

Audible Alarm

Functionality 1 Beep per second for reading alarm above/below threshold

RFTemp2000A General Speciﬁcations

RFTemp2000A

Internal Channel

Temperature Range -20 °C to +60 °C (-4 °F to +140 °F)

Temperature Resolution 0.01 °C (0.018 °F)

Calibrated Accuracy ±0.5 °C/± 0.9 °F

(0 °C to +55 °C/32 °F to 131 °F )

Response Time 10 minutes free air

Measurement

RF Frequency 2.45 GHz IEEE 802.15.4 ultra-low power wireless transceiver

with fully bi-directional communication

Band ISM band 2.405-2.475 GHz

Operation (channels 11 through 25) @ 250 kbps

Maximum Output

Power +0 dBm typical

Receiver Sensitivity

(RFC1000) -95 dBm typical

Transmission Distance

(to other RFC1000’s)

• RFC1000

4,000 ft max. outdoors - line of sight unobstructed

1,000 ft max. indoors - typical urban environment

• RFC1000-CE

2,500 ft max. outdoors - line of sight unobstructed

700 ft max. indoors - typical urban environment

• RFC1000-IP69K

4,000 ft max. outdoors - line of sight unobstructed

1,000 ft max. indoors - typical urban environment

Transmission Distance

(to data loggers)

• RFC1000, RFC1000-CE & RFC1000-IP69K

2,000 ft max. outdoors - line of sight unobstructed

500 ft max. indoors - typical urban environment

Wireless

Approvals US (FCC), CA (IC), CE, South Korea (KCC), China (CMIIT), Japan (LCIE)

General Speciﬁcations Continued

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause

harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

To satisfy FCC RF Exposure requirements for mobile and base station transmission devices, a separation distance of 20 cm or more should

be maintained between the antenna of this device and persons during operation. To ensure compliance, operation at closer than this

distance is not recommended. The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other

antenna or transmitter.

Battery Warning

WARNING: BATTERY MAY LEAK, FLAME OR EXPLODE IF DISASSEMBLED, SHORTED, CHARGED, CONNECTED TOGETHER,

MIXED WITH USED OR OTHER BATTERIES, AND/OR EXPOSED TO FIRE/HIGH TEMPERATURE. DISCARD USED BATTERY

PROMPTLY, KEEP OUT OF REACH OF CHILDREN.

Speciﬁcations subject to change.

See MadgeTech’s terms and conditions at www.madgetech.com

Product User Guide

RFC1000

Wireless Transceiver

Other models available:

RFC1000-CE - Approved for

European markets

RFC1000-IP69K - Splash Proof

for harsh environments

Otros manuales para MadgeNET RFTemp2000A

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Registrador de datos de MadgeTech

MadgeTech

MadgeTech MicroTemp100 Hoja de especificaciones

MadgeTech

MadgeTech HiTemp140-PT Series Hoja de especificaciones

MadgeTech

MadgeTech ThermoVault Hoja de especificaciones

MadgeTech

MadgeTech HiTemp140-M12 Hoja de especificaciones

MadgeTech

MadgeTech UltraShock Hoja de especificaciones

MadgeTech

MadgeTech Level1000 Hoja de especificaciones

MadgeTech

MadgeTech OctProcess Series Manual de usuario

MadgeTech

MadgeTech HiTempl40-PT-5 Hoja de especificaciones

MadgeTech

MadgeTech HITEMP140-1 Hoja de especificaciones

MadgeTech

MadgeTech PRTC110 Manual de usuario

MadgeTech

MadgeTech HiTemp140 Series Hoja de especificaciones

MadgeTech

MadgeTech Bridge101A Manual de usuario

MadgeTech

MadgeTech RHTEMP1000 Hoja de especificaciones

MadgeTech

MadgeTech TCTemp2000 Manual de usuario

MadgeTech

MadgeTech VFC2000 Hoja de especificaciones

MadgeTech

MadgeTech Pulse101A Hoja de especificaciones

MadgeTech

MadgeTech HiTemp140-FP-TSK Hoja de especificaciones

MadgeTech

MadgeTech OctProcessV2 Hoja de especificaciones

MadgeTech

MadgeTech pHTemp2000 Hoja de especificaciones

MadgeTech

MadgeTech PR1000EX-30A Hoja de especificaciones

MadgeTech

MadgeTech QuadTemp2000 Manual de usuario

MadgeTech

MadgeTech HiTemp1400 Manual de usuario

MadgeTech

MadgeTech QuadRTD Manual de usuario

MadgeTech

MadgeTech TempRetriever Manual de usuario

Manuales populares de Registrador de datos de otras marcas

TESTO

TESTO 176 Manual de usuario

HT Italia

HT Italia XL421 Manual de usuario

HBM

HBM SOMAT XR CX22B-R Manual de usuario

Agtrix

Agtrix 380i Manual de usuario

Hobo

Hobo H8 Pro Manual de usuario

Beijing ART Tech

Beijing ART Tech PCI2320 Manual de usuario

Athena

Athena GET SL1 Manual de usuario

Motec Systems

Motec Systems C185 Manual de usuario

Beijing ART Tech

Beijing ART Tech USB2832 Manual de usuario

Rotronic

Rotronic HygroLog HL20 Manual de usuario

MRC

MRC DW-6092 Manual de usuario

Racelogic

Racelogic VBOX LapTimer Manual de usuario

Edu-Logger

Edu-Logger 900-240 Manual de usuario

Elma

Elma DT173 Manual de usuario

Comet

Comet U0121M Manual de usuario

pico Technology

pico Technology PT-104 Manual de usuario

Soil Instruments

Soil Instruments GTecLink Manual de usuario

APLICOM

APLICOM A11 Manual de usuario
