RFOT

1. Install the MadgeTech 4 Soware and USB Drivers onto a Windows PC.

2. Connect the RFC1000 wireless transceiver (sold separately) to the Windows PC with the

provided USB cable.

3. The RFOT is shipped with wireless transmission in an active, low power state. During

normal use, inserting a USB (micro B type) cable into the RFOT will pass control to the MT4

soware and disable the wireless transmission. When the USB cable is unplugged, wireless

transmission resumes with settings that were chosen in MT4.

4. Launch the MadgeTech 4 Soware. All active MadgeTech data loggers that are within range

will automatically appear in the Connected Devices window.

5. Select the data logger within the Connected Devices window and click the Claim icon.

6. Select the start method, reading rate and any other parameters appropriate for the desired

data logging application. Once configured, deploy the data logger by clicking Start.

7. To download data, select the device in the list, click the Stop icon, and then click the

Download icon. A graph will automatically display the data.

Quick Start Steps

Product Overview

The MadgeTech RFOT is a two-way wireless meat cooking and cooling data logger. The

RFOT’s rugged design, equipped with a flexible piercing probe allows it to be used in harsh

environments. The RFOT is perfectly suited for use in smokehouses, ovens and other cooking

processes up to 212 °F (100 °C) as well as refrigerators and freezers down to -4 °F (-20 °C). The

RFOT is completely splash-proof, and can withstand wash down cycles. The RFOT records and

wirelessly transmits internal product temperature readings back to a central PC for instant

real-time monitoring, even when a smokehouse or freezer door is closed. The RFOT allows the

user to also set-up real-time wireless alarming within the soware, so that the user is notified by

email or text if an alarm condition has been met or exceeded. The RFOT assists in complying with

HACCP requirements as well as USDA regulations.

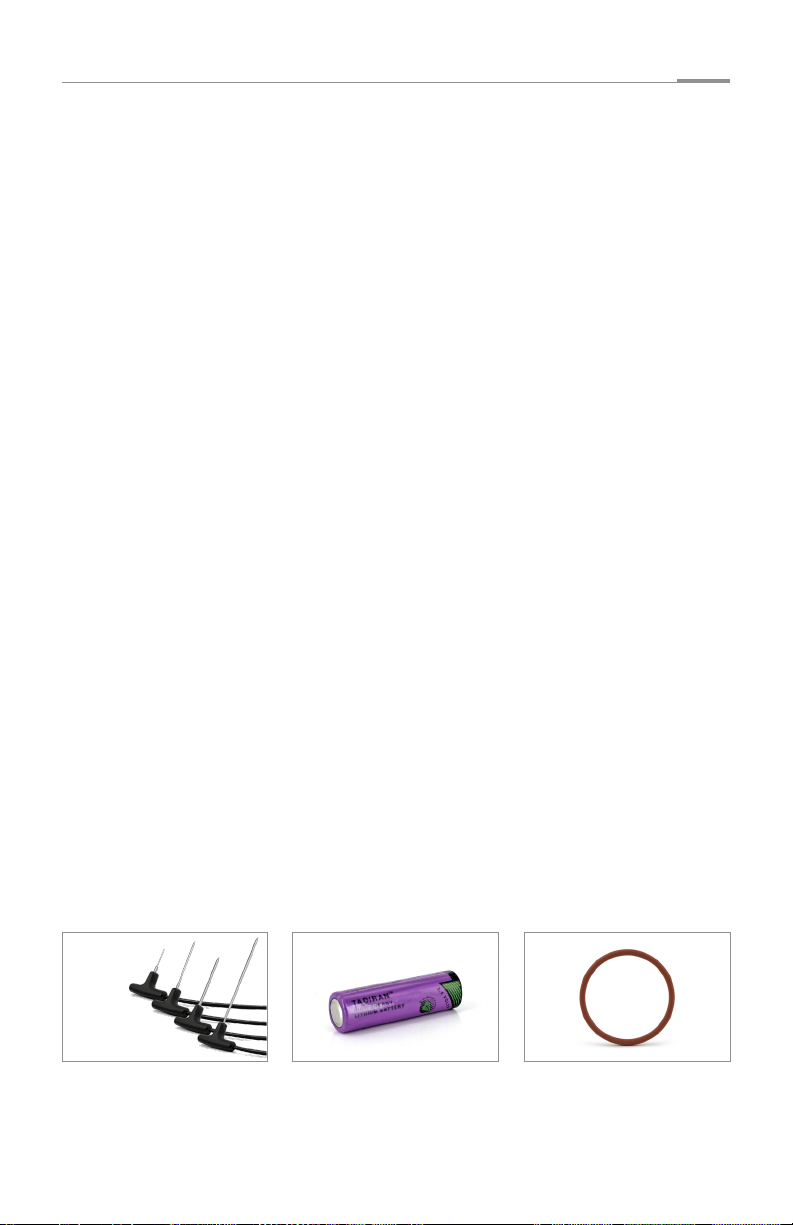

RFOT-FR, RFOT-4, RFOT-4TD,

RFOT-7 and RFOT-12

RFOT O-Ring Kit

PN: 902149-00

Includes 1-Square and

1-Round O-Ring

TLH-5903

PN: 901748-00

3.6V Lithium Battery

Options & Accessories

Product User Guide

Software Installation

MadgeTech 4 Soware

The MadgeTech 4 Soware makes the process of downloading and reviewing

data quick and easy, and is free to download from the MadgeTech website.

Installing the MadgeTech 4 Soware

1. Download the MadgeTech 4 Soware on a Windows PC by going to:

madgetech.com/soware-download.

2. Locate and unzip the downloaded file (typically you can do this by right clicking on the file

and selecting Extract).

3. Open the MTInstaller.exe file.

4. You will be prompted to select a language, then follow the instructions provided in the

MadgeTech 4 Setup Wizard to finish the MadgeTech 4 Soware installation.

MadgeTech Cloud Services

MadgeTech Cloud Services allows users to remotely monitor and manage

groups of data loggers throughout a large facility or multiple locations, from any

internet enabled device. Transmit real-time data to the MadgeTech Cloud Services platform

via the MadgeTech Data Logger Soware running on a central PC or transmit directly to the

MadgeTech Cloud without a PC using the MadgeTech RFC1000 Cloud Relay (sold separately).

For more detailed information, download the MadgeTech Soware Manual at:

madgetech.com/mt4-soware-manual.pdf

For more detailed information, download the MadgeTech Cloud Services Manual at:

madgetech.com/mt-cloud-manual.pdf

RFOT

1. Connect the RFC1000 wireless transceiver (sold separately) to the Windows PC with the

provided USB cable.

2. Additional RFC1000’s can be used as repeaters to transmit over greater distances or to

maintain signal if walls, corners, or other obstacles impede line of sight. Plug each one into

an electrical outlet in the desired locations.

3. Launch the MadgeTech 4 Soware.

4. The RFOT is shipped with wireless transmission

in an active, low power state. Inserting a USB

(micro B type) cable into the RFOT enables

direct USB communication and disables wireless

transmission. Direct USB communication allows

for changing the wireless channel in the device’s

Properties, if necessary.

5. When the USB cable is unplugged, wireless transmission is enabled.

6. All active data loggers will be listed within the Connected Devices panel. Select a logger,

and click the Claim icon to pair the logger to the RFC1000 connected to the PC.

7. Choose the start method, either Real Time Start to view data as it is collected, or Custom

Start for standalone logging to memory. By default, a report is generated automatically

when starting a logger using Real Time Start. With Custom Start, data is recorded to

memory and can be viewed by selecting Stop to end the cycle, and Download to retrieve

the data from the logger’s internal memory.

Activating & Deploying the Data Logger

Mounting Instructions

For best performance, the RFOT should always be hung by the hook in an

upright position. This will allow for the best path for the wireless signal.

Transmission Distance

Typical transmission distance from an RFC1000 to an RFOT:

»Unobstructed line of sight (outdoors): 2,000 feet max

»Typical urban environment (indoors): 500 feet max

Obstacles

Obstacles will decrease the line-of-sight from an RFC1000 to another RFC1000 as well as from an

RFC1000 to an RFOT. Obstacles that interfere with or decrease the wireless signal could include

but are not limited to smokehouse doors, freezer/refrigerator doors, building structures such as

walls and metal beams and internal traic such as forklis and metal racks or carts. Additional

RFC1000's can be placed near obstacles to lengthen and strengthen the wireless signal.

Deflection

When a wireless signal “hits” an object such as a metal wall, the wireless signal will not just

stop but rather it could turn a corner, bend or slow down. When installing the RFC1000's

obstacles and possible deflection should also be considered.

For steps to claim the data logger and view data using MadgeTech Cloud Services, refer to the

MadgeTech Cloud Services Soware Manual at: madgetech.com/mt-cloud-manual.pdf

Product User Guide

Dierent wireless channels may be used to create multiple networks in one area, or to avoid wireless

interference from other devices. Any MadgeTech data logger or RFC1000 wireless transceiver that

is on the same network is required to use the same channel. If all of the devices are not on the

same channel, the devices will not communicate with one another. MadgeTech wireless data

loggers and RFC1000 wireless transceivers are programmed by default on channel 25.

Changing the channel settings of the RFOT

Connect the RFOT to MT4 with a USB cable. Select a device from the connected devices

window, then click the properties icon at the top of screen, or, right click on a device in the

connected devices window and select properties. On the properties screen, select Wireless

and in the Wireless Channel box, click the down arrow, then the desired channel. Click OK to

confirm the choice.

Be sure that the channel chosen matches the channel settings of the RFC1000 wireless transceiver

which this device will communicate through.

To configuring the channel settings of the RFC1000 wireless transceiver (sold separately),

please refer to the RFC1000 Product User Guide that shipped with the product or download it

from the MadgeTech website at madgetech.com.

Channel Programming

CHANNEL NOTE: MadgeTech wireless data loggers and wireless transceivers purchased prior to

April 15, 2016 are programmed by default to channel 11. Please refer to the Product User Guide

provided with these devices for instructions to change the channel selection if needed.

RFOT

Product Maintenance

Battery Replacement

Materials: TLH-5903 Replacement Battery

1. Unscrew the end cap and gently separating the end from the

body of the data logger.

2. Remove the battery retention clip by sliding a small

screwdriver blade or paper clip between the clip and battery

holder and prying away from the holder.

3. Grasp the black base of the unit with cord hanging downward

and both edges of the circuit board, all with one hand. Pull

the old battery out with the other hand.

4. Install a new battery, observing the polarity markings on

the circuit board and battery holder. Position the battery

retention clip over the new battery and install by pressing

downward until a click is heard from each side.

5. Install the new battery as shown by the diagram on the

bottom of the battery holder.

6. Screw the body of the logger back together making sure the

O-Rings are not visible.

O-Ring Replacement

Materials: RFOT-O-Ring

1. Unscrew the end cap from the RFOT to expose the O-Ring.

2. Use a small pointed tool (knife or pick) to pry the old O-Ring out of its groove.

3. Make sure that the O-Ring groove is free of any dirt or debris.

4. Partially screw the mating parts back together leaving the O-Ring groove exposed.

5. Apply a thin coat of silicone based lubricant to the O-Ring.

6. Stretch the O-Ring over the cap and into its groove.

WARNING: Avoid stretching the O-Ring over the threads. Sharp threads can cut the new O-Ring.

O-Ring Maintenance

O-Ring maintenance is a key factor when properly caring for the RFOT. The O-Rings

ensure a tight seal and prevent liquid from entering the inside of the device. Please refer to

the application note “O-Rings 101: Protecting Your Data”, found on the MadgeTech website,

for information on how to prevent O-Ring failure.

O-Rings

3.6V Lithium

Battery

Recalibration

Recalibration is recommended annually for any MadgeTech data logger. A reminder is

automatically displayed in the MadgeTech 4 Soware when the device is due. To send

devices back for calibration, service or repair, visit madgetech.com.

Product User Guide

Troubleshooting

Why is the wireless data logger not appearing in the MadgeTech 4 Soware?

If the data logger doesn’t appear in the Connected Devices panel, or an error message is received

while using the data logger, try the following:

»Ensure the data logger and RFC1000 are on the same wireless channel. If the devices are not on

the same channel, the devices will not communicate with one another. Please refer to the Channel

Programming section for information on changing the device channel.

»Check that the RFC1000 is properly connected. For more information, see Troubleshooting

wireless transceiver problems (below).

»Ensure that the battery is not discharged. For best voltage accuracy, use a voltage meter

connected to the battery of the device. If possible, replace battery.

»Ensure that the MadgeTech 4 Soware is being used, and that no other MadgeTech Soware

(such as MadgeTech 2, or MadgeNET) is open and running in the background. MadgeTech 2 and

MadgeNET are not the compatible with the RFOT.

»Ensure that the Connected Devices panel is large enough to display devices. This can be verified

by positioning the cursor on the edge of the Connected Devices panel until the resize cursor

appears, then dragging the edge of the panel to resize it.

Compliance Information

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) this device may not cause harmful interference, and (2) this device must accept

any interference received, including interference that may cause undesired operation.

To satisfy FCC RF Exposure requirements for mobile and base station transmission devices,

a separation distance of 20 cm or more should be maintained between the antenna of this

device and persons during operation. To ensure compliance, operation at closer than this

distance is not recommended. The antenna(s) used for this transmitter must not be co-located

or operating in conjunction with any other antenna or transmitter.

This device complies with Industry Canada license-exempt RSS standard(s). Operation is

subject to the following two conditions: (1) this device may not cause interference, and (2)

this device must accept any interference, including interference that may cause undesired

operation of the device.

Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils

radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes: (1)

l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout

brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le

fonctionnement.

RFOT

Probe Temperature Range -50 °C to +200 °C (-58 °F to +392 °F)

Resolution 0.01 °C (0.018 °F)

Calibrated Accuracy ±0.1 °C at 0 °C to 100 °C (±0.18 °F at 32 °F to 212 °F)

±0.5 °C (±0.9 °F) outside of that range

Temperature

RF Frequency 2.45 GHz IEEE 802.15.4 ultra-low power wireless transceiver with fully

bi-directional communication

Band ISM band 2.405-2.475 GHz. Operation (channels 11 through 25) @ 250 kbps

Maximum Output Power +0 dBm typical (RFOT), 20 dBm maximum (RFC1000)

Receiver Sensitivity -95 dBm typical (RFOT), -104 dBm typical (RFC1000)

Wireless Interface RFC1000, RFC1000-CE, RFC1000-IP69K or RFC1000 Cloud Relay

Transmission Distance Unobstructed line of sight (outdoors): 2,000 feet max

Typical urban environment (indoors): 500 feet max

Wireless

BATTERY WARNING: DISCARD USED BATTERY PROMPTLY. KEEP OUT OF REACH OF CHILDREN. DO NOT DISPOSE

OF IN FIRE, RECHARGE, PUT IN BACKWARDS, DISASSEMBLE, OR MIX WITH OTHER BATTERY TYPES. MAY EXPLODE,

FLAME, OR LEAK AND CAUSE PERSONAL INJURY.

Countries approved for use, purchase and distribution:

Australia, Austria, Belgium, Bulgaria, Canada, Chile, China, Columbia, Croatia, Cyprus, Czech

Republic, Denmark, Ecuador, Estonia, Finland, France, Germany, Greece, Honduras, Hungary,

Iceland, Ireland, Israel, Japan, Latvia, Liechtenstein, Lithuania, Luxembourg, Malaysia, Malta,

Mexico, New Zealand, Norway, Peru, Poland, Portugal, Romania, Saudi Arabia, Singapore,

Slovakia, Slovenia, South Africa, South Korea, Spain, Sweden, Switzerland, Thailand, The

Netherlands, Turkey, United Kingdom, United States, Venezuela, Vietnam

Product User Guide

Reading Rate 1 reading every 2 seconds up to 1 reading every 24 hours

Memory 21,504 readings; soware configurable memory wrap

Memory Wrap Around Yes

Start Modes Immediate start / delay start

Calibration Digital calibration through soware

Calibration Date Automatically recorded within device

Battery Type 3.6V lithium battery included; user replaceable

Battery Life 2 years typical at 15 second reading rate

IP Rating IP67

Data Format Date and time stamped °C, °F, K, °R

Time Accuracy ±10 second/month (at 25 °C)

Computer Interface USB 115,200 baud

PC Compatibility Windows XP SP3 or later

MadgeTech Cloud Services

Compatible Yes

Operating Environment -20 °C to +100 °C (-4 °F to +212 °F), 0 %RH to 100 %RH non-condensing

Dimensions

Body: 7.8 in x 1.62 in dia. (198 mm x 41 mm dia.)

Hook: 0.625 in (16 mm)

Cable Length: 30 in (760 mm)

Probe Lengths

• RFOT-FR: 1.75 in (45 mm), Tip Diameter: 0.063 in (1.6 mm) Tip

Length: 1.25 in (32 mm)

• RFOT-4-TD: 4.00 in (102 mm), Tip Diameter: 0.125 in

• (3.2 mm), Tip Length: 3.50 in (89 mm)

• RFOT-4: 4.00 in (102 mm), Tip Diameter: 0.188 in (4.8 mm), Tip

Length: Full

• RFOT-7: 7.00 in (177 mm), Tip Diameter: 0.188 in (4.8 mm), Tip

Length: Full

• RFOT-12: 12.00 in (305 mm), Tip Diameter: 0.188 in

• (4.8 mm), Tip Length: Full

Weight 8.8 oz (250 g)

Material Body: Radel R-5100

Cable Jacket: Silicone Polyurethane

Approvals US (FCC), CA (IC), CE

General Specifications

Specifications subject to change. See MadgeTech’s Terms and Conditions at madgetech.com

Otros manuales para RFOT

Tabla de contenidos

Otros manuales de Registrador de datos de MadgeTech

MadgeTech

MadgeTech Pulse101A Manual de usuario

MadgeTech

MadgeTech HITEMP140-M12 Hoja de especificaciones

MadgeTech

MadgeTech OctProcessV2 Hoja de especificaciones

MadgeTech

MadgeTech AVS140-1 Hoja de especificaciones

MadgeTech

MadgeTech HiTemp140 Series Manual de usuario

MadgeTech

MadgeTech RFCO2RHTemp2000A Hoja de especificaciones

MadgeTech

MadgeTech Event101A Manual de usuario

MadgeTech

MadgeTech HiTemp140-5.25-TD Hoja de especificaciones

MadgeTech

MadgeTech Shock101-5-EB Hoja de especificaciones

MadgeTech

MadgeTech octtemp 2000 Manual de usuario

MadgeTech

MadgeTech CTL2000 Manual de usuario

MadgeTech

MadgeTech HiTemp140X2 Series Hoja de especificaciones

MadgeTech

MadgeTech RFCurrent2000A Hoja de especificaciones

MadgeTech

MadgeTech X Series Hoja de especificaciones

MadgeTech

MadgeTech HiTemp140-FP Hoja de especificaciones

MadgeTech

MadgeTech HiTemp1400 Manual de usuario

MadgeTech

MadgeTech TEMP1000EX Manual de usuario

MadgeTech

MadgeTech Volt101A-160 Hoja de especificaciones

MadgeTech

MadgeTech QuadVoltV2 Hoja de especificaciones

MadgeTech

MadgeTech Titan S8 Hoja de especificaciones

MadgeTech

MadgeTech X Series Hoja de especificaciones

MadgeTech

MadgeTech BRIDGE101A Hoja de especificaciones

MadgeTech

MadgeTech PRHTemp101 Manual de usuario

MadgeTech

MadgeTech RFCO2RHTemp2000A Hoja de especificaciones

Manuales populares de Registrador de datos de otras marcas

TESTO

TESTO 176 Manual de usuario

HT Italia

HT Italia XL421 Manual de usuario

HBM

HBM SOMAT XR CX22B-R Manual de usuario

Agtrix

Agtrix 380i Manual de usuario

Hobo

Hobo H8 Pro Manual de usuario

Beijing ART Tech

Beijing ART Tech PCI2320 Manual de usuario

Athena

Athena GET SL1 Manual de usuario

Motec Systems

Motec Systems C185 Manual de usuario

Beijing ART Tech

Beijing ART Tech USB2832 Manual de usuario

Rotronic

Rotronic HygroLog HL20 Manual de usuario

MRC

MRC DW-6092 Manual de usuario

Racelogic

Racelogic VBOX LapTimer Manual de usuario

Edu-Logger

Edu-Logger 900-240 Manual de usuario

Elma

Elma DT173 Manual de usuario

Comet

Comet U0121M Manual de usuario

pico Technology

pico Technology PT-104 Manual de usuario

Soil Instruments

Soil Instruments GTecLink Manual de usuario

APLICOM

APLICOM A11 Manual de usuario
