AVS140-1

Autoclave Validation Data Logging System

Product User Guide

To view the full MadgeTech product line, visit our website at www.madgetech.com.

Autoclave Validation Data Logging System ..........3

Hardware ............................................................ 4-5

Software .............................................................. 6-7

IQ/OQ/PQ Validation Protocol ............................. 8

System Installation ................................................ 9

Maintenance ....................................................10-11

Table of Contents

Autoclave Validation System

Data Logger Interface & USB Cable Certificate of Calibration

IQ/OQ/PQ

Validation Protocol

Software

USB Cable Calibration CertificatesIFC400

HiTemp140 MadgeTech 4 Secure Software

Data Logger

IQ/OQ/PQ Validation

Protocol Workbook

The AVS140-1 is a complete system used to perform autoclave validations. The AVS140-1 consists of a

high temperature data logger, an IFC400 Interface and the MadgeTech 4 Secure Software providing tools

to users to assist with FDA 21 CFR Part 11 compliance.

BATTERY WARNING: FIRE, EXPLOSION, AND SEVERE BURN HAZARD. DO NOT SHORT CIRCUIT, CHARGE, FORCE OVER DISCHARGE,

CRUSH, PENETRATE, OR INCINERATE. BATTERY MAY LEAK OR EXPLODE IF HEATED ABOVE 150 °C (302 °F).

The HiTemp140 data logger is MadgeTech’s solution for high precision, rugged

temperature monitoring. It can withstand temperatures from -40 °C to 140 °C and has

an accuracy of ±0.1 °C.

The HiTemp140 can store up to 32,700 readings, and features a rigid external probe

capable of measuring extended temperatures, up to 260 °C (500 °F). Custom probe

lengths up to 7 inches are available. Also available, is the HiTemp140-PT that features a

24 inch flexible stainless steel probe for measuring extended temperatures up to 350 °C

(662 °F). The probe is durable and can be spiraled, bent or angled in any direction,

making it easy to log temperatures within bottles, vials or other hard to reach places.

HiTemp140 Product Overview

HiTemp140 Specifications

Hardware

Temperature Sensor: 100 Ω Platinum RTD

Probe Measurement

Range:

HiTemp140:

-200 °C to +260 °C (-328 °F to +500 °F)

HiTemp140-PT:

-200 °C to +350 °C (-328 °F to + 662 °F)

Temperature Resolution: 0.01 °C (0.02 °F)

Calibrated Accuracy:

±0.1 °C/±0.18 °F

(20 °C to +140 °C/68 °F to +284 °F)

±0.3 °C/±0.54 °F

(-20 °C to +19.99 °C/-4 °F to +67.98 °F)

±0.4 °C/±0.72 °F

(-40 °C to -20.01 °C/-40 °F to -4.02 °F)

Reading Rate: 1 second up to once every 24 hours

Memory: 32,700 readings

Battery Life: 1 year typical

(1 minute reading rate at 25 °C/77 °F)

Time Accuracy: ±1 minute/month at 20 °C to 30 °C

(68 °F to 86 °F) (Stand alone mode)

Operating Environment: -40 °C to +140 °C (-40 °F to +284 °F),

0 %RH to 100 %RH

Dimensions (Body): 1.6 in x 0.970 in dia. (40 mm x 24.6 mm dia.)

Submersible: Yes (IP68)

Weight: 4.2 oz (120 g)

Material: 316 Stainless Steel

Approvals: CE

High Temperature Data Logger

HiTemp140-1 HiTemp140-2 HiTemp140-5.25 HiTemp140-7 HiTemp140-PT-1

The IFC400 is an Interface Cable Package for the HiTemp140 Data Logger. Included with the

package is a USB Connection Cable and Docking Station Cradle. The IFC400 Data Logger Interface

allows for a device to be connected to a PC.

IFC400 Product Overview

IFC400 Specifications

Hardware

Operating Environment: -20 °C to +50 °C (-4 °F to +122 °F)

0 %RH to 95 %RH non-condensing

Connection Type: USB (to PC)

Weight: 0.3 lb (140 g)

Material: Acetal Copolymer

Dimensions: 1.95 in x 2.39 in x 1.5 in (49.3 mm x 60.7 mm x 38.1 mm)

Approval: CE

Battery: This device does not use a battery

Interface Cable Package

TheMadgeTech4SecureSowareaids customersin compliancewith21 CFR Part 11 requirements.

The soware ensures standards in which electronic files are considered equivalent to paper

records, saving time and eort. MadgeTech 4 Secure Soware contains criteria such as electronic

signatures, access codes, secure data files, and an audit trail which meet the requirements of 21

CFR Part 11 and help provide data integrity.

MadgeTech provides on-site IQ/OQ/PQ services to help the user validate the data logging system.

Our trained sta are extremely knowledgeable with the standard IQ/OQ/PQ protocols of the

MadgeTech data logging system. This service is a cost-eective means to save time and ensure

proper implementation of IQ/OQ/PQ of the MadgeTech data logging system with a minimal

disruption to sta and operations. Get more information on our IQ/OQ/PQ On-Site Service.

MadgeTech 4 Secure Software

Software

Cooling Flags Copy to ExcelAutomatic Statistics

Calculation

Tabular Data ViewCustomizable Graphs

Workflows

Configure routine data logging tasks to run

while you are free to do other things. The

Workflows feature enables the automation of

tasks such as creating reports, downloading

data, starting and stopping devices or even

sending email notifications!

Time Markers

Easily mark a desired point in time on any

report using Time Markers. Time Markers

appear as a vertical line in a graph or a colored

row in a data table, Time Markers can help

to organize dierent stages or cycles within

your process or any reference points critical to

interpreting your data as desired.

Advanced Statistics

MadgeTech 4 Secure Soware has expanded

to oer more options and statistics available

for data analysis.

• Time until threshold statistics

• Sterilization Data (F0 and A0)

• Default statistic settings

Great New Features

The MadgeTech 4 Secure Soware is a powerful, intuitive tool containing features that are designed to save on both time

and headaches. Both management and users will find MadgeTech’s new soware exciting: users will love the familiar

interface and numerous shortcuts, while management will appreciate the increased data security and time-saving

elements. Some of the most highly-anticipated new features include:

Administrator & User Settings

Users can be given two levels of access,

either administrator or user. Administrators

have access to all the security settings, while

users only have access to communicate with

the data loggers and analyze data.

be assigned within the Login tab. There are

numerous password and account settings

for the administrator to set such as the

complexity of the password and status of

each user account. The user management

tab is only available to administrative users.

Groups

Users and Administrators can be assigned to

Groups and can be easily maintained using a

variety of permissions.

Audit Trail

An Audit Trail is kept automatically with

information such as who has logged in and

out, what files were downloaded, save, printed

etc. Each record is date and time stamped and

includes the user information.

Electronic Signature

By clicking the Electronic Signature button,

users and administrators can add electronic

signatures. The electronic signature contains

the printed name of the signer, date and

time of the signing and the meaning of the

signing.

IQ/OQ/PQ

Installation Qualification (IQ)

• A description of the MadgeTech system

• Verification that all MadgeTech system equipment, soware and accessories are

received in good condition

• A check for complete documentation

• Verification that the installation of MadgeTech equipment is completed properly

• Verification that MadgeTech 4 Secure Soware is installed properly on the target

workstation

• Verification of basic communication between MadgeTech data logger(s) and the

target workstation(s)

Operational Qualification (OQ)

• Functional verification of MadgeTech data loggers

• Handling and maintenance information for the use of MadgeTech equipment

• MadgeTech operating procedures for primary functions

• Verification of proper communication between the MadgeTech data logger(s) and

the workstation(s)

• Verification that the data logger hardware is operational

Performance Qualification (PQ) Recommendation

• Additional handling precautions for maintaining the accuracy of MadgeTech equipment

• Periodic maintenance information for the use of MadgeTech equipment

• Periodic calibration verification in the field

• Comparison of the reported values to a known good standard

• Verification of acceptable performance in the target system

Meeting compliance with regulations for the FDAs Good Manufacturing Practices, or those set forth in Quality Plans, has become increasingly

complex. MadgeTech has simplified this process by including IQ/OQ/PQ protocols with its MadgeTech 4 Secure Soware package.

This enormous time and money saving feature eliminates the need to develop in-house soware validation procedures. The MadgeTech IQ/OQ/

PQ protocol is in support of FDA and cGMP guidelines. In addition, MadgeTech oers a Soware Validation Workbook to help the user verify the

functionality of the soware.

IQ/OQ/PQ Validation Protocol

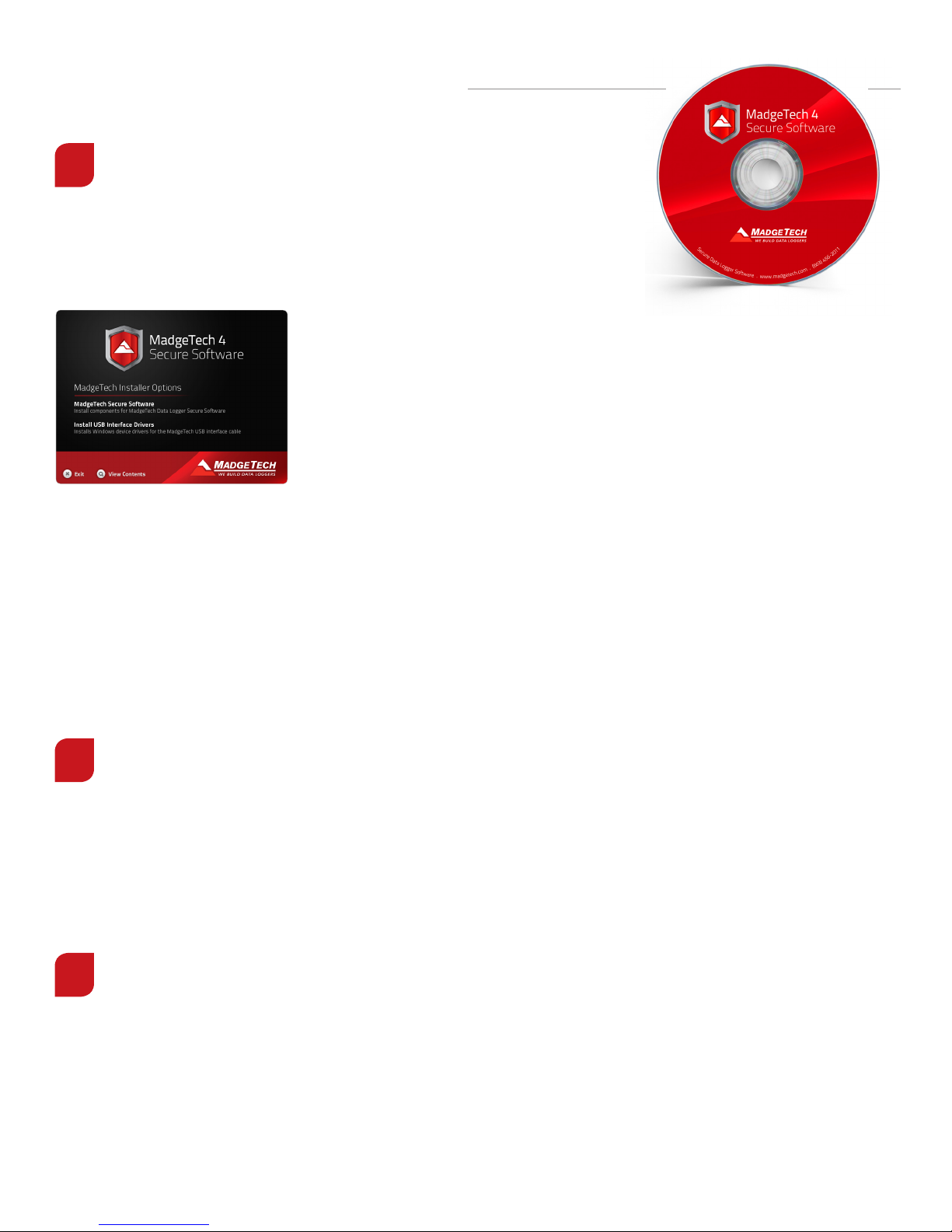

Installing the Software

System Installation

1. Inserting the MadgeTech 4 Secure Soware CD into the CD drive on the Windows PC.

An autorun window should appear. If the autorun does not appear, locate the drive on the

computer by selecting the Start menu and choosing Computer or My Computer. Browse to the

CD drive and select the autorun.exe file. For Windows 7 and Windows 8 users, a dialog box may

appear with a list of options. Select Open Folder to View Files and select the autorun.exe file.

2. The MadgeTech 4 Secure Soware Setup Screen will display with options as shown to the le.

3. Installing the Windows Driver

To install the drivers for the IFC406, click on the Install USB Interface Drivers link on the MadgeTech

Installer Options window panel. A window will appear prompting for a directory and to start the

installation. The default directory is C:\Program Files\MTI-USB\Datalogger Interface. If you choose

to change the location of the install directory, select the Change Install Location button. Once you

have the install location set click the Install button to start the installation.

4. Installing the .NET 4.0 Framework

If the Windows PC doesn’t already have .NET 4.0 Framework, installation may be required. If you are running Windows 8, these components are

already installed. To see if the .NET 4.0 Framework is already installed on the Windows PC, go to the Windows Control Panel and select Programs.

“Microso .NET Framework 4.0” would be listed as a Windows program. If the Windows PC doesn’t already have .NET 4.0 Framework, click on

MadgeTech Secure Soware and then select Install .Net 4.0 Framework to install.

5. Installing the MadgeTech 4 Secure Soware

Click on MadgeTech Secure Soware and then select Install MadgeTech Secure Soware. Follow the MadgeTech 4 Secure Setup Wizard on-screen

prompts to complete the installation. The installation of MadgeTech 4 Secure Soware is complete!

Connecting the Data Logger Interface

Test the Data Logger Interface Operation

1. Remove the Warning Label on the IFC406 to expose the USB connector.

2. Connect one end of the USB cable to the USB port of the IFC400.

3. Connect the other end to a USB port on your PC. When the IFC400 is plugged in, a New Hardware Found message will appear in the lower right

corner of your screen. The new drivers will automatically configure themselves for use with the interface cable. A message will then appear that

the new hardware is installed and ready to use.

4. The installation of the USB data logger interface is complete!

To verify that the USB Interface drivers are installed properly, check to ensure the Data Logger Soware can recognize a device.

1. When the interface cable is connected to the PC the blue LED power indicator light should be on.

If the indicator light is not on, unplug the interface cable, wait 5 seconds and plug it back into the PC.

2. Start the MadgeTech 4 Secure Soware.

3. Your device(s) should be listed in the Connected Devices Panel.

Battery Replacement

Materials needed: ER1425S-HT Lithium Battery

Battery Replacement Procedure:

1. Unscrew the end cap of the data logger to expose the battery.

2. Remove the battery.

3. Place the new battery into the data logger. Note the polarity of the battery.

4. Tightly screw the data logger back together until the O-Rings are no longer visible.

BATTERY WARNING: DISCARD USED BATTERY PROMPTLY. KEEP OUT OF REACH OF CHILDREN. DO NOT DISPOSE OF IN FIRE, RECHARGE, PUT IN

BACKWARDS, DISASSEMBLE, OR MIX WITH OTHER BATTERY TYPES. MAY EXPLODE, FLAME, OR LEAK AND CAUSE PERSONAL INJURY.

Data Logger Maintenance

Recalibration

Recalibration is recommended annually for all MadgeTech data loggers. The Properties window in the MadgeTech 4 Secure Soware displays the

date of the last calibration and the date that the device is next due for calibration. The MadgeTech 4 Secure Soware can also be configured to

send an on screen notification prior to the calibration due date for each device. By default this is set to seven days prior to calibration due date

and can be changed by the user by going to the File tab in the MadgeTech 4 Secure Soware and clicking on Options. Select Device and check

“Display popup notification when a device nears its next calibration date”. The user can then select the number of days before calibration due

date to notify.

HiTemp140 Standard Calibrations Points: 2 points at 30 °C and 140 °C.

Use the MadgeTech RMA System to submit the device for recalibration.

RMA Instructions

To send a device back in to MadgeTech, follow the instructions below to create an RMA (Return Merchandise Authorization) on the MadgeTech website:

1. Visit www.madgetech.com, click on the Services tab, and select RMA Process.

2. When the web page opens, please sign in. If this is the first time, select Create an Account and create one. Once signed in, click on the Make New

RMA button.

3. Complete the applicable fields on the form including customer Billing and Shipping information, even if they are the same. Please see the field

explanation below for a more detailed description about questions asked in the Device Information section.

4. When all of the fields are complete, click Generate RMA.

5. Print out the confirmation page that follows containing the RMA number and MadgeTech’s address for shipping. A Return Merchandise

Authorization must be accompanied by a copy of the RMA paperwork and shipping is prepaid by the customer. The RMA number should be

clearly marked on the outside of the package.

6. Please ship the package via UPS, FedEx, TNT, or DHL to the address listed on the confirmation page. USPS will not ship MadgeTech data loggers.

7. A notification email will be automatically sent when MadgeTech has received the RMA.

Prices and specifications subject to change. See MadgeTech’s terms and conditions at www.madgetech.com.

To send the devices back, visit www.madgetech.com, select Services then RMA Process.

Tabla de contenidos

Otros manuales de Registrador de datos de MadgeTech

MadgeTech

MadgeTech Volt101A-160 Hoja de especificaciones

MadgeTech

MadgeTech VFC2000-MT Hoja de especificaciones

MadgeTech

MadgeTech Volt101A-15V Manual de usuario

MadgeTech

MadgeTech RTDTempX Series Hoja de especificaciones

MadgeTech

MadgeTech Volt101A Manual de usuario

MadgeTech

MadgeTech IC-RFCO2RH Hoja de especificaciones

MadgeTech

MadgeTech PRTrans1000 Hoja de especificaciones

MadgeTech

MadgeTech HiTemp140 Series Manual de usuario

MadgeTech

MadgeTech RFCO2RHTemp2000A Hoja de especificaciones

MadgeTech

MadgeTech Temp1000IS Hoja de especificaciones

MadgeTech

MadgeTech Process101A 20mA Hoja de especificaciones

MadgeTech

MadgeTech RHTEMP1000EX Hoja de especificaciones

MadgeTech

MadgeTech RFRTDTemp2000A Hoja de especificaciones

MadgeTech

MadgeTech State101A Hoja de especificaciones

MadgeTech

MadgeTech EggTemp-RH Manual de usuario

MadgeTech

MadgeTech Logicbus Temp1000Ex Hoja de especificaciones

MadgeTech

MadgeTech MadgeNET RFTemp2000A Hoja de especificaciones

MadgeTech

MadgeTech PRTemp140 Hoja de especificaciones

MadgeTech

MadgeTech HITEMP140-PT Hoja de especificaciones

MadgeTech

MadgeTech Event101A Manual de usuario

MadgeTech

MadgeTech RHTEMP1000IS Hoja de especificaciones

MadgeTech

MadgeTech PR1000IS Series Hoja de especificaciones

MadgeTech

MadgeTech LF101A Hoja de especificaciones

MadgeTech

MadgeTech Shock101 Manual de usuario

Manuales populares de Registrador de datos de otras marcas

TESTO

TESTO 176 Manual de usuario

HT Italia

HT Italia XL421 Manual de usuario

HBM

HBM SOMAT XR CX22B-R Manual de usuario

Agtrix

Agtrix 380i Manual de usuario

Hobo

Hobo H8 Pro Manual de usuario

Beijing ART Tech

Beijing ART Tech PCI2320 Manual de usuario

Athena

Athena GET SL1 Manual de usuario

Motec Systems

Motec Systems C185 Manual de usuario

Beijing ART Tech

Beijing ART Tech USB2832 Manual de usuario

Rotronic

Rotronic HygroLog HL20 Manual de usuario

MRC

MRC DW-6092 Manual de usuario

Racelogic

Racelogic VBOX LapTimer Manual de usuario

Edu-Logger

Edu-Logger 900-240 Manual de usuario

Elma

Elma DT173 Manual de usuario

Comet

Comet U0121M Manual de usuario

pico Technology

pico Technology PT-104 Manual de usuario

Soil Instruments

Soil Instruments GTecLink Manual de usuario

APLICOM

APLICOM A11 Manual de usuario
