FREEDOM FOCUS™ PRODUCT MANUAL
Product Manual for
FREEDOM FOCUS™
MERCHANDISE THEFT DETERRENT SYSTEM
DO NOT REMOVE FROM STORE
Contents
1. Components And Accessories 2
2. Attach Baseplate 3
3. Mounting Riser to Fixture 4
4. Merchandising - Shell 1 5
5. Merchandising - Shell 2 7
6. Removal 10
7. Optional Len Sensor 11
8. Connecting Power 11
9. RFID Card Programming 12
10. RFID Card Operation 12
11. Dimensions 14
12. FCC and ISED Statement 16
For additional support, please reach out to our
Contact Center at 800-426-6844
CONTENTS
WARNING: MTI products contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
Proposition 65, California Health & Safety Code Section 25249.6 et seq. Visit oehha.ca.gov for more information.
-CONTROLLED DOCUMENT- 063-00370 A-0 Status: Approved
2
MTI P/N 063-00370 rev A ©2021 MTI All Rights Reservedwww.MTIGS.com | T:800.426.6844
FREEDOM FOCUS™ PRODUCT MANUAL
VHB Mounting Plate* Through Hole/Slot Adapter*
Charge Cable (varies)
Shell 2*
Shell 1Freedom Focus™ RiserFreedom Focus™ Puck
*Optional *Optional*Optional
MTI Retail ToolPower Supply
COMPONENTS AND ACCESSORIES
Use only power supply with output rating 5.9Vdc
3.5A max. of PS2, or LPS.
Utilisez uniquement une alimentation 5,9 V
3,5 A MTI, ne dépassez pas PS 2. D’autres
spécifications peuvent causer des dommages.
-CONTROLLED DOCUMENT- 063-00370 A-0 Status: Approved
3
MTI P/N 063-00370 rev A ©2021 MTI All Rights Reservedwww.MTIGS.com | T:800.426.6844
FREEDOM FOCUS™ PRODUCT MANUAL
2 31
1 2 Secure the baseplate using the MTI Retail Tool.
Secure the baseplate using the
MTI Retail Tool.
Align the VHB Baseplate to the bottom of the riser
and insert the 4 included screws into the holes in the
baseplate and riser.
Align the Through Hole Baseplate
to the bottom of the riser and
secure with four M3 screws.
If using the optional slot adapter
plate, attach to baseplate using
two M2.5 screw.
ATTACH BASEPLATE - THROUGH HOLE
ATTACH BASEPLATE - VHB
-CONTROLLED DOCUMENT- 063-00370 A-0 Status: Approved
4
MTI P/N 063-00370 rev A ©2021 MTI All Rights Reservedwww.MTIGS.com | T:800.426.6844
FREEDOM FOCUS™ PRODUCT MANUAL
2 31
1 2
MOUNTING RISER TO FIXTURE - THROUGH HOLE
MOUNTING RISER TO FIXTURE - VHB
Place riser in the desired location. Apply pressure for
60 seconds for full VHB adhesion.
Peel the red lm off of the VHB.
Insert the position into the slot or
hole.
Place the power cable into the
slot on the bottom plate, then
slide it up over the slot adapter
post.
Secure the position with the
knob.
-CONTROLLED DOCUMENT- 063-00370 A-0 Status: Approved
5
MTI P/N 063-00370 rev A ©2021 MTI All Rights Reservedwww.MTIGS.com | T:800.426.6844
FREEDOM FOCUS™ PRODUCT MANUAL
1
3
2
4

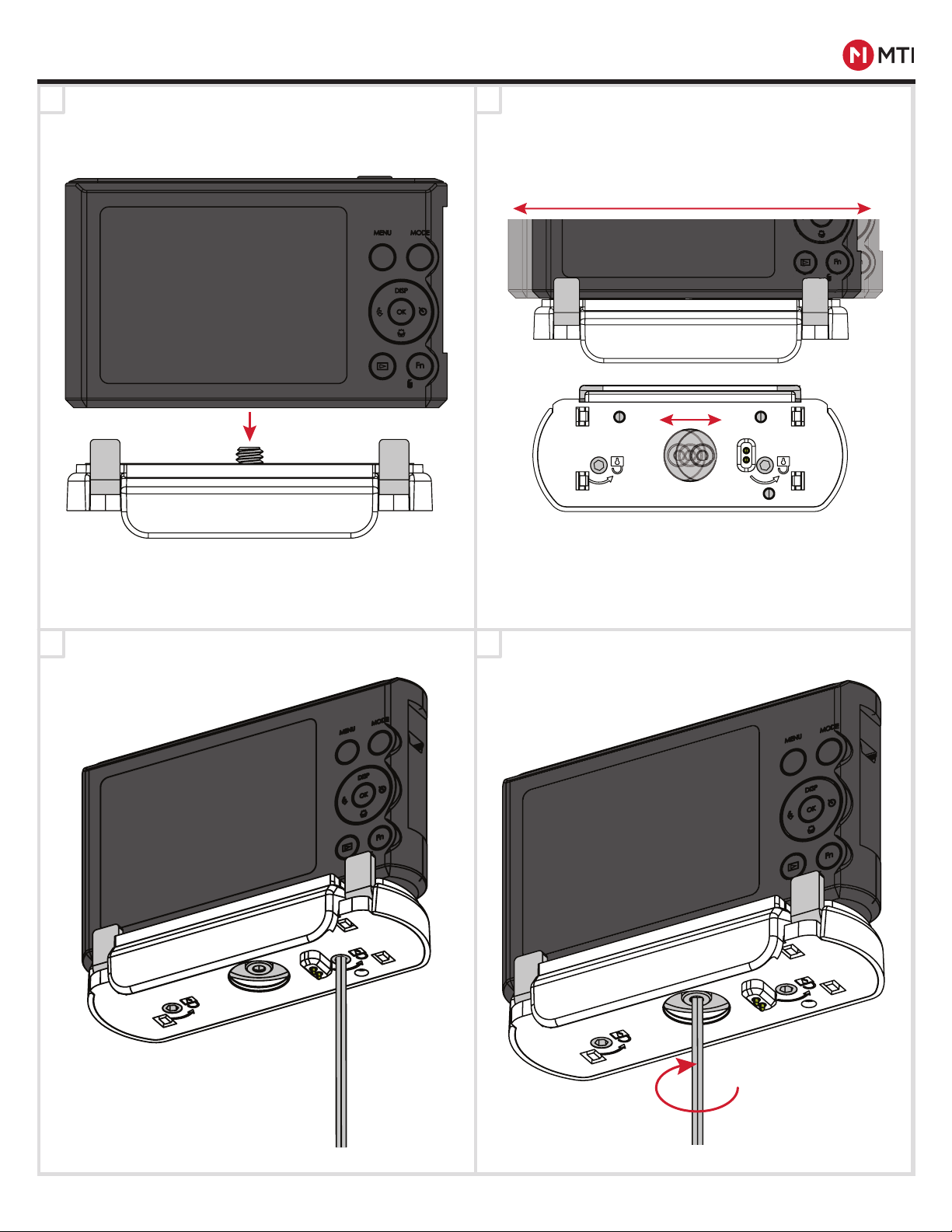

MERCHANDISING - SHELL 1
Due to oating design of mounting screw, camera can
be adjusted to ensure camera is mostly centered.
Secure the camera to Shell 1 using the MTI Retail
Tool.
Place the camera onto the tripod mount screw on the
shell.
Adjust anti-rotation arms until they are against the
camera and secure them using the MTI Retail Tool.
-CONTROLLED DOCUMENT- 063-00370 A-0 Status: Approved
6
MTI P/N 063-00370 rev A ©2021 MTI All Rights Reservedwww.MTIGS.com | T:800.426.6844
FREEDOM FOCUS™ PRODUCT MANUAL
87
65
MERCHANDISING - SHELL 1
Connect the charging cable to the camera. Insert
USB-C end of cable into puck until it clicks, indicating
it is locked in place.
Insert tether end into puck until it clicks, indicating it
is locked in place.
Secure Shell 1 and camera to the Freedom Focus
puck using the MTI Retail Tool.
Pull tether end out of riser.
-CONTROLLED DOCUMENT- 063-00370 A-0 Status: Approved
7
MTI P/N 063-00370 rev A ©2021 MTI All Rights Reservedwww.MTIGS.com | T:800.426.6844
FREEDOM FOCUS™ PRODUCT MANUAL
1
3
2
4
MERCHANDISING - SHELL 2
Plug in charge cable, routing the wire through the
channel to either side of puck. This will depend on
where the battery door is located on for your camera.
Insert battery eliminator into camera and close battery
door.
Remove the rubber cover from Shell 2.
Replace the rubber cover on Shell 2.
-CONTROLLED DOCUMENT- 063-00370 A-0 Status: Approved
8
MTI P/N 063-00370 rev A ©2021 MTI All Rights Reservedwww.MTIGS.com | T:800.426.6844
FREEDOM FOCUS™ PRODUCT MANUAL
7 8
65
MERCHANDISING - SHELL 2
Due to oating design of mounting screw, camera can
be adjusted to ensure camera is mostly centered.
Due to oating design of mounting screw, camera can
be adjusted to ensure camera is mostly centered.
Plug in charge cable, routing the wire through the
channel to either side of puck. This will depend on
where the battery door is located on for your camera.
Place the camera onto the tripod mount screw on the
shell.
-CONTROLLED DOCUMENT- 063-00370 A-0 Status: Approved
9
MTI P/N 063-00370 rev A ©2021 MTI All Rights Reservedwww.MTIGS.com | T:800.426.6844
FREEDOM FOCUS™ PRODUCT MANUAL
109

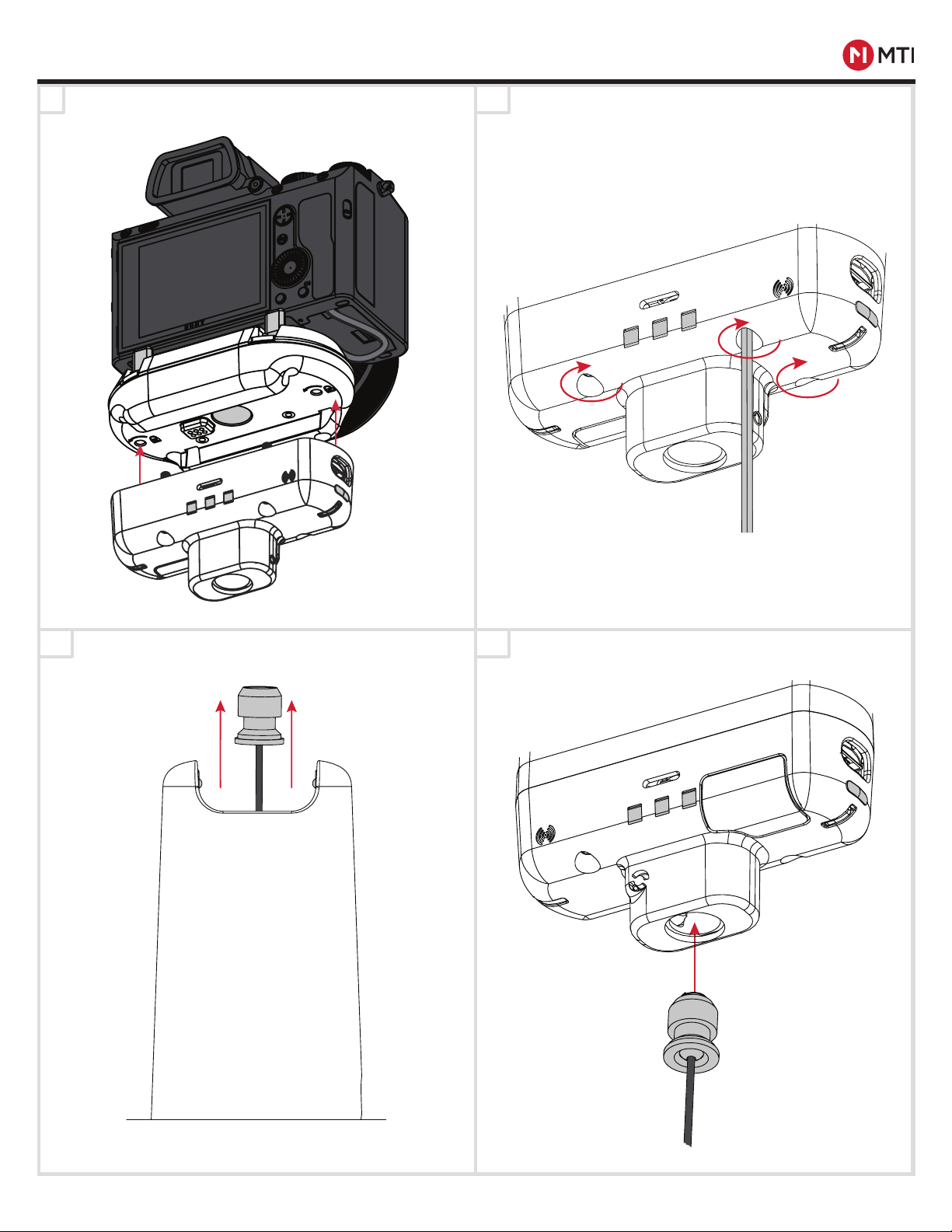

MERCHANDISING - SHELL 2
1211 Insert tether end into puck until it clicks, indicating it
is locked in place.
Secure Shell 1 and camera to the Freedom Focus
puck using the black handled tool MTI Retail Tool.
Pull tether end out of riser.
Place Shell 2 and camera onto the Freedom Focus
puck.
-CONTROLLED DOCUMENT- 063-00370 A-0 Status: Approved
10
MTI P/N 063-00370 rev A ©2021 MTI All Rights Reservedwww.MTIGS.com | T:800.426.6844
FREEDOM FOCUS™ PRODUCT MANUAL
1
2
2 3
1
1
2 3
PUCK REMOVAL
CHARGE CABLE REMOVAL
Remove the charge cable.After disarming the system, use an RFID card to
press the release button on the bottom of the puck.
VHB POSITION REMOVAL
Twist the MTI Retail Tool clockwise
45 degrees and hold it in place.
Insert the crescent end of the
MTI Retail Tool into the opening
under the RFID symbol on the
puck.
Remove the tether from the puck.
-CONTROLLED DOCUMENT- 063-00370 A-0 Status: Approved
